2026-07-10 Latest Published
By Haoye Qin Zijin Yang Xinyang Mu Wenjing Lv Jue Li Yuzhi Shi Bo Li Qinghua Song Cheng-Wei Qiu
PIER Photonics, Vol. 1, 3 - 9, 2026
Abstract
Singular optics are commonly explored through scalar or vectorial singularities, whereas matrix-level singularities remain far less developed for wave manipulations. Here, we experimentally demonstrate polarization-addressable singular Jones metasurfaces using reflective plasmonic nanostructures. By engineering polarization conversion in the reflection subspace, the Jones matrix can be driven to a singular condition, mapping an incident polarization eigenstate to a vectorial zero output. The corresponding eigen-polarization can be addressed across the Poincaré sphere by tailoring meta-atom geometries. Encircling the singularity in a two-dimensional parameter space can yield a full 2π topological phase winding, enabling dual-channel meta-holography and vortex generation. Extreme coupling breaking further produces circularly polarized zero-output eigenstates, revealing chiral Jones singularities. These results establish singular Jones metasurfaces as a compact platform for matrix-level singular optics, polarization-selective extinction, topological wavefront shaping, and chiral light-matter interactions.
2026-07-10
PIER Photonics
Vol. 1, 3 - 9, 2026
download: 0

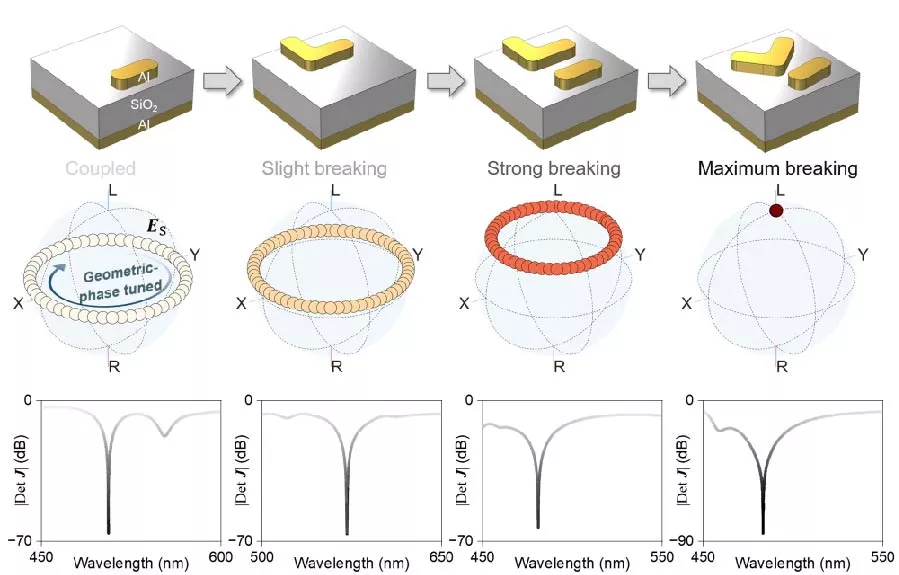

Polarization-Addressable Singular Jones Metasurfaces
Haoye Qin, Zijin Yang, Xinyang Mu, Wenjing Lv, Jue Li, Yuzhi Shi, Bo Li, Qinghua Song and Cheng-Wei Qiu
Singular optics are commonly explored through scalar or vectorial singularities, whereas matrix-level singularities remain far less developed for wave manipulations. Here, we experimentally demonstrate polarization-addressable singular Jones metasurfaces using reflective plasmonic nanostructures. By engineering polarization conversion in the reflection subspace, the Jones matrix can be driven to a singular condition, mapping an incident polarization eigenstate to a vectorial zero output. The corresponding eigen-polarization can be addressed across the Poincaré sphere by tailoring meta-atom geometries. Encircling the singularity in a two-dimensional parameter space can yield a full 2π topological phase winding, enabling dual-channel meta-holography and vortex generation. Extreme coupling breaking further produces circularly polarized zero-output eigenstates, revealing chiral Jones singularities. These results establish singular Jones metasurfaces as a compact platform for matrix-level singular optics, polarization-selective extinction, topological wavefront shaping, and chiral light-matter interactions.
Polarization-Addressable Singular Jones Metasurfaces
2026-07-10
PIER Photonics
Vol. 1, 1-2, 2026
download: 4
PIER Photonics --- Focusing on the Frontiers and Hot Topics
Sailing He
PIER Photonics is committed to covering the frontiers and hot topics in photonics. The journal will feature content in four categories: (1) Editorial, Highlights & Comments; (2) Research Articles; (3) Review Articles; and (4) Perspectives, providing a comprehensive platform for the latest advances and emerging trends in the field.
PIER Photonics --- Focusing on the Frontiers and Hot Topics
