2025-04-21
Optimizing Wireless Power Transfer Efficiency at 13.56 MHz Using Double Negative Metamaterials
By
Progress In Electromagnetics Research B, Vol. 111, 125-133, 2025
Abstract

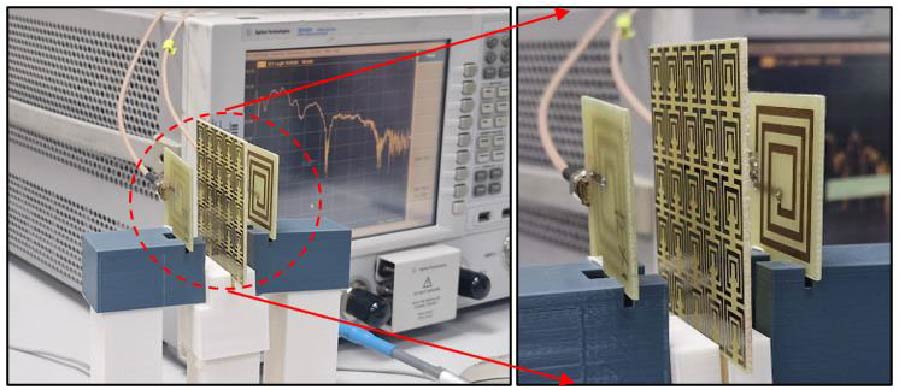

Recent advancements and innovations in wireless power transfer (WPT) technology have led to an increased demand for systems with high power transfer efficiency (PTE) and extended transmission distances to meet the needs of end users. However, many existing WPT systems suffer from limited PTE and restricted transmission ranges due to their reliance on inductive coupling. A significant drawback of inductive coupling is the sharp decline in PTE as the distance between the transmitter and receiver coils increases. To address these limitations, this study proposes the design of an inductive WPT system enhanced by the integration of metamaterials (MTMs) to improve PTE through magnetic field manipulation. By strategically positioning MTMs between the transmitter (Tx) and receiver (Rx) coils, the efficiency and range of WPT systems can be significantly enhanced. MTMs exhibit unique properties, such as negative refraction and evanescent wave amplification, which are particularly promising for improving PTE in WPT systems. At a separation distance of 70 mm, the implementation of negative permittivity MTMs and double-negative MTMs yields a remarkable improvement in PTE, achieving an increase of 180% compared to a conventional WPT system without MTM integration. Systems with MTM maintain better PTE at increasing lateral and angular misalignments, but at 90° misalignment, power transfer is almost impossible, even with MTM, due to complete misalignment of the fields.This study aims to provide a comprehensive analysis of the development and performance of negative permittivity and double-negative MTM-based WPT systems, offering critical insights into their potential for enhancing WPT efficiency and range.
Citation
Muhammad Sukriyllah Yusri, Mohamad Harris Misran, Maizatul Alice Meor Said, Mohd Azlishah Othman, Azahari Salleh, Ridza Azri Ramlee, Sharul Kamal Abdul Rahim, and Mohd Zahid Idris, "Optimizing Wireless Power Transfer Efficiency at 13.56 MHz Using Double Negative Metamaterials," Progress In Electromagnetics Research B, Vol. 111, 125-133, 2025.
doi:10.2528/PIERB24122701
References

1. Yusri, Muhammad Sukriyllah, Mohamad Harris Misran, Norbayah Yusop, Maizatul Alice Meor Said, Mohd Azlishah Othman, and Shadia Suhaimi, "Transfer efficiency enhancement on wireless power transfer using metamaterial," 2023 International Conference on Information Technology (ICIT), 724-729, Amman, Jordan, 2023.

2. Zheng, Zonghua, Xin Fang, Yitian Zheng, and Haoming Feng, "A wireless power transfer system based on dual-band metamaterials," IEEE Microwave and Wireless Components Letters, Vol. 32, No. 6, 615-618, 2022.

3. Rong, Cancan, Lihui Yan, Long Li, Yunhui Li, and Minghai Liu, "A review of metamaterials in wireless power transfer," Materials, Vol. 16, No. 17, 6008, 2023.

4. Wang, Meng, Mengmeng Wang, Yanyan Shi, Jingjing Guo, Guangcheng Song, and Renliang Yin, "Design of new metamaterial with negative permeability for efficient wireless power transfer," International Journal of Circuit Theory and Applications, Vol. 51, No. 11, 5026-5037, 2023.

5. Zhou, Jiafeng, Pei Zhang, Jiaqi Han, Long Li, and Yi Huang, "Metamaterials and metasurfaces for wireless power transfer and energy harvesting," Proceedings of the IEEE, Vol. 110, No. 1, 31-55, 2022.
doi:10.1109/JPROC.2021.3127493

6. Lu, Shiqi, Hao Xue, Kunyi Zhang, Fangjie Cheng, and Long Li, "Design of a metamaterial for a magnetic resonance wireless power transfer system," 2022 International Conference on Microwave and Millimeter Wave Technology (ICMMT), 1-3, Harbin, China, 2022.

7. Mahmud, Sultan, Ali Nezaratizadeh, and Adam Khalifa, "Enhancing wireless power transfer efficiency for implantable medical devices using metamaterial," 2024 IEEE Wireless Power Technology Conference and Expo (WPTCE), 414-418, Kyoto, Japan, 2024.

8. Ji, Xiaozhe, Jingchen Wang, Ka Lok Man, Eng Gee Lim, Yutao Yue, Jiafeng Zhou, Mark Leach, and Zhao Wang, "Design of metamaterial using split-ring resonators for efficiency enhancement of wireless power transmission," 2024 IEEE MTT-S International Wireless Symposium (IWS), 1-3, Beijing, China, 2024.

9. Fan, Xingming, Haonan Zhang, and Xin Zhang, "Analysis of transmission performance on wireless power transfer system with metamaterial," International Journal of Microwave and Wireless Technologies, Vol. 16, No. 1, 83-91, 2023.

10. Jiang, Xin, Ramesh K. Pokharel, Adel Barakat, and Kuniaki Yoshitomi, "Wideband stacked metamaterial for a compact and efficient dual-band wireless power transfer," 2022 IEEE/MTT-S International Microwave Symposium --- IMS 2022, 198-201, Denver, CO, USA, 2022.

11. Zhou, Jiali, Heng Zhang, and Chi-Kwan Lee, "Boosting efficiency of wireless power transfer in a near-to-receiver manner: Metamaterials versus relay coils," 2023 IEEE International Future Energy Electronics Conference (IFEEC), 203-207, Sydney, Australia, 2023.

12. Adepoju, Webster, Indranil Bhattacharya, Mary Sanyaolu, Muhammad Enagi Bima, Trapa Banik, Ebrahim N. Esfahani, and Olatunji Abiodun, "Critical review of recent advancement in metamaterial design for wireless power transfer," IEEE Access, Vol. 10, 42699-42726, 2022.

13. Amjad, Muhammad, Muhammad Farooq-i-Azam, Qiang Ni, Mianxiong Dong, and Ejaz Ahmad Ansari, "Wireless charging systems for electric vehicles," Renewable and Sustainable Energy Reviews, Vol. 167, 112730, 2022.

14. Yu, Chenyin, Shuhui Yang, Yinchao Chen, and Wensong Wang, "Investigation of a quad-band microstrip antenna using a DNG-MTM radiation patch," Journal of Electromagnetic Waves and Applications, Vol. 37, No. 7-9, 871-883, 2023.
