Abstract

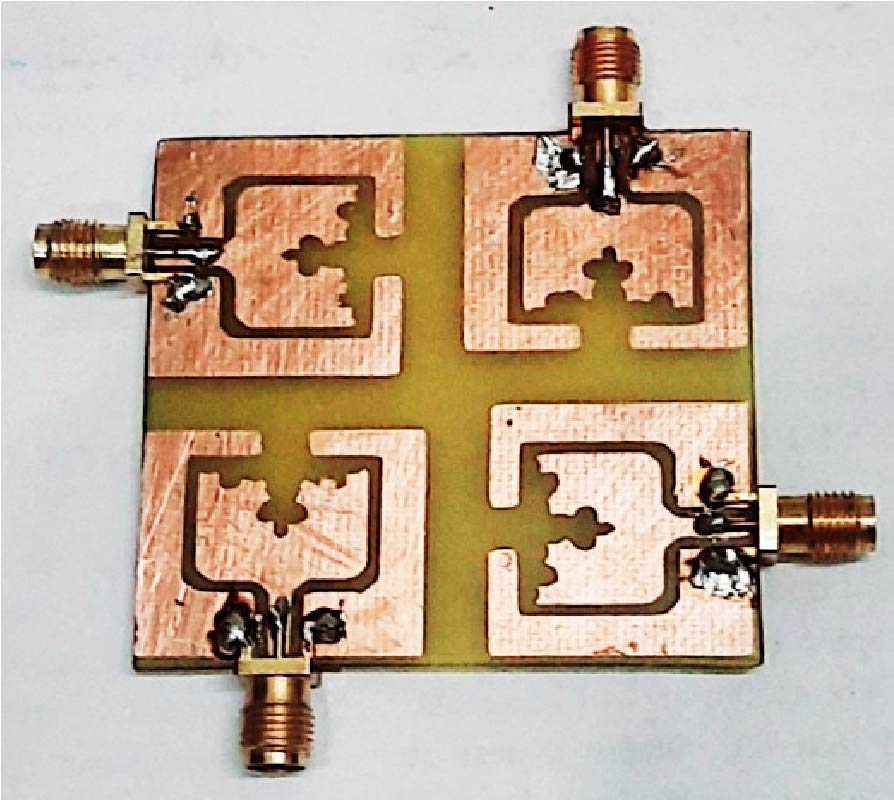

An innovative four-port Coplanar Waveguide (CPW) Multi-Input Multi-Output Antenna (MIMOA) based on a Koch Curve Fractal (KCF) with high isolation is proposed in this article. The High Frequency Structure Simulator (HFSS) is used for performance analysis and parametric optimization. Initially, a KCF-based CPW-fed single-element patch antenna is designed, which is later transformed into a four-port MIMOA (FPMIMOA). The proposed MIMOA is fabricated on an FR4 substrate and offers a wide impedance bandwidth of 1.23 GHz (4.46-5.69 GHz), centered at 4.92 GHz. It exhibits excellent diversity performance, including a Channel Capacity Loss (CCL) of less than 0.4 bits/s/Hz, an Envelope Correlation Coefficient (ECC) below 0.004, a Diversity Gain (DG) greater than 9.8, a Mean Effective Gain (MEG) below 3 dB, and a Total Active Reflection Coefficient (TARC) less than -20 dB from port 1 to the other ports. It also demonstrates an isolation level of 28 dB across the operating band. Furthermore, the proposed MIMOA achieves a high radiation efficiency (η) of 94% and a gain of 3.14 dBi. The antenna has been fabricated and experimentally tested to validate the simulated results. This MIMOA is suitable for applications such as public safety, the 5G sub-6 GHz band (4.8-5.0 GHz), and the 5.2 GHz Wireless LAN (5.15-5.35 GHz).

1. Kumar, Ashish, Ashwini Kumar, and Ahmed Jamal Abdullah Al-Gburi, "Development of semi-circular corner cut MIMO antenna for 5G-advanced and 6G automotive wireless applications," Results in Engineering, Vol. 25, 103805, Mar. 2025. Google Scholar

2. Kumar, Ashish, Gurmeet Singh, Muhannad K. Abdulhameed, Sarah R. Hashim, and Ahmed J. A. Al-Gburi, "Development of fractal 5G MIMO antenna for sub 6 GHz wireless automotive applications," Progress In Electromagnetics Research M, Vol. 130, 121-128, 2024.
doi:10.2528/PIERM24102403 Google Scholar

3. Jemaludin, N., Ahmed Jamal Abdullah Al-Gburi, Rania Hamdy Elabd, Tale Saeidi, Muhammad Firdaus Akbar, Imran Mohd Ibrahim, and Zahriladha Zakaria, "A comprehensive review on MIMO antennas for 5G smartphones: Mutual coupling techniques, comparative studies, SAR analysis, and future directions," Results in Engineering, Vol. 23, 102712, 2024. Google Scholar

4. Elabd, Rania Hamdy and Ahmed Jamal Abdullah Al-Gburi, "Low mutual coupling miniaturized dual-band quad-port MIMO antenna array using decoupling structure for 5G smartphones," Discover Applied Sciences, Vol. 6, No. 4, 189, 2024. Google Scholar

5. Kumar, Praveen, Ajit Kumar Singh, Ranjeet Kumar, Santosh Kumar Mahto, Pravesh Pal, Rashmi Sinha, Arvind Choubey, and Ahmed Jamal Abdullah Al-Gburi, "Design and analysis of low profile stepped feedline with dual circular patch MIMO antenna and stub loaded partial ground plane for wireless applications," Progress In Electromagnetics Research C, Vol. 140, 135-144, 2024.
doi:10.2528/PIERC23121201 Google Scholar

6. Kumar, P. Surendra and B. Chandra Mohan, "Design of a compact two element MIMO antenna with improved bandwidth and isolation," 2015 International Conference on Microwave, Optical and Communication Engineering (ICMOCE), 389-392, Bhubaneswar, India, Dec. 2015.

7. Sohi, Arashpreet K. and Amanpreet Kaur, "Slot and SRR-loaded quad-port, hen-shaped fractal UWB-MIMO antenna with quad band-reject ability for handheld 4G/5G wireless devices," Iranian Journal of Science and Technology, Transactions of Electrical Engineering, Vol. 47, No. 3, 1187-1205, Mar. 2023. Google Scholar

8. Anitha, R., P. V. Vinesh, K. C. Prakash, P. Mohanan, and K. Vasudevan, "A compact quad element slotted ground wideband antenna for MIMO applications," IEEE Transactions on Antennas and Propagation, Vol. 64, No. 10, 4550-4553, 2016. Google Scholar

9. Barani, Imee Ristika Rahmi and Kin-Lu Wong, "Integrated inverted-F and open-slot antennas in the metal-framed smartphone for 2 × 2 LTE LB and 4 × 4 LTE M/HB MIMO operations," IEEE Transactions on Antennas and Propagation, Vol. 66, No. 10, 5004-5012, 2018. Google Scholar

10. Sarkar, Debdeep, Kushmanda Saurav, and Kumar Vaibhav Srivastava, "A compact dual band four element MIMO antenna for pattern diversity applications," 2016 IEEE 5th Asia-Pacific Conference on Antennas and Propagation (APCAP), 273-274, Kaohsiung, Taiwan, Jul. 2016.

11. Rosaline, Imaculate, Arvind Kumar, Prashant Upadhyay, and Abu Hena Murshed, "Four element MIMO antenna systems with decoupling lines for high‐speed 5G wireless data communication," International Journal of Antennas and Propagation, Vol. 2022, No. 1, 9078929, Jun. 2022. Google Scholar

12. Kumar, Ashwini, Ved Prakash, Suresh Chandra Padhy, et al., "Four port MIMO antenna for IoT applications in public safety band and sub-6 GHz TDD 5G band," Engineering Research Express, Vol. 6, No. 1, 015309, 2024. Google Scholar

13. Elabd, Rania Hamdy and Ahmed Jamal Abdullah Al-Gburi, "Super-compact 28/38 GHz 4-port MIMO antenna using metamaterial-inspired EBG structure with SAR analysis for 5G cellular devices," Journal of Infrared, Millimeter, and Terahertz Waves, Vol. 45, No. 1, 35-65, 2024. Google Scholar

14. Al Gburi, Ahmed Jamal Abdullah, "5G MIMO antenna: Compact design at 28/38 GHz with metamaterial and SAR analysis for mobile phones," Przegląd Elektrotechniczny, Vol. 2024, No. 4, 171-174, 2024. Google Scholar

15. Bai, Jing, Ruixing Zhi, Wenying Wu, Mengmeng Shangguan, Bingbing Wei, and Gui Liu, "A novel multiband MIMO antenna for TD-LTE and WLAN applications," Progress In Electromagnetics Research Letters, Vol. 74, 131-136, 2018. Google Scholar

16. Mistri, Raj Kumar, Santosh Kumar Mahto, Ajit Kumar Singh, Rashmi Sinha, Ahmed Jamal Abdullah Al-Gburi, Thamer A. H. Alghamdi, and Moath Alathbah, "Quad element MIMO antenna for C, X, Ku, and Ka-band applications," Sensors, Vol. 23, No. 20, 8563, 2023.
doi:10.3390/s23208563 Google Scholar

17. Ali, Ayyaz, Mehr E. Munir, Mohamed Marey, Hala Mostafa, Zahriladha Zakaria, Ahmed Jamal Abdullah Al-Gburi, and Farooq Ahmed Bhatti, "A compact MIMO multiband antenna for 5G/WLAN/WIFI-6 devices," Micromachines, Vol. 14, No. 6, 1153, 2023. Google Scholar

18. Sun, Libin, Yue Li, Zhijun Zhang, and Hanyang Wang, "Self-decoupled MIMO antenna pair with shared radiator for 5G smartphones," IEEE Transactions on Antennas and Propagation, Vol. 68, No. 5, 3423-3432, May 2020. Google Scholar

19. Xing, Haoran, Xinyan Wang, Zhenbin Gao, Xing An, Hong-xing Zheng, Mengjun Wang, and Erping Li, "Efficient isolation of an MIMO antenna using defected ground structure," Electronics, Vol. 9, No. 8, 1265, 2020. Google Scholar

20. Iqbal, Amjad, Omar A. Saraereh, Amal Bouazizi, and Abdul Basir, "Metamaterial-based highly isolated MIMO antenna for portable wireless applications," Electronics, Vol. 7, No. 10, 267, Oct. 2018. Google Scholar

21. Huang, Jianlin, Guiting Dong, Jing Cai, Han Li, and Gui Liu, "A quad-port dual-band MIMO antenna array for 5G smartphone applications," Electronics, Vol. 10, No. 5, 542, Feb. 2021. Google Scholar

22. Abdulkawi, Wazie M., Waqar Ahmad Malik, Sajjad Ur Rehman, Abdul Aziz, Abdel Fattah A. Sheta, and Majeed A. Alkanhal, "Design of a compact dual-band MIMO antenna system with high-diversity gain performance in both frequency bands," Micromachines, Vol. 12, No. 4, 383, 2021. Google Scholar

23. He, Zhengrui and Jie Jin, "Compact quad-port MIMO antenna with ultra-wideband and high isolation," Electronics, Vol. 11, No. 20, 3408, Oct. 2022. Google Scholar

24. Khan, Jalal, Sadiq Ullah, Farooq A. Tahir, Faisel Tubbal, and Raad Raad, "A sub-6 GHz MIMO antenna array for 5G wireless terminals," Electronics, Vol. 10, No. 24, 3062, Dec. 2021. Google Scholar

25. Wu, Ting, Ming-Jun Wang, and Juan Chen, "Decoupling of MIMO antenna array based on half-mode substrate integrated waveguide with neutralization lines," AEU --- International Journal of Electronics and Communications, Vol. 157, 154416, Dec. 2022. Google Scholar

26. Thangarasu, Deepa, Sandeep Kumar Palaniswamy, and Rama Rao Thipparaju, "Quad port multipolarized reconfigurable MIMO antenna for sub 6 GHz applications," International Journal of Antennas and Propagation, Vol. 2023, No. 1, 8882866, Mar. 2023. Google Scholar

27. Krishnamoorthy, R., Arpan Desai, Riki Patel, and Amit Grover, "4 element compact triple band MIMO antenna for sub-6 GHz 5G wireless applications," Wireless Networks, Vol. 27, No. 6, 3747-3759, 2021. Google Scholar

28. Kumar, Ashwini, Basudha Dewan, Arpit Khandelwal, and Kapil Shrivastava, "On the devolvement of fractal antenna for IoT applications," Engineering Research Express, Vol. 5, No. 3, 035026, 2023. Google Scholar

29. Kumar, Ashwini and Amar Partap Singh Pharwaha, "CPW-fed wide band micro-machined fractal antenna with band-notched function," Applied Computational Electromagnetics Society Journal (ACES), Vol. 35, No. 8, 929-935, 2020.
doi:10.47037/2020.ACES.J.350812 Google Scholar

30. Kumar, Ashwini, Ashish Kumar, and Amar Partap Singh Pharwaha, "On the development of super-wideband Sierpinski triangular fractal antenna," Wireless Personal Communications, Vol. 134, No. 1, 119-131, 2024. Google Scholar

31. Cornelius, Rasmus, Adam Narbudowicz, Max J. Ammann, and Dirk Heberling, "Calculating the envelope correlation coefficient directly from spherical modes spectrum," 2017 11th European Conference on Antennas and Propagation (EUCAP), 3003-3006, Paris, France, Mar. 2017.

32. El Hadri, Doae, Alia Zakriti, Asmaa Zugari, Mohssine El Ouahabi, and Jamal El Aoufi, "High isolation and ideal correlation using spatial diversity in a compact MIMO antenna for fifth‐generation applications," International Journal of Antennas and Propagation, Vol. 2020, No. 1, 2740920, 2020. Google Scholar

33. Sharma, Preeti, Rakesh N. Tiwari, Prabhakar Singh, Pradeep Kumar, and Binod K. Kanaujia, "MIMO antennas: Design approaches, techniques and applications," Sensors, Vol. 22, No. 20, 7813, Oct. 2022.
doi:10.3390/s22207813 Google Scholar

34. Anand, Saurabh and Ashwini Kumar, "Development of two port multilayer MIMO fractal antenna for multiband applications," Engineering Research Express, Vol. 7, No. 1, 015369, Mar. 2025. Google Scholar

35. Kamal, Mian Muhammad, Binghao Wang, Nosherwan Shoaib, Umair Rafique, Muhammad Inam Abbasi, and Muhammad Ramlee Kamarudin, "Self-decoupled quad-port CPW-fed fractal MIMO antenna with UWB characteristics," International Journal of Antennas and Propagation, Vol. 2024, No. 1, 3826899, 2024. Google Scholar
