Abstract

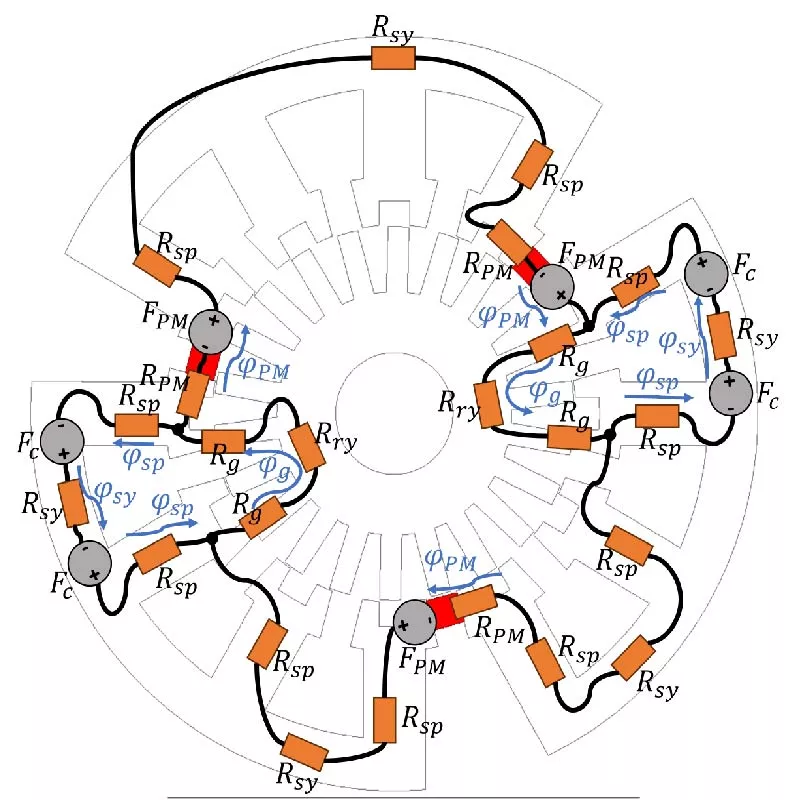

This research presents a high-performance 24/22 hybrid-excited switched reluctance motor (HESRM) featuring a modular C-core, dual-tooth topology engineered for superior torque density and efficiency. The proposed architecture utilizes a strategic flux-concentration mechanism by embedding permanent magnets (PMs) exclusively within the inter-tooth spaces. This targeted integration establishes a dual-path flux enhancement that intensifies air-gap flux density while suppressing stator yoke saturation. To ensure methodological rigor, structural parameters were optimized using a Multi-Objective Genetic Algorithm (GA) to maximize average torque. Additionally, a Magnetic Equivalent Circuit (MEC) model was derived to analytically interpret the PM-assisted torque enhancement. The design is rigorously validated through Three-Dimensional Finite Element Analysis (3D FEA), accounting for end-leakage effects. The 3D FEA results yield an average torque of 3 Nm, exhibiting excellent agreement with the 2D FEA estimation (2.98 Nm). Detailed evaluations of losses and efficiency mapping reveal that the HSSRM 24/22 achieves a 43% increase in average torque and significantly higher efficiency than the reference HSRM 12/10. Ultimately, this study offers a robust, cost-effective solution with an enhanced torque-per-PM-volume ratio for advanced electric drive applications.

1. Mecrow, B. C., E. A. El-Kharashi, J. W. Finch, and A. G. Jack, "Preliminary performance evaluation of switched reluctance motors with segmental rotors," IEEE Transactions on Energy Conversion, Vol. 19, No. 4, 679-686, Dec. 2004.
doi:10.1109/tec.2004.837290 Google Scholar

2. Ullah, Sana, Steve P. McDonald, Richard Martin, Maamar Benarous, and Glynn J. Atkinson, "A permanent magnet assist, segmented rotor, switched reluctance drive for fault tolerant aerospace applications," IEEE Transactions on Industry Applications, Vol. 55, No. 1, 298-305, Jan.-Feb. 2019.
doi:10.1109/tia.2018.2864718 Google Scholar

3. Szabo, Loránd and Mircea Ruba, "Segmental stator switched reluctance machine for safety-critical applications," IEEE Transactions on Industry Applications, Vol. 48, No. 6, 2223-2229, Nov.-Dec. 2012.
doi:10.1109/tia.2012.2226857 Google Scholar

4. Davarpanah, Gholamreza, Jawad Faiz, and Hossein Shirzad, "A C-core connected two-phase switched reluctance motor with embedded permanent magnets for developed torque enhancement," IEEE Transactions on Industrial Electronics, Vol. 71, No. 3, 2332-2342, Mar. 2024.
doi:10.1109/tie.2023.3269460 Google Scholar

5. Mao, Shang-Hsun and Mi-Ching Tsai, "A novel switched reluctance motor with C-core stators," IEEE Transactions on Magnetics, Vol. 41, No. 12, 4413-4420, Dec. 2005.
doi:10.1109/tmag.2005.858372 Google Scholar

6. Masoumi, Moien and Mojtaba Mirsalim, "E-core hybrid reluctance motor with permanent magnets inside stator common poles," IEEE Transactions on Energy Conversion, Vol. 33, No. 2, 826-833, Jun. 2018.
doi:10.1109/tec.2017.2769621 Google Scholar

7. Madhavan, R. and Baylon G. Fernandes, "Axial flux segmented SRM with a higher number of rotor segments for electric vehicles," IEEE Transactions on Energy Conversion, Vol. 28, No. 1, 203-213, Mar. 2013.
doi:10.1109/tec.2012.2235068 Google Scholar

8. Wang, Guoping, Hao Chen, Fengyuan Yu, Wenju Yan, Xing Wang, Mohamed Benbouzid, Adriano de A. Bresolin, Miguel Pablo Aguirre, Hossein Torkaman, Murat Shamiev, Yokub Tairov, Mohamed Orabi, and Mahmoud Abdelwahab Gaafar, "Design, analysis, and comparison of a novel axial flux modular-double-stator hybrid excitation SRM," IEEE Transactions on Transportation Electrification, Vol. 10, No. 3, 6100-6114, Sep. 2024.
doi:10.1109/tte.2023.3347742 Google Scholar

9. Lu, Kaiyuan, Peter Omand Rasmussen, Steve J. Watkins, and Frede Blaabjerg, "A new low-cost hybrid switched reluctance motor for adjustable-speed pump applications," IEEE Transactions on Industry Applications, Vol. 47, No. 1, 314-321, Jan.-Feb. 2011.
doi:10.1109/tia.2010.2091189 Google Scholar

10. Lu, Kaiyuan, Uffe Jakobsen, and Peter Omand Rasmussen, "Single-phase hybrid switched reluctance motor for low-power low-cost applications," IEEE Transactions on Magnetics, Vol. 47, No. 10, 3288-3291, Oct. 2011.
doi:10.1109/tmag.2011.2157466 Google Scholar

11. Xu, Lei, Danchen Xu, Xiaoyong Zhu, Chao Zhang, and Xiaohua Zang, "Multimode excitation analysis and design of a new hybrid excited modular stator permanent magnet switched reluctance machine," IEEE Transactions on Magnetics, Vol. 59, No. 11, 1-6, Nov. 2023.
doi:10.1109/tmag.2023.3284162 Google Scholar

12. Hasegawa, Yu, Kenji Nakamura, and Osamu Ichinokura, "A novel switched reluctance motor with the auxiliary windings and permanent magnets," IEEE Transactions on Magnetics, Vol. 48, No. 11, 3855-3858, Nov. 2012.
doi:10.1109/tmag.2012.2197734 Google Scholar

13. Wang, Fuqiang, Baoquan Kou, Lu Zhang, and Changchuang Huang, "Analysis and optimal design of hybrid magnetic circuit reluctance direct drive motor," IEEE Access, Vol. 13, 26420-26428, 2025.
doi:10.1109/access.2025.3539673 Google Scholar

14. Zhu, Jingwei, Ka Wai Eric Cheng, and Xiangdang Xue, "Design and analysis of a new enhanced torque hybrid switched reluctance motor," IEEE Transactions on Energy Conversion, Vol. 33, No. 4, 1965-1977, Dec. 2018.
doi:10.1109/tec.2018.2876306 Google Scholar

15. Kondelaji, Mohammad Amin Jalali, Ehsan Farmahini Farahani, and Mojtaba Mirsalim, "Teethed-pole switched reluctance motors assisted with permanent magnets: Analysis and evaluation," IEEE Transactions on Energy Conversion, Vol. 36, No. 3, 2131-2140, Sep. 2021.
doi:10.1109/tec.2021.3055739 Google Scholar

16. Du, Yi, Chao Zhang, Xiaoyong Zhu, Feng Xiao, Yandong Sun, Yuefei Zuo, and Li Quan, "Principle and analysis of doubly salient PM motor with Π-shaped stator iron core segments," IEEE Transactions on Industrial Electronics, Vol. 66, No. 3, 1962-1972, Mar. 2019.
doi:10.1109/tie.2018.2838060 Google Scholar

17. Kondelaji, Mohammad Amin Jalali, Ehsan Farmahini Farahani, and Mojtaba Mirsalim, "Performance analysis of a new switched reluctance motor with two sets of embedded permanent magnets," IEEE Transactions on Energy Conversion, Vol. 35, No. 2, 818-827, Jun. 2020.
doi:10.1109/tec.2020.2965180 Google Scholar

18. Tai, Wei-Hsiu, Mi-Ching Tsai, Zwe-Lee Gaing, Po-Wei Huang, and Yu-Sheng Hsu, "Novel stator design of double salient permanent magnet motor," IEEE Transactions on Magnetics, Vol. 50, No. 4, 1-4, Apr. 2014.
doi:10.1109/tmag.2013.2283373 Google Scholar

19. Hwang, Hongsik, Sungwoo Bae, and Cheewoo Lee, "Analysis and design of a hybrid rare-earth-free permanent magnet reluctance machine by frozen permeability method," IEEE Transactions on Magnetics, Vol. 52, No. 7, 1-4, Jul. 2016.
doi:10.1109/tmag.2016.2527632 Google Scholar

20. Wang, Huijun, Yanhong Xue, Juncheng Du, and He Li, "Design and evaluation of modular stator hybrid-excitation switched reluctance motor for torque performance improvement," IEEE Transactions on Industrial Electronics, Vol. 71, No. 10, 12814-12823, Oct. 2024.
doi:10.1109/tie.2024.3357899 Google Scholar

21. Amirkhani, Mohammad, Mohammad Amin Jalali Kondelaji, Ali Ghaffarpour, Mojtaba Mirsalim, and Sadegh Vaez-Zadeh, "Study of boosted toothed biased flux permanent magnet motors," IEEE Transactions on Transportation Electrification, Vol. 8, No. 2, 2549-2564, Jun. 2022.
doi:10.1109/tte.2022.3141331 Google Scholar

22. Davarpanah, Gholamreza, Jawad Faiz, Hossein Shirzad, and Majid Lotfizadeh, "A modular hybrid excited switched reluctance motor with two groups of permanent magnets to enhance the performance of the motor," IEEE Transactions on Energy Conversion, Vol. 39, No. 3, 1686-1698, Sep. 2024.
doi:10.1109/tec.2024.3356666 Google Scholar

23. Zhu, Jingwei, Ka Wai Eric Cheng, Xiangdang Xue, and Yu Zou, "Design of a new enhanced torque in-wheel switched reluctance motor with divided teeth for electric vehicles," IEEE Transactions on Magnetics, Vol. 53, No. 11, 1-4, Nov. 2017.
doi:10.1109/tmag.2017.2703849 Google Scholar

24. Farahani, Ehsan Farmahini, Mohammad Amin Jalali Kondelaji, and Mojtaba Mirsalim, "A new exterior-rotor multiple teeth switched reluctance motor with embedded permanent magnets for torque enhancement," IEEE Transactions on Magnetics, Vol. 56, No. 2, 1-5, Feb. 2020.
doi:10.1109/tmag.2019.2955884 Google Scholar

25. Farahani, Ehsan Farmahini, Mohammad Amin Jalali Kondelaji, and Mojtaba Mirsalim, "A new exterior-rotor multiple teeth switched reluctance motor with embedded permanent magnets for torque enhancement," IEEE Transactions on Magnetics, Vol. 56, No. 2, 1-5, Feb. 2020.
doi:10.1109/tmag.2019.2955884 Google Scholar

26. Li, Guang Jin, Zi Qiang Zhu, Martin Foster, and Dave Stone, "Comparative studies of modular and unequal tooth PM machines either with or without tooth tips," IEEE Transactions on Magnetics, Vol. 50, No. 7, 1-10, Jul. 2014.
doi:10.1109/tmag.2014.2310179 Google Scholar

27. Ding, Wen, Shuai Yang, Yanfang Hu, Shuai Li, Tao Wang, and Zhonggang Yin, "Design consideration and evaluation of a 12/8 high-torque modular-stator hybrid excitation switched reluctance machine for EV applications," IEEE Transactions on Industrial Electronics, Vol. 64, No. 12, 9221-9232, Dec. 2017.
doi:10.1109/tie.2017.2711574 Google Scholar

28. Ding, Wen, Haigang Fu, and Yanfang Hu, "Characteristics assessment and comparative study of a segmented-stator permanent-magnet hybrid-excitation SRM drive with high-torque capability," IEEE Transactions on Power Electronics, Vol. 33, No. 1, 482-500, Jan. 2018.
doi:10.1109/tpel.2017.2665118 Google Scholar

29. Ding, Wen, Shuai Yang, and Yanfang Hu, "Development and investigation on segmented-stator hybrid-excitation switched reluctance machines with different rotor pole numbers," IEEE Transactions on Industrial Electronics, Vol. 65, No. 5, 3784-3794, May 2018.
doi:10.1109/tie.2017.2760846 Google Scholar

30. Ding, Wen, He Bian, Kaidi Song, Yangyang Li, and Ke Li, "Enhancement of a 12/4 hybrid-excitation switched reluctance machine with both segmented-stator and-rotor," IEEE Transactions on Industrial Electronics, Vol. 68, No. 10, 9229-9241, Oct. 2021.
doi:10.1109/tie.2020.3021665 Google Scholar

31. Farahani, Ehsan Farmahini, Mohammad Amin Jalali Kondelaji, and Mojtaba Mirsalim, "An innovative hybrid-excited multi-tooth switched reluctance motor for torque enhancement," IEEE Transactions on Industrial Electronics, Vol. 68, No. 2, 982-992, Feb. 2021.
doi:10.1109/tie.2020.2969073 Google Scholar
