Abstract

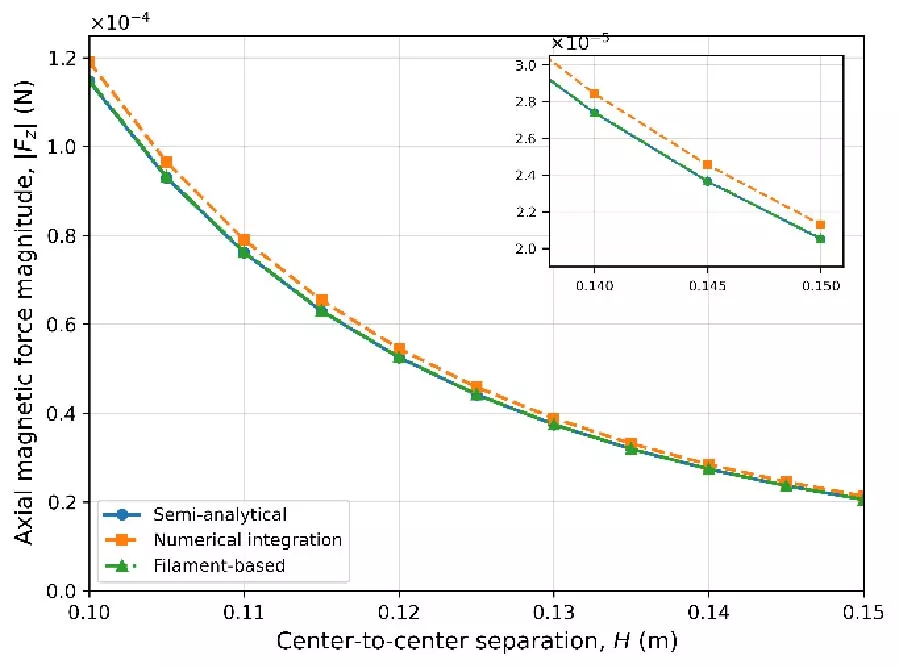

Accurate prediction of magnetic interaction forces is important for electromagnetic actuators, inductive coupling systems, and calibration devices. This paper presents a unified analytical and numerical framework for evaluating the axial magnetic force between two finite-dimensional, perfectly coaxial, air-core cylindrical coils under steady currents. The model assumes uniform purely azimuthal current density and neglects radial and axial current components, winding-pitch effects, magnetic materials, misalignment, and transient phenomena. Starting from the Biot-Savart law and Lorentz force formulation, the coil-coil interaction integral is derived and reduced using cylindrical symmetry, leaving only the axial resultant force. Three complementary methods are developed in MATLAB: a semi-analytical elliptic-integral formulation, a direct trapezoidal numerical-integration method, and a filament-based mutual-inductance method. The methods are computationally benchmarked for representative thin-wall, moderate finite-radius, mixed-radius, and large finite-radius coil geometries. The results show consistent force predictions, with relative half-spread values below approximately 4% for the cases considered. Discretization sensitivity and error-source analysis are included to clarify numerical accuracy and convergence. The proposed framework provides a transparent benchmark for axial force evaluation in idealized coaxial air-core coil systems.

1. Grover, F. W., Inductance Calculations: Working Formulas and Tables, Dover Publications, New York, NY, USA, 2004.

2. Babic, Slobodan I. and Cevdet Akyel, "Calculating mutual inductance between circular coils with inclined axes in air," IEEE Transactions on Magnetics, Vol. 44, No. 7, 1743-1750, 2008.
doi:10.1109/tmag.2008.920251 Google Scholar

3. Rosa, E. B., "The self and mutual inductances of linear conductors," Bulletin of the Bureau of Standards, Vol. 4, 301-344, 1908. Google Scholar

4. Kirsch, Andreas and Frank Hettlich, The Mathematical Theory of Time-harmonic Maxwell's Equations: Expansion, Integral, and Variational Methods, Springer, Cham, Switzerland, 2016.

5. Sondhi, K., N. Garraud, D. Alabi, D. P. Arnold, A. Garraud, S. G. R. Avuthu, Z. H. Fan, and T. Nishida, "Flexible screen-printed coils for wireless power transfer using low-frequency magnetic fields," Journal of Micromechanics and Microengineering, Vol. 29, No. 8, 084006, 2019.
doi:10.1088/1361-6439/ab26ff Google Scholar

6. Xu, Xiaoyong, Zhen Huang, Wan Li, Fangliang Dong, Luning Hao, Boyang Shen, and Zhijian Jin, "Study on reducing the maximum perpendicular magnetic field of HTS coils used on synchronous generator armatures," IEEE Transactions on Applied Superconductivity, Vol. 29, No. 5, 1-5, 2019.
doi:10.1109/tasc.2019.2901585 Google Scholar

7. Pankrac, Vitezslav, "The algorithm for calculation of the self and mutual inductance of thin-walled air coils of general shape with parallel axes," IEEE Transactions on Magnetics, Vol. 48, No. 5, 1875-1889, 2012.
doi:10.1109/tmag.2011.2177854 Google Scholar

8. Lemarquand, G., V. Lemarquand, S. Babic, and C. Akyel, "Magnetic field created by thin wall solenoids and axially magnetized cylindrical permanent magnets," PIERS Proceedings, 614-618, Moscow, Russia, Aug. 2009.

9. Braneshi, M., O. Zavalani, and A. Pijetri, "Evaluation of axial force between two coaxial disk coils," Proceedings of the 3rd International PhD Seminar on Computational Electromagnetics, Ghent, Belgium, 2006.

10. Ravaud, R., G. Lemarquand, S. Babic, V. Lemarquand, and C. Akyel, "Cylindrical magnets and coils: Fields, forces, and inductances," IEEE Transactions on Magnetics, Vol. 46, No. 9, 3585-3590, 2010.
doi:10.1109/tmag.2010.2049026 Google Scholar

11. Maxwell, James Clerk, A Treatise on Electricity and Magnetism, Clarendon Press, Oxford, U.K, 1873.

12. Abramowitz, M. and I. A. Stegun, Handbook of Mathematical Functions, Dover Publications, New York, NY, USA, 1965.

13. Conway, John T., "Exact solutions for the mutual inductance of circular coils and elliptic coils," IEEE Transactions on Magnetics, Vol. 48, No. 1, 81-94, 2012.
doi:10.1109/tmag.2011.2161768 Google Scholar

14. Palka, R., "Fast analytic-numerical algorithms for calculating mutual and self-inductances of air coils," Energies, Vol. 17, No. 2, 325, 2024.
doi:10.3390/en17020325 Google Scholar

15. Babic, S., E. Guven, K.-H. Song, and Y. Luo, "Optimized calculation of radial and axial magnetic forces between two non-coaxial coils of rectangular cross-section with parallel axes," Computation, Vol. 12, No. 9, Art. no. 180, 2024.
doi:10.3390/computation12090180 Google Scholar

16. Wang, Y., X. Xie, and H. Wang, "Spatial magnetic field calculations for coreless circular coils with rectangular cross-section of arbitrary turn numbers," Progress In Electromagnetics Research M, Vol. 101, 9-23, 2021.
doi:10.2528/PIERM21010802 Google Scholar

17. Giovannetti, G., N. Fontana, A. Flori, M. F. Santarelli, M. Tucci, V. Positano, S. Barmada, and F. Frijia, "Machine learning for the design and the simulation of radiofrequency magnetic resonance coils: Literature review, challenges, and perspectives," Sensors, Vol. 24, No. 6, Art. no. 1954, 2024.
doi:10.3390/s24061954 Google Scholar

18. Barmada, S., N. Fontana, L. Sani, D. Thomopulos, and M. Tucci, "Deep learning and reduced models for fast optimization in electromagnetics," IEEE Transactions on Magnetics, Vol. 56, No. 3, Art. no. 7513604, 2020.
doi:10.1109/TMAG.2019.2957197 Google Scholar

19. Landreman, Matt, Siena Hurwitz, and Thomas M. Antonsen, "Efficient calculation of self magnetic field, self-force, and self-inductance for electromagnetic coils with rectangular cross-section," Nuclear Fusion, Vol. 65, No. 3, 036008, 2025.
doi:10.1088/1741-4326/adb04e Google Scholar

20. Yang, Y., W. S. P. Robertson, A. Jafari, and M. Arjomandi, "Optimising coil design based on sensitivity analysis of magnetic force induced between misaligned coil pairs," Electrical Engineering, Vol. 107, 15317-15328, 2025.
doi:10.1007/s00202-025-03327-w Google Scholar

21. Khan, A., V. Ghorbanian, and D. Lowther, "Deep learning for magnetic field estimation," IEEE Transactions on Magnetics, Vol. 55, No. 6, Art. no. 7202304, 2019.
doi:10.1109/TMAG.2019.2899304 Google Scholar

Prof. Ali Jebelli

Dr. Nafiseh Lotfi

Dr. Arezoo Mahabadi

Dr. Mustapha C. E. Yagoub
