Abstract

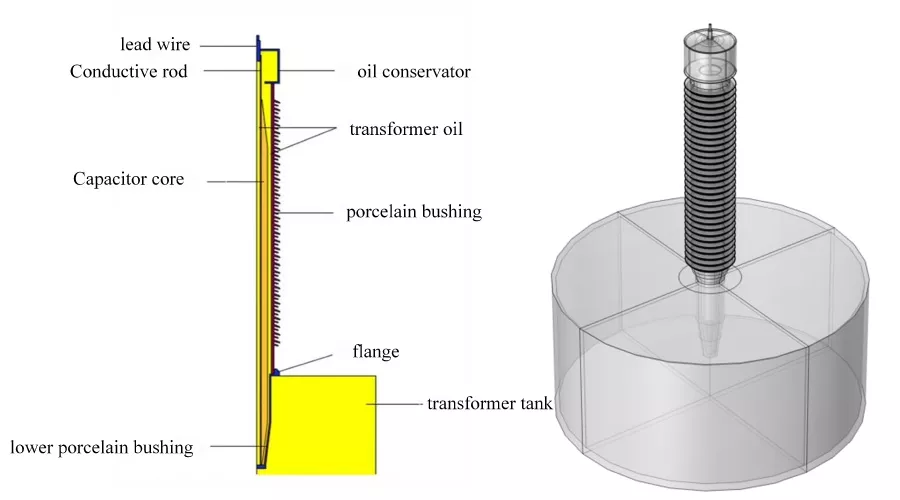

Oil-immersed transformer bushings are critical power system components, whose internal defects can cause electric-field distortion and insulation breakdown. In this study, a three-dimensional finite element model of a transformer bushing is established via COMSOL Multiphysics using actual structural parameters. The baseline electric field and voltage distributions under defect-free conditions are analyzed, and systematic simulations and quantitative evaluations are conducted to explore electric-field distortion and corresponding insulation risks under four typical defects: capacitor core metal particle contamination, insulating oil gas bubbles, capacitor final screen grounding loss, and capacitor screen damage. The results demonstrate that all defects break the inherent electric-field uniformity and induce local field intensification. Metal particle contamination and capacitor screen damage pose the greatest risks of distortion and insulation breakdown, while grounding loss causes the most extensive overall electric-field disturbance. This study clarifies the defect-induced electric-field response mechanisms, providing theoretical support for fault early identification, risk warning, and optimized operation of oil-immersed transformer bushings.

1. Wang, Dongyang, Lijun Zhou, Chongjing Dai, Lei Guo, and Wei Liao, "Insulation defect diagnostic method for OIP bushing based on multiclass LS-SVM and cuckoo search," IEEE Transactions on Instrumentation and Measurement, Vol. 69, No. 1, 163-172, 2020.
doi:10.1109/tim.2019.2895482 Google Scholar

2. Chen, Jin-Qiang, "Fault prediction of a transformer bushing based on entropy weight TOPSIS and gray theory," Computing in Science & Engineering, Vol. 21, No. 6, 55-62, 2019.
doi:10.1109/mcse.2018.2882357 Google Scholar

3. Mohseni, Bahar, Naser Hashemnia, and Syed Islam, "Condition assessment of power transformer bushing using SFRA and DGA as auxiliary tools," 2016 IEEE International Conference on Power System Technology (POWERCON), 1-4, Wollongong, NSW, Australia, 2016.
doi:10.1109/POWERCON.2016.7753973

4. Yuan, Yao, Jiahui Yang, Lianwei Bao, Ruihai Li, and Linjie Zhao, "Condition assessment on the 500kV OIP bushings of power transformer," 2020 IEEE International Conference on High Voltage Engineering and Application (ICHVE), 1-4, Beijing, China, 2020.
doi:10.1109/ICHVE49031.2020.9279671

5. Azab, Mohamed, "High performance decoupled active and reactive power control for three-phase grid-tied inverters using model predictive control," Protection and Control of Modern Power Systems, Vol. 6, No. 3, 1-19, 2021.
doi:10.1186/s41601-021-00204-z Google Scholar

6. Stark, K. H., "Assessment of the insulation serviceability of turbo-generator stators and of high-voltage bushings," Proceedings of the IEE --- Part A: Power Engineering, Vol. 109, No. 43, 71-88, 1962.
doi:10.1049/pi-a.1962.0073 Google Scholar

7. Chen, Jinpeng, Research on the multi physical field and digital twin construction method of typical defects in oil-paper casing, Xi'an Engineering University, Xi'an, China, 2023 (in Chinese).

8. Si, Wenrong, Chenzhao Fu, Lei Su, Lin He, Hao Wen, Yi Jiang, Yuting Gao, and Junhao Li, "Research on electric field distribution characteristics simulation under typical defects in the scaled model of valve side bushing of UHV converter transformer," High Voltage Apparatus, Vol. 60, No. 12, 85-94, 2024 (in Chinese).
doi:10.13296/j.1001-1609.hva.2024.12.010 Google Scholar

9. Gao, Yuting, Huan Chen, Jiawen Yu, Jie Cui, and Junhao Li, "Simulation study on temperature field distribution characteristics of valve side bushing for uhv converter transformer," High Voltage Apparatus, Vol. 61, No. 9, 65-72, 2025 (in Chinese).
doi:10.13296/j.1001-1609.hva.2025.09.009 Google Scholar

10. Zhang, Pipei, Wei Shi, Jie Li, Jiangwei Wang, and Panfeng Shang, "Influence of wind on temperature characteristics of 1100 kV GIS outgoing bushing with partial discharge defect," High Voltage Apparatus, Vol. 59, No. 12, 209-215, 2023 (in Chinese).
doi:10.13296/j.1001-1609.hva.2023.12.025 Google Scholar

11. Jing, Jun, Hongbin Shan, Xiaohua Zhu, Hanwen Sun, and Eryue Xu, "Impact of cement sheath defects on casing in the reservoir section of gas storage well under alternating thermal load," Fault-Block Oil and Gas Field, Vol. 30, No. 4, 685-691+697, 2023 (in Chinese).
doi:10.6056/dkyqt202304022 Google Scholar

12. Zhou, Chuanxi, Haifeng Tian, Wei Guo, Feng Guan, and Xianming Liu, "Influence of wellbore temperature on collapsing strength of defective casing," Petroleum Machinery, Vol. 50, No. 10, 142-148, 2022 (in Chinese).
doi:10.16082/j.cnki.issn.1001-4578.2022.10.020 Google Scholar

13. Xu, Youlong, Huan Mao, Guan Liu, Lixin Zheng, and Yang Li, "Research on the problem of control rod jamming caused by wear and subsidence of thermal sleeves on reactor pressure vessel head in nuclear power plants," Nuclear Science and Engineering, Vol. 44, No. 2, 333-340, 2024 (in Chinese). Google Scholar

14. Youssef, H. K., M. M. Abdel Aziz, and R. Hackam, "Steady state temperature distribution of high voltage bushings-analysis and measurements," IEEE Transactions on Power Systems, Vol. 3, No. 1, 278-285, 1988.
doi:10.1109/59.43212 Google Scholar

15. Saha, T. K., Z. T. Yao, T. T. Le, M. Darveniza, and D. J. T. Hill, "Investigation of interfacial polarisation spectra parameters for accelerated aged oil-paper insulation and its correlation with molecular weights and Furan compounds," CIGRE Session 2000, Paris, France, 2000.

16. Li, W., Z. G. Ren, L. Shi, F. Xin, G. Y. Ma, and D. C. Zheng, "Discharge behaviors of transformer oil-gap under constant voltage," Advances in Condensed Matter Physics, Vol. 5, No. 4, 53-62, 2016.
doi:10.12677/CMP.2016.54008 Google Scholar

17. Yadav, Suman, Harold R. Chamorro, Wilfredo C. Flores, and Ram Krishna Mehta, "Investigation of improved thermal dissipation of ±800 kV converter transformer bushing employing nano-hexagonal boron nitride paper using FEM," IEEE Access, Vol. 9, 149196-149217, 2021.
doi:10.1109/access.2021.3124917 Google Scholar

18. Du, Boxue, Hanlei Sun, Xiaoxiao Kong, Wei Yang, and Jin Li, "Improved electric field distribution within bushing insulation by EP/GO nanocomposites with reduced temperature coefficient of conductivity," IEEE Access, Vol. 8, 176864-176872, 2020.
doi:10.1109/ACCESS.2020.3026391 Google Scholar
