Abstract

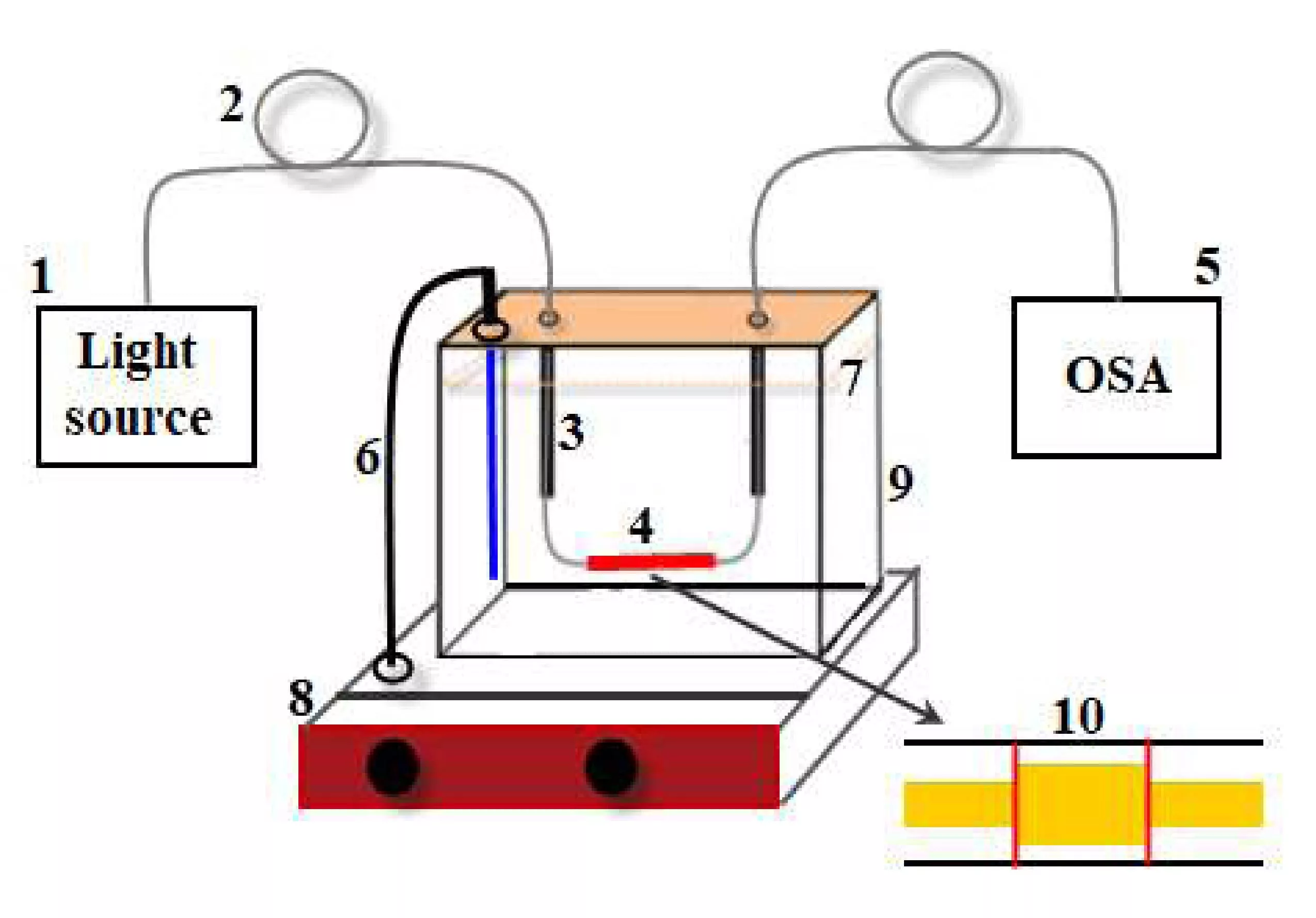

This paper presents the design, fabrication, and characterization of a novel optical fiber temperature sensor based on a single-mode-multimode-single-mode (SMS) structure for real-time monitoring of transformer oil temperature in high-voltage environments, addressing the limitations of conventional electronic sensors such as electromagnetic interference, electrical safety hazards, and restricted spatial coverage. The sensor, fabricated with corning single mode fiber (SMF)-28e+ single-mode and Thorlabs FG050UGA multimode fibers (5 cm active section), operates on the Mach-Zehnder interferometer principle, where temperature-induced refractive index changes in transformer oil modulate light propagation. Systematic experiments over a 30-90 °C range using a 1550 nm tunable laser, temperature‑controlled oil bath, Pt100 reference, and optical spectrum analyzer yielded a wavelength sensitivity of 4.17 × 10^-3 nm/°C with excellent linearity (R² = 0.9646), a standard error of 4.45 °C, repeatability better than 0.5 % coefficient of variation, and progressive OSNR improvement from 0 dBm at 30°C to 2.26 dBm at 90 °C. The wavelength-based calibration method significantly outperformed the power-based approach, offering 1.36× lower error (4.45 °C vs. 6.04 °C) and higher correlation, with expanded uncertainty (95 % confidence, k = 2) calculated as 6.14°C. Compared to fiber Bragg grating and fiber-loop mirror sensors, the proposed SMS sensor provides electromagnetic immunity, cost-effective fabrication, high stability, and a simple all-fiber configuration, making it a reliable and practical solution for continuous thermal monitoring in power transformers and laying the foundation for comprehensive fiber-optic sensing networks in high-voltage power systems.

1. Ismail , Marwa M., Bashar Bahaa Qas Elias, Bashar S. Bashar, Taha A. Elwi, Z. A. Rhazali, and Halina Misran, "Frequency reconfigurable using clrh for 5G sub-6 GHZ wireless application ," Iraqi Journal of Information and Communication Technology, Vol. 8, No. 3, 62-72, 2025.
doi:10.31987/ijict.8.3.330 Google Scholar

2. Mohammed, A. B. F. A., Saba T. Al-hadeethi, Hayder H. Al-khaylani, Taha A. Elwi, and Essam N. Abdulla, "An investigation of success probability and fidelity of quantum repeater in asymmetry in midpoint placement in fiber-based quantum networks," Journal of Optics, 1-5, 2025.
doi:10.1007/s12596-025-02866-6 Google Scholar

3. Al-Asady, Rafah, Taha A. Elwi, and Balachandran Ruthramurthy, "A modern RIS design based ai driven for cooperative relay networks," Iraqi Journal Of Information and Communication Technology, Vol. 8, No. 3, 2025.
doi:10.31987/ijict.8.3.328 Google Scholar

4. Garcia, D. F., R. Villarroel, B. Garcia, and J. C. Burgos, "A review of moisture diffusion coefficients in transformer solid insulation-Part 2: Experimental validation of the coefficients," IEEE Electrical Insulation Magazine, Vol. 29, No. 2, 40-49, 2013.
doi:10.1109/mei.2013.6457598 Google Scholar

5. Mohamad, Mohd Safwan, Hidayat Zainuddin, Sharin Ab Ghani, and Imran Sutan Chairul, "Comparative study on the ac breakdown voltage of palm fatty acid ester insulation oils mixed with iron oxide nanoparticles," International Journal of Electrical and Computer Engineering (IJECE), Vol. 6, No. 4, 1481-1488, 2016.
doi:10.11591/ijece.v6i4.pp1481-1488 Google Scholar

6. Alshehawy, Abdelrahman M., Diaa-Eldin A. Mansour, Abdallah Rezk, and Mohsen Ghali, "Impact of thermal aging of transformer oil on UV-Vis optical spectrum and dielectric properties," 2016 Eighteenth International Middle East Power Systems Conference (MEPCON), 860-865, Cairo, Egypt, 2016.
doi:10.1109/mepcon.2016.7836996

7. Gorur, R. S., E. A. Cherney, and J. T. Burnham, Outdoor Insulators, Ravi S. Gorur Inc., Phoenix, AZ, 1999.

8. Saha, T. K., "Review of modern diagnostic techniques for assessing insulation condition in aged transformers," IEEE Transactions on Dielectrics and Electrical Insulation, Vol. 10, No. 5, 903-917, 2003.
doi:10.1109/tdei.2003.1237337 Google Scholar

9. Duval, M., "A review of faults detectable by gas-in-oil analysis in transformers," IEEE Electrical Insulation Magazine, Vol. 18, No. 3, 8-17, 2002.
doi:10.1109/mei.2002.1014963 Google Scholar

10. Jwair, Marwah H., Taha A. Elwi, Salam K. Khamas, Aydin Farajidavar, and Alyani Binti Ismail, "Circularly shaped metamaterial fractal reconfigurable antenna for 5G networks," Iraqi Journal Of Information and Communication Technology, Vol. 6, No. 3, 65-75, 2023.
doi:10.31987/ijict.6.3.251 Google Scholar

11. Elwi, Taha A., Sami Abduljabbar Rashid, Humam Hussein, Mohammed Salah Abood, and Mustafa Maad Hamdi, "IAE-CRP --- Improved ant optimization with ECC-based clustered routing protocol for wireless sensor network," Iraqi Journal Of Information and Communication Technology, Vol. 9, No. 1, 30-43, 2026.
doi:10.31987/ijict.9.1.353 Google Scholar

12. IEEE Guide for Loading Mineral-Oil-Immersed Transformers and Step-Voltage Regulators, IEEE Standard C57.91-2011, 2012.

13. IEC Loading Guide for Oil-Immersed Power Transformers, IEC Standard 60076-7, 2018.

14. Haque, Nasirul, Jijo V. Ittiarah, Tarun Kumar Gangopadhyay, and Sivaji Chakravorti, "Temperature monitoring of power transformer using fiber-optic sensor," 2015 1st Conference on Power, Dielectric and Energy Management at NERIST (ICPDEN), 1-5, Itanagar, India, 2015.
doi:10.1109/icpden.2015.7084488

15. Naser, Marwah Abdulrazzaq, Jit Singh Mandeep, Taha Ahmed Elwi, and Mohammad Tariqul Islam, "A new hybrid approach based on ann and z-transformation for RIS unit cells characterization," Progress In Electromagnetics Research C, Vol. 167, 141-148, 2026.
doi:10.2528/pierc26010101 Google Scholar

16. Wang, M., A. J. Vandermaar, and K. D. Srivastava, "Review of condition assessment of power transformers in service," IEEE Electrical Insulation Magazine, Vol. 18, No. 6, 12-25, 2002.
doi:10.1109/mei.2002.1161455 Google Scholar

17. Alnaiemy, Yahiea, Mariam Qutaiba Abdalrazak, Zainab Salam, and Taha Ahmed Elwi, "On the performance of CRLH antenna loaded with AMC reflector for direct antenna modulation process," Progress In Electromagnetics Research C, Vol. 166, 244-256, 2026.
doi:10.2528/pierc25111302 Google Scholar

18. Pompili, M., C. Mazzetti, and R. Bartnikas, "Partial discharge pulse sequence patterns and cavity development times in transformer oils under AC conditions," IEEE Transactions on Dielectrics and Electrical Insulation, Vol. 12, No. 2, 395-403, 2005.
doi:10.1109/tdei.2005.1430407 Google Scholar

19. Grattan, K. T. V. and T. Sun, "Fiber optic sensor technology: An overview," Sensors and Actuators A: Physical, Vol. 82, No. 1-3, 40-61, 2000.
doi:10.1016/s0924-4247(99)00368-4 Google Scholar

20. Lee, Byoungho, "Review of the present status of optical fiber sensors," Optical Fiber Technology, Vol. 9, No. 2, 57-79, 2003.
doi:10.1016/s1068-5200(02)00527-8 Google Scholar

21. Al-Attar, Saif, Mohammad Alibakhshikenari, Yazeed Mohammad Qasaymeh, Mohammed Abdulrahman Dawood Al-Obaidi, Bal S. Virdee, H. Benetatos, Nur Syazreen Ahmad, Astrit Krasniqi, Taha A. Elwi, Muhammad Akmal Chaudhary, Nisar Ahmad Abbasi, Patrizia Livreri, and Takfarinas Saber, "A reconfigurable MTM-EMBG MIMO antenna array with solar panel integration for sustainable 5G networks," Scientific Reports, Vol. 16, No. 1, 22140, 2026.
doi:10.1038/s41598-026-48125-x Google Scholar

22. Betta, G., A. Pietrosanto, and A. Scaglione, "An enhanced fiber-optic temperature sensor system for power transformer monitoring," IEEE Transactions on Instrumentation and Measurement, Vol. 50, No. 5, 1138-1143, 2001.
doi:10.1109/19.963173 Google Scholar

23. Chen, Wei-Gen, Jun Liu, You-Yuan Wang, Liu-Ming Liang, Jian-Bao Zhao, and Yan-Feng Yue, "The measuring method for internal temperature of power transformer based on FBG sensors," 2008 International Conference on High Voltage Engineering and Application, 672-676, Chongqing, China, 2008.
doi:10.1109/ichve.2008.4774024

24. Picanco, Alessandra F., Manuel L. B. Martinez, and Paulo C. Rosa, "Bragg system for temperature monitoring in distribution transformers," Electric Power Systems Research, Vol. 80, No. 1, 77-83, 2010.
doi:10.1016/j.epsr.2009.08.013 Google Scholar

25. Haque, Nasirul, Jijo V. Ittiarah, Tarun Kumar Gangopadhyay, and Sivaji Chakravorti, "Temperature monitoring of power transformer using fiber-optic sensor," 2015 1st Conference on Power, Dielectric and Energy Management at NERIST (ICPDEN), 1-5, Itanagar, India, 2015.
doi:10.1109/icpden.2015.7084488

26. Zhang, Yujuan, Linlin Xue, Tongxin Wang, Li Yang, Bing Zhu, and Qijin Zhang, "High performance temperature sensing of single mode-multimode-single mode fiber with thermo-optic polymer as cladding of multimode fiber segment," IEEE Sensors Journal, Vol. 14, No. 4, 1143-1147, 2014.
doi:10.1109/jsen.2013.2293536 Google Scholar

27. Gao, Ren Xi, Qiang Wang, Fang Zhao, Bo Meng, and Shi Liang Qu, "Optimal design and fabrication of SMS fiber temperature sensor for liquid," Optics Communications, Vol. 283, No. 16, 3149-3152, 2010.
doi:10.1016/j.optcom.2010.04.027 Google Scholar

28. An, Jiali, Yongxing Jin, Mingming Sun, and Xinyong Dong, "Relative humidity sensor based on SMS fiber structure with two waist-enlarged tapers," IEEE Sensors Journal, Vol. 14, No. 8, 2683-2686, 2014.
doi:10.1109/jsen.2014.2313878 Google Scholar

29. Alsudani, Mohammed, Turgut Ozturk, and T. A. Oleiwi, "Performance of CRLH-TL-hilbert structure inspired antenna loaded with AMC reflector for wireless applications," Journal of Visualized Experiments (JoVE), Vol. 231, e70367, 2026.
doi:10.3791/70367 Google Scholar

30. Li, Enbang, "Sensitivity-enhanced fiber-optic strain sensor based on interference of higher order modes in circular fibers," IEEE Photonics Technology Letters, Vol. 19, No. 16, 1266-1268, 2007.
doi:10.1109/lpt.2007.902271 Google Scholar

31. Alaukally, Malak Naem Nashoor, Muhammad Ilyas, and T. A. Oleiwi, "Fabrication and testing of an optically controlled microwave sensor for urea level detection in urine," Journal of Visualized Experiments (JoVE), Vol. 231, e70483, 2026.
doi:10.3791/70483 Google Scholar

32. Wang, Qian, Gerald Farrell, and Wei Yan, "Investigation on single-mode-multimode-single-mode fiber structure," Journal of Lightwave Technology, Vol. 26, No. 5, 512-519, 2008.
doi:10.1109/jlt.2007.915205 Google Scholar
