Abstract

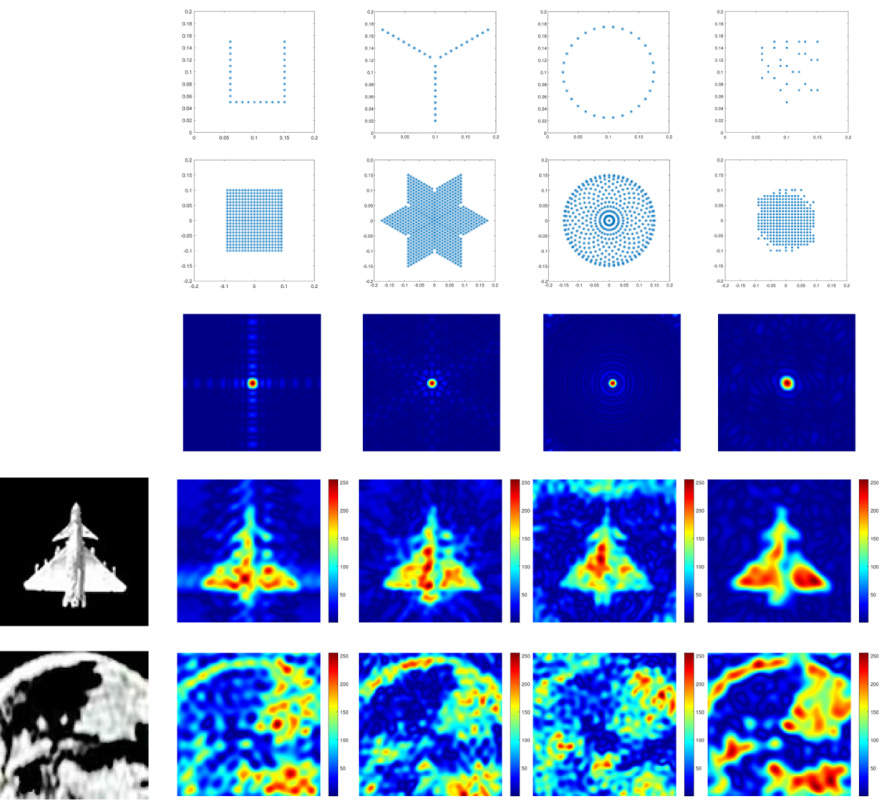

The antenna array structure represents a pivotal technology for synthetic aperture interferometric radiometers (SAIRs). However, current array optimization metrics often have conflicting relationships among themselves, posing a significant challenge to achieving a harmonious balance. To tackle this issue, this paper introduces the point spread function (PSF) into the array optimization process and proposes a PSF-based antenna array optimization method. As a crucial characterization of the SAIR system, PSF can effectively evaluate the SAIR's comprehensive imaging performance. The mainlobe-sidelobe comprehensive quality (MSCQ) is innovatively proposed is proposed as a system-level metric to evaluate PSF quality and guide array optimization. The MSCQ consists of two parts: the main lobe width and the side lobe energy ratio. The main lobe width can evaluate the spatial resolution of SAIR, and the side lobe energy ratio can evaluate the noise performance. In addition, in order to overcome the defect that the traditional optimization algorithm is prone to fall into the local optimum, this paper adopts the improved velocity-paused particle swarm algorithm (VPPSO) for high-precision optimization. The experimental results show that the PSF-based optimized array can effectively enhance SAIR's comprehensive performance and achieve high-performance imaging.

1. Arras, Philipp, Philipp Frank, Philipp Haim, Jakob Knollmüller, Reimar Leike, Martin Reinecke, and Torsten Enßlin, "Variable structures in M87* from space, time and frequency resolved interferometry," Nature Astronomy, Vol. 6, No. 2, 259-269, 2022. Google Scholar

2. Li, Yan, Xiaobin Yin, Wu Zhou, Mingsen Lin, Hao Liu, and Yinan Li, "Performance simulation of the payload IMR and MICAP onboard the Chinese ocean salinity satellite," IEEE Transactions on Geoscience and Remote Sensing, Vol. 60, 1-16, 2021. Google Scholar

3. Fu, Peng, Dong Zhu, Fei Hu, Yanyu Xu, and Hui Xia, "A near-field imaging algorithm based on angular spectrum theory for synthetic aperture interferometric radiometer," IEEE Transactions on Microwave Theory and Techniques, Vol. 70, No. 7, 3606-3616, 2022. Google Scholar

4. Zhang, Yilong, Yuan Ren, Wei Miao, Zhenhui Lin, Hao Gao, and Shengcai Shi, "Microwave SAIR imaging approach based on deep convolutional neural network," IEEE Transactions on Geoscience and Remote Sensing, Vol. 57, No. 12, 10376-10389, 2019. Google Scholar

5. Anterrieu, Eric and Louise Yu, "Impact of the antenna spacing on the brightness temperature maps retrieved with a synthetic aperture imaging radiometer," Remote Sensing, Vol. 15, No. 3, 805, 2023. Google Scholar

6. Wu, Yuanchao, Yinan Li, Guangnan Song, Haofeng Dou, Dandan Wen, Pengfei Li, Xiaojiao Yang, Rongchuan Lv, and Hao Li, "A near-field imaging method based on the near-field distance for an aperture synthesis radiometer," Remote Sensing, Vol. 16, No. 5, 767, 2024. Google Scholar

7. Moffet, A., "Minimum-redundancy linear arrays," IEEE Transactions on Antennas and Propagation, Vol. 16, No. 2, 172-175, 1968. Google Scholar

8. Ruf, C. S., "Numerical annealing of low-redundancy linear arrays," IEEE Transactions on Antennas and Propagation, Vol. 41, No. 1, 85-90, 1993. Google Scholar

9. Dong, Jian, Qingxia Li, Rong Jin, Yaoting Zhu, Quanliang Huang, and Liangqi Gui, "A method for seeking low-redundancy large linear arrays in aperture synthesis microwave radiometers," IEEE Transactions on Antennas and Propagation, Vol. 58, No. 6, 1913-1921, 2010. Google Scholar

10. Jang, Chol-Hyon, Fei Hu, Feng He, Jun Li, and Dong Zhu, "Low-redundancy large linear arrays synthesis for aperture synthesis radiometers using particle swarm optimization," IEEE Transactions on Antennas and Propagation, Vol. 64, No. 6, 2179-2188, 2016. Google Scholar

11. Dong, Jian, Qingxia Li, Ronghua Shi, Liangqi Gui, and Wei Guo, "The placement of antenna elements in aperture synthesis microwave radiometers for optimum radiometric sensitivity," IEEE Transactions on Antennas and Propagation, Vol. 59, No. 11, 4103-4114, 2011. Google Scholar

12. Zhu, Dong and Xiaohui Peng, "Combinatorial design of low-degradation linear arrays in interferometric aperture synthesis radiometers," IEEE Transactions on Antennas and Propagation, Vol. 67, No. 12, 7340-7347, 2019. Google Scholar

13. Zhu, Dong, Liang Wu, Yayun Cheng, and Hailiang Lu, "Deterministic array configurations for radiometric sensitivity optimization in microwave interferometric radiometers," IEEE Transactions on Geoscience and Remote Sensing, Vol. 60, 1-12, 2022. Google Scholar

14. Zhu, Dong, Peiwen Tang, Hailiang Lu, Liang Lang, and Fei Hu, "System reliability optimization of thinned linear arrays in interferometric aperture synthesis radiometers," IEEE Antennas and Wireless Propagation Letters, Vol. 20, No. 8, 1374-1378, 2021. Google Scholar

15. Zheng, Tao, Fei Hu, Liang Wu, Jinlong Su, and Hao Hu, "Synthesis of large alias-free field-of-view linear arrays for synthetic aperture interferometric radiometers," IEEE Transactions on Antennas and Propagation, Vol. 68, No. 12, 7916-7926, 2020. Google Scholar

16. Zhu, Dong, Fei Hu, Feng He, Liang Wu, Jun Li, and Chol-Hyon Jang, "A novel optimal design of antenna array in aperture synthesis radiometers," IEEE Antennas and Wireless Propagation Letters, Vol. 14, 1227-1230, 2015. Google Scholar

17. Scigliano, M., C. Sciannella, S. D'Addio, P. Angeletti, and G. Schettini, "Analysis of baseline redundancy in synthetic aperture interferometric radiometers," Electronics Letters, Vol. 46, No. 20, 1361-1362, 2010. Google Scholar

18. Budé, Roel X. F., Thomas A. H. Bressner, Martin N. Johansson, Marianna V. Ivashina, Adrianus Bernardus Smolders, and Ulf Johannsen, "A system-performance-based comparison of sparse regular and irregular antenna arrays for millimeter-wave multi-user MIMO base stations," Electronics, Vol. 11, No. 3, 335, 2022. Google Scholar

19. Tanner, Alan, Todd Gaier, William Imbriale, Pekka Kangaslahti, Bjorn Lambrigtsen, and Boon Lim, "A dual-gain design for the geostationary synthetic thinned array radiometer," IEEE Geoscience and Remote Sensing Letters, Vol. 11, No. 8, 1340-1344, 2014. Google Scholar

20. Zhu, Dong, Jingyu Tao, Jinlong Su, and Fei Hu, "BlockMFRAs: Block-wise multiple-fold redundancy arrays for joint optimization of radiometric sensitivity and angular resolution in interferometric radiometers," IEEE Transactions on Geoscience and Remote Sensing, Vol. 62, 1-15, 2024. Google Scholar

21. Shami, Tareq M., Seyedali Mirjalili, Yasser Al-Eryani, Khadija Daoudi, Saadat Izadi, and Laith Abualigah, "Velocity pausing particle swarm optimization: A novel variant for global optimization," Neural Computing and Applications, Vol. 35, No. 12, 9193-9223, 2023. Google Scholar

22. Chen, Jianfei, Yuehua Li, Jianqiao Wang, Yuanjiang Li, and Yilong Zhang, "An accurate imaging algorithm for millimeter wave synthetic aperture imaging radiometer in near-field," Progress In Electromagnetics Research, Vol. 141, 517-535, 2013. Google Scholar

23. Beck, Amir and Marc Teboulle, "A fast iterative shrinkage-thresholding algorithm for linear inverse problems," SIAM Journal on Imaging Sciences, Vol. 2, No. 1, 183-202, 2009. Google Scholar

24. Kennedy, J. and R. Eberhart, "Particle swarm optimization," Proceedings of ICNN'95 --- International Conference on Neural Networks, Vol. 4, 1942-1948, Perth, WA, Australia, 1995.

25. Zhu, Dong, Fei Hu, Liang Lang, Peiwen Tang, Xiaohui Peng, and Feng He, "Double difference bases and thinned arrays with twofold redundancy," IEEE Transactions on Antennas and Propagation, Vol. 65, No. 12, 7366-7371, 2017. Google Scholar
