Abstract

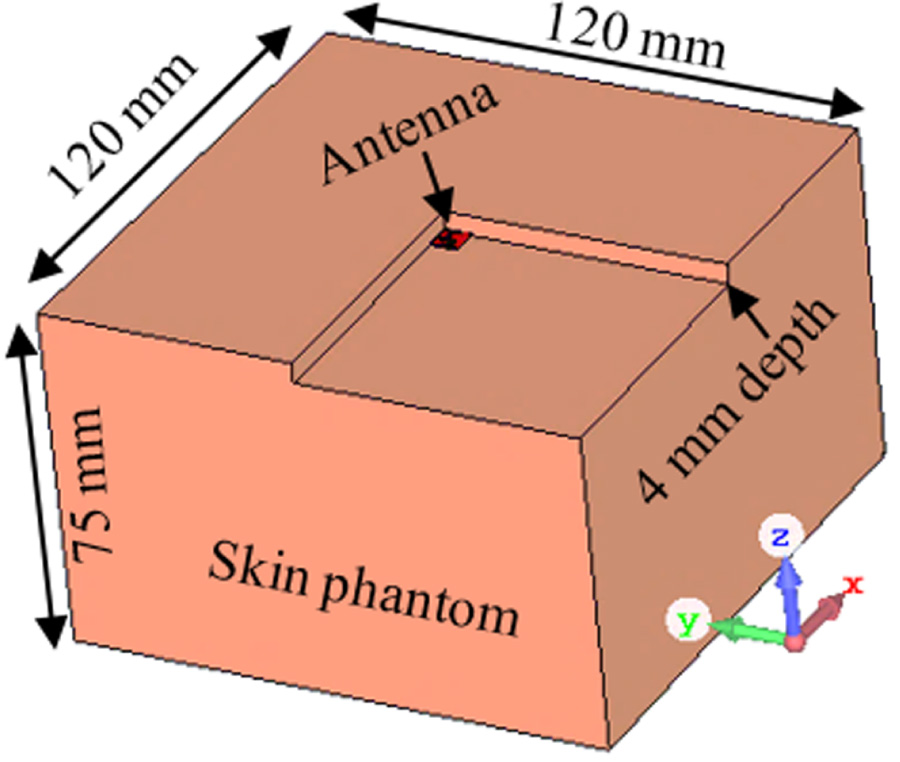

This work presents a compact single-band patch antenna designed for Near-Field Communication (NFC) based skin implant applications. The antenna features an inset-fed patch structure on FR-4 substrate and resonates at 2450 MHz. Three techniques are employed to miniaturize the antenna: a shorting pin between the patch and ground, defected ground structure (DGS), and utilization of tissue electrical properties. A polyamide insulator is used to cover the antenna for biocompatibility. Thus, the optimized antenna volume is found to be 6 × 6 × 0.46 mm³, with near-perfect impedance matching of 51.14 + j4.6 Ω. The antenna also offers enhanced impedance bandwidths of 52.24%. Compared to state-of-the-art designs, the proposed antenna exhibits significantly reduced specific absorption rate (SAR) values of 1.32 W/kg and 0.152 W/kg averaged over 1 g and 10 g of tissue, respectively, in compliance with international safety guidelines. The proposed antenna is effectively free from gain limitations due to the inherently short communication range of NFC technology. Finally, the antenna is measured for its return loss ex vivo, and it is found to be in close agreement with the simulation results. Thus, the balanced performance among the compact size, large bandwidth, and very low SAR makes the antenna a strong candidate for NFC based healthcare systems.

1. Pournoori, Nikta, Lauri Sydänheimo, Yahya Rahmat-Samii, Leena Ukkonen, and Toni Björninen, "Small triple-band meandered pifa for brain-implantable biotelemetric systems: Development and testing in a liquid phantom," International Journal of Antennas and Propagation, Vol. 2021, No. 1, 6035169, 2021.

2. Nguyen, Ducdung and Chulhun Seo, "An ultra-miniaturized circular polarized implantable antenna with gain enhancement by using DGS and holey superstrate for biomedical applications," IEEE Access, Vol. 11, 16466-16473, 2023.

3. Shah, Syed Manaf Ali, Muhammad Zada, Jamal Nasir, Hyoungsuk Yoo, et al. "Ultraminiaturized triband antenna with reduced SAR for skin and deep tissue implants," IEEE Transactions on Antennas and Propagation, Vol. 70, No. 9, 8518-8529, Sep. 2022.

4. Kaim, Vikrant, Binod Kumar Kanaujia, Sachin Kumar, Hyun Chul Choi, Kang Wook Kim, and Karumudi Rambabu, "Ultra-miniature circularly polarized CPW-fed implantable antenna design and its validation for biotelemetry applications," Scientific Reports, Vol. 10, No. 1, 6795, 2020.

5. Singh, Gurprince and Jaswinder Kaur, "Small footprint biocompatible antenna for implantable devices: Design, in-silico, in-vitro and ex-vivo testing," Iranian Journal of Science and Technology, Transactions of Electrical Engineering, Vol. 47, No. 3, 1145-1152, 2023.

6. Pan, Yibo, Wenjie Fu, Dun Lu, Tongxing Huang, Yihang Song, Li Lu, and Yang Yan, "A compact impedance matching layer for dual-band implantable medical devices," IEEE Antennas and Wireless Propagation Letters, Vol. 23, No. 10, 3088-3092, Oct. 2024.

7. Soliman, Md. Mohiuddin, Muhammad E. H. Chowdhury, Amith Khandakar, Mohammad Tariqul Islam, Yazan Qiblawey, Farayi Musharavati, and Erfan Zal Nezhad, "Review on medical implantable antenna technology and imminent research challenges," Sensors, Vol. 21, No. 9, 3163, 2021.

8. Felício, João M., Carlos A. Fernandes, and Jorge R. Costa, "Miniaturized implantable patch antenna for near-field communication at ISM band," 2017 IEEE International Symposium on Antennas and Propagation & USNC/URSI National Radio Science Meeting, 1685-1686, San Diego, CA, USA, 2017.

9. Kamel, Yara A., Hesham A. Mohamed, Hala ELsadek, and Hadia M. ELhennawy, "RF communication between dual band implantable and on body antennas for biotelemetry application," Scientific Reports, Vol. 15, No. 1, 4065, 2025.

10. Javan-Khoshkholgh, Amir and Aydin Farajidavar, "An implantable inductive near-field communication system with 64 channels for acquisition of gastrointestinal bioelectrical activity," Sensors, Vol. 19, No. 12, 2810, 2019.

11. Berkelmann, Lukas and Dirk Manteuffel, "Antenna parameters for on-body communications with wearable and implantable antennas," IEEE Transactions on Antennas and Propagation, Vol. 69, No. 9, 5377-5387, Sep. 2021.

12. Kirtania, Sharadindu Gopal, Alan Wesley Elger, Md. Rabiul Hasan, Anna Wisniewska, Karthik Sekhar, Tutku Karacolak, and Praveen Kumar Sekhar, "Flexible antennas: A review," Micromachines, Vol. 11, No. 9, 847, 2020.

13. Goswami, Siddhant and Deepak C. Karia, "A metamaterial-inspired circularly polarized antenna for implantable applications," Engineering Reports, Vol. 2, No. 10, e12251, 2020.

14. Abdi, Arezoo and Hadi Aliakbarian, "A miniaturized UHF-band rectenna for power transmission to deep-body implantable devices," IEEE Journal of Translational Engineering in Health and Medicine, Vol. 7, 1-11, 2019.

15. Mainul, Emtiaz Ahmed and Md. Faruque Hossain, "A metamaterial unit-cell based patch radiator for brain-machine interface technology," Heliyon, Vol. 10, No. 6, e27775, 2024.

16. Fan, Yi, ZhongXin Li, XiongYing Liu, XinNing Li, Cao Xu, and HongCai Yang, "Compact triple-broadband implantable antenna for multi-functions in telemedicine," IET Microwaves, Antennas & Propagation, Vol. 16, No. 2-3, 153-162, 2022.

17. Mainul, Emtiaz Ahmed and Md. Faruque Hossain, "A miniaturized triple band DGS implantable antenna for biotelemetry," 2021 International Conference on Electrical, Communication, and Computer Engineering (ICECCE), 1-6, Kuala Lumpur, Malaysia, 2021.

18. Zaki, Ahmed Z. A., Ehab K. I. Hamad, Tamer Gaber Abouelnaga, Hala A. Elsadek, Sherif A. Khaleel, Ahmed Jamal Abdullah Al-Gburi, and Zahriladha Zakaria, "Design and modeling of ultra-compact wideband implantable antenna for wireless ISM band," Bioengineering, Vol. 10, No. 2, 216, 2023.

19. Alamri, S., A. AlAmoudi, and R. Langley, "Gain enhancement of implanted antenna using lens and parasitic ring," Electronics Letters, Vol. 52, No. 10, 800-801, 2016.

20. Zada, Muhammad, Izaz Ali Shah, and Hyoungsuk Yoo, "Metamaterial-loaded compact high-gain dual-band circularly polarized implantable antenna system for multiple biomedical applications," IEEE Transactions on Antennas and Propagation, Vol. 68, No. 2, 1140-1144, 2019.

21. Liu, Kuo, Ziwei Li, Wenjie Cui, Kanglong Zhang, Mengjun Wang, Chao Fan, Hongxing Zheng, and Erping Li, "Investigation of conformal MIMO antenna for implantable devices based on theory of characteristic modes," IEEE Transactions on Antennas and Propagation, Vol. 70, No. 12, 11324-11334, 2022.

22. Bahrouni, Majdi, Gregory Houzet, Tan Phu Vuong, Paulo M. Mendes, Hugo Dinis, Rui Silva, and Hichem Trabelsi, "Modeling of a compact, implantable, dual-band antenna for biomedical applications," Electronics, Vol. 12, No. 6, 1475, 2023.

23. Butt, Arslan Dawood, Jalal Khan, Sarosh Ahmad, Adnan Ghaffar, Ahmed Jamal Abdullah Al-Gburi, and Mousa Hussein, "Single-fed broadband CPW-fed circularly polarized implantable antenna for sensing medical applications," PLoS One, Vol. 18, No. 4, e0280042, 2023.

24. Janapala, Doondi Kumar, Nesasudha Moses, and Jebasingh Bhagavathsingh, "Compact size antenna for skin implantable medical devices," International Journal of Microwave and Wireless Technologies, Vol. 16, No. 2, 217-226, 2024.

25. Kumar, Rajeev and Surinder Singh, "CPW-fed conformal PIFA design for implantable IoMT devices with wideband performance," IEEE Sensors Journal, Vol. 24, No. 1, 231-237, 2024.

26. Kangeyan, Rajagopal and Madurakavi Karthikeyan, "Circularly polarized implantable MIMO antenna for skin, brain and heart implantation with wide axial ratio bandwidth," International Journal of Communication Systems, Vol. 37, No. 10, e5778, 2024.

27. Iqbal, Amjad, Muath Al-Hasan, Ismail Ben Mabrouk, and Tayeb A. Denidni, "Self-quadruplexing antenna for scalp-implantable devices," IEEE Transactions on Antennas and Propagation, Vol. 72, No. 3, 2252-2260, 2024.

28. Sihvola, A., Electromagnetic Mixing Formulas and Applications, No. 47, IET, 1999.

29. Edwards, T. C. and M. B. Steer, Foundations of Interconnect and Microstrip Design, Wiley Online Library, 2000.

30. Shah, Syed Manaf Ali, Muhammad Zada, Jamal Nasir, Owais Owais, and Hyoungsuk Yoo, "Electrically-small antenna with low SAR for scalp and deep tissue biomedical devices," IEEE Access, Vol. 10, 90971-90981, 2022.

31. Alazemi, Abdullah J. and Amjad Iqbal, "A compact and wideband MIMO antenna for high-data-rate biomedical ingestible capsules," Scientific Reports, Vol. 12, No. 1, 14290, 2022.

32. Seidenari, Stefania, Giulia Giusti, Laura Bertoni, Cristina Magnoni, and Giovanni Pellacani, "Thickness and echogenicity of the skin in children as assessed by 20-MHz ultrasound," Dermatology, Vol. 201, No. 3, 218-222, 2000.

33. Farage, Miranda A., Kenneth W. Miller, Peter Elsner, and Howard I. Maibach, "Characteristics of the aging skin," Advances in Wound Care, Vol. 2, No. 1, 5-10, 2013.

34. Simić-Krstić, Jovana B., Aleksandar J. Kalauzi, Srdjan N. Ribar, Lidija R. Matija, and Gradimir N. Misevic, "Electrical properties of human skin as aging biomarkers," Experimental Gerontology, Vol. 57, 163-167, 2014.

35. Lee, Ae-Kyoung, Seon-Eui Hong, Masao Taki, Kanako Wake, and Hyung Do Choi, "Comparison of different SAR limits in SAM phantom for mobile phone exposure," 2018 Asia-Pacific Microwave Conference (APMC), 687-689, Kyoto, Japan, 2018.

36. Das, Soumyadeep and Debasis Mitra, "A compact wideband flexible implantable slot antenna design with enhanced gain," IEEE Transactions on Antennas and Propagation, Vol. 66, No. 8, 4309-4314, 2018.

Mr. Emtiaz Ahmed Mainul

Prof. Md. Faruque Hossain
