Abstract

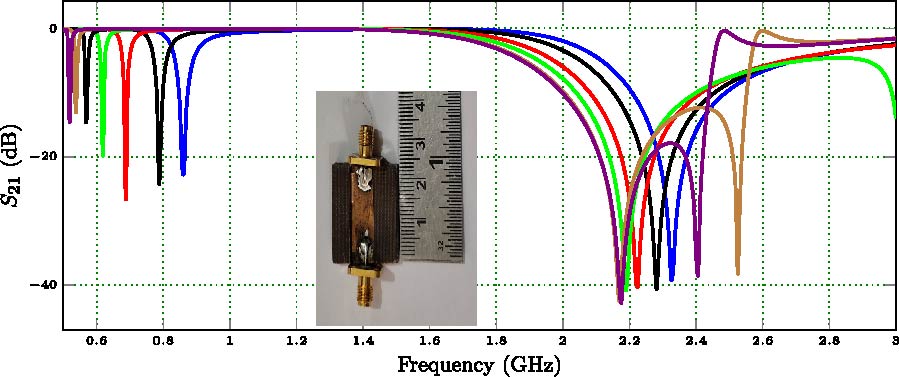

In this paper, machine learning supports a compact electromagnetic band gap structure (EBG) based dual band microwave sensor which is proposed for dielectric characterization of liquids with high sensitivity. Two edges, located via metalized holes, are electrically coupled with a suspended microstrip line. Two channels are placed in the electric field region of each EBG patch. Therefore, the change in frequency shift and quality factor are observed, which will help to describe the dielectric characterization of Liquid Under Test (LUT). A matrix-based mathematical model, and machine learning based prediction model are developed for the calibration and validation of the sensor. The results are experimentally verified through fabricated prototype for the binary mixture of water and ethanol. The proposed sensor achieved a compactness with size of 0.164λ_2.47GHz × 0.164λ_2.47GHz, an average sensitivity of 0.931, 0.243, and a quality factor of 170, 230 for band-1 and band-2, respectively. The calculated dielectric constant of different samples shows good agreement with the values reported in the literature. The machine learning based model is developed using the Support Vector Regression algorithm and achieves the high value of coefficient determination (R²) which is 99.01, and the less root mean square error (RMSE) value is 0.009.

1. Sourkouhi, Zahra Sarpanah, Vishal Balasubramanian, and Mohammad Hossein Zarifi, "Optically modulated split ring resonator sensor for optical density analysis of liquid analytes in microwave regime," IEEE Transactions on Microwave Theory and Techniques, Vol. 73, No. 3, 1610-1618, Mar. 2025. Google Scholar

2. Vélez, Paris, Jonathan Muñoz-Enano, Amir Ebrahimi, Cristian Herrojo, Ferran Paredes, James Scott, Kamran Ghorbani, and Ferran Martín, "Single-frequency amplitude-modulation sensor for dielectric characterization of solids and microfluidics," IEEE Sensors Journal, Vol. 21, No. 10, 12189-12201, May 2021. Google Scholar

3. Chuma, Euclides Lourenço, Yuzo Iano, Glauco Fontgalland, and Leonardo Lorenzo Bravo Roger, "Microwave sensor for liquid dielectric characterization based on metamaterial complementary split ring resonator," IEEE Sensors Journal, Vol. 18, No. 24, 9978-9983, Dec. 2018. Google Scholar

4. Buragohain, Akash, Abu Tahir Talat Mostako, and Gouree Shankar Das, "Low-cost CSRR based sensor for determination of dielectric constant of liquid samples," IEEE Sensors Journal, Vol. 21, No. 24, 27450-27457, Dec. 2021. Google Scholar

5. Withayachumnankul, Withawat, Kata Jaruwongrungsee, Adisorn Tuantranont, Christophe Fumeaux, and Derek Abbott, "Metamaterial-based microfluidic sensor for dielectric characterization," Sensors and Actuators A: Physical, Vol. 189, 233-237, Jan. 2013. Google Scholar

6. Jankovic, Nikolina and Vasa Radonic, "A microwave microfluidic sensor based on a dual-mode resonator for dual-sensing applications," Sensors, Vol. 17, No. 12, 2713, 2017.
doi:10.3390/s17122713 Google Scholar

7. Javed, Ahmed, Ali Arif, Muhammad Zubair, Muhammad Qasim Mehmood, and Kashif Riaz, "A low-cost multiple complementary split-ring resonator-based microwave sensor for contactless dielectric characterization of liquids," IEEE Sensors Journal, Vol. 20, No. 19, 11326-11334, Oct. 2020. Google Scholar

8. Ebrahimi, Amir, James Scott, and Kamran Ghorbani, "Ultrahigh-sensitivity microwave sensor for microfluidic complex permittivity measurement," IEEE Transactions on Microwave Theory and Techniques, Vol. 67, No. 10, 4269-4277, Oct. 2019. Google Scholar

9. Acevedo-Osorio, Gabriel, Erick Reyes-Vera, and Humberto Lobato-Morales, "Dual-band microstrip resonant sensor for dielectric measurement of liquid materials," IEEE Sensors Journal, Vol. 20, No. 22, 13371-13378, Nov. 2020. Google Scholar

10. Puneeth, S. B. and Sanket Goel, "Amperometric automation and optimization paper microfluidic viscometer," IEEE Sensors Letters, Vol. 3, No. 3, 1-4, Mar. 2019. Google Scholar

11. Arif, Ali, Amna Zubair, Kashif Riaz, Muhammad Qasim Mehmood, and Muhammad Zubair, "A novel Cesaro fractal EBG-based sensing platform for dielectric characterization of liquids," IEEE Transactions on Antennas and Propagation, Vol. 69, No. 5, 2887-2895, May 2021. Google Scholar

12. Kiani, Sina, Pejman Rezaei, and Moein Navaei, "Dual-sensing and dual-frequency microwave SRR sensor for liquid samples permittivity detection," Measurement, Vol. 160, 107805, 2020. Google Scholar

13. Ebrahimi, Amir, Withawat Withayachumnankul, Said Al-Sarawi, and Derek Abbott, "High-sensitivity metamaterial-inspired sensor for microfluidic dielectric characterization," IEEE Sensors Journal, Vol. 14, No. 5, 1345-1351, May 2014. Google Scholar

14. Parvathi, Kompella S. L. and Sudha R. Gupta, "Two-channel dual-band microwave EBG sensor for simultaneous dielectric detection of liquids," AEU --- International Journal of Electronics and Communications, Vol. 146, 154099, 2022. Google Scholar

15. Parvathi, Kompella S. L. and Sudha R. Gupta, "Ultrahigh-sensitivity and compact EBG-based microwave sensor for liquid characterization," IEEE Sensors Letters, Vol. 6, No. 4, 1-4, Apr. 2022. Google Scholar

16. Jun, Sung Yun, Benito Sanz Izquierdo, and Edward A. Parker, "Liquid sensor/detector using an EBG structure," IEEE Transactions on Antennas and Propagation, Vol. 67, No. 5, 3366-3373, May 2019. Google Scholar

17. Gocen, Cem and Merih Palandoken, "Machine learning assisted novel microwave sensor design for dielectric parameter characterization of water-ethanol mixture," IEEE Sensors Journal, Vol. 22, No. 3, 2119-2127, Feb. 2022. Google Scholar

18. Palandoken, Merih, Cem Gocen, Taimoor Khan, Zahriladha Zakaria, Issa Elfergani, Chemseddine Zebiri, Jonathan Rodriguez, and Raed A. Abd-Alhameed, "Novel microwave fluid sensor for complex dielectric parameter measurement of ethanol-water solution," IEEE Sensors Journal, Vol. 23, No. 13, 14074-14083, Jul. 2023. Google Scholar

19. Jafari, Fereshteh Sadat and Javad Ahmadi-Shokouh, "Industrial liquid characterization enhancement using microwave sensor equipped with electronic band gap structure," AEU --- International Journal of Electronics and Communications, Vol. 82, 152-159, Dec. 2017. Google Scholar

20. Ye, Wei, Da-Wei Wang, Jing Wang, Shichang Chen, Gaofeng Wang, and Wen-Sheng Zhao, "An ultrahigh-sensitivity dual-mode microwave sensor for microfluidic applications," IEEE Microwave and Wireless Technology Letters, Vol. 33, No. 7, 1082-1085, Jul. 2023. Google Scholar

21. Wu, Wen-Jing and Wen-Sheng Zhao, "A differential THz/MW sensor for characterizing liquid samples based on CSRs," IEEE Sensors Journal, Vol. 23, No. 10, 10429-10436, May 2023. Google Scholar

22. Wei, Zhihua, Jie Huang, Jing Li, Guoqing Xu, Zongde Ju, Xuyang Liu, and Xingsheng Ni, "A high-sensitivity microfluidic sensor based on a substrate integrated waveguide re-entrant cavity for complex permittivity measurement of liquids," Sensors, Vol. 18, No. 11, 4005, 2018.
doi:10.3390/s18114005 Google Scholar

Mr. Tulshidas R. Mane

Dr. Reena Sonkusare

Dr. Pramod Bhavarthe

Dr. Kompella S. L. Parvathi
