Abstract

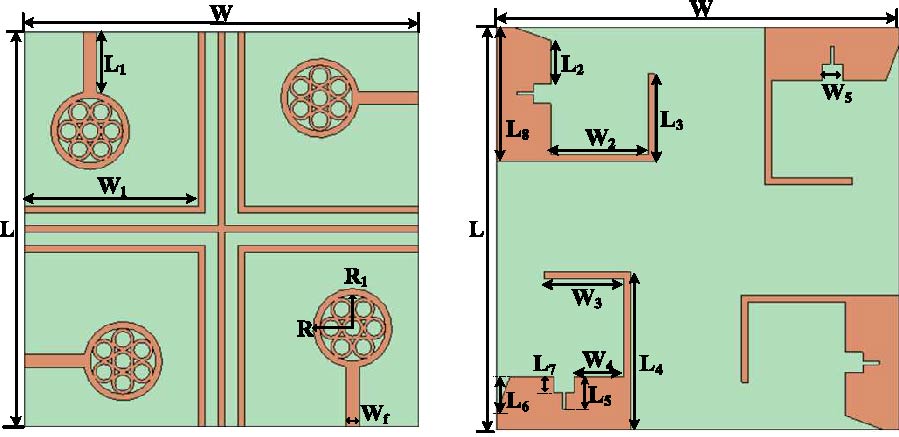

In this paper, a racket-shaped ultra-wideband (UWB) multiple-input multiple-output (MIMO) antenna is analytically designed using characteristic mode analysis. The antenna has an overall size of 60 × 60 × 1.6 mm³ and consists of four racket-type radiating elements, four ground planes shaped like the number 6, and a cross-shaped decoupling structure between the radiating units. In the single antenna configuration, the feed position is determined by analyzing the current and electric field distributions of its characteristic modes. The bandwidth and current distribution are optimized by integrating seven small rings, L-shaped branches, and etched slots to ensure the simultaneous excitation of six characteristic modes, thereby enabling its UWB performance. In the MIMO setup, four elements are orthogonally arranged, and a cross-shaped decoupling structure along with a defected ground structure is employed to reduce mutual coupling, achieving over 20 dB isolation between any two elements. Simulated and measured results confirm that the antenna operates over the 3-21 GHz range, fully encompassing the UWB range of 3.1-10.6 GHz. Furthermore, the antenna achieves up to 77% radiation efficiency, a peak gain of 5.75 dBi, and a low envelope correlation coefficient (ECC).

1. Ren, Wanying, Zhonggen Wang, Ming Yang, Jinzhi Zhou, and Wen-Yan Nie, "Design of a simple four-port UWB-MIMO antenna based on a fan-shaped isolator," Progress In Electromagnetics Research M, Vol. 126, 117-126, 2024.
doi:10.2528/PIERM24011101 Google Scholar

2. Fiser, Ondrej, Vojtech Hruby, Jan Vrba, Tomas Drizdal, Jan Tesarik, Jan Vrba Jr., and David Vrba, "UWB bowtie antenna for medical microwave imaging applications," IEEE Transactions on Antennas and Propagation, Vol. 70, No. 7, 5357-5372, 2022. Google Scholar

3. Premkumar, M., A. Muthukrishnan, Dhamodharan Srinivasan, et al., "Design of circular ring shaped UWB antenna for BANs and MI applications," 2023 9th International Conference on Advanced Computing and Communication Systems (ICACCS), 964-967, Coimbatore, India, 2023.

4. Ghosh, Anindya, Anumoy Ghosh, and Jayendra Kumar, "Circularly polarized wide-band quad-element MIMO antenna with improved axial ratio bandwidth and mutual coupling," IEEE Antennas and Wireless Propagation Letters, Vol. 23, No. 12, 4718-4722, 2024. Google Scholar

5. Yan, Sen, Xiaohan Zhai, Hongwei Ren, and Jiahao Zhang, "A low-profile dual-polarized omnidirectional antenna for WLAN/UWB applications," IEEE Antennas and Wireless Propagation Letters, Vol. 23, No. 5, 1433-1437, 2024. Google Scholar

6. Potti, Devisowjanya, Yarasi Tusharika, Mohammed Gulam Nabi Alsath, Savarimuthu Kirubaveni, Malathi Kanagasabai, Radha Sankararajan, Santosh Narendhiran, and P. Balaji Bhargav, "A novel optically transparent UWB antenna for automotive MIMO communications," IEEE Transactions on Antennas and Propagation, Vol. 69, No. 7, 3821-3828, 2021. Google Scholar

7. Rajesh, G. and R. Poonkuzhali, "Design and analysis of CPW fed ultrathin flexible MIMO antenna for UWB and X-band applications," IEEE Access, Vol. 12, 96704-96717, 2024. Google Scholar

8. Jayant, Shailesh and Garima Srivastava, "Close-packed quad-element triple-band-notched UWB MIMO antenna with upgrading capability," IEEE Transactions on Antennas and Propagation, Vol. 71, No. 1, 353-360, 2023. Google Scholar

9. Yuan, Wentao, Jingjian Huang, Xiaofa Zhang, Kaibo Cui, Weiwei Wu, and Naichang Yuan, "Wideband pattern-reconfigurable antenna with switchable monopole and Vivaldi modes," IEEE Antennas and Wireless Propagation Letters, Vol. 22, No. 1, 199-203, 2023. Google Scholar

10. Tangirala, Gayatri, Srinivasu Garikipati, Durbhakula Manikya Krishna Chaitanya, and Virendra Kumar Sharma, "High isolation four-port Wrench shaped compact UWB MIMO antenna for 3.1-10.6 GHz band," Progress In Electromagnetics Research C, Vol. 122, 67-82, 2022. Google Scholar

11. Yao, Shanhua, Tianchu Yang, Xiaorong Qiu, and Xiang Li, "A frog-shaped UWB MIMO antenna design for 5G," Progress In Electromagnetics Research C, Vol. 151, 101-112, 2025. Google Scholar

12. Yao, Yu, Yu Shao, Jiliang Zhang, and Jie Zhang, "A transparent antenna using metal mesh for UWB MIMO applications," IEEE Transactions on Antennas and Propagation, Vol. 71, No. 5, 3836-3844, 2023. Google Scholar

13. Sreeramulu, K., Sk. Taj Mahaboob, R. Ramana Reddy, and K. Lalith Kishore, "A square slotted circular patch MIMO antenna with DGS for UWB applications," 2022 International Conference on Computing, Communication and Power Technology (IC3P), 94-97, Visakhapatnam, India, 2022.

14. Yang, Mengting, Changrong Liu, and Xueguan Liu, "Design of π-shaped decoupling network for dual-polarized Y-probe antenna arrays," IEEE Antennas and Wireless Propagation Letters, Vol. 21, No. 6, 1129-1133, Jun. 2022. Google Scholar

15. Du, Chengzhu, Zhuolin Zhao, Xun Wang, and Fu-Hui Yang, "A compact CPW-fed triple-band MIMO antenna with neutralization line decoupling for WLAN/WiMAX/5G applications," Progress In Electromagnetics Research M, Vol. 103, 129-140, 2021. Google Scholar

16. Paul, Princy Maria, Krishnamoorthy Kandasamy, Mohammad S. Sharawi, and Basudev Majumder, "Dispersion-engineered transmission line loaded slot antenna for UWB applications," IEEE Antennas and Wireless Propagation Letters, Vol. 18, No. 2, 323-327, 2019. Google Scholar

17. Sang, Lei, Jingliang Wang, Ziyan Liu, Wei Wang, Wen Huang, and Hao Tu, "A UWB metal waveguide slot array antenna based on hybrid resonant structural components," IEEE Antennas and Wireless Propagation Letters, Vol. 22, No. 4, 923-927, 2023. Google Scholar

18. Li, Jiawang, Yuanwei Zhu, Yitong Shi, Yun Hu, and Wei Hong, "Millimeter-wave ultrawideband antenna with hybrid-mode resonance including microstrip line, slot, patches, and quasi-monopole modes," IEEE Antennas and Wireless Propagation Letters, Vol. 23, No. 5, 1533-1537, 2024. Google Scholar

19. Chen, Wei Hao, Liang Hua Ye, Kang Ding, Fan Jiang, and Duo-Long Wu, "A broadband circularly polarized antenna using characteristic mode analysis," IEEE Transactions on Antennas and Propagation, Vol. 72, No. 12, 9143-9151, 2024. Google Scholar

20. Fu, Chen, Chunjie Feng, Wubo Chu, Yutao Yue, Xiaobo Zhu, and Wenhua Gu, "Design of a broadband high-gain omnidirectional antenna with low cross polarization based on characteristic mode theory," IEEE Antennas and Wireless Propagation Letters, Vol. 21, No. 9, 1747-1751, 2022. Google Scholar

21. Zeng, Jianping, Zhe Zhang, Feng Han Lin, and Fang Guan, "Penta-mode ultrawideband circularly polarized stacked patch antennas using characteristic mode analysis," IEEE Transactions on Antennas and Propagation, Vol. 70, No. 10, 9051-9060, 2022. Google Scholar

22. Nie, Li Ying, Buon Kiong Lau, Shang Xiang, Hanieh Aliakbari, Bao Wang, and Xian Qi Lin, "Wideband design of a compact monopole-like circular patch antenna using modal analysis," IEEE Antennas and Wireless Propagation Letters, Vol. 20, No. 6, 918-922, 2021. Google Scholar

23. Ren, Mingxing, Ji Li, Hongmei Zhao, and Congcong Xia, "A novel triband circularly polarized metasurface antenna based on characteristic mode analysis," IEEE Antennas and Wireless Propagation Letters, Vol. 23, No. 11, 3817-3821, 2024. Google Scholar

24. Zhang, Zimu, Yongzhi Cheng, Hui Luo, and Fu Chen, "Low-profile wideband circular polarization metasurface antenna with characteristic mode analysis and mode suppression," IEEE Antennas and Wireless Propagation Letters, Vol. 22, No. 4, 898-902, 2023. Google Scholar

25. Wang, Mingqing, Zhonggen Wang, Ming Yang, Wenyan Nie, and Han Lin, "Design of miniaturized tri-band wearable antenna based on characteristic mode theory," Progress In Electromagnetics Research C, Vol. 132, 187-203, 2023. Google Scholar

26. Feng, Guirong, Zixiang Wu, Yabo Lu, Jiaze Xu, Shanzhe Wang, and Zhizhang Chen, "A wideband omnidirectional metasurface antenna using characteristic mode analysis," IEEE Antennas and Wireless Propagation Letters, Vol. 24, No. 2, 359-363, 2025. Google Scholar

27. Zhan, Zhongjie, Wen Huang, Rui Deng, and Bao Li, "Compact dual-polarized antenna with wide band and high isolation using characteristic mode analysis," Progress In Electromagnetics Research C, Vol. 142, 95-106, 2024. Google Scholar

28. Bhavani, Kothakonda Durga, Boddapati T. P. Madhav, Usha Devi Yalavarthi, Yarlagadda Ramakrishna, and Mudunuri Padmanabha Raju, "Characteristic mode analysis for microstrip fed conformal metasurface multiband antenna," Progress In Electromagnetics Research C, Vol. 141, 1-11, 2024. Google Scholar

29. Ren, Wanying, Zhonggen Wang, Wenyan Nie, Weidong Mu, Chenlu Li, and Mingqing Wang, "A transparent ultra-wideband antenna fed by CPW based on characteristic mode theory," Applied Computational Electromagnetics Society Journal (ACES), Vol. 39, No. 11, 987-998, 2024. Google Scholar

30. Tao, Yiwei, Han Lin, Ming Yang, Wenyan Nie, Chenlu Li, and Mingqing Wang, "Sickle-shaped tri-band MIMO antenna for 5G and X-band applications," Progress In Electromagnetics Research C, Vol. 147, 15-25, 2024. Google Scholar

31. Islam, Hashinur, Saumya Das, Tanweer Ali, Tanushree Bose, Sumana Kumari, Om Prakash, and Pradeep Kumar, "Bandstop filter decoupling technique for miniaturized reconfigurable MIMO antenna," IEEE Access, Vol. 10, 19060-19071, 2022. Google Scholar
