Abstract

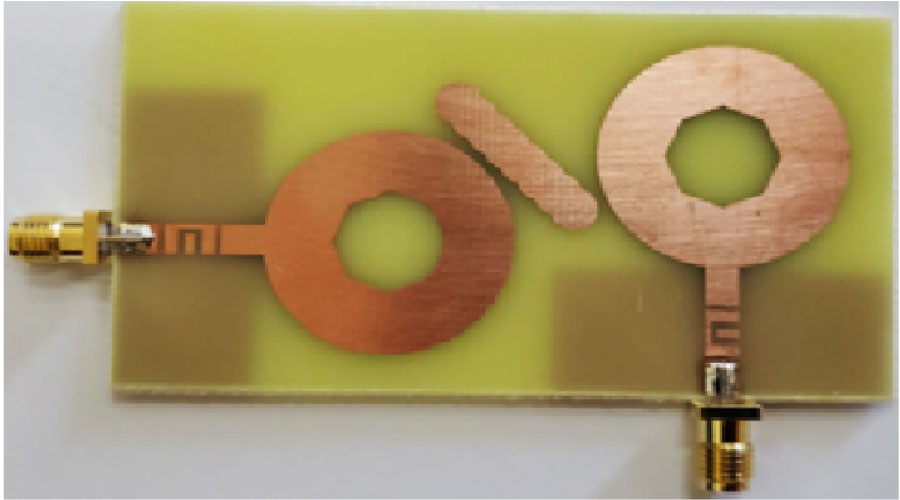

This paper introduces a novel, compact, frequency-reconfigurable multiple-input multiple-output (MIMO) filtenna that integrates a defected microstrip structure (DMS)-based bandpass filter (BPF) with a wideband circular patch antenna to support dynamic tuning across sub-6 GHz and X-band applications. The antenna operates efficiently as a wideband system while enabling mechanically controlled narrowband filtering through a reconfigurable BPF structure embedded in the feedline. Tunability is achieved using discrete switching mechanisms, allowing frequency selection from 5.9 GHz up to 12 GHz, with a peak gain of 6 dBi and high radiation efficiency. A two-port MIMO configuration with orthogonal element placement and an embedded decoupling structure ensures superior isolation (< –48 dB), extremely low envelope correlation coefficient (ECC < 0.0035), and diversity gain (DG) approaching 9.998 dB. The proposed antenna demonstrates excellent performance metrics with a compact footprint of 80 × 45 mm², making it well-suited for compact wireless applications in environments with limited spectral availability.

1. Rawat, S., H. Singh, and M. Kumar, "Design and analysis of compact reconfigurable filtenna using DMS for multi-band wireless applications," IEEE Access, Vol. 12, 48032-48043, 2024.
doi:10.1002/dac.5813

2. Prashad, Lalbabu, Harish Chandra Mohanta, and Ahmed Jamal Abdullah Al-Gburi, "Dual band rectenna for electromagnetic energy harvesting at 2.4 GHz and 5 GHz frequencies," Progress In Electromagnetics Research B, Vol. 108, 75-88, 2024.
doi:10.2528/pierb24072102

3. Marzouk, Mohamed, Ibrahime H. Nejdi, Youssef Rhazi, Mohamed Saih, Jamal A. Nasir, Abdulrahman Daher, M. Hussein, Zahriladha Zakaria, and Ahmed J. A. Al-Gburi, "Low-profile reconfigurable UWB fractal antenna enhanced by parasitic elements for wireless applications," Progress In Electromagnetics Research Letters, Vol. 126, 37-48, 2025.
doi:10.2528/pierl25040402

4. El Aoud, Salah E., Hind Abbaoui, Omaima Benkhadda, Sanae Attioui, N. E. Assri, Saïda Ibnyaich, Abdelouhab Zeroual, Mohd M. Ismail, and Ahmed J. A. Al-Gburi, "Design of a crescent moon-shaped reconfigurable patch antenna using a PIN diode for 5G sub-6 GHz and multistandard wireless applications," Progress In Electromagnetics Research B, Vol. 109, 81-93, 2024.
doi:10.2528/pierb24092501

5. Chinda, Francis Emmanuel, Mehwish Hanif, Socheatra Soeung, Muhammad Sani Yahya, Ahmed Jamal Abdullah Al-Gburi, Faisal Bashir, Furqan Zahoor, and Cheab Sovuthy, "Design of sub-6 GHz BPF using chained even and odd mode admittance polynomials for 5G C-band applications," Results in Engineering, Vol. 25, 103614, 2025.
doi:10.1016/j.rineng.2024.103614

6. Awan, Wahaj Abbas, Niamat Hussain, Sunggoo Kim, and Nam Kim, "A frequency-reconfigurable filtenna for GSM, 4G-LTE, ISM, and 5G Sub-6 GHz band applications," Sensors, Vol. 22, No. 15, 5558, 2022.
doi:10.3390/s22155558

7. Liu, Haiwen, Pin Wen, Shuangshuang Zhu, Baoping Ren, Xuehui Guan, and Hui Yu, "Quad-band CPW-fed monopole antenna based on flexible pentangle-loop radiator," IEEE Antennas and Wireless Propagation Letters, Vol. 14, 1373-1376, 2015.
doi:10.1109/lawp.2015.2406391

8. Kumar, Ashish, Gurmeet Singh, Muhannad K. Abdulhameed, Sarah R. Hashim, and Ahmed J. A. Al-Gburi, "Development of fractal 5G MIMO antenna for sub 6 GHz wireless automotive applications," Progress In Electromagnetics Research M, Vol. 130, 121-128, 2024.
doi:10.2528/pierm24102403

9. Elabd, Rania Hamdy and Ahmed Jamal Abdullah Al-Gburi, "Low mutual coupling miniaturized dual-band quad-port MIMO antenna array using decoupling structure for 5G smartphones," Discover Applied Sciences, Vol. 6, No. 4, 189, 2024.
doi:10.1007/s42452-024-05765-w

10. El-abd, Rania H., Haythem H. Abdullah, Mohamed Abd Elazim, and Ahmed Sh. Samrah, "Low complexity high-performance precoding algorithms for mm-Wave MU-MIMO communication system," Wireless Personal Communications, Vol. 115, No. 3, 2489-2500, 2020.
doi:10.1007/s11277-020-07692-6

11. Elabd, Rania Hamdy and Ahmed Jamal Abdullah Al-Gburi, "SAR assessment of miniaturized wideband MIMO antenna structure for millimeter wave 5G smartphones," Microelectronic Engineering, Vol. 282, 112098, 2023.
doi:10.1016/j.mee.2023.112098

12. Al Gburi, Ahmed Jamal Abdullah, "5G MIMO antenna: Compact design at 28/38 GHz with metamaterial and SAR analysis for mobile phones," Przegląd Elektrotechniczny, Vol. 2024, No. 4, 171-174, 2024.
doi:10.15199/48.2024.04.32

13. Mistri, Raj Kumar, Santosh Kumar Mahto, Ajit Kumar Singh, Rashmi Sinha, Ahmed Jamal Abdullah Al-Gburi, Thamer A. H. Alghamdi, and Moath Alathbah, "Quad element MIMO antenna for C, X, Ku, and Ka-band applications," Sensors, Vol. 23, No. 20, 8563, 2023.
doi:10.3390/s23208563

14. Al-Gburi, Ahmed Jamal Abdullah, Imran Bin Mohd Ibrahim, Zahriladha Zakaria, and Nur Farzana Bt Mohd Nazli, "Wideband microstrip patch antenna for sub 6 GHz and 5G applications," Przegląd Elektrotechniczny, Vol. 97, No. 11, 26-29, 2021.
doi:10.15199/48.2021.11.04

15. Benkhadda, Omaima, Mohamed Saih, Abdelati Reha, Sarosh Ahmad, Kebir Chaji, Harbinder Singh, and Ahmed Jamal Abdullah Al-Gburi, "A miniaturized reconfigurable antenna for modern wireless applications with broadband and multi-band capabilities," Progress In Electromagnetics Research M, Vol. 127, 93-101, 2024.
doi:10.2528/pierm24042801

16. Perli, Bhaskara Rao, Tathababu Addepalli, G. Divya, M. Kishore Kumar, Manish Sharma, C. Raju, and Ahmed J. A. Al-Gburi, "Serpent-configured quad-port MIMO antenna with dual-band operation and defected substrate-ground structure for millimeter-wave systems," Journal of Infrared, Millimeter, and Terahertz Waves, Vol. 46, No. 7, 43, 2025.
doi:10.1007/s10762-025-01057-5

17. Guariglia, Emanuel, "Harmonic Sierpinski gasket and applications," Entropy, Vol. 20, No. 9, 714, 2018.
doi:10.3390/e20090714

18. Guariglia, Emanuel and Rodrigo Capobianco Guido, "Chebyshev wavelet analysis," Journal of Function Spaces, Vol. 2022, No. 1, 5542054, 2022.
doi:10.1155/2022/5542054

19. Sibille, Alain, Claude Oestges, and Alberto Zanella, MIMO: From Theory to Implementation, 1st Ed., Academic Press, Diego, CA, USA, 2010.
doi:10.23919/eucap51087.2021.9411034

20. Elabd, Rania Hamdy, Ahmed J. A. Al-Gburi, and Amany A. Megahed, "Compact circular MIMO antenna with defected ground structure (DGS) for improved isolation in 5G sub-6GHz mobile systems," Results in Engineering, Vol. 27, 105737, 2025.
doi:10.1016/j.rineng.2025.105737

21. Reha, Abdelati, Omaima Benkhadda, Ahmed Oulad Said, Abdelkebir El Amri, and Ahmed Jamal Abdullah Al-Gburi, "Design of sub-6 GHz and sub-7 GHz dragon fractal antenna for 5G applications with enhanced bandwidth," International Journal of Intelligent Engineering & Systems, Vol. 18, No. 2, 14-22, 2025.
doi:10.1007/978-981-10-1627-1_33

22. Elabd, Rania H., Haythem H. Abdullah, and Mohamed Abdelazim, "Compact highly directive MIMO vivaldi antenna for 5G millimeter-wave base station," Journal of Infrared, Millimeter, and Terahertz Waves, Vol. 42, No. 2, 173-194, 2021.
doi:10.1007/s10762-020-00765-4

23. Kumar, Praveen, Ajit K. Singh, Ranjeet Kumar, Rashmi Sinha, Santosh K. Mahto, Arvind Choubey, and Ahmed Jamal Abdullah Al-Gburi, "High isolated defected ground structure based elliptical shape dual element MIMO antenna for S-band applications," Progress In Electromagnetics Research C, Vol. 143, 67-74, 2024.
doi:10.2528/pierc24031304

24. Jetti, Chandrasekhar Rao, Tathababu Addepalli, Sreenivasa Rao Devireddy, Gayatri Konni Tanimki, Ahmed Jamal Abdullah Al-Gburi, Zahriladha Zakaria, and Pamarthi Sunitha, "Design and analysis of modified U-shaped four element MIMO antenna for dual-band 5G millimeter wave applications," Micromachines, Vol. 14, No. 8, 1545, 2023.
doi:10.3390/mi14081545

25. Thakur, Ekta, Naveen Jaglan, Anupma Gupta, and Ahmed Jamal Abdullah Al-Gburi, "Multi-band notched circular polarized MIMO antenna for ultra-wideband applications," Progress In Electromagnetics Research M, Vol. 125, 87-95, 2024.
doi:10.2528/pierm24012804

26. Pahadsingh, Sasmita and Sudhakar Sahu, "An integrated MIMO filtenna with wide band-narrow band functionality," AEU --- International Journal of Electronics and Communications, Vol. 110, 152862, Oct. 2019.
doi:10.1016/j.aeue.2019.152862

27. Masoodi, Issmat Shah, Insha Ishteyaq, Khalid Muzaffar, and M. Idrees Magray, "A compact band-notched antenna with high isolation for UWB MIMO applications," International Journal of Microwave and Wireless Technologies, Vol. 13, No. 6, 634-640, Jul. 2021.
doi:10.1017/s1759078720001427

28. Dkiouak, Aziz, Alia Zakriti, Mohssine El Ouahabi, and Aicha Mchbal, "Design of two element Wi-MAX/WLAN MIMO antenna with improved isolation using a short stub-loaded resonator (SSLR)," Journal of Electromagnetic Waves and Applications, Vol. 34, No. 9, 1268-1282, 2020.
doi:10.1080/09205071.2020.1756927

29. Hassan, Muhammad Mateen, Maryam Rasool, Muhammad Umair Asghar, Zeeshan Zahid, Adnan Ahmed Khan, Imran Rashid, Abdul Rauf, and Farooq Ahmed Bhatti, "A novel UWB MIMO antenna array with band notch characteristics using parasitic decoupler," Journal of Electromagnetic Waves and Applications, Vol. 34, No. 9, 1225-1238, 2020.
doi:10.1080/09205071.2019.1682063

30. Li, Zhengyi, Zhengwei Du, Masaharu Takahashi, Kazuyuki Saito, and Koichi Ito, "Reducing mutual coupling of MIMO antennas with parasitic elements for mobile terminals," IEEE Transactions on Antennas and Propagation, Vol. 60, No. 2, 473-481, Feb. 2012.
doi:10.1109/tap.2011.2173432

31. Abdullah, Muhammad, Qinlong Li, Wei Xue, Gantao Peng, Yifeng He, and Xiaoming Chen, "Isolation enhancement of MIMO antennas using shorting pins," Journal of Electromagnetic Waves and Applications, Vol. 33, No. 10, 1249-1263, 2019.
doi:10.1080/09205071.2019.1606738

32. Luo, Shengyuan, Yingsong Li, Yinfeng Xia, and Liang Zhang, "A low mutual coupling antenna array with gain enhancement using metamaterial loading and neutralization line structure," Applied Computational Electromagnetics Society Journal (ACES), Vol. 34, No. 3, 411-418, Mar. 2019.
doi:10.1109/apusncursinrsm.2018.8609399

33. Yuan, Xiao-Ting, Wei He, Kai-Dong Hong, Chong-Zhi Han, Zhe Chen, and Tao Yuan, "Ultra-wideband MIMO antenna system with high element-isolation for 5G smartphone application," IEEE Access, Vol. 8, 56281-56289, 2020.
doi:10.1109/access.2020.2982036

34. Lin, Guo-Sheng, Che-Hui Sung, Jing-Lun Chen, Lih-Shan Chen, and Mau-Phon Houng, "Isolation improvement in UWB MIMO antenna system using carbon black film," IEEE Antennas and Wireless Propagation Letters, Vol. 16, 222-225, 2017.
doi:10.1109/lawp.2016.2570301

35. Shah, S. M., K. Hamdan, Z. Z. Abidin, F. C. Seman, S. A. Hamzah, N. Katiran, and F. Zubir, "Frequency tuning varactor-loaded reconfigurable antenna for m-WiMAX and WLAN applications," Indonesian Journal of Electrical Engineering and Computer Science, Vol. 13, No. 2, 779-786, Feb. 2019.
doi:10.11591/ijeecs.v13.i2.pp779-786

36. Abdulraheem, Yasir I., George A. Oguntala, Abdulkareem S. Abdullah, Husham J. Mohammed, Ramzy A. Ali, Raed A. Abd-Alhameed, and James M. Noras, "Design of frequency reconfigurable multiband compact antenna using two PIN diodes for WLAN/WiMAX applications," IET Microwaves, Antennas & Propagation, Vol. 11, No. 8, 1098-1105, Jun. 2017.
doi:10.1049/iet-map.2016.0814

37. Mariem, Mabrouki and Gharsallah Ali, "Designs of frequency reconfigurable planar bow-tie antenna integrated with PIN, varactor diodes and parasitic elements," Advances in Science, Technology and Engineering Systems Journal, Vol. 6, No. 4, 320-326, 2021.
doi:10.25046/aj060435

38. Al Ahmad, Mahmoud, Saifudeen Kabeer, Ala Abu Sanad, and Lillian J. A. Olule, "Compact single-varactor diode frequency-reconfigurable microstrip patch antenna," IET Microwaves, Antennas & Propagation, Vol. 15, No. 9, 1100-1107, Jul. 2021.
doi:10.1049/mia2.12117

39. Dildar, Haris, Faisal Althobiani, Ikhlas Ahmad, Wasi Ur Rehman Khan, Sadiq Ullah, Naveed Mufti, Shakir Ullah, Fazal Muhammad, Muhammad Irfan, and Adam Glowacz, "Design and experimental analysis of multiband frequency reconfigurable antenna for 5G and sub-6 GHz wireless communication," Micromachines, Vol. 12, No. 1, 32, 2021.
doi:10.3390/mi12010032

40. El Mustapha Iftissane, Moulay Driss Belrhiti, Seddik Bri, Jaouad Foshi, and Nawfal Jebbor, "Design and analysis of frequency reconfigurable antenna embedding varactor diodes," Advances in Science, Technology and Engineering Systems Journal, Vol. 4, No. 6, 371-376, 2019.
doi:10.25046/aj040647

41. Ahmad, Ikhlas, Haris Dildar, Wasi Ur Rehman Khan, Sadiq Ullah, Shakir Ullah, Mahmoud A. Albreem, Mohammed H. Alsharif, and Peerapong Uthansakul, "Frequency reconfigurable antenna for multi standard wireless and mobile communication systems," Computers, Materials & Continua, Vol. 68, No. 2, 2563-2578, 2021.
doi:10.32604/cmc.2021.016813

42. Kayabasi, Ahmet, Abdurrahim Toktas, Enes Yigit, and Kadir Sabanci, "Triangular quad-port multi-polarized UWB MIMO antenna with enhanced isolation using neutralization ring," AEU --- International Journal of Electronics and Communications, Vol. 85, 47-53, Feb. 2018.
doi:10.1016/j.aeue.2017.12.027

43. Kumar, Niraj and K. Usha Kiran, "Meander-line electromagnetic bandgap structure for UWB MIMO antenna mutual coupling reduction in E-plane," AEU --- International Journal of Electronics and Communications, Vol. 127, 153423, Dec. 2020.
doi:10.1016/j.aeue.2020.153423

44. Kumar, Praveen, Ajit Kumar Singh, Ranjeet Kumar, Santosh Kumar Mahto, Pravesh Pal, Rashmi Sinha, Arvind Choubey, and Ahmed Jamal Abdullah Al-Gburi, "Design and analysis of low profile stepped feedline with dual circular patch MIMO antenna and stub loaded partial ground plane for wireless applications," Progress In Electromagnetics Research C, Vol. 140, 135-144, 2024.
doi:10.2528/pierc23121201

45. Salehi, Mahdi and Homayoon Oraizi, "Wideband high gain metasurface-based 4T4R MIMO antenna with highly isolated ports for sub-6 GHz 5G applications," Scientific Reports, Vol. 14, No. 1, 14448, Jun. 2024.
doi:10.21203/rs.3.rs-3298947/v2

46. Lumina, A. Vincy, Sangeetha Manoharan, and Sachin Kumar, "Eight-port multiband MIMO antenna design with high isolation for 5G smartphones," International Journal of Microwave and Wireless Technologies, Vol. 16, No. 8, 1316-1330, 2024.
doi:10.1017/s1759078724000849

47. Srinubabu, Manumula and Nuthakki Venkata Rajasekhar, "Design and analysis of a compact 4-Port MIMO antenna for improved isolation and 5G (n78/n77/n48) Performance," Traitement du Signal, Vol. 41, No. 4, 2057-2067, Aug. 2024.
doi:10.18280/ts.410434
