Abstract

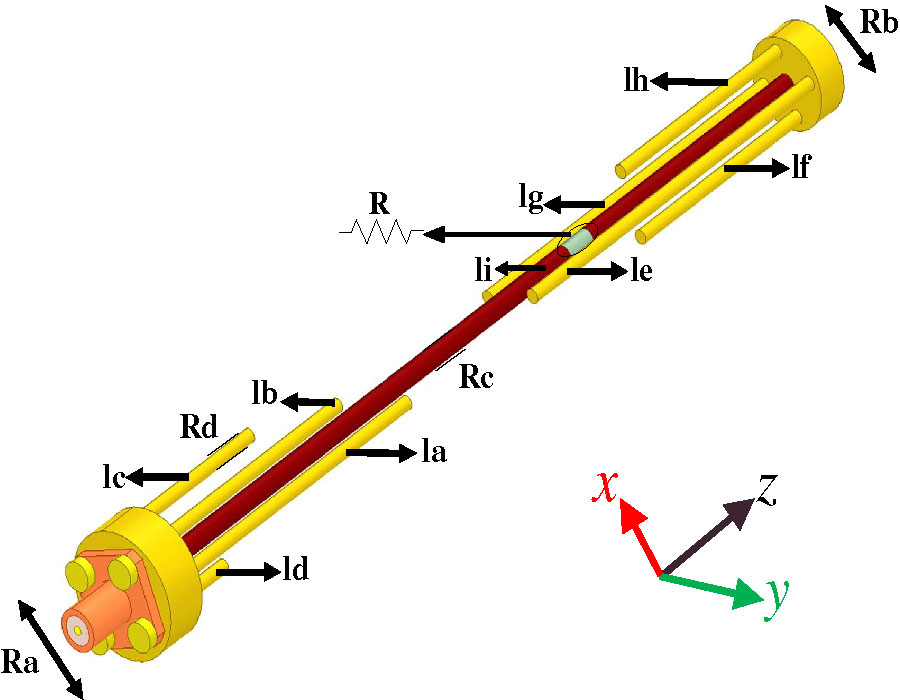

In this paper, a novel compact dual open-sleeve multiband monopole omnidirectional antenna specifically designed for coal mine communication is proposed. Its core innovation lies in the structural optimization that enables multiband operation across a wide frequency range. To adapt to the confined mine tunnel environment, the antenna employs an ultra-small diameter design, which poses significant challenges for impedance matching below 1 GHz. Additionally, the substantial electrical size disparity between the sub-1 GHz and above-5 GHz bands further complicates multiband matching. The proposed open-sleeve monopole antenna consists of top and bottom dual open-sleeve structures along with resistive loads. Four length-adjustable thin copper columns replace the conventional sleeve, forming an open-sleeve structure. Through coordinated tuning of the two longest columns in the bottom open-sleeve structure together with the resistor loads, the antenna achieves favorable impedance matching in the low-frequency band (0.515-0.845 GHz). Furthermore, by adjusting the dimensions of the second-longest and shortest columns in the bottom open-sleeve, the antenna covers the 1.370-1.485 GHz and 4.660-6.000 GHz bands, respectively, while tuning the central monopole enables matching in the 2.210-2.525 GHz band. Ultimately, through independent adjustment of the four bottom column lengths and coordinated optimization of the resistor loads, the antenna effectively operates in four bands: 0.515-0.845 GHz, 1.370-1.485 GHz, 2.210-2.525 GHz, and 4.660-6.000 GHz, with the ratio between the lowest and highest operating frequencies reaching 10:1. Simultaneously, the top open-sleeve structure enhances the antenna's gain in the low-frequency band. Measured results show good agreement with simulation, demonstrating a gain of 1.21-4.59 dBi and radiation efficiency of 44%-77.7%. Moreover, the antenna exhibits omnidirectional radiation characteristics. This antenna shows potential for coal mine communication applications and also supports WLAN (2.4/5.2/5.8 GHz), WiMAX (2.3/5.8 GHz), and 5G NR (n5/n12/n28/n71/n79).

1. Li, Yun, Peng Chen, and Bo Yin, "Research on ultra narrow size microstrip multiband antenna suitable for wireless repeaters in mine tunnels with different cross-sections," Progress In Electromagnetics Research C, Vol. 149, 37-45, 2024.
doi:10.2528/pierc24080702 Google Scholar

2. Zhao, Chengwei, Xiaoping Li, Chao Sun, He Huang, and Zheng Zhang, "Wideband planar sleeve dipole antenna with back cavity," IEEE Antennas and Wireless Propagation Letters, Vol. 19, No. 6, 959-963, 2020.
doi:10.1109/lawp.2020.2984687 Google Scholar

3. Amani, N., A. Jafargholi, and R. Pazoki, "A broadband VHF/UHF-loaded dipole antenna in the vicinity of a human body," IEEE Transactions on Antennas and Propagation, Vol. 65, No. 10, 5577-5582, 2017.
doi:10.1109/tap.2017.2738031 Google Scholar

4. Liu, Longsheng, Zhijun Zhang, Zijian Tian, and Zhenghe Feng, "A bidirectional endfire array with compact antenna elements for coal mine/tunnel communication," IEEE Antennas and Wireless Propagation Letters, Vol. 11, 342-345, 2012.
doi:10.1109/lawp.2012.2191383 Google Scholar

5. Liu, Wendong, Zhijun Zhang, Zijian Tian, and Zhenghe Feng, "A bidirectional high-gain cascaded ring antenna for communication in coal mine," IEEE Antennas and Wireless Propagation Letters, Vol. 12, 761-764, 2013.
doi:10.1109/lawp.2013.2270936 Google Scholar

6. Sharma, Ashwani, Ignacio J. Garcia Zuazola, and Asier Perallos, "Multipurpose near- and far-field switched multiband coil antenna for 915-MHz/2.45/5.8-GHz RFIDs," IEEE Antennas and Wireless Propagation Letters, Vol. 16, 2562-2565, 2017.
doi:10.1109/lawp.2017.2733160 Google Scholar

7. Tiwary, Anjini Kumar, Ravi Shankar Singh, and Vibha Rani Gupta, "Compact antenna for through-the-earth mine communication," Electrica, Vol. 25, No. 1, 1-8, 2025.
doi:10.5152/electrica.2025.23144 Google Scholar

8. Moosazadeh, Mahdi and Sergey Kharkovsky, "Compact and small planar monopole antenna with symmetrical L-and U-shaped slots for WLAN/WiMAX applications," IEEE Antennas and Wireless Propagation Letters, Vol. 13, 388-391, 2014.
doi:10.1109/lawp.2014.2306962 Google Scholar

9. Huang, He, Ying Liu, Shaoshuai Zhang, and Shuxi Gong, "Multiband metamaterial-loaded monopole antenna for WLAN/WiMAX applications," IEEE Antennas and Wireless Propagation Letters, Vol. 14, 662-665, 2015.
doi:10.1109/lawp.2014.2376969 Google Scholar

10. Gautam, Anil Kumar, Lalit Kumar, Binod Kumar Kanaujia, and Karumudi Rambabu, "Design of compact F-shaped slot triple-band antenna for WLAN/WiMAX applications," IEEE Transactions on Antennas and Propagation, Vol. 64, No. 3, 1101-1105, 2016.
doi:10.1109/tap.2015.2513099 Google Scholar

11. Yazdani, Reza, Mahdi Yousefi, Hadi Aliakbarian, Homayoon Oraizi, and Guy A. E. Vandenbosch, "Miniaturized triple-band highly transparent antenna," IEEE Transactions on Antennas and Propagation, Vol. 68, No. 2, 712-718, 2020.
doi:10.1109/tap.2019.2947132 Google Scholar

12. Babale, Suleiman Aliyu, Tan Kim Geok, Sharul Kamal Abdul Rahim, Chia Pao Liew, Umar Musa, Mukhtar Fatihu Hamza, Yaser Awadh Bakhuraisa, and Li Li Lim, "Machine learning-based optimized 3G/LTE/5G planar wideband antenna with tri-bands filtering notches," IEEE Access, Vol. 12, 80669-80686, 2024.
doi:10.1109/access.2024.3407371 Google Scholar

13. Boukarkar, Abdelheq, Xian Qi Lin, Yuan Jiang, and Yi Qiang Yu, "Miniaturized single-feed multiband patch antennas," IEEE Transactions on Antennas and Propagation, Vol. 65, No. 2, 850-854, 2017.
doi:10.1109/tap.2016.2632620 Google Scholar

14. Tan, Weihua and Zhongxiang Shen, "A dual-band dual-sleeve monopole antenna," IEEE Antennas and Wireless Propagation Letters, Vol. 16, 2951-2954, 2017.
doi:10.1109/lawp.2017.2755042 Google Scholar

15. Rao, Pasumarthi Srinivasa, Bondili Siva Hari Prasad, Jagabathuni Kavitha, and Uppala Jayaram, "A multi-slot UWB monopole antenna with dual band notch characteristics," Progress In Electromagnetics Research C, Vol. 138, 79-90, 2023.
doi:10.2528/pierc23071401 Google Scholar

16. Kisioglu, Hakan, "Multiband antenna design with a defected ground structure for 5G and X-band applications," AEU --- International Journal of Electronics and Communications, Vol. 190, 155651, 2025.
doi:10.1016/j.aeue.2024.155651 Google Scholar

17. Sun, Jiping, Weifeng Liang, Ming Peng, Gaomin Zhang, Tao Pan, Hou Zhang, and Xiaowei Li, "Analysis and testing of wireless transmission attenuation in coal mine underground and research on the optimal operating frequency band," Journal of Mine Automation, Vol. 49, No. 4, 1-8, 2023.
doi:10.13272/j.issn.1671-251x.18093 Google Scholar

18. Sun, Jiping, "Research and development of 5G communication system standards for coal mines," Journal of Mine Automation, Vol. 49, No. 8, 1-8, 2023.
doi:10.13272/j.issn.1671-251x.18147 Google Scholar

19. Zhang, Xiao Hong, Xi Wang Dai, Wen Sun, Huayan Jin, and Guo Qing Luo, "Sleeve monopole antenna with choke structure for broadband application," IEEE Antennas and Wireless Propagation Letters, Vol. 20, No. 7, 1230-1233, 2021.
doi:10.1109/lawp.2021.3076049 Google Scholar

20. Mukherjee, Sayantan, "Manpack antennas for tactical communication radios," 2022 IEEE Microwaves, Antennas, and Propagation Conference (MAPCON), 1178-1181, Bangalore, India, 2022.
doi:10.1109/MAPCON56011.2022.10046905

21. Gangwar, Kapil, Gary Chien-Yi Chen, Kevin Khee-Meng Chan, Ravi Kumar Gangwar, and Karumudi Rambabu, "Antenna system for communication in underground mining environment to ensure miners safety," IEEE Access, Vol. 9, 150162-150171, 2021.
doi:10.1109/access.2021.3125445 Google Scholar

22. Xu, Yanhong, Tingting Bai, Zhiwen Zhang, Anyi Wang, Can Cui, and Jianqiang Hou, "A compact multi-band monopole antenna for 5G NR coal mine applications," Progress In Electromagnetics Research Letters, Vol. 115, 57-62, 2024.
doi:10.2528/pierl23102302 Google Scholar

23. Xu, Yanhong, Peipei Dong, Anyi Wang, Jianqiang Hou, and Shanshan Li, "A quad-band high-isolated MIMO microstrip antenna for coal mine communication," Progress In Electromagnetics Research Letters, Vol. 115, 39-46, 2024.
doi:10.2528/pierl23100703 Google Scholar

24. Xu, Yanhong, Nanyue Li, Can Cui, Xuhui Fan, Jianqiang Hou, and Anyi Wang, "A dual-band high-isolated MIMO antenna based on compensation network for 5G coal mine applications," Progress In Electromagnetics Research Letters, Vol. 123, 47-54, 2025.
doi:10.2528/pierl24082804 Google Scholar

Dr. Bo Yin

Dr. Xiangdong Fu

Dr. Lilong Tan

Dr. Xiaolang Sheng

Dr. Peng Chen
