Abstract

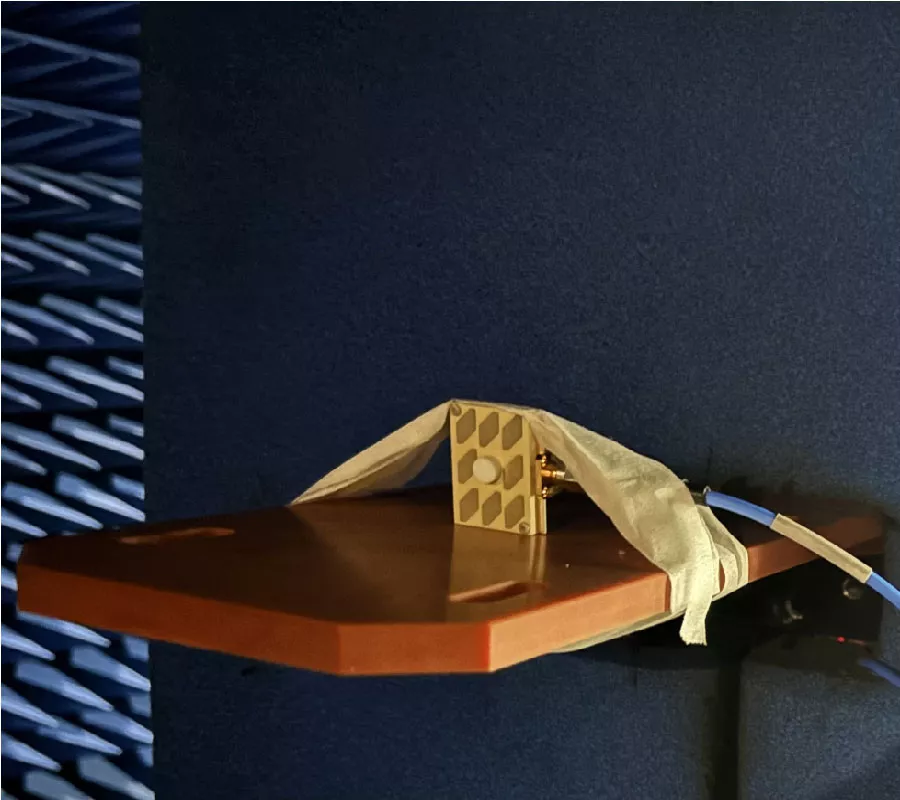

This paper proposes a single-fed antenna with large frequency ratio. The antenna integrates a metasurface antenna and a dielectric resonator antenna (DRA), capable of simultaneous operation in both microwave and millimeter-wave bands with single-port feeding. The microwave band achieves resonance through the metasurface antenna, while the millimeter-wave band resonates by exciting the HEM_12δ higher-order mode of the DRA. The proposed metasurface antenna achieves 24% (5.6 GHz-7.13 GHz) impedance bandwidth, 10% (6.2 GHz-6.9 GHz) axial ratio bandwidth, and 6.07 dBi peak gain in the microwave band; the DRA provides 13.4% (27.47 GHz-31.43 GHz) impedance bandwidth and 6.4 dBi peak gain in the millimeter-wave band. With simple structure and excellent performance, this antenna achieves a frequency ratio of 5.2, making it suitable for 5G communication scenarios requiring concurrent Sub-8 GHz and FR2 operation.

1. Dehos, Cedric, Jose Luis González, Antonio De Domenico, Dimitri Kténas, and Laurent Dussopt, "Millimeter-wave access and backhauling: The solution to the exponential data traffic increase in 5G mobile communications systems?," IEEE Communications Magazine, Vol. 52, No. 9, 88-95, Sep. 2014.
doi:10.1109/mcom.2014.6894457

2. Choudhury, Debabani, "5G wireless and millimeter wave technology evolution: An overview," 2015 IEEE MTT-S International Microwave Symposium, 1-4, Phoenix, AZ, USA, May 2015.
doi:10.1109/MWSYM.2015.7167093

3. Zhu, Xiao-Qi, Yong-Xin Guo, and Wen Wu, "Miniaturized dual-band and dual-polarized antenna for MBAN applications," IEEE Transactions on Antennas and Propagation, Vol. 64, No. 7, 2805-2814, Jul. 2016.
doi:10.1109/tap.2016.2556701

4. Lopez, David Garrido, Maxim Ignatenko, and Dejan S. Filipovic, "Low-profile tri-band inverted-F antenna for vehicular applications in HF and VHF bands," IEEE Transactions on Antennas and Propagation, Vol. 63, No. 11, 4632-4639, Nov. 2015.
doi:10.1109/tap.2015.2474140

5. Boukarkar, Abdelheq, Xian Qi Lin, Yuan Jiang, and Yi Qiang Yu, "Miniaturized single-feed multiband patch antennas," IEEE Transactions on Antennas and Propagation, Vol. 65, No. 2, 850-854, Feb. 2017.
doi:10.1109/tap.2016.2632620

6. Long, S., M. McAllister, and Liang Shen, "The resonant cylindrical dielectric cavity antenna," IEEE Transactions on Antennas and Propagation, Vol. 31, No. 3, 406-412, May 1983.
doi:10.1109/tap.1983.1143080

7. Guha, Debatosh, Archita Banerjee, Chandrakanta Kumar, and Yahia M. M. Antar, "New technique to excite higher-order radiating mode in a cylindrical dielectric resonator antenna," IEEE Antennas and Wireless Propagation Letters, Vol. 13, 15-18, 2014.
doi:10.1109/lawp.2013.2294877

8. Luk, K. M. and K. W. Leung, Dielectric Resonator Antennas, Research Studies Press, London, U.K., 2003.

9. Feng, Li Ying and Kwok Wa Leung, "Wideband dual-frequency antenna with large frequency ratio," IEEE Transactions on Antennas and Propagation, Vol. 67, No. 3, 1981-1986, Mar. 2019.
doi:10.1109/tap.2019.2891336

10. Feng, Li Ying and Kwok Wa Leung, "Dual-fed hollow dielectric antenna for dual-frequency operation with large frequency ratio," IEEE Transactions on Antennas and Propagation, Vol. 65, No. 6, 3308-3313, Jun. 2017.
doi:10.1109/tap.2017.2700225

11. Muhammad, Awab, Muhammad U. Khan, Reza Shamsaee Malfajani, Mohammad S. Sharawi, and Moath Alathbah, "An integrated DRA-based large frequency ratio antenna system consisting of a MM-wave array and a MIMO antenna for 5G applications," IEEE Open Journal of Antennas and Propagation, Vol. 5, No. 2, 368-378, Apr. 2024.
doi:10.1109/ojap.2024.3349455

12. Fang, Xiaosheng, Kwok Wa Leung, and Eng Hock Lim, "Singly-fed dual-band circularly polarized dielectric resonator antenna," IEEE Antennas and Wireless Propagation Letters, Vol. 13, 995-998, 2014.
doi:10.1109/lawp.2014.2324612

13. Zhou, Yao-Dong, Yong-Chang Jiao, Zi-Bin Weng, and Tao Ni, "A novel single-fed wide dual-band circularly polarized dielectric resonator antenna," IEEE Antennas and Wireless Propagation Letters, Vol. 15, 930-933, 2015.
doi:10.1109/lawp.2015.2481462

14. Attia, Hussein, Ahmad Abdalrazik, Mohammad S. Sharawi, and Ahmed A. Kishk, "Wideband circularly polarized millimeter-wave DRA array for internet of things," IEEE Internet of Things Journal, Vol. 10, No. 11, 9597-9606, Jun. 2023.
doi:10.1109/jiot.2023.3235344

15. Chen, Xiaomin, Junlin Wang, and Le Chang, "Extremely low-profile dual-band microstrip patch antenna using electric coupling for 5G mobile terminal applications," IEEE Transactions on Antennas and Propagation, Vol. 71, No. 2, 1895-1900, Feb. 2023.
doi:10.1109/tap.2022.3217640

16. Roy, Aritra, Rozenn Allanic, Thierry Le Gouguec, Francois Gallee, Erwan Fourn, Anne-Charlotte Amiaud, and Hervé Legay, "A compact dual-band single-feed slotted waveguide array antenna for unidirectional radiation patterns," IEEE Transactions on Antennas and Propagation, Vol. 72, No. 12, 9095-9102, Dec. 2024.
doi:10.1109/tap.2024.3484150

17. Cui, Lun-Xue, Xin-Hao Ding, Wen-Wen Yang, Lei Guo, Li-Heng Zhou, and Jian-Xin Chen, "Communication compact dual-band hybrid dielectric resonator antenna for 5G millimeter-wave applications," IEEE Transactions on Antennas and Propagation, Vol. 71, No. 1, 1005-1010, Jan. 2023.
doi:10.1109/tap.2022.3211389

18. Qi, Jiaran, Qiming Wang, Feiyang Deng, Zhi Zeng, and Jinghui Qiu, "Low-profile uni-cavity high-gain FPC antenna covering entire global 2.4 GHz and 5 GHz WiFi-bands using uncorrelated dual-band PRS and phase compensation AMC," IEEE Transactions on Antennas and Propagation, Vol. 70, No. 11, 10187-10198, Nov. 2022.
doi:10.1109/tap.2022.3191202

19. Ye, Jingxin, Teng Li, Min Han, and Wenbin Dou, "Metasurface-inspired wideband circularly polarized antenna array in Ka-band using characteristic mode analysis," IEEE Antennas and Wireless Propagation Letters, Vol. 23, No. 1, 389-393, Jan. 2024.
doi:10.1109/lawp.2023.3325448

20. Zhao, Ge, Yi Zhou, Jing Rui Wang, and Mei Song Tong, "A circularly polarized dielectric resonator antenna based on quasi-self-complementary metasurface," IEEE Transactions on Antennas and Propagation, Vol. 70, No. 8, 7147-7151, Aug. 2022.
doi:10.1109/tap.2022.3145504

Dr. Wenhan Wan

Dr. Wu-Sheng Ji

Dr. Zhaoyi Wang

Dr. Xing-Yong Jiang
