Abstract

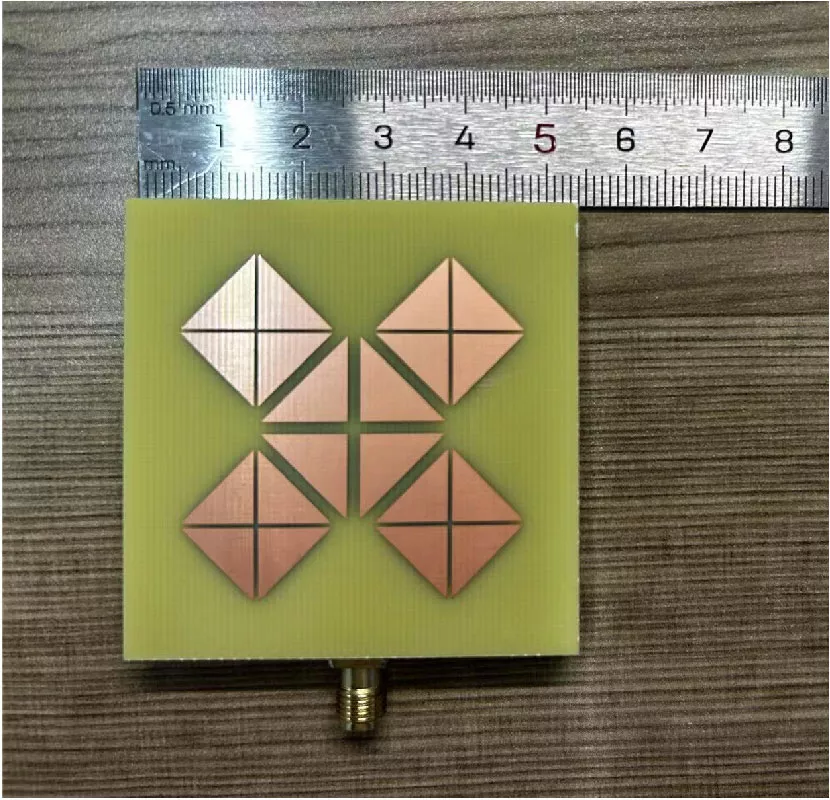

In response to the demand for broadband antennas in satellite communications, this paper sets out the proposal of a broadband circularly polarised metasurface antenna. Based on the theory of characteristic mode analysis of super surface, a pair of characteristic modes with the potential to realize circular polarization broadband are obtained and used as the modes to be excited. At the same time, the metasurface current is analyzed; the position of the floor gap is determined according to the results; and the shape of the floor gap is designed to better stimulate the characteristic mode. Subsequently, the power is transmitted through the microstrip line gap coupling feeding structure to excite the selected mode. Finally, an MTS antenna with dimensions of 0.9λ₀ × 0.9λ₀ × 0.076λ₀ at a centre frequency of 5 GHz was determined. The antenna was modeled using CST, a 3D electromagnetic simulation software, and then physically tested for verification. The experimental findings indicate that the impedance bandwidth of the antenna in question is 4.20-5.83 GHz (relative bandwidth of 32.6%). Furthermore, the 3 dB axial ratio bandwidth is 4.38-5.97 GHz (relative bandwidth of 30.7%).

1. Fan, Fang-Fang, Qing-Lin Chen, Yun-Xue Xu, Xiao-Fei Zhao, Ji-Chao Feng, and Ze-Hong Yan, "A wideband compact printed dipole antenna array with SICL feeding network for 5G application," IEEE Antennas and Wireless Propagation Letters, Vol. 22, No. 2, 283-287, 2023.
doi:10.1109/lawp.2022.3209326 Google Scholar

2. Nie, Li Ying, Buon Kiong Lau, Shang Xiang, Hanieh Aliakbari, Bao Wang, and Xian Qi Lin, "Wideband design of a compact monopole-like circular patch antenna using modal analysis," IEEE Antennas and Wireless Propagation Letters, Vol. 20, No. 6, 918-922, 2021.
doi:10.1109/lawp.2021.3066985 Google Scholar

3. Tang, Xihui, Yejun He, and Botao Feng, "Design of a wideband circularly polarized strip-helical antenna with a parasitic patch," IEEE Access, Vol. 4, 7728-7735, 2016.
doi:10.1109/access.2016.2628044 Google Scholar

4. Liu, Shuo, Wen Wu, and Da-Gang Fang, "Wideband monopole-like radiation pattern circular patch antenna with high gain and low cross-polarization," IEEE Transactions on Antennas and Propagation, Vol. 64, No. 5, 2042-2045, May 2016.
doi:10.1109/tap.2016.2536418 Google Scholar

5. Lin, Chen, Fu-Shun Zhang, Yong-Chang Jiao, Fan Zhang, and Xin Xue, "A three-fed microstrip antenna for wideband circular polarization," IEEE Antennas and Wireless Propagation Letters, Vol. 9, 359-362, 2010.
doi:10.1109/lawp.2010.2048296 Google Scholar

6. Ding, Kang, Yanjie Wu, Kun-Hua Wen, Duo-Long Wu, and Jian-Feng Li, "A stacked patch antenna with broadband circular polarization and flat gains," IEEE Access, Vol. 9, 30275-30282, 2021.
doi:10.1109/access.2021.3059948 Google Scholar

7. Cao, Rong and Shun-Chuan Yu, "Wideband compact CPW-fed circularly polarized antenna for universal UHF RFID reader," IEEE Transactions on Antennas and Propagation, Vol. 63, No. 9, 4148-4151, 2015.
doi:10.1109/tap.2015.2443156 Google Scholar

8. Yang, Kangling, Mingjiang Wang, and Xiao Jia, "Improved bandwidth of patch antenna using dual-layer metasurface," Progress In Electromagnetics Research Letters, Vol. 124, 69-75, 2025.
doi:10.2528/pierl24120601 Google Scholar

9. Yang, Wanchen, Qian Meng, Wenquan Che, Lizheng Gu, and Quan Xue, "Low-profile wideband dual-circularly polarized metasurface antenna array with large beamwidth," IEEE Antennas and Wireless Propagation Letters, Vol. 17, No. 9, 1613-1616, Sep. 2018.
doi:10.1109/lawp.2018.2857625 Google Scholar

10. Zeng, Yunjia, Xianming Qing, and Michael Yan-Wah Chia, "A wideband circularly polarized antenna with a nonuniform metasurface designed via multiobjective bayesian optimization," IEEE Antennas and Wireless Propagation Letters, Vol. 23, No. 6, 1739-1743, Jun. 2024.
doi:10.1109/lawp.2024.3368030 Google Scholar

11. Wan, Wenhan, Wusheng Ji, Zhaoyi Wang, and Xingyong Jiang, "Wideband circularly polarized dielectric resonator antenna based on double-layer metasurface," Progress In Electromagnetics Research C, Vol. 158, 197-203, 2025.
doi:10.2528/PIERC25062201 Google Scholar

12. Geng, Guanghuan and Zhendong Ding, "Wideband metasurface antenna with polarization reconfigurable controlled by resistors," Progress In Electromagnetics Research Letters, Vol. 127, 15-21, 2025.
doi:10.2528/PIERL25061606 Google Scholar

13. Nasimuddin and Xianming Qing, "A miniaturized wideband circularly polarized antenna using metasurface," 2022 16th European Conference on Antennas and Propagation (EuCAP), 1-5, Madrid, Spain, 2022.
doi:10.23919/EuCAP53622.2022.9768941

14. Ding, Kang, Rentang Hong, Dongfang Guan, Li Liu, and Yanjie Wu, "Broadband circularly polarised stacked antenna with sequential-phase feed technique," IET Microwaves, Antennas & Propagation, Vol. 14, No. 8, 779-784, 2020.
doi:10.1049/iet-map.2019.0894 Google Scholar

15. Wu, Zhao, Long Li, Yongjiu Li, and Xi Chen, "Metasurface superstrate antenna with wideband circular polarization for satellite communication application," IEEE Antennas and Wireless Propagation Letters, Vol. 15, 374-377, 2015.
doi:10.1109/lawp.2015.2446505 Google Scholar

16. Xiang, Zhen, Zhonggen Wang, Chenlu Li, and Rui You, "Design of UWB monopole antenna with ring structure based on characteristic mode theory," Progress In Electromagnetics Research C, Vol. 158, 225-234, 2025.
doi:10.2528/PIERC25060317 Google Scholar

17. Wang, Zhonggen, Fukuan Zhang, Wenyan Nie, Ming Yang, and Chenlu Li, "A racket-shaped UWB MIMO antenna based on characteristic mode analysis," Progress In Electromagnetics Research B, Vol. 114, 37-50, 2025.
doi:10.2528/PIERB25060903 Google Scholar

18. Shahpari, Azadeh and Mohsen Shafeghati, "A new design of tunable dual band-notched UWB flower-shaped antenna verified by CMA," Progress In Electromagnetics Research C, Vol. 156, 217-225, 2025.
doi:10.2528/pierc25022404 Google Scholar

19. Feng, Hanbo, Zhonggen Wang, Wenyan Nie, and Ming Yang, "High-gain dual-band metasurface MIMO antenna for enhanced 5G and satellite applications," Progress In Electromagnetics Research C, Vol. 156, 13-22, 2025.
doi:10.2528/pierc25041001 Google Scholar

20. Ji, Wusheng, Yun Gao, Xingyong Jiang, Xinyi Li, and Wenhan Wan, "A circularly polarized magnetoelectric dipole antenna with microstrip-line aperture-coupled feeding," Progress In Electromagnetics Research C, Vol. 154, 11-19, 2025.
doi:10.2528/PIERC25012401 Google Scholar

21. Shang, Sihui, Feng Tang, Xin Ye, Qingzhi Li, Hailiang Li, Jingjun Wu, Yiman Wu, Jun Chen, Zhihong Zhang, Yuanjie Yang, and Wanguo Zheng, "High-efficiency metasurfaces with 2π phase control based on aperiodic dielectric nanoarrays," Nanomaterials, Vol. 10, No. 2, 250, 2020.
doi:10.3390/nano10020250 Google Scholar

22. Wang, Yi, Kang Chen, You Li, and Qunsheng Cao, "Design of nonresonant metasurfaces for broadband RCS reduction," IEEE Antennas and Wireless Propagation Letters, Vol. 20, No. 3, 346-350, 2021.
doi:10.1109/lawp.2021.3049882 Google Scholar

23. Zhang, Qian, Xiang Wan, Shuo Liu, Jia Yuan Yin, Lei Zhang, and Tie Jun Cui, "Shaping electromagnetic waves using software-automatically-designed metasurfaces," Scientific Reports, Vol. 7, No. 1, 3588, 2017.
doi:10.1038/s41598-017-03764-z Google Scholar

24. Gao, Xi, Guowei Tian, Zhaoyu Shou, and Simin Li, "A low-profile broadband circularly polarized patch antenna based on characteristic mode analysis," IEEE Antennas and Wireless Propagation Letters, Vol. 20, No. 2, 214-218, Feb. 2021.
doi:10.1109/lawp.2020.3044320 Google Scholar

25. Liu, Sihao, Deqiang Yang, and Jin Pan, "A low-profile broadband dual-circularly-polarized metasurface antenna," IEEE Antennas and Wireless Propagation Letters, Vol. 18, No. 7, 1395-1399, Jul. 2019.
doi:10.1109/lawp.2019.2917758 Google Scholar

26. Zhao, Chen and Chao-Fu Wang, "Characteristic mode design of wide band circularly polarized patch antenna consisting of H-shaped unit cells," IEEE Access, Vol. 6, 25292-25299, 2018.
doi:10.1109/access.2018.2828878 Google Scholar

27. Zeng, Jianping, Xiuye Liang, Lianxing He, Fang Guan, Feng Han Lin, and Jian Zi, "Single-fed triple-mode wideband circularly polarized microstrip antennas using characteristic mode analysis," IEEE Transactions on Antennas and Propagation, Vol. 70, No. 2, 846-855, Feb. 2022.
doi:10.1109/tap.2021.3111280 Google Scholar

Dr. Xuemei Zheng

Dr. Ao Gui
