2026-02-20
Synergistically Optimized Vivaldi Array with SSPP Decoupling and Metasurface Gain Enhancement
By
Progress In Electromagnetics Research Letters, Vol. 129, 35-41, 2026
Abstract

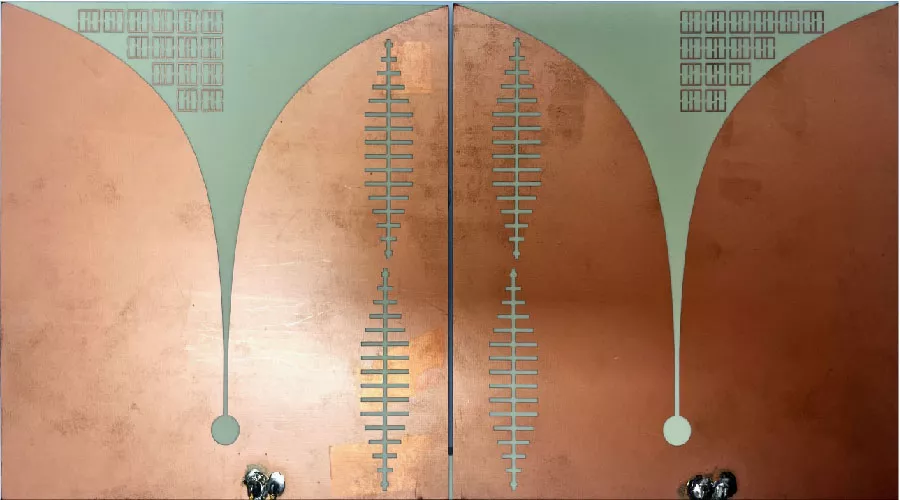

This study proposes a two-element Vivaldi antenna array that achieves broadband mutual coupling suppression and gain enhancement. First, by etching multiple spoof surface plasmon polariton (SSPP) slots on the ground plane to suppress surface-wave coupling, the inter-element isolation has increased from 20-31 dB to 20-45 dB, with an improvement of 5-10 dB (a peak of 20 dB) within the operating band of 1.8-4.5 GHz. Then, a quasi-transparent metasurface (MS) is placed above the aperture to enable phase compensation, converting spherical wavefronts to quasi-planar ones and thereby improving the gain of 0.5-2 dBi across the operating band. Finally, the designed Vivaldi antenna array is fabricated and measured, which exhibits S11 < -10 dB (1.3-4.5 GHz), enhanced isolation, and stable gain performance.
Citation
Shuangshuang Zhu, Yang Shao, Zeting Li, Xiaoyuan Wang, Xinlong Bi, Yunjie Song, and Zhi Quan, "Synergistically Optimized Vivaldi Array with SSPP Decoupling and Metasurface Gain Enhancement," Progress In Electromagnetics Research Letters, Vol. 129, 35-41, 2026.
doi:10.2528/PIERL26011004
References

1. Wang, Mengchu, Lorenzo Crocco, Sandra Costanzo, Rosa Scapaticci, and Marta Cavagnaro, "A compact slot-loaded antipodal Vivaldi antenna for a microwave imaging system to monitor liver microwave thermal ablation," IEEE Open Journal of Antennas and Propagation, Vol. 3, 700-708, 2022.
doi:10.1109/ojap.2022.3183750        Google Scholar

2. Guo, Yating, Tianwei Deng, Jiongpei Xu, Xiaoxia Huang, and Xizhang Wei, "A wideband phased array RF front end with coupling-capture channels for full-duplex wireless backhaul," IEEE Transactions on Microwave Theory and Techniques, Vol. 73, No. 10, 8258-8274, Oct. 2025.
doi:10.1109/tmtt.2025.3571212        Google Scholar

3. Zhang, Yue, Peng-Fei Gu, Zi He, Hua-Guang Bao, Juan Xu, Jian-Xu Sun, Yu-Jian Cheng, Zhen-Hong Fan, and Da-Zhi Ding, "An irregular optimizing design of connected Vivaldi array for wideband and wide-angle scanning," IEEE Transactions on Antennas and Propagation, Vol. 73, No. 6, 3743-3756, Jun. 2025.
doi:10.1109/tap.2025.3542295        Google Scholar

4. Cheng, Houyuan, Shangru Li, Yang Fu, Helin Yang, Jiong Wu, Xiangli Zhou, and Xintong Shi, "Integration of SSPP antenna and Vivaldi arrays for 5G sub-6 GHz and millimeter-wave applications," IEEE Antennas and Wireless Propagation Letters, Vol. 24, No. 7, 2099-2103, Jul. 2025.
doi:10.1109/lawp.2025.3556108        Google Scholar

5. Bergman, Jan H. S., Mikko Heino, Juha Ala-Laurinaho, Taneli Riihonen, Mikko Valkama, and Ville Viikari, "Design of aperture-coupled Vivaldi-antenna array with scan-range-improving parasitic resonators for Ka-band," IEEE Transactions on Antennas and Propagation, Vol. 73, No. 9, 6955-6960, Sep. 2025.
doi:10.1109/tap.2025.3576489        Google Scholar

6. Li, Jinge, Huiqing Zhai, and Maosheng Wang, "A compact Vivaldi antenna with enhanced bandwidth and mismatch suppression," IEEE Transactions on Antennas and Propagation, Vol. 73, No. 1, 623-628, Jan. 2025.
doi:10.1109/tap.2024.3496083        Google Scholar

7. Ge, Feiyu, Hongxin Zhao, Mei Yang, Shunli Li, and Xiaoxing Yin, "Ku-band small frequency ratio self-diplexing Vivaldi antenna with high isolation for high-power application," IEEE Antennas and Wireless Propagation Letters, Vol. 24, No. 8, 2682-2686, Aug. 2025.
doi:10.1109/lawp.2025.3571985        Google Scholar

8. Craeye, C. and D. González-Ovejero, "A review on array mutual coupling analysis," Radio Science, Vol. 46, No. 2, 1-25, Apr. 2011.
doi:10.1029/2010rs004518        Google Scholar

9. Zou, Xiao-Jun, Ya-Wei Wang, Bin-Feng Zong, Xu-Guang Xu, Li-Xun Han, Hang Zhu, Wei Song, Ming Tan, and Hai-Nan Du, "Miniaturized low-profile ultrawideband antipodal Vivaldi antenna array loaded with edge techniques," IEEE Transactions on Antennas and Propagation, Vol. 74, No. 1, 1156-1161, 2026.
doi:10.1109/tap.2025.3606193        Google Scholar

10. Zhu, Shuangshuang, Haiwen Liu, Zhijiao Chen, and Pin Wen, "A compact gain-enhanced Vivaldi antenna array with suppressed mutual coupling for 5G mmWave application," IEEE Antennas and Wireless Propagation Letters, Vol. 17, No. 5, 776-779, May 2018.
doi:10.1109/lawp.2018.2816038        Google Scholar

11. Li, Jinge and Huiqing Zhai, "A wideband grating lobe suppression scheme based on array factor reconfiguration and its application in multibeam antenna arrays," IEEE Transactions on Antennas and Propagation, Vol. 73, No. 11, 8601-8611, Nov. 2025.
doi:10.1109/tap.2025.3594881        Google Scholar

12. Gupta, Shraman, Zouhair Briqech, Abdel Razik Sebak, and Tayeb Ahmed Denidni, "Mutual-coupling reduction using metasurface corrugations for 28 GHz MIMO applications," IEEE Antennas and Wireless Propagation Letters, Vol. 16, 2763-2766, Oct. 2017.
doi:10.1109/lawp.2017.2745050        Google Scholar

13. Zhu, Shuangshuang, Haiwen Liu, and Zhijiao Chen, "An antipodal Vivaldi antenna array based on spoof surface plasmon polariton metamaterial with 5G mm Wave suppression," Journal of Physics D: Applied Physics, Vol. 54, No. 28, 28LT02, May 2021.
doi:10.1088/1361-6463/abfbb0        Google Scholar

14. Huang, Weijun, Yu Xiao, Guoqiang Zhao, Jun Hu, and Zengping Chen, "Ultra-wideband tapered slot antenna with phasecorrecting dielectric lens loaded," IEEE Antennas and Wireless Propagation Letters, Vol. 23, No. 12, 4218-4222, Dec. 2024.
doi:10.1109/lawp.2024.3440052        Google Scholar

15. Zhao, Guoqiang, Yu Xiao, Weijun Huang, Shiyou Xu, and Zengping Chen, "Compact and gain-enhanced Vivaldi antenna design using nonuniform slot profile optimization and aperture dielectric loading," IEEE Antennas and Wireless Propagation Letters, Vol. 24, No. 7, 1570-1574, Jul. 2025.
doi:10.1109/lawp.2025.3534205        Google Scholar

16. Kim, Ikhwan, Hak-Yong Lee, Dong-Min Lee, Ho-Jun Lee, Hyuk Kim, Eun-Seong Kim, and Nam-Young Kim, "Broadband gain enhanced narrow-beam Vivaldi antenna with ring and directors for handheld antidrone jamming system," IEEE Antennas and Wireless Propagation Letters, Vol. 23, No. 1, 214-218, Jan. 2024.
doi:10.1109/lawp.2023.3321899        Google Scholar

17. Shi, Xinrong, Yunfei Cao, Yougen Hu, Xudong Luo, Hua Yang, and Liang Hua Ye, "A high-gain antipodal Vivaldi antenna with director and metamaterial at 1-28 GHz," IEEE Antennas and Wireless Propagation Letters, Vol. 20, No. 12, 2432-2436, Dec. 2021.
doi:10.1109/lawp.2021.3114061        Google Scholar

18. Nurhayati, Gamantyo Hendrantoro, Takeshi Fukusako, and Eko Setijadi, "Mutual coupling reduction for a UWB coplanar Vivaldi array by a truncated and corrugated slot," IEEE Antennas and Wireless Propagation Letters, Vol. 17, No. 12, 2284-2288, Dec. 2018.
doi:10.1109/lawp.2018.2873115        Google Scholar

19. Kazemi, Robab, Aly E. Fathy, and Ramezan Ali Sadeghzadeh, "Dielectric rod antenna array with substrate integrated waveguide planar feed network for wideband applications," IEEE Transactions on Antennas and Propagation, Vol. 60, No. 3, 1312-1319, Mar. 2012.
doi:10.1109/tap.2011.2182489        Google Scholar
