Abstract

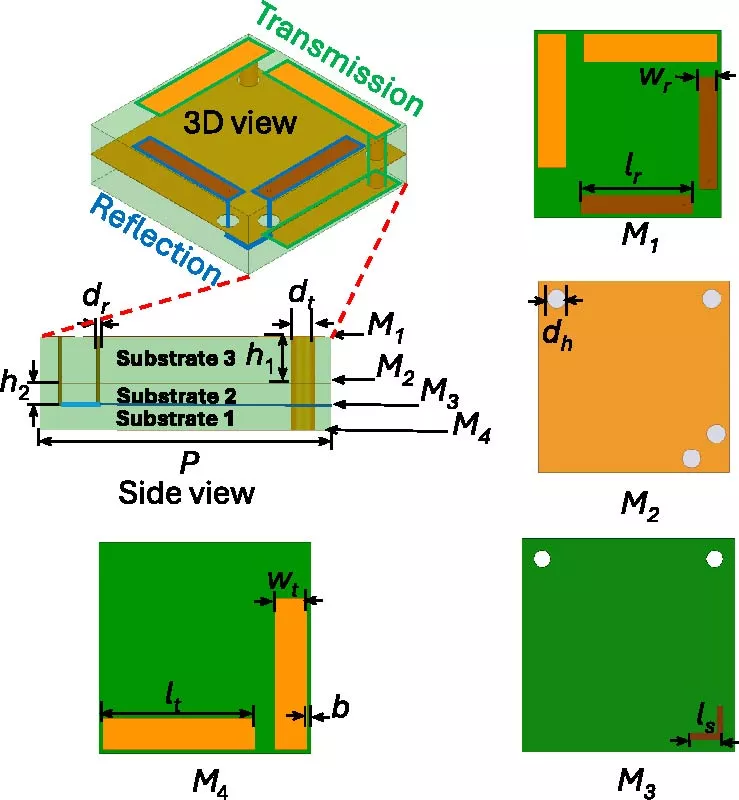

This study proposes an independently controlled polarization rotator with transmissive and reflective capabilities operating in two different frequency bands. The proposed independently controlled transmissive and reflective polarization rotator (ICTR-PR) unit cell consists of four metal layers separated by three substrates. The transmissive polarization rotator mode is realized by two strips (receiving strips) on the top layer, which are connected with two vias through circular holes inside the ground plane to two 90° rotated strips (transmitting strips) on the bottom layer. The reflective polarization rotator mode was produced by connecting another pair of strips on the top layer to a microstrip line located in the middle layer. Properly adjusting the length of each strip allows both transmissive and reflective features to be independently controlled. The proposed rotator exhibits dual-frequency band resonances at 7.7 and 9.48 GHz for reflection and transmission responses, respectively. Furthermore, a high polarization conversion ratio (PCR) of more than 80% was achieved for both modes. A prototype was fabricated and measured to validate the simulation results. A good agreement between the experimental and simulated results was obtained.

1. Al-Nuaimi, Mustafa K. Taher, Guan-Long Huang, William G. Whittow, Dong Wang, Rui-Sen Chen, Sai-Wai Wong, and Kam-Weng Tam, "Coding engineered reflector for wide-band RCS reduction under wide angle of incidence," IEEE Transactions on Antennas and Propagation, Vol. 70, No. 10, 9947-9952, 2022.
doi:10.1109/tap.2022.3179599 Google Scholar

2. Li, Wenting, Steven Gao, Yuanming Cai, Qi Luo, Mohammed Sobhy, Gao Wei, Jiadong Xu, Jianzhou Li, Changying Wu, and Zhiqun Cheng, "Polarization-reconfigurable circularly polarized planar antenna using switchable polarizer," IEEE Transactions on Antennas and Propagation, Vol. 65, No. 9, 4470-4477, 2017.
doi:10.1109/tap.2017.2730240 Google Scholar

3. Zhao, Yu-Tong, Jun-Jie Zhang, and Bian Wu, "Low profile reflective polarization conversion metasurface with high frequency selectivity," IEEE Transactions on Antennas and Propagation, Vol. 70, No. 11, 10614-10622, 2022.
doi:10.1109/tap.2022.3187524 Google Scholar

4. Omar, Ahmed Abdelmottaleb, Wonbin Hong, Amr Al-Awamry, and Abd-Elhady Mahmoud, "A single-layer vialess wideband reflective polarization rotator utilizing perforated holes," IEEE Antennas and Wireless Propagation Letters, Vol. 19, No. 12, 2053-2056, 2020.
doi:10.1109/lawp.2020.3022088 Google Scholar

5. Jia, Yongtao, Ying Liu, Y. Jay Guo, Kun Li, and Shu-Xi Gong, "Broadband polarization rotation reflective surfaces and their applications to RCS reduction," IEEE Transactions on Antennas and Propagation, Vol. 64, No. 1, 179-188, 2016.
doi:10.1109/tap.2015.2502981 Google Scholar

6. Jia, Yongtao, Ying Liu, Y. Jay Guo, Kun Li, and Shuxi Gong, "A dual-patch polarization rotation reflective surface and its application to ultra-wideband RCS reduction," IEEE Transactions on Antennas and Propagation, Vol. 65, No. 6, 3291-3295, 2017.
doi:10.1109/tap.2017.2694879 Google Scholar

7. Ding, Guowen, Linhao Chen, Jiedong Bi, Kai Qu, Sen Chen, Xinyao Luo, Ke Chen, and Shenyun Wang, "Flexible rotation of linear polarization conversion with a frequency selective surface," Optics Express, Vol. 31, No. 25, 41658-41668, Dec. 2023.
doi:10.1364/oe.509694 Google Scholar

8. Wang, Shen-Yun, Jie-Dong Bi, Wei Liu, Wen Geyi, and Steven Gao, "Polarization-insensitive cross-polarization converter," IEEE Transactions on Antennas and Propagation, Vol. 69, No. 8, 4670-4680, 2021.
doi:10.1109/tap.2021.3060087 Google Scholar

9. Wang, Shen-Yun, Wei Liu, and Wen Geyi, "Dual-band transmission polarization converter based on planar-dipole pair frequency selective surface," Scientific Reports, Vol. 8, No. 1, 3791, 2018.
doi:10.1038/s41598-018-22092-4 Google Scholar

10. Hill, N. and S. Cornbleet, "Microwave transmission through a series of inclined gratings," Proceedings of the Institution of Electrical Engineers, Vol. 120, No. 4, 407-412, 1973.
doi:10.1049/piee.1973.0089

11. Omar, Ahmed Abdelmottaleb, Zhongxiang Shen, and Sheng Yu Ho, "Multiband and wideband 90° polarization rotators," IEEE Antennas and Wireless Propagation Letters, Vol. 17, No. 10, 1822-1826, 2018.
doi:10.1109/lawp.2018.2867489 Google Scholar

12. Omar, Ahmed Abdelmottaleb, Abdelhady Mahmoud, Jaehong Choi, and Wonbin Hong, "Wideband transmissive polarization rotator with in-band notches enabling multiband operation," IEEE Access, Vol. 9, 44751-44756, 2021.
doi:10.1109/access.2021.3066638 Google Scholar

13. Babu, Badisa Anil, Boddapati Taraka Phani Madhav, Sudipta Das, Niamat Hussain, Syed Samser Ali, and Nam Kim, "A triple-band reflective polarization conversion metasurface with high polarization conversion ratio for ISM and X-band applications," Sensors, Vol. 22, No. 21, 8213, 2022.
doi:10.3390/s22218213 Google Scholar

14. Kamal, Babar, Jingdong Chen, Yingzeng Yin, Jian Ren, Sadiq Ullah, and Usman Ali, "Design and experimental analysis of dual-band polarization converting metasurface," IEEE Antennas and Wireless Propagation Letters, Vol. 20, No. 8, 1409-1413, 2021.
doi:10.1109/lawp.2021.3083334 Google Scholar

15. Khan, Bilawal, Babar Kamal, Sadiq Ullah, Imran Khan, Jawad Ali Shah, and Jingdong Chen, "Design and experimental analysis of dual-band polarization converting metasurface for microwave applications," Scientific Reports, Vol. 10, No. 1, 15393, 2020.
doi:10.1038/s41598-020-71959-y Google Scholar

16. Fu, Changfeng, Zhijie Sun, Lianfu Han, Chao Liu, Tao Sun, and Paul K. Chu, "High-efficiency dual-frequency reflective linear polarization converter based on metasurface for microwave bands," Applied Sciences, Vol. 9, No. 9, 1910, 2019.
doi:10.3390/app9091910 Google Scholar

17. Li, Fengxia, Haiyan Chen, Qingting He, Yang Zhou, Li Zhang, Xiaolong Weng, Haipeng Lu, Jianliang Xie, and Longjiang Deng, "Design and implementation of metamaterial polarization converter with the reflection and transmission polarization conversion simultaneously," Journal of Optics, Vol. 21, No. 4, 045102, 2019.
doi:10.1088/2040-8986/ab0878 Google Scholar

18. Jiang, Yuanyuan, Man Zhang, Weihua Wang, and Zhengyong Song, "Reflective and transmissive cross-polarization converter for terahertz wave in a switchable metamaterial," Physica Scripta, Vol. 97, No. 1, 015501, 2022.
doi:10.1088/1402-4896/ac46f5 Google Scholar

19. Shen, Zhaoyang, Qinghe Zhang, Xiaojun Huang, Jiong Wu, and Helin Yang, "Simultaneous transmissive and reflective polarization conversion cross different operating bands in a single metasurface," Optics & Laser Technology, Vol. 169, 110071, 2024.
doi:10.1016/j.optlastec.2023.110071 Google Scholar

20. Yang, Heng, Yuan He, Mei Song Tong, Le Tian Guo, Peng Li, and Yun Jing Zhang, "A reflection-transmission multifunctional polarization conversion metasurface," IEEE Transactions on Antennas and Propagation, Vol. 72, No. 6, 5099-5109, 2024.
doi:10.1109/tap.2024.3400619 Google Scholar

21. Pramanik, Samiran, Saikat Chandra Bakshi, Chaitali Koley, Debasis Mitra, Alessio Monti, and Filiberto Bilotti, "Active metasurface-based reconfigurable polarization converter with multiple and simultaneous functionalities," IEEE Antennas and Wireless Propagation Letters, Vol. 22, No. 3, 522-526, 2023.
doi:10.1109/lawp.2022.3217130 Google Scholar

22. Zhang, Chen, Jun Gao, Xiangyu Cao, Si-Jia Li, Huanhuan Yang, and Tong Li, "Multifunction tunable metasurface for entire-space electromagnetic wave manipulation," IEEE Transactions on Antennas and Propagation, Vol. 68, No. 4, 3301-3306, 2020.
doi:10.1109/tap.2019.2929438 Google Scholar
