Abstract

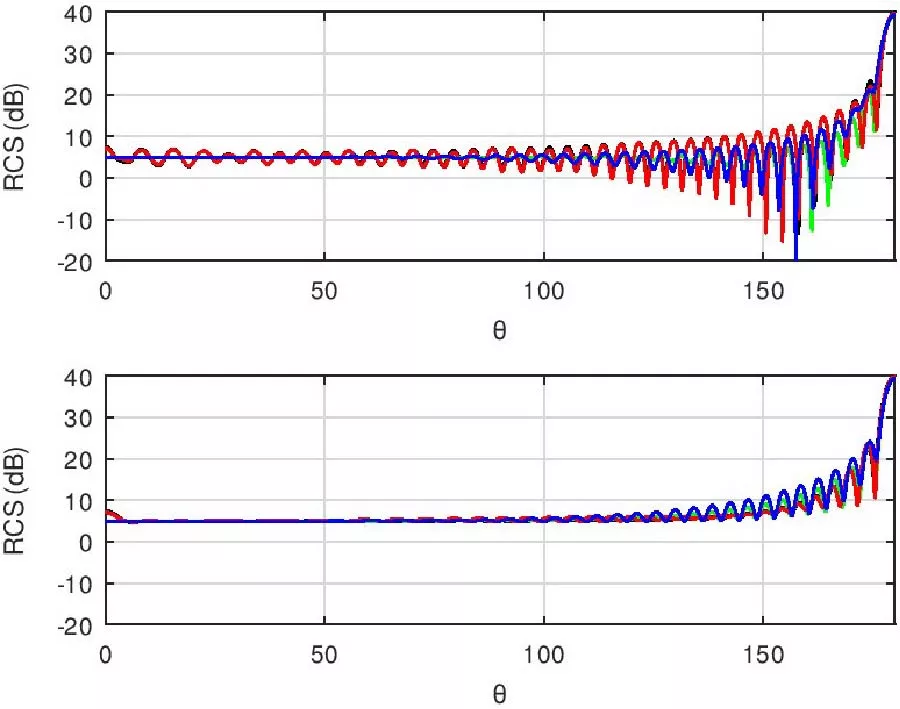

For the time-harmonic solution of Maxwell's equations, absorbing boundary conditions (ABCs) are widely used to approximate the Silver-Muller radiation condition at infinity on the boundary Γ terminating the computational domain. An original high-order ABC (HOABC) is proposed that links the tangential components of the electric and magnetic fields on Γ via surface differential operators multiplied by coefficients. These coefficients are determined so as to minimize the reflection of a propagative or evanescent wave incident on a planar or spherical Γ - while taking its radius into account - and guarantee a well-posed Maxwell's problem. Numerical results are presented on a plane and coated spheres that demonstrate its efficiency even when evanescent waves are present. If it is implemented in a finite element formulation its numerical complexity is expected to be low.

1. Nedelec, J. C., "Mixed finite elements in R3," Numerische Mathematik, Vol. 35, No. 3, 315-341, 1980.
doi:10.1007/bf01396415 Google Scholar

2. Jin, Jian-Ming, The Finite Element Method in Electromagnetics, John Wiley & Sons, 2015.

3. Monk, Peter, Finite Element Methods for Maxwell's Equations, Oxford University Press, NY, USA, 2003.
doi:10.1093/acprof:oso/9780198508885.001.0001

4. Yuan, X., "Three-dimensional electromagnetic scattering from inhomogeneous objects by the hybrid moment and finite element method," IEEE Transactions on Microwave Theory and Techniques, Vol. 38, No. 8, 1053-1058, 1990.
doi:10.1109/22.57330 Google Scholar

5. Guan, Jian, Su Yan, and Jian-Ming Jin, "An accurate and efficient finite element-boundary integral method with GPU acceleration for 3-D electromagnetic analysis," IEEE Transactions on Antennas and Propagation, Vol. 62, No. 12, 6325-6336, 2014.
doi:10.1109/tap.2014.2361896 Google Scholar

6. Stupfel, Bruno and Matthieu Lecouvez, "One-way domain decomposition method with exact radiation condition and fast GMRES solver for the solution of Maxwell's equations," Journal of Computational Physics, Vol. 322, 882-904, 2016.
doi:10.1016/j.jcp.2016.07.015 Google Scholar

7. Stupfel, Bruno and Mathieu Chanaud, "High-order transmission conditions in a domain decomposition method for the time-harmonic Maxwell's equations in inhomogeneous media," Journal of Computational Physics, Vol. 372, 385-405, 2018.
doi:10.1016/j.jcp.2018.06.050 Google Scholar

8. Berenger, Jean-Pierre, "A perfectly matched layer for the absorption of electromagnetic waves," Journal of Computational Physics, Vol. 114, No. 2, 185-200, 1994.
doi:10.1006/jcph.1994.1159 Google Scholar

9. Sacks, Z. S., D. M. Kingsland, R. Lee, and Jin-Fa Lee, "A perfectly matched anisotropic absorber for use as an absorbing boundary condition," IEEE Transactions on Antennas and Propagation, Vol. 43, No. 12, 1460-1463, 1995.
doi:10.1109/8.477075 Google Scholar

10. Chew, Weng Cho and William H. Weedon, "A 3D perfectly matched medium from modified Maxwell's equations with stretched coordinates," Microwave and Optical Technology Letters, Vol. 7, No. 13, 599-604, 1994.
doi:10.1002/mop.4650071304 Google Scholar

11. Mittra, R. and U. Pekel, "A new look at the perfectly matched layer (PML) concept for the reflectionless absorption of electromagnetic waves," IEEE Microwave and Guided Wave Letters, Vol. 5, No. 3, 84-86, 1995.
doi:10.1109/75.366461 Google Scholar

12. Wilcox, C. H., "An expansion theorem for electromagnetic fields," Communications on Pure and Applied Mathematics, Vol. 9, No. 2, 115-134, 1956.
doi:10.1002/cpa.3160090202 Google Scholar

13. Engquist, Bjorn and Andrew Majda, "Absorbing boundary conditions for the numerical simulation of waves," Mathematics of Computation, Vol. 31, No. 139, 629-651, 1977.
doi:10.1090/s0025-5718-1977-0436612-4 Google Scholar

14. Higdon, Robert L., "Absorbing boundary conditions for difference approximations to the multidimensional wave equation," Mathematics of Computation, Vol. 47, No. 176, 437-459, 1986.
doi:10.1090/s0025-5718-1986-0856696-4 Google Scholar

15. Bayliss, Alvin and Eli Turkel, "Radiation boundary conditions for wave-like equations," Communications on Pure and Applied Mathematics, Vol. 33, No. 6, 707-725, 1980.
doi:10.1002/cpa.3160330603 Google Scholar

16. Peterson, Andrew F., "Absorbing boundary conditions for the vector wave equation," Microwave and Optical Technology Letters, Vol. 1, No. 2, 62-64, 1988.
doi:10.1002/mop.4650010206 Google Scholar

17. Webb, J. P. and V. N. Kanellopoulos, "Absorbing boundary conditions for the finite element solution of the vector wave equation," Microwave and Optical Technology Letters, Vol. 2, No. 10, 370-372, 1989.
doi:10.1002/mop.4650021010 Google Scholar

18. Stupfel, B., "Absorbing boundary conditions on arbitrary boundaries for the scalar and vector wave equations," IEEE Transactions on Antennas and Propagation, Vol. 42, No. 6, 773-780, 1994.
doi:10.1109/8.301695 Google Scholar

19. Wu, Jo-Yu, D. M. Kingsland, Jin-Fa Lee, and R. Lee, "A comparison of anisotropic PML to Berenger's PML and its application to the finite-element method for EM scattering," IEEE Transactions on Antennas and Propagation, Vol. 45, No. 1, 40-50, 1997.
doi:10.1109/8.554239 Google Scholar

20. Stupfel, B., "A study of the condition number of various finite element matrices involved in the numerical solution of Maxwell's equations," IEEE Transactions on Antennas and Propagation, Vol. 52, No. 11, 3048-3059, 2004.
doi:10.1109/tap.2004.835265 Google Scholar

21. Shin, Wonseok and Shanhui Fan, "Choice of the perfectly matched layer boundary condition for frequency-domain Maxwell's equations solvers," Journal of Computational Physics, Vol. 231, No. 8, 3406-3431, 2012.
doi:10.1016/j.jcp.2012.01.013 Google Scholar

22. Stupfel, Bruno, Pierre Payen, and Olivier Lafitte, "A well-posed and effective high-order impedance boundary condition for the time-harmonic scattering problem from a multilayer coated 3-D object," Progress In Electromagnetics Research B, Vol. 94, 127-144, 2021.
doi:10.2528/pierb21072803 Google Scholar

23. Marceaux, O. and B. Stupfel, "High-order impedance boundary conditions for multilayer coated 3-D objects," IEEE Transactions on Antennas and Propagation, Vol. 48, No. 3, 429-436, 2000.
doi:10.1109/8.841904 Google Scholar

24. Jones, Douglas Samuel, Acoustic and Electromagnetic Waves, Clarendon Press, Oxford/New York, 1986.

25. Kroese, Dirk P., Sergey Porotsky, and Reuven Y. Rubinstein, "The cross-entropy method for continuous multi-extremal optimization," Methodology and Computing in Applied Probability, Vol. 8, No. 3, 383-407, 2006.
doi:10.1007/s11009-006-9753-0 Google Scholar

26. Minvielle, Pierre, Emilia Tantar, Alexandru-Adrian Tantar, and Philippe Berisset, "Sparse antenna array optimization with the cross-entropy method," IEEE Transactions on Antennas and Propagation, Vol. 59, No. 8, 2862-2871, 2011.
doi:10.1109/tap.2011.2158941 Google Scholar

27. Harrington, Roger F., Time-Harmonic Electromagnetic Fields, Wiley-IEEE Press, 2001.
doi:10.1109/9780470546710

28. Weston, V., "Theory of absorbers in scattering," IEEE Transactions on Antennas and Propagation, Vol. 11, No. 5, 578-584, 1963.
doi:10.1109/tap.1963.1138082 Google Scholar

29. Kong, J. A., Electromagnetic Wave Theory, John Wiley & Sons, New York, 1986.

30. Stupfel, Bruno, "Characterization of surface waves in a multilayer coating --- Application to far-field control," IEEE Transactions on Antennas and Propagation, Vol. 69, No. 6, 3623-3627, 2021.
doi:10.1109/tap.2020.3031811 Google Scholar

31. Osipov, Andrey V., "Electromagnetic scattering from impedance-matched bodies," 2015 9th European Conference on Antennas and Propagation (EuCAP), 1-3, Lisbon, Portugal, Apr. 2015.
