Abstract

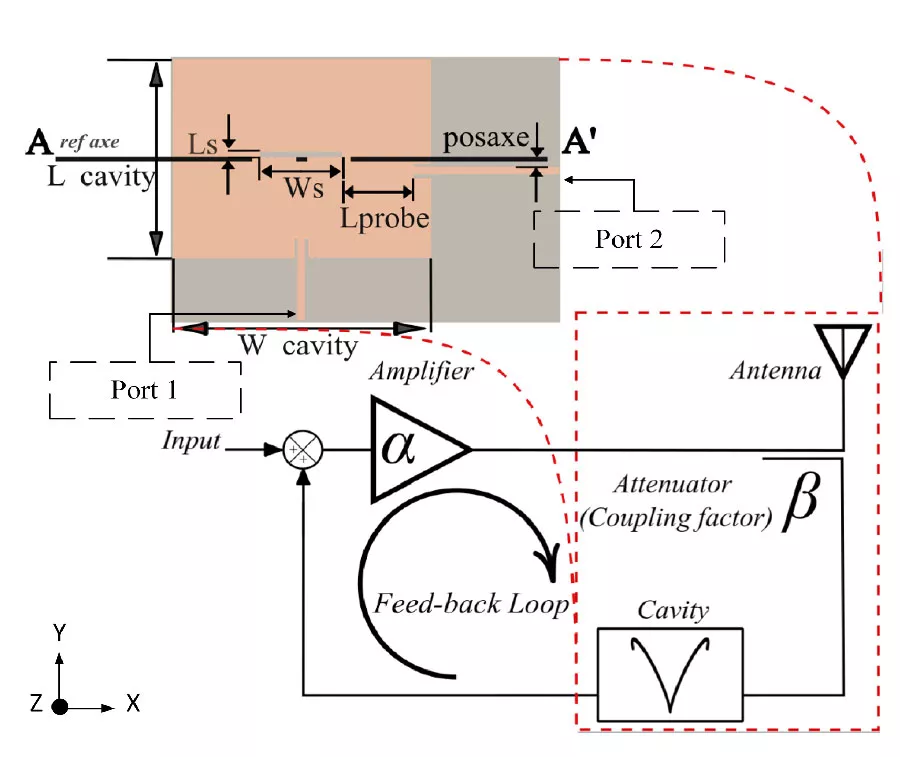

In this work, a Substrate-Integrated Waveguide (SIW) cavity-based positive-feedback oscillator integrated with a slot antenna on a single substrate was designed. The proposed design incorporates a radiating element, an oscillator tank, and a coupling structure within the same cavity, thereby eliminating external interconnections and significantly enhancing overall efficiency. By employing the TE₂₁₀ mode instead of the TE₁₁₀, the design exploits a field node to minimize the parasitic loading effects of the oscillator coupling probe on the antenna radiation. This approach simultaneously enhances the cavity's quality factor Q and preserves the spectral purity of the integrated SIW antenna-oscillator, all this without affecting the antenna radiation. The SIW cavity achieves a measured quality factor (Q) of 250, ensuring high spectral selectivity at the 10 GHz resonant frequency. The oscillator exhibits low phase noise of -131 dBc/Hz at a 1 MHz offset, along with exceptional suppression of harmonics, including the total suppression of the third harmonic, while the slot antenna achieves a gain of 6 dBi. This fully integrated architecture delivers performance equivalent to discrete implementations while offering a compact footprint and eliminating insertion losses between the antenna and the oscillator.

1. Cassivi, Y. and K. Wu, "Low cost microwave oscillator using substrate integrated waveguide cavity," IEEE Microwave and Wireless Components Letters, Vol. 13, No. 2, 48-50, 2003.
doi:10.1109/lmwc.2003.808720 Google Scholar

2. Yang, Xian-Long, Xiao-Wei Zhu, and Xiang Wang, "An X-band low phase noise parallel-feedback oscillator based on SIW dual-mode filtering power divider," IEEE Transactions on Circuits and Systems II: Express Briefs, Vol. 71, No. 1, 61-65, 2024.
doi:10.1109/tcsii.2023.3299493 Google Scholar

3. Bayderkhani, R., K. Forooraghi, and B. Abbasi-Arand, "Gain-enhanced SIW cavity-backed slot antenna with arbitrary levels of inclined polarization," IEEE Antennas and Wireless Propagation Letters, Vol. 14, 931-934, 2015.
doi:10.1109/lawp.2014.2387015 Google Scholar

4. Adhikary, Moitreya, Sunil Kumar Sahoo, Animesh Biswas, and M. Jaleel Akhtar, "SIW-based self-oscillating concurrent dual-frequency active integrated antenna," IEEE Antennas and Wireless Propagation Letters, Vol. 18, No. 9, 1897-1901, 2019.
doi:10.1109/lawp.2019.2932498 Google Scholar

5. Wang, Xiang and Wen Wu, "Design of low phase noise oscillator based on SIW multifunctional filtering device," IEEE Transactions on Circuits and Systems II: Express Briefs, Vol. 70, No. 1, 31-35, 2023.
doi:10.1109/tcsii.2022.3208608 Google Scholar

6. Giuppi, Francesco, Apostolos Georgiadis, Ana Collado, and Maurizio Bozzi, "A compact, single-layer substrate integrated waveguide (SIW) cavity-backed active antenna oscillator," IEEE Antennas and Wireless Propagation Letters, Vol. 11, 431-433, 2012.
doi:10.1109/lawp.2012.2194470 Google Scholar

7. Nandi, Sourav and Akhilesh Mohan, "An SIW cavity-backed self-diplexing antenna," IEEE Antennas and Wireless Propagation Letters, Vol. 16, 2708-2711, 2017.
doi:10.1109/lawp.2017.2743017 Google Scholar

8. Djerafi, Tarek, Ke Wu, and Dominic Deslandes, "Temperature drift compensation technique for substrate integrated waveguide oscillator," IEEE Microwave and Wireless Components Letters, Vol. 22, No. 9, 489-491, 2012.
doi:10.1109/lmwc.2012.2211340 Google Scholar

9. Huang, Guan-Chun and Tzyh-Ghuang Ma, "High-EIRP self-oscillating circularly polarized active integrated crossed-slot antenna," IEEE Antennas and Wireless Propagation Letters, Vol. 23, No. 1, 54-58, Jan. 2024.
doi:10.1109/lawp.2023.3317270 Google Scholar

10. Du, Zhi-Xia, Manman Cui, Yao Zhang, and Chunbing Guo, "Miniaturized wideband self-oscillating active integrated antenna with power enhancement," IEEE Antennas and Wireless Propagation Letters, Vol. 23, No. 10, 2964-2968, 2024.
doi:10.1109/lawp.2024.3416385 Google Scholar

11. Liu, Zhi-Hong, Huy Nam Chu, and Tzyh-Ghuang Ma, "Self-oscillating active integrated antenna with harmonic suppression using metamaterial resonators and ground radiation," IEEE Antennas and Wireless Propagation Letters, Vol. 17, No. 9, 1687-1691, Sep. 2018.
doi:10.1109/lawp.2018.2863498 Google Scholar

12. Amiri, Mina, Nasser Masoumi, and Mahmoud Shahabadi, "Low phase-noise self-oscillating cross-coupled active antenna," IEEE Transactions on Antennas and Propagation, Vol. 66, No. 9, 4516-4523, Sep. 2018.
doi:10.1109/tap.2018.2851369 Google Scholar

13. Du, Zhi-Xia, Huai-Tian Zhou, Jian Liu, and Chunbing Guo, "Compact self-oscillating active integrated loop antenna with concurrent dual-band operation," IEEE Antennas and Wireless Propagation Letters, Vol. 23, No. 3, 1070-1074, Mar. 2024.
doi:10.1109/lawp.2023.3344287 Google Scholar

14. Rubiola, Enrico, Phase Noise and Frequency Stability in Oscillators, Cambridge University Press, 2008.
doi:10.1017/cbo9780511812798

15. Pozar, David M., Microwave Engineering, 4th Ed., John Wiley & Sons, 2012.

16. Razavi, Behzad, RF Microelectronics, 2nd Ed., Prentice Hall, 2012.

Mr. Abdelmounim Sellidj

Dr. Tarek Djerafi

Dr. Said Gaoua

Dr. Mustapha C. E. Yagoub
