Abstract

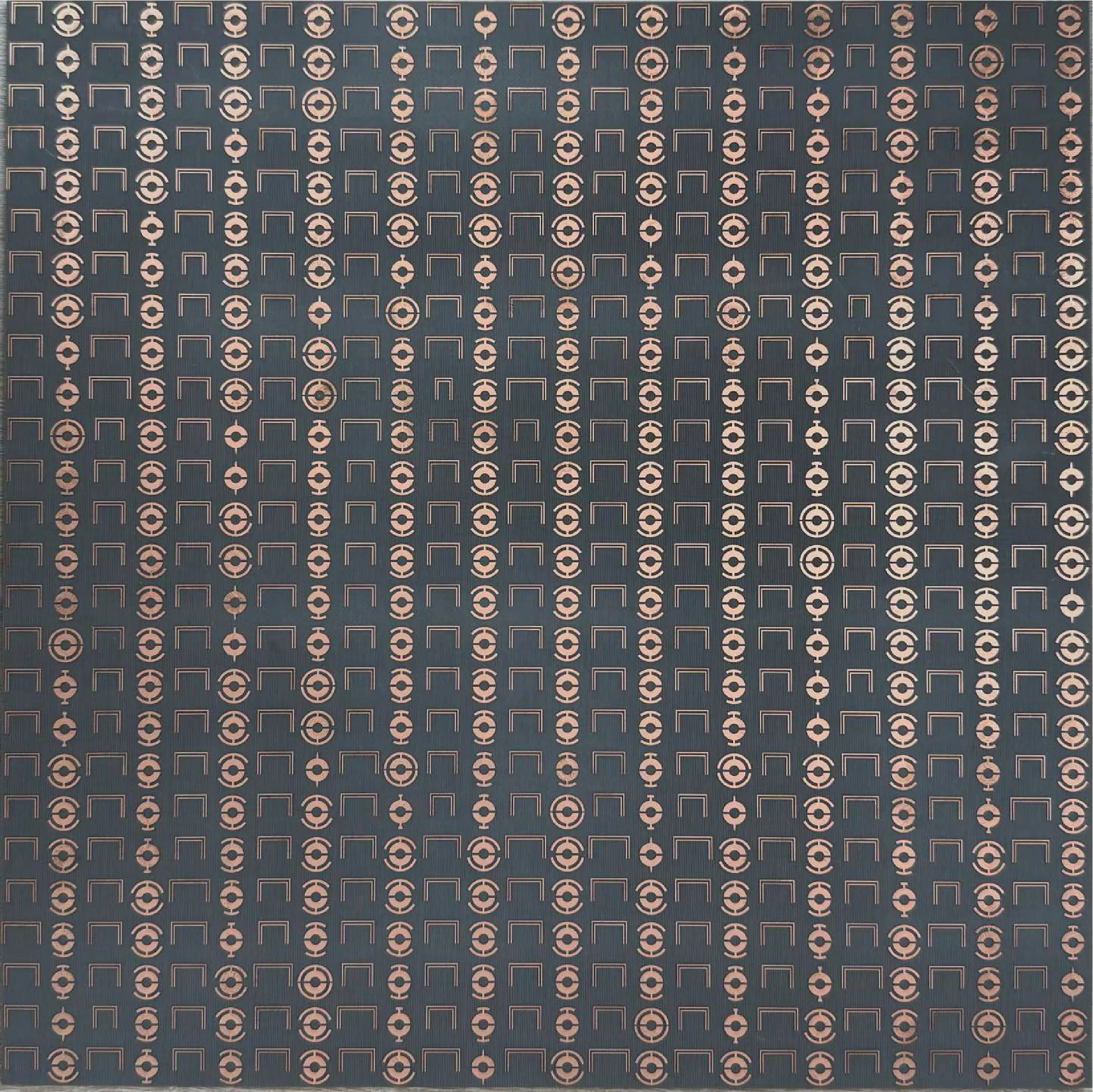

In this study, a single-layer substrate and via-free transmit-reflect-array antenna based on a metasurface is proposed. The array antenna comprises transmissive and reflective unit cells arranged alternately in sequence. To achieve a 360° phase coverage, two sets of antisymmetric U-shaped lines are etched on the top and bottom layers of the substrate to form the transmissive unit cells, and multi-layer stacking and vias are avoided. Moreover, by adjusting the lengths of a split-ring structure with phase delay lines for reflective unit cells, a 360° phase coverage is achieved. The measurement results demonstrate that the antenna simultaneously generates a reflective focused beam with a peak gain of 20.8 dBi and a transmissive +1-mode OAM vortex beam with a peak gain of 20 dBi and a mode purity of 90% at 17 GHz.

1. Fan, Yuancheng, Nian-Hai Shen, Fuli Zhang, Qian Zhao, Zeyong Wei, Peng Zhang, Jiajia Dong, Quanhong Fu, Hongqiang Li, and Costas M. Soukoulis, "Photoexcited graphene metasurfaces: Significantly enhanced and tunable magnetic resonances," ACS Photonics, Vol. 5, No. 4, 1612-1618, 2018.
doi:10.1021/acsphotonics.8b00057 Google Scholar

2. Lin, Dianmin, Pengyu Fan, Erez Hasman, and Mark L. Brongersma, "Dielectric gradient metasurface optical elements," Science, Vol. 345, No. 6194, 298-302, 2014.
doi:10.1126/science.1253213 Google Scholar

3. Luo, Xiangang, "Subwavelength optical engineering with metasurface waves," Advanced Optical Materials, Vol. 6, No. 7, 1701201, 2018.
doi:10.1002/adom.201701201 Google Scholar

4. Hao, Honggang, Zhonglyu Cai, Bao Li, and Pan Tang, "Design of double-layer circular polarization multiplex focusing metasurface lens," Progress In Electromagnetics Research C, Vol. 144, 169-180, 2024.
doi:10.2528/pierc24042902 Google Scholar

5. Hao, Honggang, Sen Zheng, Yihao Tang, and XueHong Ran, "Broadband transmissive amplitude-and-phase metasurface for vortex beam generation and hologram," Physics Letters A, Vol. 434, 128036, 2022.
doi:10.1016/j.physleta.2022.128036 Google Scholar

6. Yin, Bo, Zhu Xu, and Yue Ma, "Terahertz off-axis focus polarization converter based on metasurface," Progress In Electromagnetics Research Letters, Vol. 100, 91-97, 2021.
doi:10.2528/pierl21071802 Google Scholar

7. Jiang, Yuying, Liangliang Liu, Shuying Li, Chunzi Tang, Zhengzhi Luo, Zhengtao Zhu, Yuxiang Cao, Changqing Gu, and Zhuo Li, "Highly efficient decoupled triple‐channel OAM generation with a single‐layer shared aperture reflective metasurface," Advanced Optical Materials, Vol. 11, No. 3, 2202071, 2023.
doi:10.1002/adom.202202071 Google Scholar

8. Iyer, Ashwin K., Andrea Alù, and Ariel Epstein, "Metamaterials and metasurfaces --- Historical context, recent advances, and future directions," IEEE Transactions on Antennas and Propagation, Vol. 68, No. 3, 1223-1231, 2020.
doi:10.1109/tap.2020.2969732 Google Scholar

9. Sui, Jun-Yang, Jia-Hao Zou, Si-Yuan Liao, Bing-Xiang Li, and Hai-Feng Zhang, "High sensitivity multiscale and multitasking terahertz Janus sensor based on photonic spin Hall effect," Applied Physics Letters, Vol. 122, No. 23, 231105, 2023.
doi:10.1063/5.0153342 Google Scholar

10. Sui, Jun-Yang, Si-Yuan Liao, Bing-Xiang Li, and Hai-Feng Zhang, "High sensitivity multitasking non-reciprocity sensor using the photonic spin Hall effect," Optics Letters, Vol. 47, No. 23, 6065-6068, 2022.
doi:10.1364/ol.476048 Google Scholar

11. Sui, Jun-Yang, Jia-Hao Zou, Si-Yuan Liao, Bao-Fei Wan, and Hai-Feng Zhang, "Short-wave infrared Janus metastructure with multitasking of wide-range pressure detection and high-resolution biosensing based on photonic spin Hall effect," IEEE Transactions on Instrumentation and Measurement, Vol. 73, 1-9, 2024.
doi:10.1109/tim.2023.3338669 Google Scholar

12. Ishfaq, Muhammad, Xiuping Li, Zihang Qi, Wenyu Zhao, Abdul Aziz, Liangjie Qiu, and Seleemullah Memon, "A transmissive metasurface generating wideband OAM vortex beam in the Ka-band," IEEE Antennas and Wireless Propagation Letters, Vol. 22, No. 8, 2007-2011, 2023.
doi:10.1109/lawp.2023.3271675 Google Scholar

13. Ishfaq, Muhammad, Xiuping Li, Zihang Qi, Wenyu Zhao, Abdul Aziz, and Liangjie Qiu, "Wideband OAM vortex beam generation through a thin transmitarray in the Ka-band," IEEE Antennas and Wireless Propagation Letters, Vol. 23, No. 2, 688-692, 2024.
doi:10.1109/lawp.2023.3333234 Google Scholar

14. Li, Fengxia, Haiyan Chen, Yang Zhou, Jianwei You, Nicolae C. Panoiu, Peiheng Zhou, and Longjiang Deng, "Generation and focusing of orbital angular momentum based on polarized reflectarray at microwave frequency," IEEE Transactions on Microwave Theory and Techniques, Vol. 69, No. 3, 1829-1837, 2021.
doi:10.1109/tmtt.2020.3040449 Google Scholar

15. Jiang, Le, Shixing Yu, and Na Kou, "Asymmetric transmission of OAM vortex waves by cylindrical Janus metasurface," IEEE Antennas and Wireless Propagation Letters, Vol. 22, No. 11, 2654-2658, 2023.
doi:10.1109/lawp.2023.3303222 Google Scholar

16. Shahmirzadi, Arash Valizade, Zahra Badamchi, Bahareh Badamchi, and Harish Subbaraman, "Generating concentrically embedded spatially divided OAM carrying vortex beams using transmitarrays," IEEE Transactions on Antennas and Propagation, Vol. 69, No. 12, 8436-8448, 2021.
doi:10.1109/tap.2021.3090860 Google Scholar

17. Duan, Kun, Ke Chen, Tian Jiang, Junming Zhao, and Yijun Feng, "Noninterleaved bidirectional metasurface for spatial energy allocation," IEEE Transactions on Antennas and Propagation, Vol. 72, No. 8, 6423-6436, 2024.
doi:10.1109/tap.2024.3414676 Google Scholar

18. Liu, Shi Lin, Xian Qi Lin, Yu Hen Yan, and Yu Lu Fan, "Generation of a high-gain bidirectional transmit-reflect-array antenna with asymmetric beams using sparse-array method," IEEE Transactions on Antennas and Propagation, Vol. 69, No. 9, 6087-6092, 2021.
doi:10.1109/tap.2021.3069481 Google Scholar

19. Wang, Yufang, Yuehe Ge, Zhizhang Chen, Xin Liu, Jixiong Pu, Kaiting Liu, Huanyang Chen, and Yang Hao, "Broadband high-efficiency ultrathin metasurfaces with simultaneous independent control of transmission and reflection amplitudes and phases," IEEE Transactions on Microwave Theory and Techniques, Vol. 70, No. 1, 254-263, 2022.
doi:10.1109/tmtt.2021.3119376 Google Scholar

20. Lv, Huan-Huan, Qiu-Lin Huang, Xiang-Jie Yi, Jian-Qiang Hou, and Xiao-Wei Shi, "Low-profile transmitting metasurface using single dielectric substrate for OAM generation," IEEE Antennas and Wireless Propagation Letters, Vol. 19, No. 5, 881-885, 2020.
doi:10.1109/lawp.2020.2983400 Google Scholar

21. Guo, Xiaoxuan and Yang Yang, "Low-profile full-space transmission-reflection-integrated multiple focused and OAM beams metasurface for indoor communication," IEEE Transactions on Microwave Theory and Techniques, Vol. 73, No. 6, 3644-3654, 2025.
doi:10.1109/tmtt.2024.3498832 Google Scholar

22. Zheng, Sen, Honggang Hao, Yihao Tang, and Xuehong Ran, "High-purity orbital angular momentum vortex beam generator using an amplitude-and-phase metasurface," Optics Letters, Vol. 46, No. 23, 5790-5793, 2021.
doi:10.1364/ol.441426 Google Scholar

23. Xiong, Yingxiang, Chunhua Xue, Qian Guo, Teng Li, and Xi Gao, "A shared-aperture transmissive/reflective bi-functional metasurface for both transmitarray and reflectarray," AEU --- International Journal of Electronics and Communications, Vol. 164, 154631, 2023.
doi:10.1016/j.aeue.2023.154631 Google Scholar

24. Qin, Yuping, Chunhua Xue, Hongsheng Shi, Junjie Yan, and Xi Gao, "A double-layer metasurface-based dual-band dual-polarized transmit-reflect-array antenna," IEEE Antennas and Wireless Propagation Letters, Vol. 25, No. 4, 1567-1571, 2026.
doi:10.1109/lawp.2026.3659500 Google Scholar

25. Yang, Fan, Ruyuan Deng, Shenheng Xu, and Maokun Li, "Design and experiment of a near-zero-thickness high-gain transmit-reflect-array antenna using anisotropic metasurface," IEEE Transactions on Antennas and Propagation, Vol. 66, No. 6, 2853-2861, 2018.
doi:10.1109/tap.2018.2820320 Google Scholar

26. Guo, Xiaoxuan, Yu Luo, Ningning Yan, Wenxing An, and Kaixue Ma, "Multibeam transmit-reflect-array antenna using alternating transmission and reflection elements for space-air-ground-sea integrated network," IEEE Transactions on Antennas and Propagation, Vol. 71, No. 11, 8668-8676, 2023.
doi:10.1109/tap.2023.3314192 Google Scholar

Dr. Xinwei Chen

Dr. Xinmiao Zhao

Dr. Jinrong Su

Dr. Guorui Han

Dr. Runbo Ma

Dr. Li Li
