Abstract

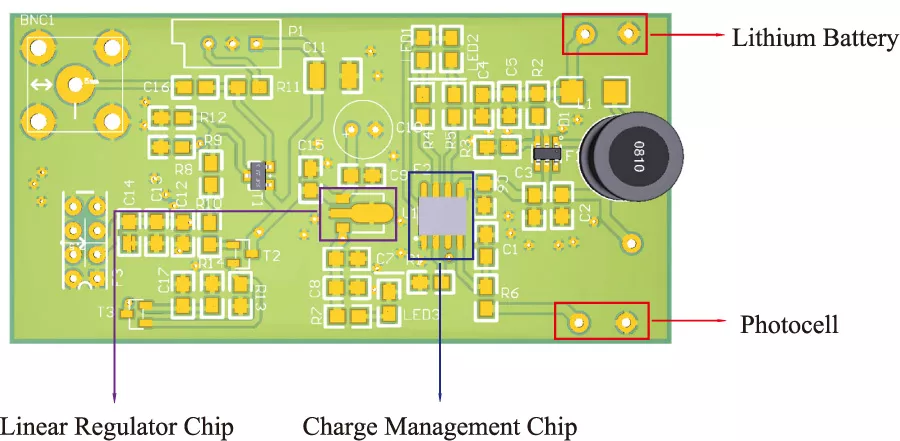

Conventional fiber-optic measurement systems for pulsed electromagnetic fields are limited by power-supply instability due to the temperature sensitivity of photocells. To address this issue, we developed a highly reliable broadband fiber-optic transmission system featuring a hybrid power supply. In our design, a lithium battery serves as the primary power source for the optical transmitter, while a compact photocell provides short-term supplemental power and simultaneously recharges the battery. An additional shunt resistor (5-50 Ω) is added to avoid damping oscillations. Results: The system achieves a -3 dB bandwidth from 5 Hz to 122 MHz. The optical transmitter volume is reduced to one-fifth of a previous design. Ten repeated electric-field measurements show relative errors below 3%. Conclusion: The proposed system offers stable operation, low power consumption, wide dynamic range, and strong anti-interference capability, making it well-suited for harsh electromagnetic environments.

1. Li, Shulei, Shi Qiu, and Lihua Shi, "Characteristics of electric field peaks and its variation rate with the distance in the near field of lightning," Chinese Journal of Radio Science, Vol. 34, No. 4, 531-535, 2019.
doi:10.13443/j.cjors.2018111901 Google Scholar

2. Wang, Wei, Zhizhen Zhu, Xin Nie, Jing Yang, Yuewu Shi, and Jinjin Wang, "A magnetic field measurement technology of high altitude electromagnetic pulse," Chinese Journal of Radio Science, Vol. 34, No. 3, 347-354, 2020.
doi:10.13443/j.cjors.2018090301 Google Scholar

3. Liu, Yifei, Liang Ma, Yinhui Cheng, Wei Wu, Jinghai Guo, and Mo Zhao, "Pulse electric field measurement system with sensitivity self-calibration based on optical fiber transmission," High Voltage Engineering, Vol. 47, No. 4, 1478-1484, 2021.
doi:10.13336/j.1003-6520.hve.20200428 Google Scholar

4. Xu, F. H., F. J. Ding, L. Chen, L. Liu, and Y. S. Cao, "Performance analysis on integrated optical electric field sensor for high-accuracy nanosecond intense electromagnetic pulse measurement," Semiconductor Optoelectronics, Vol. 40, No. 6, 793-795, 2019.
doi:10.16818/j.issn1001-5868.2019.06.009 Google Scholar

5. Sima, Wenxia, Li Zeng, Ming Yang, Tao Yuan, and Potao Sun, "Improving the temperature and vibration robustness of fiber optic current transformer using fiber polarization rotator," IEEE Transactions on Instrumentation and Measurement, Vol. 71, 1-12, Jan. 2022.
doi:10.1109/tim.2021.3139700 Google Scholar

6. Yan, J., J. Wang, C. Gao, J. Jiang, Y. Lu, Z. Liu, S. Cao, and X. Jiang, "Design and realization of a power-over-fiber sensor system for internet of things," Journal of Optoelectronics·Laser, Vol. 26, No. 8, 1513-1519, 2015.
doi:10.16136/j.joel.2015.08.0334 Google Scholar

7. Wang, T., H. Chen, M. Xie, Y. Lu, and J. Wang, "Design of gas sensor system based on power-over-fiber," Chinese Journal of Sensors and Actuators, Vol. 33, No. 10, 1516-1521, 2020.
doi:10.3969/j.issn.1004-1699.2020.10.021 Google Scholar

8. Matsuura, Motoharu, Nana Tajima, Hayato Nomoto, and Daisuke Kamiyama, "150-W power-over-fiber using double-clad fibers," Journal of Lightwave Technology, Vol. 38, No. 2, 401-408, Jan. 2020.
doi:10.1109/jlt.2019.2948777 Google Scholar

9. Fu, Ya-peng, Cheng Gao, Bo Yang, Yan-xin Li, and Li-hua Shi, "Research on zifeng tower lightning current full wave measurement," Journal of Microwaves, Vol. 33, No. 5, 24-29, 2017. Google Scholar

10. LI, Yichong, Lihua Shi, Qi Zhang, and Shaolei Li, "Design and experiment of power over fiber electric field measurement system for lightning electromagnetic pulse," Chinese Journal of Radio Science, Vol. 38, No. 3, 445-452, 2023.
doi:10.12265/j.cjors.2022142 Google Scholar

Mr. Lichao Zhang

Dr. Zheng Sun

Dr. Qi Zhang

Dr. Lihua Shi
