Abstract

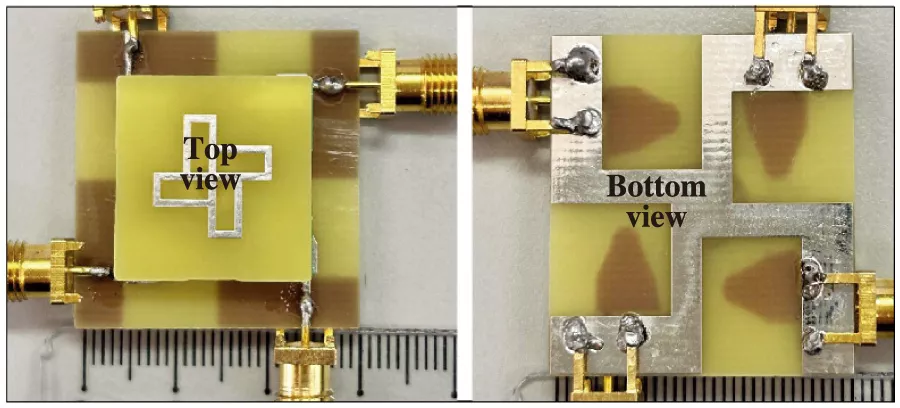

A compact four-port circularly polarized multiple-input multiple-output (CP-MIMO) antenna with a dual-layer architecture is proposed for low-altitude communication applications. In compact MIMO arrays of CP-capable monopole elements, strong mutual coupling makes stable CP radiation difficult to achieve. To address this issue, the proposed antenna uses a lower layer for dual-polarized MIMO generation and an upper layer for polarization conversion. The antenna is fabricated on two FR-4 substrates with an overall size of 0.85λ × 0.85λ × 0.084λ. In the lower layer, a dual-polarized feed backplane (DPFB) forms a ±45° dual-polarized MIMO array with port isolation exceeding 17 dB. In the upper layer, a polarization conversion superstrate (PCS) converts the incident dual-polarized waves into CP radiation. The PCS extends the impedance bandwidth by 36%, from 7.55 to 10.08 GHz, and enables LHCP radiation with a 3 dB AR bandwidth of 8.22-8.89 GHz. A gain enhancement of 48% is also achieved. Measured results verify the design and show good MIMO diversity performance.

1. Cheng, Tong, Jie Tang, Shuaijun Li, Cui Yang, Youjun Xiang, and Xiaokai Song, "Communications for low-altitude economy: A precoding transmission method for RIS-assisted UAV communication," 2025 6th International Symposium on Computer Engineering and Intelligent Communications (ISCEIC), 7-12, Chongqing, China, Nov. 2025.
doi:10.1109/ISCEIC67854.2025.11405678

2. Huang, Hailong, Jiangcheng Su, and Fei-Yue Wang, "The potential of low-altitude airspace: The future of urban air transportation," IEEE Transactions on Intelligent Vehicles, Vol. 9, No. 8, 5250-5254, Aug. 2024.
doi:10.1109/tiv.2024.3483889 Google Scholar

3. Feng, Lei, Huaide Liu, Yikun Zhao, Xudong Wang, Fanqin Zhou, and Wenjing Li, "Semantic communication for low-altitude economy: Harnessing the power of generative AI and edge intelligence," IEEE Wireless Communications, Vol. 33, No. 1, 36-44, 2026.
doi:10.1109/mwc.2025.3629007 Google Scholar

4. Ma, Dingyou, Jun Tang, Qixun Zhang, Zhiqing Wei, Feifei Gao, and Zhiyong Feng, "Integrated sensing and communications network design and key technologies for low-altitude economy," China Communications, Vol. 22, No. 9, 81-102, 2025.
doi:10.23919/jcc.fa.2025-0139.202509 Google Scholar

5. He, Dongxuan, Weijie Yuan, Jun Wu, and Ruiqi Liu, "Ubiquitous UAV communication enabled low-altitude economy: Applications, techniques, and 3GPP's efforts," IEEE Network, Vol. 40, No. 1, 115-122, Jan. 2026.
doi:10.1109/mnet.2025.3574922 Google Scholar

6. Chen, Q., W. Guo, and L. Xu, "Research on the low-altitude airspace communication and surveillance system," Discovery, Innovation and Communication --- 5th CSAA Science and Technique Youth Forum, 714-717, Oct. 2012.

7. Li, Shuaijun, Jie Tang, Beixiong Zheng, Lipeng Zhu, Cui Yang, Nan Zhao, Xiu Yin Zhang, and Kai-Kit Wong, "Rotatable antenna system empowered low-altitude economy: Opportunities and challenges," IEEE Wireless Communications, Vol. 33, No. 1, 116-123, 2026.
doi:10.1109/mwc.2025.3628811 Google Scholar

8. Wei, Mingshuo, Yong Zhao, and Jinyang Yu, "Research on low altitude network coverage solutions," 2025 International Wireless Communications and Mobile Computing (IWCMC), 412-417, Abu Dhabi, United Arab Emirates, 2025.
doi:10.1109/IWCMC65282.2025.11059622

9. Hong, Wonbin, "Solving the 5G mobile antenna puzzle: Assessing future directions for the 5G mobile antenna paradigm shift," IEEE Microwave Magazine, Vol. 18, No. 7, 86-102, Nov.-Dec. 2017.
doi:10.1109/mmm.2017.2740538 Google Scholar

10. Tian, Jiachen, Yu Han, Shi Jin, Jun Zhang, and Jue Wang, "Analytical channel modeling: From MIMO to extra large-scale MIMO," Chinese Journal of Electronics, Vol. 34, No. 1, 1-15, 2025.
doi:10.23919/cje.2023.00.418 Google Scholar

11. Sun, Ruoyu Roy, Wilhelm Keusgen, and Dorin Viorel, "MIMO channel capacity measurements in an indoor-office environment at 6 and 37 GHz," 2024 IEEE Globecom Workshops (GC Wkshps), 1-7, Cape Town, South Africa, 2024.
doi:10.1109/GCWkshp64532.2024.11100906

12. Pozar, D. M. and S. M. Duffy, "A dual-band circularly polarized aperture-coupled stacked microstrip antenna for global positioning satellite," IEEE Transactions on Antennas and Propagation, Vol. 45, No. 11, 1618-1625, Nov. 1997.
doi:10.1109/8.650073 Google Scholar

13. Liang, Meng Yi, Xiao Yang Li, Xiao Tong Tian, Hong Bin Zhang, and Huan Huan Zhang, "Satellite communication smartphone circularly polarized antenna," 2024 14th International Symposium on Antennas, Propagation and EM Theory (ISAPE), 1-2, Hefei, China, 2024.
doi:10.1109/ISAPE62431.2024.10840822

14. Ullah, Shahid, Yejun He, Abdul Majeed, and Yi Huang, "A low-profile wideband dual-sense circularly polarized MIMO antenna for mmWave applications," IEEE Antennas and Wireless Propagation Letters, Vol. 24, No. 8, 2163-2167, Aug. 2025.
doi:10.1109/lawp.2025.3557572 Google Scholar

15. Xue, Yanmei, Chunxu Mao, Long Zhang, Rahim Tafazolli, and Ahmed Kishk, "Broadband circularly polarized helical antenna decoupling for massive MIMO applications," IEEE Antennas and Wireless Propagation Letters, Vol. 24, No. 10, 3515-3519, 2025.
doi:10.1109/lawp.2025.3595124 Google Scholar

16. Meng, Yanfeng, Aidi Ren, Chao Wang, Guanghui Xu, Luyu Zhao, Yingsong Li, Lixia Yang, and Zhi-Xiang Huang, "Metasurface-loaded circularly polarized dual-band MIMO cellphone frame antenna for mobile communication applications," IEEE Antennas and Wireless Propagation Letters, Vol. 24, No. 8, 2168-2172, 2025.
doi:10.1109/lawp.2025.3557879 Google Scholar

17. Ullah, Shahid, Yejun He, and Yi Huang, "A triband circular-polarized four-port MIMO antenna with compact size and low mutual coupling," IEEE Antennas and Wireless Propagation Letters, Vol. 24, No. 3, 621-625, Mar. 2025.
doi:10.1109/lawp.2024.3510132 Google Scholar

18. Tiwari, Rakesh Nath, Vikrant Kaim, Prabhakar Singh, Taimoor Khan, and Binod Kumar Kanaujia, "Semi-flexible diversified circularly polarized millimeter-wave MIMO antenna for wearable biotechnologies," IEEE Transactions on Antennas and Propagation, Vol. 71, No. 5, 3968-3982, May 2023.
doi:10.1109/tap.2023.3255507 Google Scholar

19. Khan, Asif, Yejun He, and Zhi Ning Chen, "A dual-band quad-port circularly polarized MIMO antenna based on a modified Jerusalem-cross absorber for wireless communication systems," IEEE Transactions on Antennas and Propagation, Vol. 72, No. 1, 310-322, Jan. 2024.
doi:10.1109/tap.2023.3326285 Google Scholar

20. Khan, Asif, Yejun He, Zhou He, and Zhi Ning Chen, "A compact quadruple-band circular polarized MIMO antenna with low mutual coupling," IEEE Transactions on Circuits and Systems II: Express Briefs, Vol. 70, No. 2, 501-505, Feb. 2023.
doi:10.1109/tcsii.2022.3212618 Google Scholar

21. Wen, Youquan, Zhonghe Zhang, Sai-Wai Wong, Chunlin Ji, Ruopeng Liu, and Yejun He, "Low-RCS Metasurface-based Dual Circularly-Polarized MIMO Antenna with Polarization and Spatial Diversity," IEEE Transactions on Instrumentation and Measurement, Vol. 74, 1-10, 2025.
doi:10.1109/tim.2025.3599276 Google Scholar

22. Yang, Wan Jun, Yong Mei Pan, and Shao Yong Zheng, "Design of self-decoupled circularly polarized MIMO dielectric resonator antenna arrays based on polarization orthogonality," IEEE Transactions on Antennas and Propagation, Vol. 72, No. 2, 1192-1200, Feb. 2024.
doi:10.1109/tap.2023.3346536 Google Scholar

23. Gupta, Suraj Kumar and Ashwani Sharma, "Octa-port dual-polarized antenna/rectenna for MIMO simultaneous wireless information and power transfer (SWIPT)," IEEE Microwave and Wireless Technology Letters, Vol. 35, No. 1, 99-102, Jan. 2025.
doi:10.1109/lmwt.2024.3479326 Google Scholar

24. Hussain, Niamat, Min-Joo Jeong, Anees Abbas, and Nam Kim, "Metasurface-based single-layer wideband circularly polarized MIMO antenna for 5G millimeter-wave systems," IEEE Access, Vol. 8, 130293-130304, Jul. 2020.
doi:10.1109/access.2020.3009380 Google Scholar

25. Ren, Xianlei, Huiqing Zhai, Yuxin Jia, Maosheng Wang, and Yaoxu Lei, "Wideband RCS reduction for circular-polarized slot array antennas based on composite metasurface," IEEE Antennas and Wireless Propagation Letters, Vol. 23, No. 12, 4867-4871, Dec. 2024.
doi:10.1109/lawp.2024.3476955 Google Scholar

26. Aghoutane, Bilal, Sudipta Das, Mohammed EL Ghzaoui, B. T. P. Madhav, and Hanan El Faylali, "A novel dual band high gain 4-port millimeter wave MIMO antenna array for 28/37 GHz 5G applications," AEU --- International Journal of Electronics and Communications, Vol. 145, 154071, 2022.
doi:10.1016/j.aeue.2021.154071 Google Scholar

27. Kim-Thi, Phuong and Tung The-Lam Nguyen, "Circularly polarized MIMO patch antenna with high isolation and wideband characteristics for WLAN applications," Heliyon, Vol. 9, No. 9, e19450, 2023.
doi:10.1016/j.heliyon.2023.e19450 Google Scholar

28. Jamal, Muhammad Yasir, Min Li, and Kwan Lawrence Yeung, "Isolation enhancement of closely packed dual circularly polarized MIMO antenna using hybrid technique," IEEE Access, Vol. 8, 11241-11247, Jan. 2020.
doi:10.1109/access.2020.2964902 Google Scholar

29. Kumar, Sachin, Gwan Hui Lee, Dong Hwi Kim, Hyun Chul Choi, and Kang Wook Kim, "Dual circularly polarized planar four-port MIMO antenna with wide axial-ratio bandwidth," Sensors, Vol. 20, No. 19, 5610, 2020.
doi:10.3390/s20195610 Google Scholar

30. Sufian, Md. Abu, Niamat Hussain, Anees Abbas, Jaemin Lee, Seong Gyoon Park, and Nam Kim, "Mutual coupling reduction of a circularly polarized MIMO antenna using parasitic elements and DGS for V2X communications," IEEE Access, Vol. 10, 56388-56400, May 2022.
doi:10.1109/access.2022.3177886 Google Scholar
