Abstract

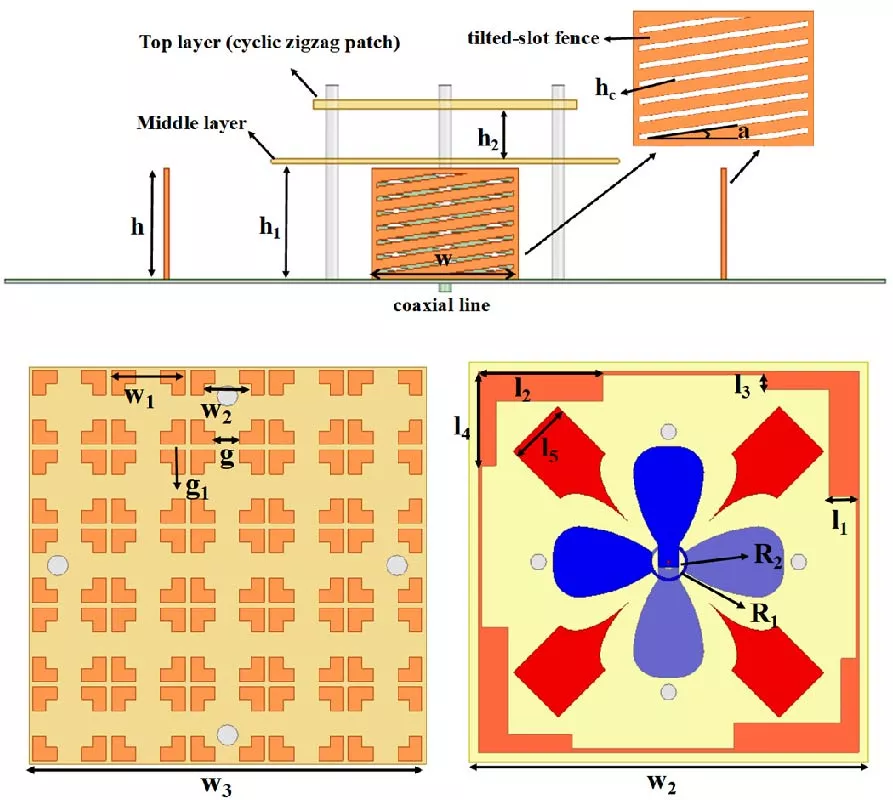

This paper presents a wideband circularly polarized (CP) antenna featuring a significantly enhanced front-to-back ratio (FBR). The proposed design employs a composite structure that integrates a dipole with a loop resonator and is fabricated using a multilayer architecture. The top layer is a dielectric substrate loaded with a cyclic zigzag patch. The middle layer contains an L-shaped radiating patch with etched rectangular grooves, and the bottom layer comprises a metal ground plane and surrounding vertically tilted-slot fences. Circular polarization is achieved by exciting orthogonal degenerate modes via strategic rectangular-groove perturbations that work in concert with the loop resonator's inherent asymmetric current path. The tilted-slot fences, in conjunction with the zigzag patch layer, function collectively to suppress backward radiation and improve the FBR. Measured results demonstrate that the antenna achieves a 3 dB axial ratio (AR) bandwidth of 54% from 2.45 to 4.3 GHz, a stable FBR of more than 27.5 dB with 2.5 dB variation, and a peak gain of 9.3 dBic. This design offers a high-performance, planar antenna solution well-suited for satellite communication and radar systems.

1. Wu, Rui, Jian-Hong Lin, Guang-Hong Wen, Shu-Ting Cai, and Fu-Chang Chen, "A compact broadband circularly polarized antenna with novel tilt fences for GNSS applications," IEEE Antennas and Wireless Propagation Letters, Vol. 23, No. 5, 1528-1532, May 2024.
doi:10.1109/lawp.2024.3361682 Google Scholar

2. Yang, Wanjun, Yongmei Pan, Shaoyong Zheng, and Pengfei Hu, "A low-profile wideband circularly polarized crossed-dipole antenna," IEEE Antennas and Wireless Propagation Letters, Vol. 16, 2126-2129, 2017.
doi:10.1109/lawp.2017.2699975 Google Scholar

3. Yang, Wan-Jun, Yong-Mei Pan, and Shao-Yong Zheng, "A compact broadband circularly polarized crossed-dipole antenna with a very low profile," IEEE Antennas and Wireless Propagation Letters, Vol. 18, No. 10, 2130-2134, Oct. 2019.
doi:10.1109/lawp.2019.2938597 Google Scholar

4. Kumar, Kundan, Santanu Dwari, and Mrinal Kanti Mandal, "Dual-band dual-sense circularly polarized substrate integrated waveguide antenna," IEEE Antennas and Wireless Propagation Letters, Vol. 17, No. 3, 521-524, Mar. 2018.
doi:10.1109/lawp.2018.2800295 Google Scholar

5. Baik, J.-W., K.-J. Lee, W.-S. Yoon, T.-H. Lee, and Y.-S. Kim, "Circularly polarised printed crossed dipole antennas with broadband axial ratio," Electronics Letters, Vol. 44, No. 13, 785-786, 2008.
doi:10.1049/el:20080794 Google Scholar

6. Baik, Jung-Woo, Tae-Hak Lee, Seongmin Pyo, Sang-Min Han, Jichai Jeong, and Young-Sik Kim, "Broadband circularly polarized crossed dipole with parasitic loop resonators and its arrays," IEEE Transactions on Antennas and Propagation, Vol. 59, No. 1, 80-88, Jan. 2011.
doi:10.1109/tap.2010.2090463 Google Scholar

7. He, Yejun, Wei He, and Hang Wong, "A wideband circularly polarized cross-dipole antenna," IEEE Antennas and Wireless Propagation Letters, Vol. 13, 67-70, 2014.
doi:10.1109/lawp.2013.2296324 Google Scholar

8. Guo, Lei and Kwok Wa Leung, "Compact linearly and circularly polarized unidirectional dielectric resonator antennas," IEEE Transactions on Antennas and Propagation, Vol. 64, No. 6, 2067-2074, Jun. 2016.
doi:10.1109/tap.2016.2536198 Google Scholar

9. Wu, Rui, Jian-Hong Lin, Jian-Feng Li, and Fu-Chang Chen, "Wideband circularly polarized antenna with novel asymmetric Y-shaped arms," IEEE Antennas and Wireless Propagation Letters, Vol. 23, No. 4, 1181-1185, Apr. 2024.
doi:10.1109/lawp.2023.3348207 Google Scholar

10. Li, Du, Lixun Li, Zhengrong Li, and Gang Ou, "Four-arm spiral antenna fed by tapered transmission line," IEEE Antennas and Wireless Propagation Letters, Vol. 16, 62-65, 2017.
doi:10.1109/lawp.2016.2555839 Google Scholar

11. Mehrabani, Ali and Lotfollah Shafai, "Compact dual circularly polarized primary feeds for symmetric parabolic reflector antennas," IEEE Antennas and Wireless Propagation Letters, Vol. 15, 922-925, 2016.
doi:10.1109/LAWP.2015.2481363 Google Scholar

12. Radway, Matthew J. and Dejan S. Filipovic, "Four-armed spiral-helix antenna," IEEE Antennas and Wireless Propagation Letters, Vol. 11, 338-341, 2012.
doi:10.1109/lawp.2012.2191384 Google Scholar

13. Tan, M. N. Md., M. T. Ali, S. Subahir, T. A. Rahman, and S. K. A. Rahim, "Backlobe reduction using mushroom-like EBG structure," 2012 IEEE Symposium on Wireless Technology and Applications (ISWTA), 206-209, Bandung, Indonesia, 2012.
doi:10.1109/ISWTA.2012.6373844

14. Zheng, Pei, Yuwei Qiu, Jinliang Bai, Ziwei Xu, Xin Liu, Jiaqi Liu, Jun Li, Shuo Zhang, Hailiang Zhu, and Gao Wei, "Broadband dual-polarized antenna with enhanced front-to-back ratio using metasurface," 2019 IEEE Asia-Pacific Microwave Conference (APMC), 1742-1744, Singapore, 2019.
doi:10.1109/APMC46564.2019.9038743

15. Peng, Lin, Ji-Yang Xie, Xiao-Feng Li, and Xing Jiang, "Front to back ratio bandwidth enhancement of resonance based reflector antenna by using a ring-shape director and its time-domain analysis," IEEE Access, Vol. 5, 15318-15325, 2017.
doi:10.1109/access.2017.2734093 Google Scholar

16. Govindanarayanan, Idayachandran and Nakkeeran Rangaswamy, "Asymmetric folded dipole antenna with high front-to-back ratio for LTE base stations," IEEE Antennas and Wireless Propagation Letters, Vol. 15, 869-872, 2016.
doi:10.1109/lawp.2015.2478197 Google Scholar

17. Liang, Zhixi, Congming Lu, Yuanxin Li, Juhua Liu, and Yunliang Long, "A broadband dual-polarized antenna with front-to-back ratio enhancement using semicylindrical sidewalls," IEEE Transactions on Antennas and Propagation, Vol. 66, No. 7, 3735-3740, Jul. 2018.
doi:10.1109/tap.2018.2835500 Google Scholar

18. Zhang, Long, Steven Gao, Qi Luo, Paul R. Young, Qingxia Li, You-Lin Geng, and Raed A. Abd-Alhameed, "Single-feed ultra-wideband circularly polarized antenna with enhanced front-to-back ratio," IEEE Transactions on Antennas and Propagation, Vol. 64, No. 1, 355-360, Jan. 2016.
doi:10.1109/tap.2015.2501844 Google Scholar

19. Song, Simin and Xiaoming Chen, "A compact and broadband dielectric resonator magnetoelectric dipole antenna with high front-to-back ratio," IEEE Antennas and Wireless Propagation Letters, Vol. 23, No. 1, 239-243, Jan. 2024.
doi:10.1109/lawp.2023.3322276 Google Scholar

20. Li, Ronglin, Yuanyun Huang, Jiaying Du, and Yuehui Cui, "Front-to-back ratio improvement of a compact base-station antenna for 5G NR applications," Microwave and Optical Technology Letters, Vol. 66, No. 2, e34063, 2024.
doi:10.1002/mop.34063 Google Scholar

21. Rao, Sheng-Lin, Qiang-Ming Cai, Xin Cao, Liu Tao, Anfeng Huang, Mulin Liu, Yuying Zhu, Yuyu Zhu, Pu Bo, Yi Yu, and Jun Fan, "Front-to-back ratio and half-power beamwidth improving for 4G/5G base station antenna," IET Microwaves, Antennas & Propagation, Vol. 16, No. 15, 955-961, 2022.
doi:10.1049/mia2.12312 Google Scholar

22. An, Ning and Yao Zhang, "Dual-band dual-sense circularly polarized antenna utilizing a radiating slot antenna as feeding structure," IEEE Antennas and Wireless Propagation Letters, Vol. 23, No. 4, 1321-1325, Apr. 2024.
doi:10.1109/lawp.2024.3354968 Google Scholar

23. Mao, Chunxu, Mohsen Khalily, Rahim Tafazolli, and Ahmed Kishk, "Wideband dual circularly polarized helical antenna array for satellite applications," IEEE Antennas and Wireless Propagation Letters, Vol. 23, No. 9, 2758-2762, Sep. 2024.
doi:10.1109/lawp.2024.3406553 Google Scholar

24. Yang, Wan Jun, Peng Fei Hu, and Xin Dai, "A filtering, wideband circularly polarized crossed-dipole antenna," IEEE Transactions on Antennas and Propagation, Vol. 73, No. 11, 9583-9588, Nov. 2025.
doi:10.1109/tap.2025.3591969 Google Scholar

25. Gu, Wei Dong and Yao Zhang, "A type of dual/circularly polarized filtering dipole antenna design based on coupled lines," IEEE Antennas and Wireless Propagation Letters, Vol. 24, No. 2, 489-493, Feb. 2025.
doi:10.1109/lawp.2024.3506573 Google Scholar
