Abstract

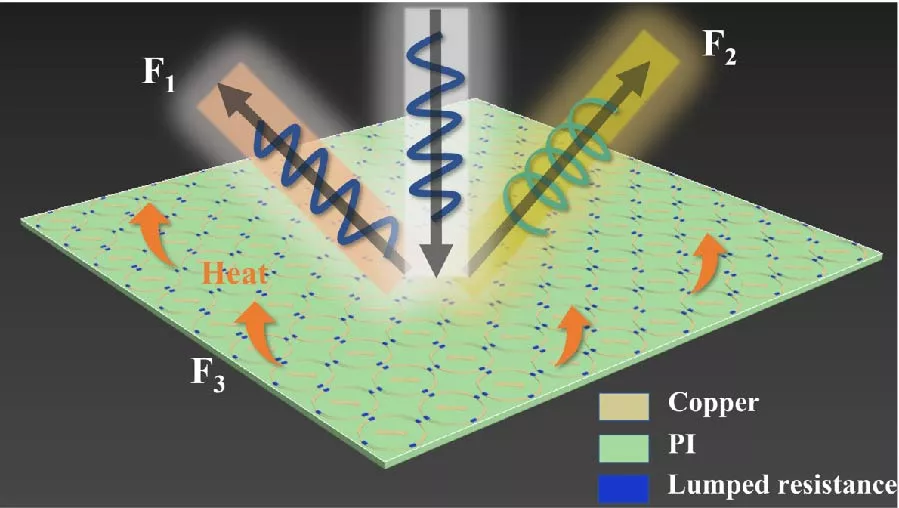

A flexible multifunctional passive metasurface reflector is proposed, which integrates broadband absorption, linear-to-linear polarization conversion, and dual-band linear-to-circular polarization conversion on a single passive platform. The proposed unit cell consists of a circular split-ring resonator and X-shaped metallic patches loaded with lumped resistors. The metallic patterns were fabricated on a flexible polyimide (PI) substrate, followed by a polymethacrylimide (PMI) spacer layer and a metallic ground plane. Without employing any active components, the metasurface achieves an absorptivity higher than 90% over the 4.45-8.46 GHz band. In the 12.1-15.2 GHz frequency range, the polarization conversion ratio exceeds 90%, enabling efficient linear-to-linear polarization conversion. Furthermore, within the frequency bands of 16.5-17.3 GHz and 17.7-18.2 GHz, the proposed metasurface converts incident linearly polarized waves into right-handed circularly polarized (RHCP) and left-handed circularly polarized (LHCP) waves, respectively, while the output handedness can be interchanged by rotating the incident polarization by 90°. Conformal measurements demonstrate that the proposed metasurface maintains stable absorption performance under moderate bending, with only slight degradation in polarization conversion performance and a small frequency shift in the circular polarization conversion bands. Experimental measurements show good agreement with the simulated results, verifying the effectiveness of the proposed design. Owing to its simple configuration, low cost, multifunctional integration, and conformal capability, the proposed metasurface provides a promising solution for multifunctional electromagnetic manipulation in conformal integrated electromagnetic systems.

1. Aieta, Francesco, Mikhail A. Kats, Patrice Genevet, and Federico Capasso, "Multiwavelength achromatic metasurfaces by dispersive phase compensation," Science, Vol. 347, No. 6228, 1342-1345, 2015.
doi:10.1126/science.aaa2494 Google Scholar

2. Arbabi, Amir, Ehsan Arbabi, Yu Horie, Seyedeh Mahsa Kamali, and Andrei Faraon, "Planar metasurface retroreflector," Nature Photonics, Vol. 11, No. 7, 415-420, 2017.
doi:10.1038/nphoton.2017.96 Google Scholar

3. Chen, Shuqi, Zhancheng Li, Wenwei Liu, Hua Cheng, and Jianguo Tian, "From single-dimensional to multidimensional manipulation of optical waves with metasurfaces," Advanced Materials, Vol. 31, No. 16, 1802458, 2019.
doi:10.1002/adma.201802458 Google Scholar

4. Huang, Xiaojun, Helin Yang, Daohua Zhang, and Yu Luo, "Ultrathin dual-band metasurface polarization converter," IEEE Transactions on Antennas and Propagation, Vol. 67, No. 7, 4636-4641, 2019.
doi:10.1109/tap.2019.2911377 Google Scholar

5. Luo, Zhangjie, Xueyao Ren, Lin Zhou, Yu Chen, Qiang Cheng, Hui Feng Ma, and Tie Jun Cui, "A high-performance nonlinear metasurface for spatial-wave absorption," Advanced Functional Materials, Vol. 32, No. 16, 2109544, 2022.
doi:10.1002/adfm.202109544 Google Scholar

6. Yin, Yongyao, Qiang Jiang, Hongbo Wang, and Lingling Huang, "Color holographic display based on complex-amplitude metasurface," Laser & Photonics Reviews, Vol. 19, No. 1, 2400884, 2025.
doi:10.1002/lpor.202400884 Google Scholar

7. Wang, Kai, Wei Shao, Xiao Ding, Bing-Zhong Wang, and Baojun Jiang, "Design of high-gain metasurface antenna based on characteristic mode analysis," IEEE Antennas and Wireless Propagation Letters, Vol. 21, No. 4, 661-665, 2022.
doi:10.1109/lawp.2022.3140326 Google Scholar

8. Zhang, Jie, Wangchang Li, Yue Kang, Ting Zou, Xiao Han, Yao Ying, Jing Yu, Jingwu Zheng, Liang Qiao, Juan Li, Faxiang Qin, and Shenglei Che, "Design of absorption-scattering integrated multi-layer metasurfaces for large-angle anomalous reflection," Progress In Electromagnetics Research, Vol. 183, 21-32, 2025.
doi:10.2528/pier25010603 Google Scholar

9. Jiang, Xiaowen, Chunhua Xue, Junjie Yan, Ruxue Li, Teng Li, and Xi Gao, "An ultrathin, dual-band, and dual-polarized metalens antenna based on double-resonant Huygens' metasurface," IEEE Antennas and Wireless Propagation Letters, Vol. 23, No. 5, 1473-1477, 2024.
doi:10.1109/lawp.2024.3359320 Google Scholar

10. Tutar, Fatih and Gokhan Ozturk, "An effective metasurface-based linear and circular polarization converter for C- and X-band applications," Optical Materials, Vol. 128, 112355, 2022.
doi:10.1016/j.optmat.2022.112355 Google Scholar

11. Zhou, Xiaofeng, Jiong Wu, Helin Yang, Shangru Li, Yuejie Yang, and Jiao Chen, "A dual-broadband dual-function polarization converter based on reflective metasurface," Journal of Applied Physics, Vol. 132, No. 13, 133103, 2022.
doi:10.1063/5.0106861 Google Scholar

12. Khan, Hamza Asif, Abdul Majeed, Hijab Zahra, Fatima Ghulam Kakepoto, Syed Muzahir Abbas, and Moath Alathbah, "Transparent conformal metasurface absorber for ultrawideband radar cross section reduction," Journal of Physics D: Applied Physics, Vol. 57, No. 13, 135105, 2024.
doi:10.1088/1361-6463/ad1951 Google Scholar

13. Zhou, Qiangguo, Wanli Ma, Tuntan Wu, Yongzhen Li, Qinxi Qiu, Jiaxin Duan, Jingbo Li, Lin Jiang, Wei Zhou, Yanqing Gao, et al. "Metasurface terahertz perfect absorber with strong multi-frequency selectivity," ACS Omega, Vol. 7, No. 41, 36712-36727, 2022.
doi:10.1021/acsomega.2c05016 Google Scholar

14. Ghosh, Soumendu, Jeet Ghosh, Moirangthem Santoshkumar Singh, and Abhishek Sarkhel, "A low-profile multifunctional metasurface reflector for multiband polarization transformation," IEEE Transactions on Circuits and Systems II: Express Briefs, Vol. 70, No. 1, 76-80, 2023.
doi:10.1109/tcsii.2022.3202085 Google Scholar

15. Agrahari, Rajan, Prashant Kumar Rajbhar, Manpuran Mahto, and Pradip Kumar Jain, "Metasurface assisted wideband multifunctional polarizer," Journal of Applied Physics, Vol. 133, No. 9, 094902, 2023.
doi:10.1063/5.0139074 Google Scholar

16. Guo, Qingxin, Fushun Hao, Meijun Qu, Jianxun Su, and Zengrui Li, "Multiband multifunctional polarization converter based on reconfigurable metasurface," IEEE Antennas and Wireless Propagation Letters, Vol. 23, No. 4, 1241-1245, 2024.
doi:10.1109/lawp.2024.3350034 Google Scholar

17. Jin, Shisong, Haining Ji, Peng Long, Bin Liu, Runteng Luo, Tianjian Xiao, and Zhi Zeng, "Reverse design of optical metamaterials for visible-infrared-laser multispectral camouflage with integrated heat dissipation," Engineered Science, Vol. 40, 2151, 2026.
doi:10.30919/es2151 Google Scholar

18. Wang, Lei, Cuilian Xu, Jian Liu, Zuntian Chu, Hao Yang, Jinming Jiang, Jun Wang, Yuxiang Jia, Sai Sui, Qi Fan, et al. "Flexible multiband stealth metasurface compatible with visible-laser-infrared-microwave spectra," Photonics Research, Vol. 14, No. 3, 909-918, 2026.
doi:10.1364/prj.578589 Google Scholar

19. Liu, Dan, Yanzhao Wang, Kefeng Ji, Huanhuan Gao, Sihong Zhou, Tong Liu, and He-Xiu Xu, "Infrared-microwave compatible stealth transparent metasurface with digital camouflage and hybrid absorption-scattering," Nanophotonics, Vol. 15, No. 12, e70156, 2026.
doi:10.1002/nap2.70156 Google Scholar

20. Huang, Shucan, Xingfei Jing, Jianming Liao, He Lin, Wenli Zhang, Liming Yuan, Xiaoliang Ma, Cheng Huang, and Xiangang Luo, "A multispectral-decoupled metastructure for simultaneous camouflage across visible, infrared, laser, and microwave bands," Advanced Functional Materials, Vol. 36, No. 47, e75462, 2026.
doi:10.1002/adfm.75462 Google Scholar

21. Liu, Hao, Chao Xiong, Xue Du, Junhui Yin, Xiujie Zhu, Pengfei Qiu, Yanqi Chen, Yongliang Shi, and Baocai Xu, "Machine learning-assisted design of infrared-radar-visible light compatible stealth flexible metamaterial structures," ACS Applied Materials & Interfaces, Vol. 18, No. 24, 34033-34044, 2026.
doi:10.1021/acsami.6c06612 Google Scholar

22. Gao, Chengjing, Tingjun Lai, Liang Peng, Xuewei Zhang, Zhengjie Huang, Zhiyu Wang, Xiaoyu Pang, Shenghui Zhao, and Dexin Ye, "Multifunctional intelligent reconfigurable metasurface," ACS Applied Materials & Interfaces, Vol. 16, No. 41, 55675-55683, 2024.
doi:10.1021/acsami.4c09944 Google Scholar

23. Xu, Hantao, Dongfang Guan, Min Huang, Yihao Xu, Qingqing Zhang, Bin Zheng, Peng You, and Yongxiang Liu, "Broadband multifunctional scattering control based on reconfigurable polarization conversion metasurface," Optics Express, Vol. 33, No. 23, 49780-49793, 2025.
doi:10.1364/oe.578851 Google Scholar

24. Jiang, Rui Zhe, Qian Ma, Ze Gu, Jing Cheng Liang, Qiang Xiao, Qiang Cheng, and Tie Jun Cui, "Simultaneously intelligent sensing and beamforming based on an adaptive information metasurface," Advanced Science, Vol. 11, No. 7, 2306181, 2024.
doi:10.1002/advs.202306181 Google Scholar

25. Fang, Shuguang, Lianwen Deng, Pin Zhang, Leilei Qiu, Haipeng Xie, Shengxiang Huang, Junsa Du, and Zijian Wang, "Dual-function flexible metasurface for absorption and polarization conversion and its application for radar cross section reduction," Journal of Applied Physics, Vol. 131, No. 13, 135106, 2022.
doi:10.1063/5.0074581 Google Scholar

26. Gao, Xi, Xu Han, Wei-Ping Cao, Hai Ou Li, Hui Feng Ma, and Tie Jun Cui, "Ultrawideband and high-efficiency linear polarization converter based on double V-shaped metasurface," IEEE Transactions on Antennas and Propagation, Vol. 63, No. 8, 3522-3530, 2015.
doi:10.1109/tap.2015.2434392 Google Scholar

27. Lin, Baoqin, Lintao Lv, Jianxin Guo, Zhe Liu, Xiang Ji, and Jing Wu, "An ultra-wideband reflective linear-to-circular polarization converter based on anisotropic metasurface," IEEE Access, Vol. 8, 82732-82740, 2020.
doi:10.1109/access.2020.2988058 Google Scholar
