Design of Triple-Band High-Absorption Electromagnetic Absorber Based on Bandpass Frequency-Selective Surface
By
Progress In Electromagnetics Research Letters, Vol. 131, 68-75, 2026
Abstract

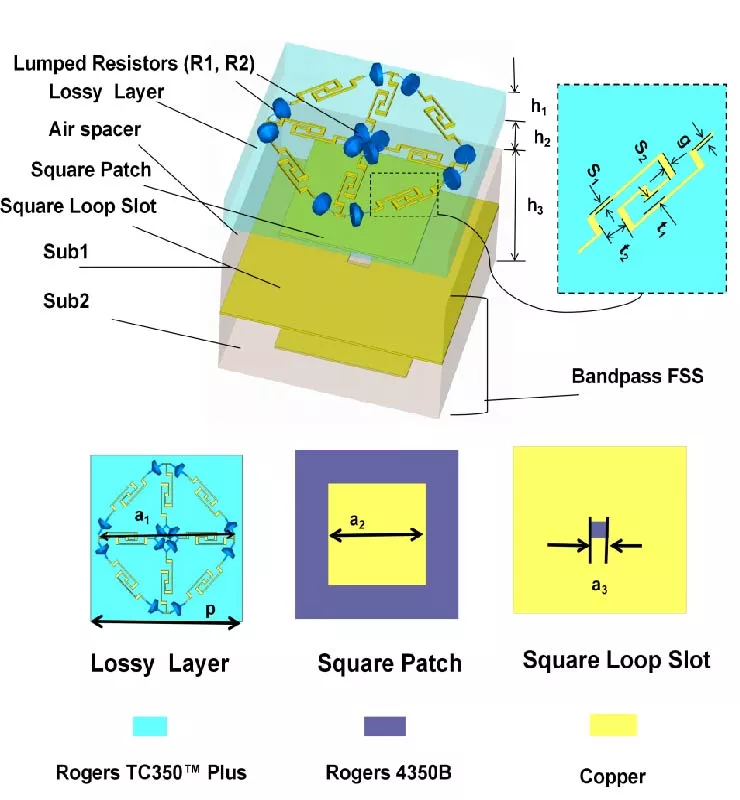

This study proposes a triple-band high-efficiency electromagnetic absorber constructed using a lossy resonant layer, an air spacer, and a bandpass frequency-selective surface (FSS) boundary. The lossy layer adopts bent multi-section metal resonators loaded with two types of lumped resistors to generate a multi-band resonant loss, while the underlying slot-type bandpass FSS provides frequency-dependent boundary responses: it serves as a reflective boundary at the lower two absorption bands and couples with the top-layer resonance at the higher band, while retaining out-of-band transmission. The simulated results reveal effective absorption (absorptivity > 80%) at 5.2-6.1 GHz, 14.5-16.0 GHz, and 20.8-22.2 GHz, with peak absorptivities of 0.92, 1.00, and 0.97, respectively. Thanks to the centrosymmetric layout, the absorber is insensitive to TE/TM polarizations and maintains stable absorption up to 30° under oblique incidence. The operating frequencies can be flexibly tuned the via slot dimensions, metal line size, and resistance values. Due to its low profile and easy processing, the proposed design is suitable for stealth, radar cross-section reduction, and electromagnetic interference mitigation.
Citation
Pengzhe Feng, Guang Chen, Dongxue Han, and Yufeng Yu, "Design of Triple-Band High-Absorption Electromagnetic Absorber Based on Bandpass Frequency-Selective Surface," Progress In Electromagnetics Research Letters, Vol. 131, 68-75, 2026.
doi:10.2528/PIERL26071102
