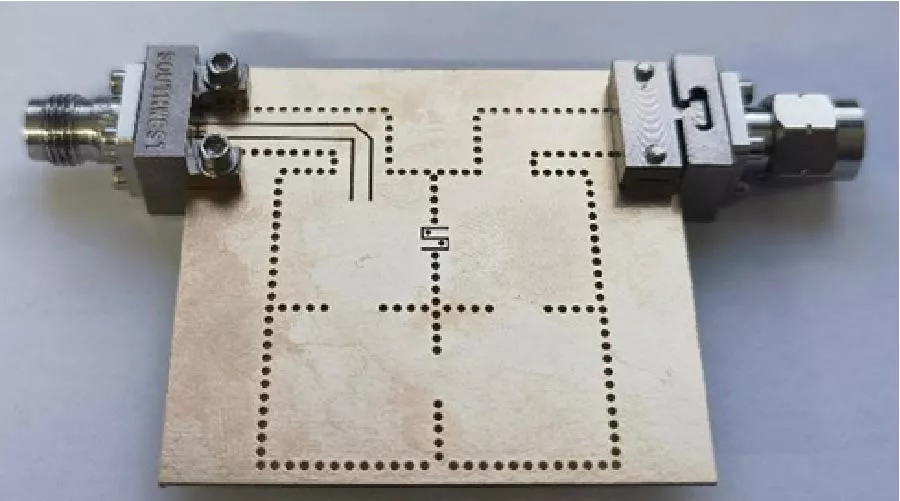

A Cross-Coupled SIW Filter with Quasi-Elliptic Response and Enhanced Stopband Suppression Using Opposite-Face GCPW Feeding
By
Daxue Liu,

    Dr. Daxue Liu

    School of Intelligent Transportation

    Zhejiang Institute of Communications

    China

    Homepage

Liang Li,

    Mr. Liang Li

    School of Intelligent Transportation

    Zhejiang Institute of Communications

    China

    Homepage

Darren Trofimczuk,

    Dr. Darren Trofimczuk

    Haaga-Helia University of Applied Sciences

    Finland

    Homepage

Shunli Hong,

    Dr. Shunli Hong

    School of Intelligent Transportation

    Zhejiang Institute of Communications

    China

    Homepage

Mingyu Cao

    Dr. Mingyu Cao

    School of Intelligent Transportation

    Zhejiang Institute of Communications

    China

    Homepage

Progress In Electromagnetics Research Letters, Vol. 131, 55-60, 2026
doi:10.2528/PIERL26071703 | Google Scholar

Abstract
This letter presents a cross-coupled SIW filter with a quasi-elliptic response and improved stopband suppression. For cross-coupled SIW filters, suppressing spurious modes often requires rearranging feeding ports, but this rearrangement tends to increase port-to-port crosstalk and limit achievable out-of-band rejection. To address this inherent issue, we keep port positions unchanged and change the port configuration from conventional microstrip lines to an opposite-face GCPW feeding structure. The input and output ports are placed on opposite metal layers, with their ground planes separated by the dielectric substrate. Simulation results show that the port-to-port crosstalk is reduced from -25 to -40 dB to below -100 dB. Measured results show that the proposed filter maintains a similar stopband width as the previous design, while the suppression of the first spurious passband is improved by about 20 dB, reaching better than -50 dB. The improvement is achieved without hybrid structures or extra fabrication steps.
Download Full Article (134) View Full Article volume
Citation
Daxue Liu, Liang Li, Darren Trofimczuk, Shunli Hong, and Mingyu Cao, "A Cross-Coupled SIW Filter with Quasi-Elliptic Response and Enhanced Stopband Suppression Using Opposite-Face GCPW Feeding," Progress In Electromagnetics Research Letters, Vol. 131, 55-60, 2026.
doi:10.2528/PIERL26071703
