Abstract

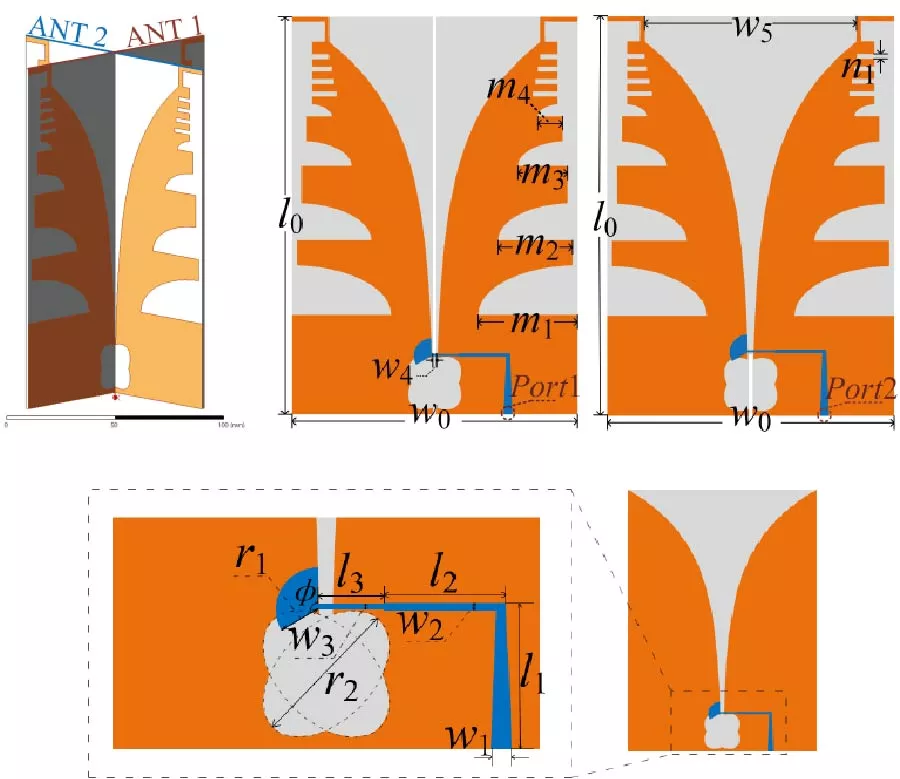

This paper proposes a high-gain ultra-wideband (UWB) dual-polarized Vivaldi antenna. The proposed antenna consists of two identical Vivaldi elements orthogonally crossed to achieve dual polarization. A tapered stepped-impedance feed matching line combined with a petal-shaped open-slot structure is deployed for every Vivaldi element to enhance impedance matching efficiently and extend operational bandwidth. Furthermore, gradient-tapered curved slots, periodic tapered rectangular slots, and bent extended stubs are arranged on both sides of the radiating patch, which effectively improves the antenna's gain and directivity at mid and low frequencies within its operating bandwidth. The overall dimensions of the proposed antenna are 0.57λ_L × 0.8λ_L, where λ_L refers to the free-space wavelength at the lowest operating frequency. Experimental measurements demonstrate that the proposed antenna achieves an impedance bandwidth of 1.5-9.5 GHz for S₁₁ ≤ -10 dB. The dual-polarization port isolation is higher than 21 dB throughout the operating band, with a peak gain of 11.38 dBi. The antenna can be deployed for wideband communication and radar detection applications.

1. Riyanti, Kurnia P. K., Eko Setijadi, Gamantyo Hendrantoro, and Nurhayati Nurhayati, "Single-feed dual-aperture Vivaldi antenna for GPR detection of arbitrarily oriented objects," IEEE Antennas and Wireless Propagation Letters, Vol. 25, No. 7, 2609-2613, July 2026.
doi:10.1109/lawp.2026.3681979 Google Scholar

2. De Oliveira, Alexandre Manicoba, Antonio Mendes de Oliveira Neto, Marcelo Bender Perotoni, N. Nurhayati, Henri Baudrand, Arnaldo de Carvalho, and Joao Francisco Justo, "A fern antipodal Vivaldi antenna for near-field microwave imaging medical applications," IEEE Transactions on Antennas and Propagation, Vol. 69, No. 12, 8816-8829, December 2021.
doi:10.1109/tap.2021.3096942 Google Scholar

3. Ge, Feiyu, Hongxin Zhao, Mei Yang, Shunli Li, and Xiaoxing Yin, "Ku-band small-frequency-ratio self-diplexing Vivaldi antenna with high isolation for high-power application," IEEE Antennas and Wireless Propagation Letters, Vol. 24, No. 8, 2682-2686, August 2025.
doi:10.1109/lawp.2025.3571985 Google Scholar

4. Cheng, Houyuan, Shangru Li, Yang Fu, Helin Yang, Jiong Wu, Xiangli Zhou, and Xintong Shi, "Integration of SSPP antenna and Vivaldi arrays for 5G sub-6 GHz and millimeter-wave applications," IEEE Antennas and Wireless Propagation Letters, Vol. 24, No. 7, 2099-2103, July 2025.
doi:10.1109/lawp.2025.3556108 Google Scholar

5. Yngvesson, K. S., T. L. Korzeniowski, Y.-S. Kim, E. L. Kollberg, and J. F. Johansson, "The tapered slot antenna --- A new integrated element for millimeter-wave applications," IEEE Transactions on Microwave Theory and Techniques, Vol. 37, No. 2, 365-374, February 1989.
doi:10.1109/22.20062 Google Scholar

6. Puskely, Jan, Jaroslav Lacik, Zbynek Raida, and Holger Arthaber, "High-gain dielectric-loaded Vivaldi antenna for Ka-band applications," IEEE Antennas and Wireless Propagation Letters, Vol. 15, 2004-2007, 2016.
doi:10.1109/lawp.2016.2550658 Google Scholar

7. Zhang, Hao and Fang Zhang, "A novel ultrawideband miniature Vivaldi antenna with sawtooth outer edges and inclined elliptical slots," IEEE Antennas and Wireless Propagation Letters, Vol. 23, No. 9, 2708-2712, September 2024.
doi:10.1109/lawp.2024.3405007 Google Scholar

8. Huang, Guan-Long, Ming-Feng Xu, Zi-Yu Pang, Hua-Feng Li, Rui-Sen Chen, Qiang Shao, Mustafa K. Taher Al-Nuaimi, Xian-Hui He, Geng-Bo Wu, Jing-Tao Zeng, and Hua Yang, "A 0.8 GHz to 30.5 GHz exponential antipodal Vivaldi antenna with stable radiation for wideband measurement application," IEEE Antennas and Wireless Propagation Letters, Vol. 24, No. 10, 3350-3354, October 2025.
doi:10.1109/lawp.2025.3590042 Google Scholar

9. Qi, Huanhuan and Haiwen Liu, "Wideband high-gain filtering Vivaldi antenna design based on MS and herringbone SSPP structure," IEEE Antennas and Wireless Propagation Letters, Vol. 22, No. 8, 1798-1802, August 2023.
doi:10.1109/lawp.2023.3264702 Google Scholar

10. Kim, Ikhwan, Hak-Yong Lee, Dong-Min Lee, Ho-Jun Lee, Hyuk Kim, Eun-Seong Kim, and Nam-Young Kim, "Broadband gain enhanced narrow-beam Vivaldi antenna with ring and directors for handheld antidrone jamming system," IEEE Antennas and Wireless Propagation Letters, Vol. 23, No. 1, 214-218, January 2024.
doi:10.1109/lawp.2023.3321899 Google Scholar

11. Remez, J., A. Segal, and R. Shansi, "Dual-polarized wideband widescan multibeam antenna system from tapered slotline elements array," IEEE Antennas and Wireless Propagation Letters, Vol. 4, 293-296, 2005.
doi:10.1109/lawp.2005.852996 Google Scholar

12. Yan, Jie-Bang, Sivaprasad Gogineni, Bruno Camps-Raga, and John Brozena, "A dual-polarized 2–18-GHz Vivaldi array for airborne radar measurements of snow," IEEE Transactions on Antennas and Propagation, Vol. 64, No. 2, 781-785, February 2016.
doi:10.1109/tap.2015.2506734 Google Scholar

13. Kindt, Rick W. and Bradley T. Binder, "Dual-polarized Vivaldi array on a triangular lattice," IEEE Transactions on Antennas and Propagation, Vol. 69, No. 4, 2083-2091, April 2021.
doi:10.1109/tap.2020.3037691 Google Scholar

14. Dzagbletey, Philip Ayiku, Jae-Yeon Shim, and Jae-Young Chung, "Quarter-wave balun fed Vivaldi antenna pair for V2X communication measurement," IEEE Transactions on Antennas and Propagation, Vol. 67, No. 3, 1957-1962, March 2019.
doi:10.1109/tap.2019.2893201 Google Scholar

15. Cicchetti, Renato, Valentina Cicchetti, Antonio Faraone, Lars Foged, and Orlandino Testa, "A compact high-gain wideband lens Vivaldi antenna for wireless communications and through-the-wall imaging," IEEE Transactions on Antennas and Propagation, Vol. 69, No. 6, 3177-3192, June 2021.
doi:10.1109/tap.2020.3037777 Google Scholar

16. Zhang, Ke, Rong Tan, Zhi Hao Jiang, Yong Huang, Lin Tang, and Wei Hong, "A compact, ultrawideband dual-polarized Vivaldi antenna with radar cross section reduction," IEEE Antennas and Wireless Propagation Letters, Vol. 21, No. 7, 1323-1327, July 2022.
doi:10.1109/lawp.2022.3166821 Google Scholar

17. Qiao, Zhaolong, Zhengpeng Wang, Tian-Hong Loh, Steven Gao, and Jungang Miao, "A compact minimally invasive antenna for OTA testing," IEEE Antennas and Wireless Propagation Letters, Vol. 18, No. 7, 1381-1385, July 2019.
doi:10.1109/lawp.2019.2917087 Google Scholar

18. Mohit, Narayanan, Kumpatla Satya Karthikeya Naidu, Devi Divya Kanth, Venkata Deepak Raj, Gopinathan Prabha, and Senthilnathan Natarajamani, "Design of ultra-wideband Vivaldi antenna with enhanced gain performance," Progress In Electromagnetics Research C, Vol. 168, 201-207, 2026.
doi:10.2528/pierc25121002 Google Scholar

19. Bhavani, Maddirala Vijaya Lakshmi, Divya Chaturvedi, Tiruganesh Lanka, Tella Anil Raju, Goutam Rana, and Arvind Kumar, "A noninvasive microwave imaging system for breast tumor detection using a high-gain Vivaldi antenna array sensor," IEEE Sensors Journal, Vol. 25, No. 17, 32631-32640, September 2025.
doi:10.1109/jsen.2025.3588605 Google Scholar
