Abstract

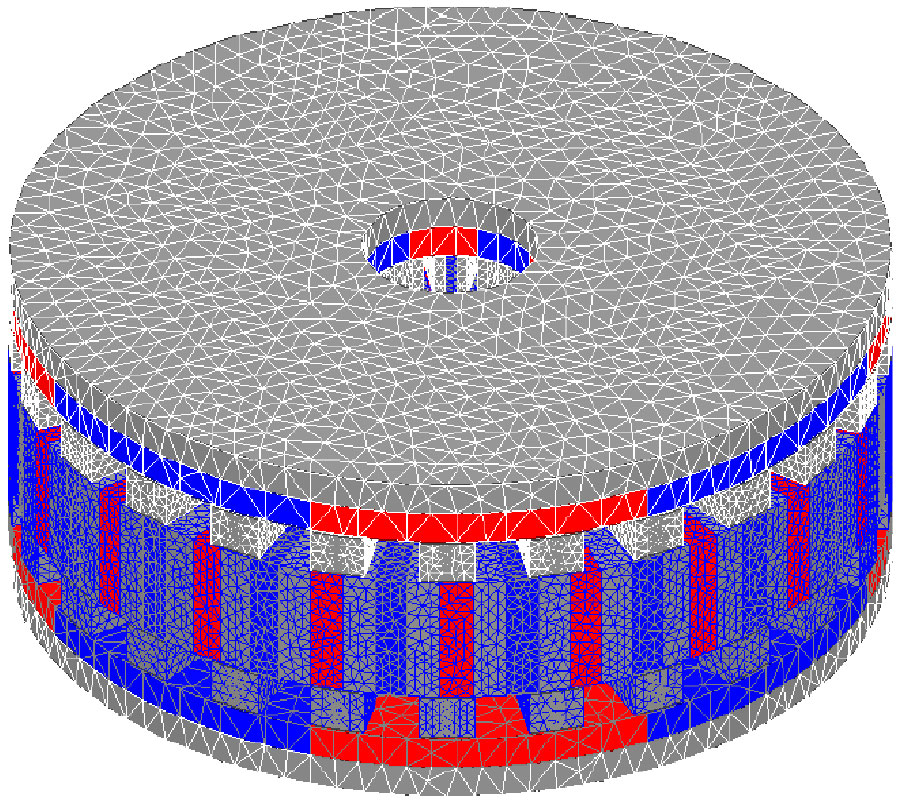

This paper presents an innovative magnetic gearbox with a three-rotor coaxial structure capable of providing a single input and dual identical outputs. The low-speed rotor magnets of this gear are flux-focusing, while the high-speed rotors magnets are surface-mounted. The performance of this gear was analyzed using finite element analysis. Initially, the gear with initial dimensions was modeled and simulated in ANSYS/Maxwell software, and the results of static and time-dependent analyses were examined. Subsequently, a parametric study of the gear was conducted to investigate the impact of geometric dimension variations on rotor torques and volumetric torque density. The optimal dimensions for achieving the highest volumetric torque density were then selected. The gear was then simulated with the final dimensions, demonstrating that this multi-rotor design is capable of achieving high torque densities (291.61 Nm/L in this gear). Following this, the proposed magnetic gear was compared with another gear of similar dimensions but with three flux-focusing rotors. Additionally, the slicing method was employed for the high-speed rotors magnets to reduce cogging torque, and it was shown that this method successfully reduces the cogging torque of the gear's rotors.

1. Armstrong, C. G., "Power transmitting device," U.S. Patent 687,292,26, 1901.

2. Atallah, K. and D. Howe, "A novel high-performance magnetic gear," IEEE Transactions on Magnetics, Vol. 37, No. 4, 2844-2846, 2001. Google Scholar

3. Rasmussen, P. O., T. O. Andersen, F. T. Jorgensen, and O. Nielsen, "Development of a high-performance magnetic gear," IEEE Transactions on Industry Applications, Vol. 41, No. 3, 764-770, 2005. Google Scholar

4. Jian, Linni, K. T. Chau, Yu Gong, J. Z. Jiang, Chuang Yu, and Wenlong Li, "Comparison of coaxial magnetic gears with different topologies," IEEE Transactions on Magnetics, Vol. 45, No. 10, 4526-4529, 2009. Google Scholar

5. Liu, Xinhua, K. T. Chau, J. Z. Jiang, and Chuang Yu, "Design and analysis of interior-magnet outer-rotor concentric magnetic gears," Journal of Applied Physics, Vol. 105, No. 7, 07F101, 2009. Google Scholar

6. Uppalapati, Kiran K., Matthew D. Calvin, Jason D. Wright, J. Pitchard, Wesley B. Williams, and Jonathan Z. Bird, "A magnetic gearbox with an active region torque density of 239 N·m/L," IEEE Transactions on Industry Applications, Vol. 54, No. 2, 1331-1338, 2018. Google Scholar

7. Baninajar, Hossein, Sina Modaresahmadi, Ho Yin Wong, Jonathan Bird, Wesley Williams, and Bertrand Dechant, "Designing a Halbach rotor magnetic gear for a marine hydrokinetic generator," IEEE Transactions on Industry Applications, Vol. 58, No. 5, 6069-6080, 2022. Google Scholar

8. Mezani, S., K. Atallah, and D. Howe, "A high-performance axial-field magnetic gear," Journal of Applied Physics, Vol. 99, No. 8, 08R303, 2006. Google Scholar

9. Acharya, Vedanadam M., Jonathan Z. Bird, and Matthew Calvin, "A flux focusing axial magnetic gear," IEEE Transactions on Magnetics, Vol. 49, No. 7, 4092-4095, 2013. Google Scholar

10. Bahrami Kouhshahi, Mojtaba, Vedanadam M. Acharya, Matthew Calvin, Jonathan Z. Bird, and Wesley Williams, "Designing and experimentally testing a flux-focusing axial flux magnetic gear for an ocean generator application," IET Electric Power Applications, Vol. 13, No. 8, 1212-1218, 2019. Google Scholar

11. Davey, Kent, Larry McDonald, and Travis Hutson, "Axial flux cycloidal magnetic gears," IEEE Transactions on Magnetics, Vol. 50, No. 4, 1-7, 2013. Google Scholar

12. Jing, Libing, Youzhong Wang, Dawei Li, and Ronghai Qu, "Characteristic analysis of a new structure eccentric harmonic magnetic gear," Actuators, Vol. 12, No. 6, 248, 2023.

13. Johnson, Matthew, Matthew C. Gardner, Hamid A. Toliyat, Steven Englebretson, Wen Ouyang, and Colin Tschida, "Design, construction, and analysis of a large-scale inner stator radial flux magnetically geared generator for wave energy conversion," IEEE Transactions on Industry Applications, Vol. 54, No. 4, 3305-3314, 2018. Google Scholar

14. McGilton, Ben, Richard Crozier, Alasdair McDonald, and Markus Mueller, "Review of magnetic gear technologies and their applications in marine energy," IET Renewable Power Generation, Vol. 12, No. 2, 174-181, 2018. Google Scholar

15. Tallerico, Thomas F., Justin J. Scheidler, and Zachary A. Cameron, "Electromagnetic mass and efficiency of magnetic gears for electrified aircraft," 2019 AIAA/IEEE Electric Aircraft Technologies Symposium (EATS), 1-25, Indianapolis, IN, USA, 2019.

16. Wu, Yi-Chang, Feng-Ming Ou, Mi-Ching Tsai, and Saian Nur Fajri, "Development of a dual-input magnetic gear train for the transmission system of small-scale wind turbines," Applied Sciences, Vol. 12, No. 7, 3685, 2022. Google Scholar

17. Dimauro, Luca, Elvio Bonisoli, Mauro Velardocchia, Maurizio Repetto, Piergiorgio Alotto, Mattia Filippini, and Riccardo Torchio, "Magnetic gearbox for automotive power transmissions: An innovative industrial technology," Engineering Science and Technology, An International Journal, Vol. 46, 101497, 2023. Google Scholar

18. Zhu, Z. Q. and D. Howe, "Influence of design parameters on cogging torque in permanent magnet machines," IEEE Transactions on Energy Conversion, Vol. 15, No. 4, 407-412, 2000. Google Scholar

19. Niguchi, Noboru and Katsuhiro Hirata, "Cogging torque analysis of magnetic gear," IEEE Transactions on Industrial Electronics, Vol. 59, No. 5, 2189-2197, 2012. Google Scholar

20. Rashid, Muhammed K. and Ahmed M. Mohammed, "Elimination of cogging torque and torque ripple in magnetic gear using slicing technique," Progress In Electromagnetics Research C, Vol. 125, 179-189, 2022. Google Scholar

21. Hsiao, Chun-Yu, Sheng-Nian Yeh, and Jonq-Chin Hwang, "A novel cogging torque simulation method for permanent-magnet synchronous machines," Energies, Vol. 4, No. 12, 2166-2179, 2011. Google Scholar
