Abstract

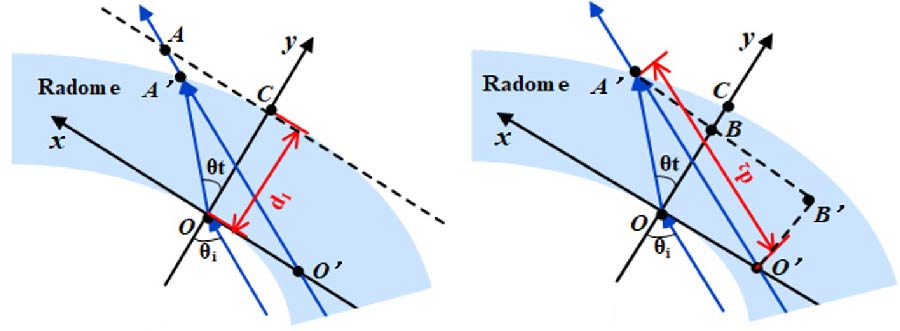

Primary insertion phase delay (IPD) expression is obtained using the flat plate model with plane wave incidence, and it only considers the longitudinal phase shift in the free space. This causes errors in large curvature radome applications since the longitudinal distance that wave travels in flat plate cannot represent the actual distance. Therefore, the IPD expression for radomes with large curvature should be defined. Based on the ray tracing in the radome medium, a modified IPD expression with more accurate transmission distance for large curvature radomes is proposed. The proposed expression can be applied to radomes with arbitrary curvature. The correctness of our proposed expression is verified via a simplified fast radome analytical model. The results from the proposed expression show errors within 1.0° for the parabolic radome system. The proposed expression can be applied to optimize the performance of radome systems with large curvature. A reflector antenna radome system is employed for verification. Results show that using the modified IPD expression to optimize the reflector antenna can increase the system gain by 1.8 dB, reduce the side lobe by 7.6 dB, and narrow the beamwidth by 0.9°.

1. Wang, Shaojie, He-Xiu Xu, Mingzhao Wang, Hang Wei, Fan Zhang, and Guangwei Hu, "Janus metasurface for super radome with asymmetric diffusion and absorption," Advanced Optical Materials, Vol. 12, No. 7, 2302061, 2024.

2. Yang, Jiaheng, Huaibin Zheng, Yongqiang Pang, Bingyue Qu, Yongfeng Li, Jiafu Wang, and Zhuo Xu, "Design, modelling, and manufacturing of sandwich radome structure with out-of-band absorption and in-band transmission performances," Composite Structures, Vol. 339, 118138, 2024.

3. Haider, Imran, Iftikhar Hussain Gul, Shahid Aziz, Muhammad Iftikhar Faraz, Muhammad Ali Khan, Syed Husain Imran Jaffery, and Dong-Won Jung, "Environmental aging of reinforced polymer composite radome: Reliability and performance investigation," Frontiers in Materials, Vol. 11, 1427541, 2024.

4. Wang, Ben, Bailu Luo, Qu Yan, Yunze Yang, Wenyi Bao, Zhenyu Qiu, Hualin Fan, and Jianguo Dai, "Effects of lattice configuration on multifunctionality of C-sandwich radome," International Journal of Mechanical Sciences, Vol. 267, 108972, 2024.

5. Joy, Vineetha, Ambika Jose Teena, Hema Singh, and Raveendranath Nair, "Optimal design methodology for planar multi-layered radomes for multiband applications using nature inspired algorithm," Progress In Electromagnetics Research C, Vol. 106, 121-136, 2020.

6. Duan, Wei, Jianliang Xie, Mei Bi, Lun Qi, Yongzhi Li, Kai Li, Zhiming Li, and Xiaolong Weng, "Study on the electromagnetic performance of radome with laminar ablation for reentry applications," IEEE Transactions on Antennas and Propagation, Vol. 72, No. 8, 6261-6269, 2024.

7. Duan, Wei, Xiaolong Weng, Yongzhi Li, Zhiming Li, Siyuan Bao, and Mei Bi, "Temperature-dependent electromagnetic performance predictions of a hypersonic radome based on variable thickness gradient dielectric multilayer walls," IEEE Antennas and Wireless Propagation Letters, Vol. 23, No. 8, 2381-2385, 2024.

8. Duan, Wei, Xiaolong Weng, Yongzhi Li, Zhiming Li, Siyuan Bao, and Mei Bi, "Temperature-dependent electromagnetic performance predictions of a hypersonic radome based on variable thickness gradient dielectric multilayer walls," IEEE Antennas and Wireless Propagation Letters, Vol. 23, No. 8, 2381-2385, 2024.

9. Ji, Jianmin, Jianhua Ren, Xunya Jiang, Wei Wang, Huilong Yu, Kai Yin, and Bo Chen, "A novel method for calculating broadband electrical performance of high-speed aircraft radome under thermo-mechanical-electrical coupling," Chinese Journal of Aeronautics, Vol. 37, No. 9, 463-474, 2024.

10. Arya, Kanathil M., Akshay M. Aserkar, Shailesh A. Patil, R. Nair, and Shiv Narayan, "Design of multiband metasurface radome for leading wing edge of aircraft," Progress In Electromagnetics Research M, Vol. 130, 37-48, 2024.

11. Li, P., W. Y. Xu, and L. W. Song, "A novel compensation strategy for the radiation characteristics of large dielectric radomes based on phase modification," IEEE Antennas and Wireless Propagation Letters, Vol. 15, 1044-1047, 2015.

12. Xu, Wanye, BaoYan Duan, Peng Li, Yali Zong, and Yuanying Qiu, "Novel compensation method for electromagnetic performance of dielectric radome based on reflector shaping," IET Microwaves, Antennas & Propagation, Vol. 9, No. 2, 125-132, 2015.

13. Kedar, Ashutosh, K. Beenamole, and U. Revankar, "Performance appraisal of active phased array antenna in presence of a multilayer flat sandwich radome," Progress In Electromagnetics Research, Vol. 66, 157-171, 2006.

14. Liu, Zheng, Xiaoli Fan, Junliang Zhang, Lixin Chen, Yusheng Tang, Jie Kong, and Junwei Gu, "PBO fibers/fluorine-containing liquid crystal compound modified cyanate ester wave-transparent laminated composites with excellent mechanical and flame retardance properties," Journal of Materials Science & Technology, Vol. 152, 16-29, 2023.

15. Kedar, Ashutosh and U. Revankar, "Parametric study of flat sandwich multilayer radome," Progress In Electromagnetics Research, Vol. 66, 253-265, 2006.

16. Li, Peng, Witold Pedrycz, Wanye Xu, and Liwei Song, "Far-field pattern tolerance analysis of the antenna-radome system with the material thickness error: An interval arithmetic approach," IEEE Transactions on Antennas and Propagation, Vol. 65, No. 4, 1934-1946, 2017.

17. Ji, Jianmin, Wei Wang, Huilong Yu, Juan Liu, and Bo Chen, "Investigation of the electrical performance of high-speed aircraft radomes using a thermo-mechanical-electrical coupling model," Journal of Systems Engineering and Electronics, Vol. 35, No. 6, 1397-1410, 2024.

18. Shin, Hokeun, Daeyeong Yoon, Dong-Yeop Na, and Yong Bae Park, "Analysis of transmission loss and boresight error of a curved FSS radome-enclosed antenna," IEEE Access, Vol. 9, 95843-95852, 2021.

19. Persson, Kristin, Mats Gustafsson, and Gerhard Kristensson, "Reconstruction and visualization of equivalent currents on a radome using an integral representation formulation," Progress In Electromagnetics Research B, Vol. 20, 65-90, 2010.

20. Persson, Kristin, Mats Gustafsson, Gerhard Kristensson, and Björn Widenberg, "Radome diagnostics --- Source reconstruction of phase objects with an equivalent currents approach," IEEE Transactions on Antennas and Propagation, Vol. 62, No. 4, 2041-2051, 2014.

21. Mahony, John D., "Measurements to estimate the relative permittivity and loss tangent of thin, low-loss materials," IEEE Antennas and Propagation Magazine, Vol. 47, No. 3, 83-87, 2005.

22. Liang, Da, Haoyang Li, Yixiang Fu, and Xiaoyu Pang, "A novel transmission loss compensation method for radome based on non-linear frequency modulation waveform design," Electronics Letters, Vol. 59, No. 14, e12876, 2023.

23. Mohammed Yazeen, P. S., C. V. Vinisha, S. Vandana, M. Suprava, and Raveendranath U. Nair, Broadbanding Techniques for Radomes, Springer, 2020.

24. Arya, Kanathil M., Akshay M. Aserkar, Shailesh A. Patil, R. Nair, and Shiv Narayan, "Design of multiband metasurface radome for leading wing edge of aircraft," Progress In Electromagnetics Research M, Vol. 130, 37-48, 2024.

25. Meng, Hongfu, Wenbin Dou, Tiantian Chen, and Kai Yin, "Analysis of radome using aperture integration-surface integration method with modified transmission coefficient," Journal of Infrared, Millimeter, and Terahertz Waves, Vol. 30, 199-210, 2009.

26. Oğuzer, T. and A. Altintas, "Analysis of the nonconcentric radome-enclosed cylindrical reflector antenna system, E-polarization case," Journal of Electromagnetic Waves and Applications, Vol. 19, No. 15, 2093-2111, 2005.

27. Chen, Hongyu, Zhongxiang Shen, and E. Li, "Analysis of a three-dimensional antenna radiating through a two-dimensional radome using a fast high-order method," IEEE Transactions on Magnetics, Vol. 42, No. 4, 699-702, 2006.

28. Fan, X. and Q. Zhang, "Optimization of two-dimensional radome boresight error performance based on ga," Modern Electronics Technique, Vol. 34, 9-11, 2011.
