Abstract

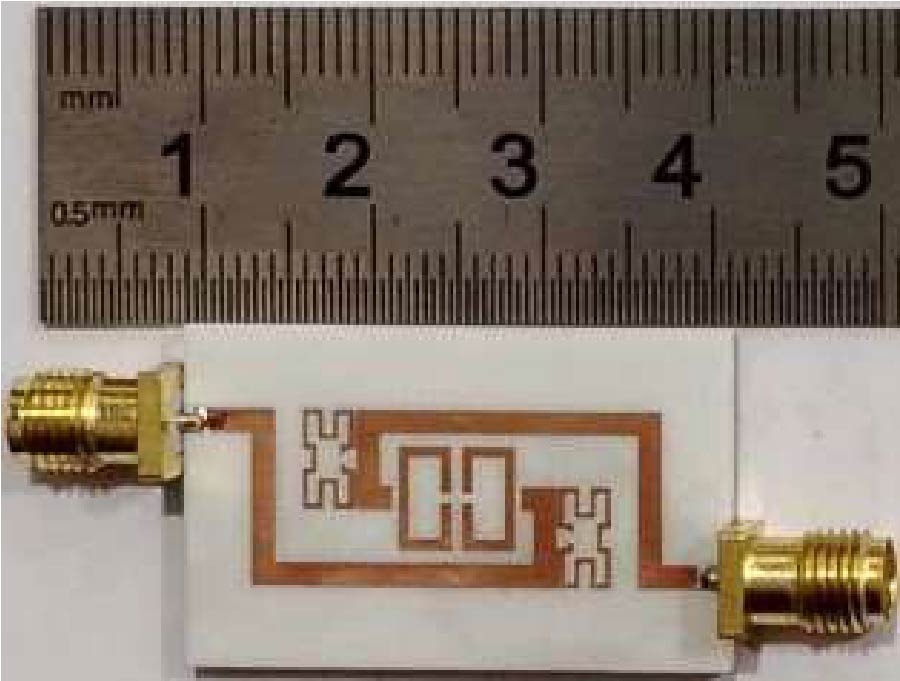

In this paper, a triple-band bandpass filter based on metamaterials and fractal geometry is proposed. The proposed filter is designed based on three concepts. First, Transmission Lines (TLs) function both as feed lines and as resonators at high frequencies. Second, metamaterials open loop 0th iteration Modified-Minkowski resonators are employed for the middle-frequency band. Third, at a lower frequency, in the 1st iteration, Modified-Minkowski resonators are introduced in the space between TLs to optimize space utilization. The proposed filter has been designed at center frequencies 11 GHz, 6 GHz, and 5 GHz by using Rogers RO 4003 substrate with a thickness of 1.5 mm and dielectric constant of 3.5 resulting in an overall size of 32.2 mm × 20.6 mm. The design simulation is performed using CST microwave studio. To validate the results, the proposed filter has been fabricated. A strong correlation between the measured and simulated results confirms the effectiveness of the design. The proposed filter has three bands at 5 GHz, 6 GHz, and 11 GHz with corresponding S₂₁ values of -0.39 dB, -1 dB, and -0.26 dB and a size reduction of 31% compared with conventional Dual-Band Bandpass Filter for wireless applications.
