Abstract

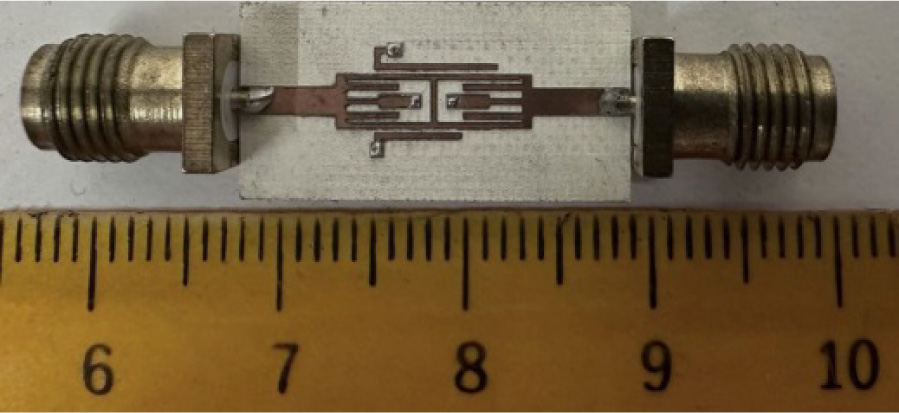

In this letter, a compact passband filter with dual desirable attenuation narrow bands is developed for ultra wideband application. Indeed, a grounded stepped impedance resonator in defected microstrip structure (GSIR-DMS) is realized with a specified high pass cutoff frequency of (f GSIR ). Next, two cells of the designed GSIR-DMSs are cascaded to perform the proposed ultra wide passband filter. In addition, four λ_g/4 open-circuited stubs are inserted beside the GSIR-DMSs to create two transmission zeros and improve the filter rejection performance. In order to suppress interference with some expected network channels, two desirable λ_g/4 short-circuited microstrip stubs are implemented and coupled to the body of the UWB filter. Finally, the filter is constructed, simulated, and measured using a Rogers-ceramic RO4360 substrate with a permittivity of ε_r = 6.15 and a thickness of h = 1.016 mm. The filter responses from measurement and simulation are compared and discussed. The produced filter is very small covering circuit area of about (0.433λ_g × 0.244λ_g) excluding the feeding ports.

1. Federal Communications Commission "Revision of part 15 of the commission's rules regarding ultra-wideband transmission systems," First Report and Order FCC 02-48, 2002.

2. Hammed, Raaed T. and D. Mirshekar-Syahkal, "Miniaturized high-order UWB bandpass filter using third-order E-shape microstrip structure," 2012 IEEE/MTT-S International Microwave Symposium Digest, 1-3, Montreal, QC, Canada, Jun. 2012.

3. Sangam, Ramanand Sagar, Sumit Dash, and Rakhesh Singh Kshetrimayum, "Ultra-broadband bandpass filter using linearly tapered coupled-microstrip line and open loop defected ground structure," IEEE Transactions on Circuits and Systems II: Express Briefs, Vol. 68, No. 1, 181-185, 2020.

4. Shome, Partha Pratim and Taimoor Khan, "A quintuple mode resonator based bandpass filter for ultra-wideband applications," Microsystem Technologies, Vol. 26, No. 7, 2295-2304, 2020.

5. Xie, Jiacheng, Deshan Tang, Yiyang Shu, and Xun Luo, "Compact UWB BPF with broad stopband based on loaded-stub and C-shape SIDGS resonators," IEEE Microwave and Wireless Components Letters, Vol. 32, No. 5, 383-386, 2021.

6. Kong, Qingyu, Xilong Lu, Liguo Zhou, Rui Zhang, Shigang Zhou, Bin Wei, and Linan Jiang, "Design of superconducting ultra-wideband filter with wide stopband based on quintuple-mode resonator," Electronics Letters, Vol. 59, No. 18, e12958, 2023.

7. Riaz, Muhammad, Bal S. Virdee, Panchamkumar Shukla, and Muhittin Onadim, "Quasi-elliptic ultra-wideband bandpass filter with super-wide stopband," AEU --- International Journal of Electronics and Communications, Vol. 105, 171-176, 2019.

8. Hammed, Raaed T. and D. Mirshekar-Syahkal, "A compact high selectivity seventh-order UWB bandpass filter with ultra-stopband attenuation," 2012 IEEE Radio and Wireless Symposium, 135-138, Santa Clara, CA, USA, Jan. 2012.

9. Danaeian, Mostafa, Esmail Zarezadeh, Mohammad Hossein Gholizadeh, Ali-Reza Moznebi, and Jafar Khalilpour, "A compact and sharp rejection ultra-wideband bandpass filter based on short and open stub-loaded multiple mode resonators," Journal of Electrical Engineering & Technology, Vol. 15, No. 1, 469-476, 2020.

10. Wei, Guang Yong, Yun Xiu Wang, Jie Liu, Yang Gao, and Xiao Tao Yao, "A novel highly selective UWB bandpass filter using quad-mode stub-loaded resonator," Progress In Electromagnetics Research Letters, Vol. 109, 57-63, 2023.
doi:10.2528/PIERL23010502

11. Janapala, Doondi Kumar and M. Nesasudha, "A compact ultra wide band bandpass filter with dual band notch designed based on composite right/left‐handed transmission line unit cell," International Journal of RF and Microwave Computer‐Aided Engineering, Vol. 28, No. 9, e21569, 2018.

12. Hammed, Raaed T., "Miniaturized high-order ultra-wideband bandpass filters with multiple band rejection notches," Electromagnetics, Vol. 35, No. 8, 538-549, 2015.

13. Ghazali, Abu Nasar, Mohd Sazid, and Srikanta Pal, "A miniaturized low-cost microstrip-to-coplanar waveguide transition-based ultra-wideband bandpass filter with multiple transmission zeros," Microwave and Optical Technology Letters, Vol. 62, No. 12, 3662-3667, 2020.

14. Wei, Guang Yong, Yun Xiu Wang, Jie Liu, Yang Gao, and Xiao Tao Yao, "Highly selective UWB BPF with dual notched bands using split ring resonator," Progress In Electromagnetics Research C, Vol. 136, 51-60, 2023.

15. Gao, Mingming, Ya He, Jingchang Nan, Zhenzhi Yang, and Congying Wang, "A miniaturized ultra-wideband filter with high rejection and selectivity based on dual-notch bands," PLoS ONE, Vol. 19, No. 8, e0306730, 2024.

16. Sazid, Mohd and N. S. Raghava, "Planar UWB-bandpass filter with multiple passband transmission zeros," AEU --- International Journal of Electronics and Communications, Vol. 134, 153711, 2021.

17. Jia-Sheng, H. and M. J. Lancaster, Microstrip Filters for RF/Microwave Applications, 235-272, John Wiley & Sond. Inc., New York, 2001.

18. Hammed, Raaed T. and Bashar H. Hameed, "Compact multiple bandstop filter using integrated circuit of defected microstrip structure (DMS) and dual-mode resonator," AEU --- International Journal of Electronics and Communications, Vol. 107, 209-214, 2019.

Dr. Raaed Thaaban Hammed

Dr. Hassan Saad Abdullah
