Abstract

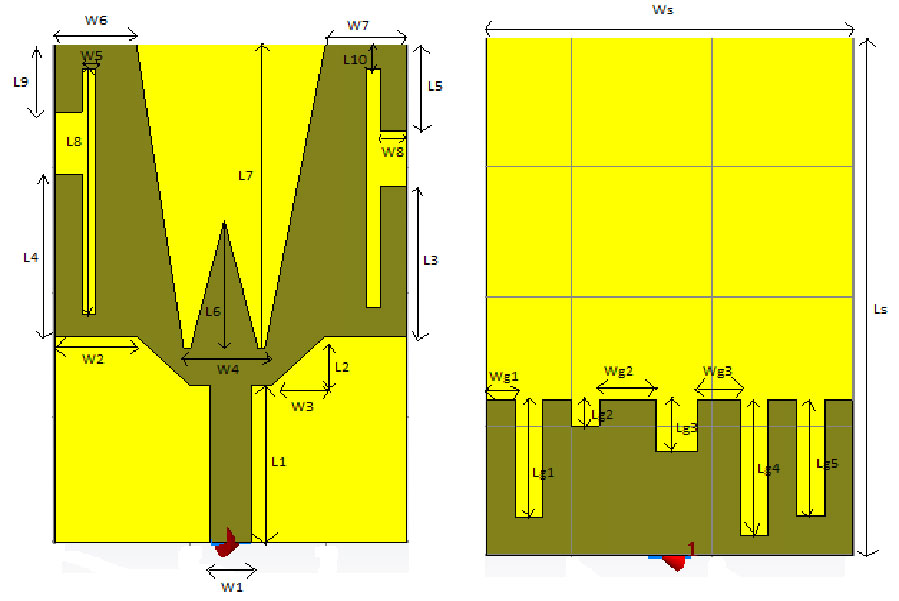

The proposed planar antenna features F and U shaped strips on the patch, along with U shaped slits on the ground plane, catering to WLAN/Bluetooth/WiMAX/HYPERLAN applications. Initially designed for a resonance frequency of 2.4GHz using standard formulae, the rectangular patch antenna boasts dimensions of 38.60 x 46.70 mm², totaling 1803 mm². However, employing the covering electrical length technique, the proposed antenna effectively reduces size for multiband applications. The lengths of the strips determine the resonance frequencies, while the U shaped slits facilitate adjustment of resonance frequencies as required. Following parametric optimization, the rectangular patch antenna becomes suitable for multiband operation, shrinking in size by up to 71.47% compared to its original form. The proposed antenna achieves resonance at 2.45 GHz, 3.55 GHz, and 5.37 GHz, effectively covering WLAN, Bluetooth, Zigbee, WiMAX, and HYPERLAN frequencies. Despite size reduction, the antenna maintains acceptable gain, ensuring its viability for multiband operations. The compact dimensions of the proposed planar antenna measure 39.5 x 13 mm², making it ideal for integration into small portable devices such as mobile handsets, laptop computers, and USB dongles. Following fabrication, various parameters of the antenna are measured using a Vector Network Analyzer (VNA), including reflection coefficient, Voltage Standing Wave Ratio (VSWR), and impedance.

1. Wu, Lierong, Jingjian Huang, and Naichang Yuan, "Compact multiband monopole antenna for GPS/WLAN/WiMAX application," 2016 IEEE International Conference on Microwave and Millimeter Wave Technology (ICMMT), Vol. 2, 618-620, Beijing, China, 2016.

2. Gautam, Anil Kumar, Lalit Kumar, Binod Kumar Kanaujia, and Karumudi Rambabu, "Design of compact F-shaped slot triple-band antenna for WLAN/WiMAX applications," IEEE Transactions on Antennas and Propagation, Vol. 64, No. 3, 1101-1105, 2015.

3. Yousuf, Shahnawaz and Boutheina Tlili, "Multiband planar branched monopole antenna for GSM/GPS/WLAN/WiMAX applications," Proceedings of the 2012 IEEE International Symposium on Antennas and Propagation, 1-2, Chicago, IL, USA, 2012.

4. Zhang, Qi-Tao, Y. C. Jiao, Y. Ding, and B. Li, "Design of a planar monopole multiband antenna with U-and L-shaped slots," 2011 IEEE International Conference on Microwave Technology & Computational Electromagnetics, 331-333, Beijing, China, 2011.

5. Sze, Jia-Yi and Kin-Lu Wong, "Slotted rectangular microstrip antenna for bandwidth enhancement," IEEE Transactions on Antennas and Propagation, Vol. 48, No. 8, 1149-1152, Aug. 2000.

6. Yang, Zi-Xian, Hong-Chun Yang, Jing-Song Hong, and Yang Li, "Bandwidth enhancement of a polarization-reconfigurable patch antenna with stair-slots on the ground," IEEE Antennas and Wireless Propagation Letters, Vol. 13, 579-582, 2014.

7. Ahsan, M. R., M. T. Islam, M. Habib Ullah, and N. Misran, "Bandwidth enhancement of a dual band planar monopole antenna using meandered microstrip feeding," The Scientific World Journal, Vol. 2014, No. 1, 856504, 2014.

8. Abdelaziz, A. A., "Bandwidth enhancement of microstrip antenna," Department of Electronics and Communications, Faculty of Engineering, Misr University for Science and Technology, Giza, Egypt, Oct. 2012.

9. Singh, Amit Kumar, Mahesh Pandurang Abegaonkar, and Shiban Kishen Koul, "Miniaturized multiband microstrip patch antenna using metamaterial loading for wireless application," Progress In Electromagnetics Research C, Vol. 83, 71-82, 2018.

10. Melkeri, Vidyadhar S. and P. V. Hunagund, "Study and analysis of SQMSA with square shaped Defected Ground Structure: Performance enhancemment and virtual size reduction," 2017 IEEE International Conference on Antenna Innovations & Modern Technologies for Ground, Aircraft and Satellite Applications (iAIM), 1-5, Bangalore, India, 2017.

11. Ripin, Nabilah, Nurul Fadzlin Ghazali, Ahmad Asari Sulaiman, N. E. A. Rashid, and M. F. Hussain, "Size miniaturization and bandwidth enhancement in microstrip antenna on a couple circular rings DGS," International Journal of Latest Research in Science and Technology ISSN (Online), Vol. 4, 2278-5299, Jul.-Aug. 2015.

12. Brocker, Donovan E., Douglas H. Werner, and Pingjuan L. Werner, "Dual-band shorted patch antenna with significant size reduction using a meander slot," 2014 IEEE Antennas and Propagation Society International Symposium (APSURSI), 289-290, Memphis, TN, USA, 2014.

13. Munir, Achmad, Argya Harish, and Chairunnisa, "Size reduction of UHF planar inverted-F antenna with patch geometry modification," 2014 International Symposium on Antennas and Propagation Conference Proceedings, 537-538, Kaohsiung, Taiwan, Dec. 2014.

14. Kushwah, Vivek Singh and Geetam Singh Tomar, "Size reduction of microstrip patch antenna using defected microstrip structures," 2011 International Conference on Communication Systems and Network Technologies, 203-207, Katra, India, 2011.

15. Mokal, Ms. Varsharani, Prof S. R. Gagare, and Dr. R. P. Labade, "Analysis of micro strip patch antenna using coaxial feed and micro strip line feed for wireless application," IOSR Journal of Electronics and Communication Engineering, Vol. 12, No. 03, 36-41, May-Jun. 2017.
doi:10.9790/2834-1203033641

16. Ambh, Ankita and P. K. Singhal, "Size reduction of rectangular microstrip patch antenna for GSM application," International Research Journal of Engineering and Technology (IRJET), Vol. 3, 255-258, 2016.

17. Lu, Jui-Han, Bo-Ru Zeng, and Ying-Hwei Li, "Planar multi-band monopole antenna for WLAN/WiMAX applications," 2014 International Symposium on Antennas and Propagation Conference Proceedings, 475-476, Kaohsiung, Taiwan, Jan. 2015.

18. Sayankar, Bharati B., P. H. Rangaree, and S. D. Giripunje, "Filtering of images by kalman filter using VHDL," 2010 3rd International Conference on Emerging Trends in Engineering and Technology, 741-744, Goa, India, 2010.

19. Baisware, Akshita, Bharati Sayankar, and Saurabh Hood, "Review on recent advances in human action recognition in video data," 2019 9th International Conference on Emerging Trends in Engineering and Technology --- Signal and Information Processing (ICETET-SIP-19), 1-5, Nagpur, India, 2019.

20. Lin, Chang-Keng, Ding-Bing Lin, Han-Chang Lin, and Chang-Ching Lin, "Design of a compact multiband monopole antenna with MIMO mutual coupling reduction," Sensors, Vol. 24, No. 17, 5495, 2024.
doi:10.3390/s24175495

21. Rajmohan, Indu Jiji and Mousa I. Hussein, "A compact multiband planar antenna using modified L-shape resonator slots," Heliyon, Vol. 6, No. 10, e05288, 2020.
doi:10.1016/j.heliyon.2020.e05288

22. Tajane, Pravin and Prasanna Zade, "Design and implementation of multiband planar antenna with DGS for wireless applications," Lecture Notes in Electrical Engineering, Vol. 546, 503-512, 2020.
doi:10.1007/978-981-13-6159-3_53

23. Tajane, Pravin and Prasanna Zade, "Design of multiband planar antenna by using mirror image of F shaped with inverted U shaped and modified ground plane," 2019 IEEE International Conference on Electrical, Computer and Communication Technologies (ICECCT), 1-5, Coimbatore, India, 2019.
