Robust Mode Matching of Waveguide Discontinuities by Minimizing Mean-Squared Error

James R. Nagel,

Dr. James R. Nagel

L3Harris

United States

Homepage

Karl Warnick

Dr. Karl Warnick

Department of Electrical and Computer Engineering

Brigham Young University

USA

Homepage

Progress In Electromagnetics Research C, Vol. 154, 175-182, 2025

doi:10.2528/PIERC25012101

Abstract

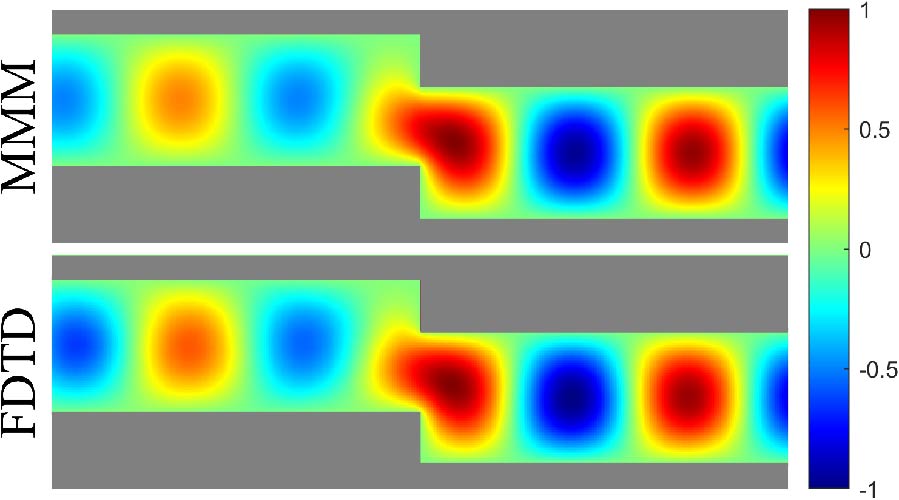

The Mode-Matching Method (MMM) is a numerical technique that can be used to calculate electromagnetic wave propagation through a stepped waveguide junction. We present a generalized approach to mode-matching that works by minimizing the mean-squared error (MSE) of electromagnetic boundary conditions. The process begins by expressing each component of the electromagnetic field profile as a finite summation of modes within each waveguide region. Given some arbitrary pair of mode profiles, we next calculate the squared-error of each boundary condition along the entire span of the junction. The squared error is then averaged across the junction, resulting in a single matrix-vector equation for MSE. That equation is finally differentiated with respect to the mode amplitudes, and the result is then set to zero. The solution is thus a field profile in each waveguide region that minimizes the MSE of electromagnetic boundary conditions.

Download Full Article (52) View Full Article volume

Citation

Copy Export

James R. Nagel, and Karl Warnick, "Robust Mode Matching of Waveguide Discontinuities by Minimizing Mean-Squared Error," Progress In Electromagnetics Research C, Vol. 154, 175-182, 2025.
doi:10.2528/PIERC25012101

References

1. Taflove, A. and S. C. Hagness, Computational Electrodynamics: The Finite-Difference Time-Domain Method, 3rd Ed., Artech House, 2005.

2. Jin, J.-M., The Finite Element Method in Electromagnetics, 3rd Ed., Wiley-IEEE Press, 2014.

3. Guglielmi, M., Giuseppe Conciauro, and R. Sorrentino, Advanced Modal Analysis, 1st Ed., Wiley, 2000.

4. Wexler, A., "Solution of waveguide discontinuities by modal analysis," IEEE Transactions on Microwave Theory and Techniques, Vol. 15, No. 9, 508-517, 1967.

5. Read, W. W., "An analytic series method for laplacian problems with mixed boundary conditions," Journal of Computational and Applied Mathematics, Vol. 209, No. 1, 22-32, 2007.

6. Nagel, James R., "An analytic model for stripline/microstrip potential using infinite series with mixed boundary conditions," Progress In Electromagnetics Research M, Vol. 107, 231-242, 2022.
doi:10.2528/PIERM21081604

7. Balanis, C. A., Advanced Engineering Electromagnetics, 2nd Ed., Wiley, Hoboken, NJ, 2012.

8. Jackson, J. D., Classical Electrodynamics, 3rd Ed., Wiley, Hoboken, NJ, 1999.

9. Pozar, D. M., Microwave Engineering, 4th Ed., Wiley, 2012.

10. Rothwell, Edward J., Jonathan L. Frasch, Sean M. Ellison, Premjeet Chahal, and Raoul O. Ouedraogo, "Analysis of the Nicolson-Ross-Weir method for characterizing the electromagnetic properties of engineered materials," Progress In Electromagnetics Research, Vol. 157, 31-47, 2016.

11. Rohde & Schwarz, "Measurement of Dielectric Material Properties - RAC-0607-0019," Application Note, July 2012.

12. Jiang, Shaohua, Li Jin, Haoqing Hou, and Lin Zhang, "Polymer-based nanocomposites with high dielectric permittivity," Polymer-Based Multifunctional Nanocomposites and Their Applications, J. Z. G. Kenan Song, Chuntai Liu, ed., Ch. 8, 201-243, Elsevier, 2019.
