Abstract

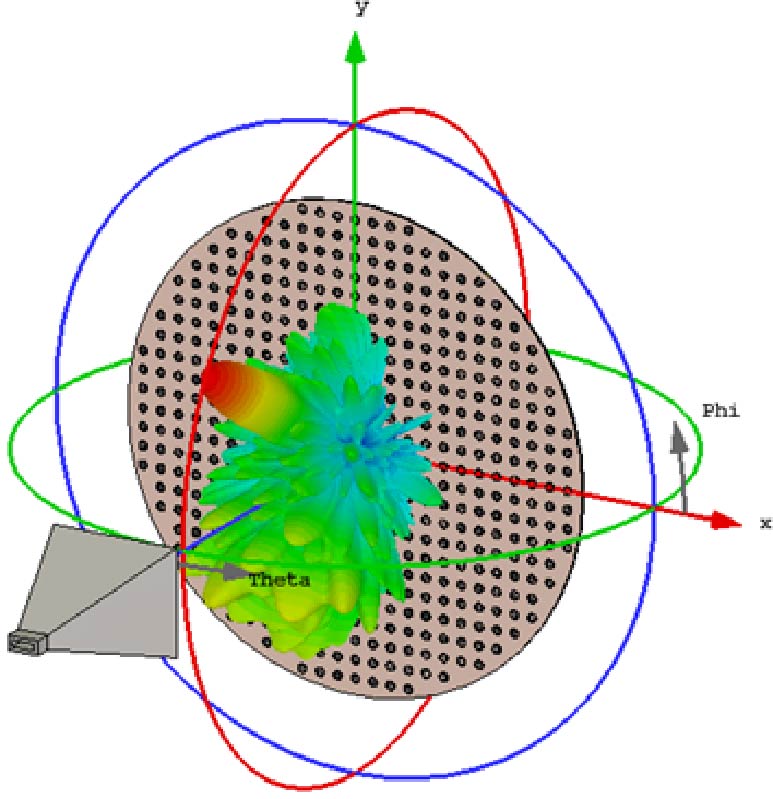

In Terahertz (THz) frequencies, using traditional phase delay components is extremely difficult and graphene has the potential to be used in THz. Graphene is typically used at less than λ/16 dimensions. However, it has the potential to change the properties of a unit cell in reflectarray and act as an electronic phase-shifting element at λ/2 dimensions. Therefore, this paper proposes the design and application of graphene in unit cells to develop reflectarray beam steering. A metal-graphene hybrid structure is proposed in this work for designing the reconfigurable reflectarray antenna (RRA). The unit cell operating at 1.025 THz frequency, consists of a thin graphene sheet as a phase-shifting element inside a golden ring, where graphene is used as the phase delay component. The variation in the chemical potential of graphene leads to changes in the reflection coefficient phase for each unit cell. A circular aperture array comprising a maximum of 489 elements shows a total of 80° beam-steering with side-lobe levels of less than -10 dB and a maximum gain of over 20 dBi. The -1 dB bandwidth of 12% was obtained at the centre frequency of 1025 GHz between 950 GHz and 1075 GHz. The aperture efficiency of the designed RRA is found to be 11%. This type of antenna could be an advent for the development of terahertz Reflecting Intelligent Surface (RIS).

1. Yang, Jun, Pengjun Wang, Shuangyuan Sun, Ying Li, Zhiping Yin, and Guangsheng Deng, "A novel electronically controlled two-dimensional terahertz beam-scanning reflectarray antenna based on liquid crystals," Frontiers in Physics, Vol. 8, 576045, Oct. 2020. Google Scholar

2. You, Xiaolong, Rajour T. Ako, Wendy S. L. Lee, Mei Xian Low, Madhu Bhaskaran, Sharath Sriram, Christophe Fumeaux, and Withawat Withayachumnankul, "Terahertz reflectarray with enhanced bandwidth," Advanced Optical Materials, Vol. 7, No. 20, 1900791, 2019. Google Scholar

3. Niu, Tiaoming, Withawat Withayachumnankul, Benjamin S.-Y. Ung, Hakan Menekse, Madhu Bhaskaran, Sharath Sriram, and Christophe Fumeaux, "Experimental demonstration of reflectarray antennas at terahertz frequencies," Optics Express, Vol. 21, No. 3, 2875-2889, Feb. 2013. Google Scholar

4. Imaz-Lueje, Borja, Daniel R. Prado, Manuel Arrebola, and Marcos R. Pino, "Reflectarray antennas: A smart solution for new generation satellite mega-constellations in space communications," Scientific Reports, Vol. 10, No. 1, 21554, 2020. Google Scholar

5. Encinar, Jose A., Rafael Florencio, Manuel Arrebola, Miguel Alejandro Salas Natera, Mariano Barba, Juan E. Page, Rafael R. Boix, and Giovanni Toso, "Dual-polarization reflectarray in Ku-band based on two layers of dipole arrays for a transmit-receive satellite antenna with South American coverage," International Journal of Microwave and Wireless Technologies, Vol. 10, No. 2, 149-159, Mar. 2018. Google Scholar

6. Abbasi, Muhammad Inam, Muhammad Yusof Ismail, and Muhammad Ramlee Kamarudin, "Development of a pin diode-based beam-switching single-layer reflectarray antenna," International Journal of Antennas and Propagation, Vol. 2020, No. 1, 8891759, Dec. 2020. Google Scholar

7. Luyen, Hung, Zongtang Zhang, John H. Booske, and Nader Behdad, "Wideband, beam-steerable reflectarray antennas exploiting electronically reconfigurable polarization-rotating phase shifters," IEEE Transactions on Antennas and Propagation, Vol. 70, No. 6, 4414-4425, 2022. Google Scholar

8. Nam, In-Joong, Seokmin Lee, and Dongho Kim, "Miniaturized beam reconfigurable reflectarray antenna with wide 3-D beam coverage," IEEE Transactions on Antennas and Propagation, Vol. 70, No. 4, 2613-2622, Apr. 2022. Google Scholar

9. Perruisseau-Carrier, Julien and Anja K. Skrivervik, "Monolithic MEMS-based reflectarray cell digitally reconfigurable over a 360˚ phase range," IEEE Antennas and Wireless Propagation Letters, Vol. 7, 138-141, 2008. Google Scholar

10. Meng, Xiaomin, Maziar Nekovee, and Dehao Wu, "The design and analysis of electronically reconfigurable liquid crystal-based reflectarray metasurface for 6G beamforming, beamsteering, and beamsplitting," IEEE Access, Vol. 9, 155564-155575, 2021. Google Scholar

11. Yang, Jun, Lu Xu, Guozhen Zhang, Rongxin Mao, Zhiping Yin, Hongbo Lu, Guangsheng Deng, and Ying Li, "Active continuous control of terahertz wave based on a reflectarray element-liquid crystal-grating electrode hybrid structure," Optics Express, Vol. 30, No. 10, 17361-17370, 2022. Google Scholar

12. Carrasco, Eduardo and Julien Perruisseau-Carrier, "Reflectarray antenna at terahertz using graphene," IEEE Antennas and Wireless Propagation Letters, Vol. 12, 253-256, 2013. Google Scholar

13. Capaz, R. B., "Grand challenges in graphene and graphite research," Frontiers in Carbon, Vol. 1, Oct. 2022. Google Scholar

14. Shi, Li Ping, Qing He Zhang, Shi Hui Zhang, Chao Yi, and Guang Xu Liu, "Efficient graphene reconfigurable reflectarray antenna electromagnetic response prediction using deep learning," IEEE Access, Vol. 9, 22671-22678, 2021. Google Scholar

15. Singh, Arjun, Michael Andrello, Erik Einarsson, Ngwe Thawdar, and Josep Miquel Jornet, "Design and operation of a smart graphene-metal hybrid reflectarray at THz frequencies," 2020 14th European Conference on Antennas and Propagation (EuCAP), 1-5, Copenhagen, Denmark, Mar. 2020.

16. Chang, Zhuang, Ben You, Lin-Sheng Wu, Min Tang, Yao-Ping Zhang, and Jun-Fa Mao, "A reconfigurable graphene reflectarray for generation of vortex THz waves," IEEE Antennas and Wireless Propagation Letters, Vol. 15, 1537-1540, 2016. Google Scholar

17. Deng, Li, Yuanyuan Zhang, Jianfeng Zhu, and Chen Zhang, "Wide-band circularly polarized reflectarrayusing graphene-based pancharatnam-berry phase unit-cells for terahertz communication," Materials, Vol. 11, No. 6, 956, 2018. Google Scholar

18. Zainud-Deen, S. H., A. M. Mabrouk, and H. A. Malhat, "Frequency tunable graphene metamaterial reflectarray," Wireless Personal Communications, Vol. 103, 1849-1857, 2018. Google Scholar

19. Hassan, Ahmed A., Rania R. Elsharkawy, Demyana A. Saleeb, El-Sayed M. El-Rabie, and Ahmed S. Elkorany, "Single-beam graphene reflectarray for terahertz band communication," Analog Integrated Circuits and Signal Processing, Vol. 112, No. 3, 517-525, 2022. Google Scholar

20. Alaee, Rasoul, Mohamed Farhat, Carsten Rockstuhl, and Falk Lederer, "A perfect absorber made of a graphene micro-ribbon metamaterial," Optics Express, Vol. 20, No. 27, 28017-28024, 2012. Google Scholar

21. Geim, A. K. and K. S. Novoselov, "The rise of graphene," Nature Materials, Vol. 6, No. 3, 183-191, Mar. 2007. Google Scholar

22. Xiao, Binggang, Mingyue Gu, Kang Qin, and Sanshui Xiao, "Absorption enhancement in graphene with an efficient resonator," Optical and Quantum Electronics, Vol. 49, 1-8, 2017. Google Scholar

23. Armaghani, Sahar, Shiva Khani, and Mohammad Danaie, "Design of all-optical graphene switches based on a Mach-Zehnder interferometer employing optical Kerr effect," Superlattices and Microstructures, Vol. 135, 106244, 2019. Google Scholar

24. Zhou, Runhua, Tingting Jiang, Zhen Peng, Zhenyuan Li, Min Zhang, Shixing Wang, Ling Li, Huawei Liang, Shuangchen Ruan, and Hong Su, "Tunable broadband terahertz absorber based on graphene metamaterials and VO2," Optical Materials, Vol. 114, 110915, 2021. Google Scholar

25. Bolotin, K. I., K. J. Sikes, Z. Jiang, M. Klima, G. Fudenberg, J. Hone, P. Kim, and H. L. Stormer, "Ultrahigh electron mobility in suspended graphene," Solid State Communications, Vol. 146, No. 9-10, 351-355, 2008. Google Scholar

26. Jiao, Zhen and Harold J. W. Zandvliet, "Determination of the Fermi velocity of graphene on MoS2 using dual mode scanning tunneling spectroscopy," Applied Physics Letters, Vol. 118, No. 16, 2021. Google Scholar

27. Yadav, Rajesh, Vinay Shankar Pandey, and Preeti Verma, "Nano-scaled graphene plasmonic-based vanadium dioxide Yagi-Uda array MIMO antenna for terahertz applications," Plasmonics, Vol. 19, 3345-3358, 2024. Google Scholar

28. Bansal, R., "Antenna theory; Analysis and design," Proceedings of the IEEE, Vol. 72, No. 7, 989-990, Jul. 1984. Google Scholar

29. Wang, Tongling, Yuping Zhang, Huiyun Zhang, and Maoyong Cao, "Dual-controlled switchable broadband terahertz absorber based on a graphene-vanadium dioxide metamaterial," Optical Materials Express, Vol. 10, No. 2, 369-386, 2020. Google Scholar

30. Ghosh, Sambit Kumar, Santanu Das, and Somak Bhattacharyya, "Graphene-based metasurface for tunable absorption and transmission characteristics in the near mid-infrared region," IEEE Transactions on Antennas and Propagation, Vol. 70, No. 6, 4600-4612, Jun. 2022. Google Scholar

31. Wang, Bingnan, Aydin Sadeqi, Rui Ma, Pu Wang, Wataru Tsujita, Kota Sadamoto, Yoshitsugu Sawa, Hojatollah Rezaei Nejad, Sameer Sonkusale, Cheng Wang, Mina Kim, and Ruonan Han, "Metamaterial absorber for THz polarimetric sensing," Terahertz, RF, Millimeter, and Submillimeter-Wave Technology and Applications XI, Vol. 10531, 170-176, Feb. 2018.

32. Du, Yixuan, Wei Wei, Xiaowei Zhang, and Yunbo Li, "Tuning metamaterials nanostructure of Janus gold nanoparticle film for surface-enhanced Raman scattering," The Journal of Physical Chemistry C, Vol. 122, No. 14, 7997-8002, Apr. 2018. Google Scholar

33. Saeed, Maryam, Yousef Alshammari, Shereen A. Majeed, and Eissa Al-Nasrallah, "Chemical vapour deposition of graphene --- Synthesis, characterisation, and applications: A review," Molecules, Vol. 25, No. 17, 3856, Aug. 2020. Google Scholar

34. Hernández, A. Roberto Ruiz, A. Gutierrez Cruz, and J. Campos-Delgado, "Chemical vapor deposition synthesis of graphene on copper foils," Graphene --- A Wonder Material for Scientists and Engineers, IntechOpen, 2023.

35. Wu, Zehao, Xuewei Zhang, Atanu Das, Jinglan Liu, Zhenxing Zou, Zilong Zhang, Yang Xia, Pei Zhao, and Hongtao Wang, "Step-by-step monitoring of CVD-graphene during wet transfer by Raman spectroscopy," RSC Advances, Vol. 9, No. 71, 41447-41452, 2019. Google Scholar

36. Pei, Xilong, Haifan Yin, Li Tan, Lin Cao, Zhanpeng Li, Kai Wang, Kun Zhang, and Emil Björnson, "RIS-aided wireless communications: Prototyping, adaptive beamforming, and indoor/outdoor field trials," IEEE Transactions on Communications, Vol. 69, No. 12, 8627-8640, 2021. Google Scholar

37. Xi, Bin, Yu Xiao, Kaiqiang Zhu, Youwei Liu, Houjun Sun, and Zengping Chen, "1-bit wideband reconfigurable reflectarray design in Ku-band," IEEE Access, Vol. 10, 4340-4348, 2021. Google Scholar

38. Chang, Zhuang, Ben You, Lin-Sheng Wu, Min Tang, Yao-Ping Zhang, and Jun-Fa Mao, "A reconfigurable graphene reflectarray for generation of vortex THz waves," IEEE Antennas and Wireless Propagation Letters, Vol. 15, 1537-1540, 2016. Google Scholar

39. Huang, J. and J. A. Encinar, "Reflectarray antennas," Encyclopedia of RF and Microwave Engineering, John Wiley & Sons, Inc., Hoboken, NJ, USA, 2007.

40. Lee, Sun-Gyu, Yong-Hyun Nam, Yongjune Kim, Jongyeong Kim, and Jeong-Hae Lee, "A wide-angle and high-efficiency reconfigurable reflectarray antenna based on a miniaturized radiating element," IEEE Access, Vol. 10, 103223-103229, Sep. 2022. Google Scholar

41. Zhang, Weiquan, Yue Li, and Zhijun Zhang, "A reconfigurable reflectarray antenna with an 8 μm-thick layer of liquid crystal," IEEE Transactions on Antennas and Propagation, Vol. 70, No. 4, 2770-2778, Apr. 2022. Google Scholar

42. Wang, Enhao, Guangyao Peng, Kunjing Zhong, Fan Wu, Zhi Hao Jiang, Ronan Sauleau, and Wei Hong, "A 1296-Cell reconfigurable reflect-array antenna with 2-bit phase resolution for Ka-band applications," IEEE Transactions on Antennas and Propagation, Vol. 72, No. 4, 3425-3437, Apr. 2024. Google Scholar

Dr. Suhail Asghar Qureshi

Dr. Muhammad Ramlee Kamarudin

Prof. Yoshihide Yamada

Dr. Muhammad Inam Abbasi

Dr. Muhammad Hashim Dahri

Dr. Zuhairiah Zainal Abidin

Dr. Nordin Ramli
