Abstract

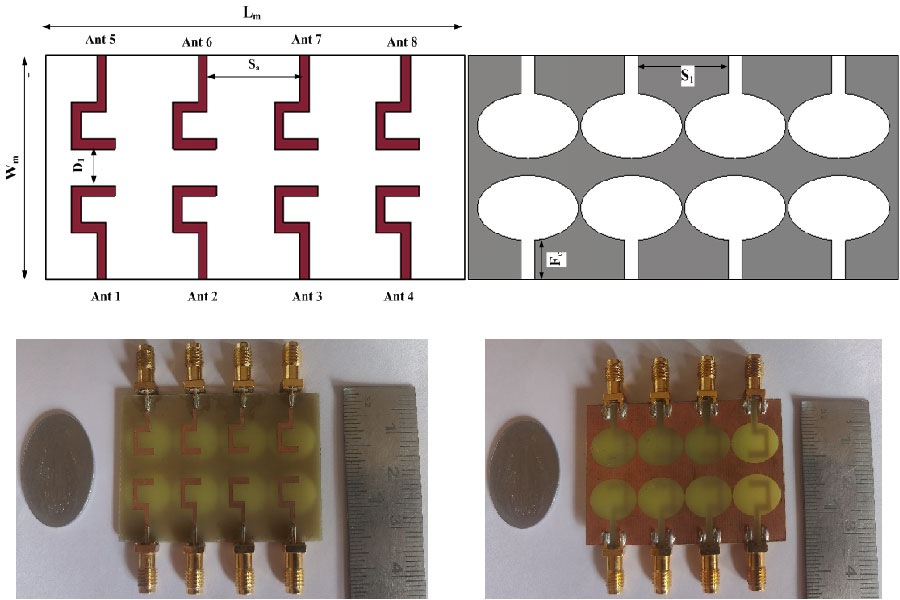

The present study describes the architecture of a defected ground structure (DGS)-based eight-element multiple-input multiple-output (MIMO) antenna. It functions in the millimeter-wave spectrum n258 (24.25–27.5 GHz) and is mainly intendedd for fifth-generation (5G) applications. Each antenna element has an elliptical slot at the ground plane and a hook-shaped antenna integrated into it to reduce the mutual coupling among the adjacent antenna elements. With a wide bandwidth of 5 GHz and an isolation level greater than 37 dB, the proposed antenna effectively covers the frequency range of 22.5 to 27.5 GHz. At the designated resonant frequency, it generates a directed radiation pattern and gain of 6.31 dBi. The proposed antenna's diversity system performance characteristics are assessed using metrics like channel capacity loss (CCL), diversity gain (DG), mean effective gain (MEG), and envelope correlation coefficient (ECC). The 8-port proposed MIMO antenna prototype, exhibiting overall dimensions of 62.7 × 31 × 0.787 mm³, has been constructed utilizing an economical FR4 substrate, demonstrating a substantial association between the computed and measured outcomes, thereby establishing its viability as a potential candidate for 5G communications.
