Abstract

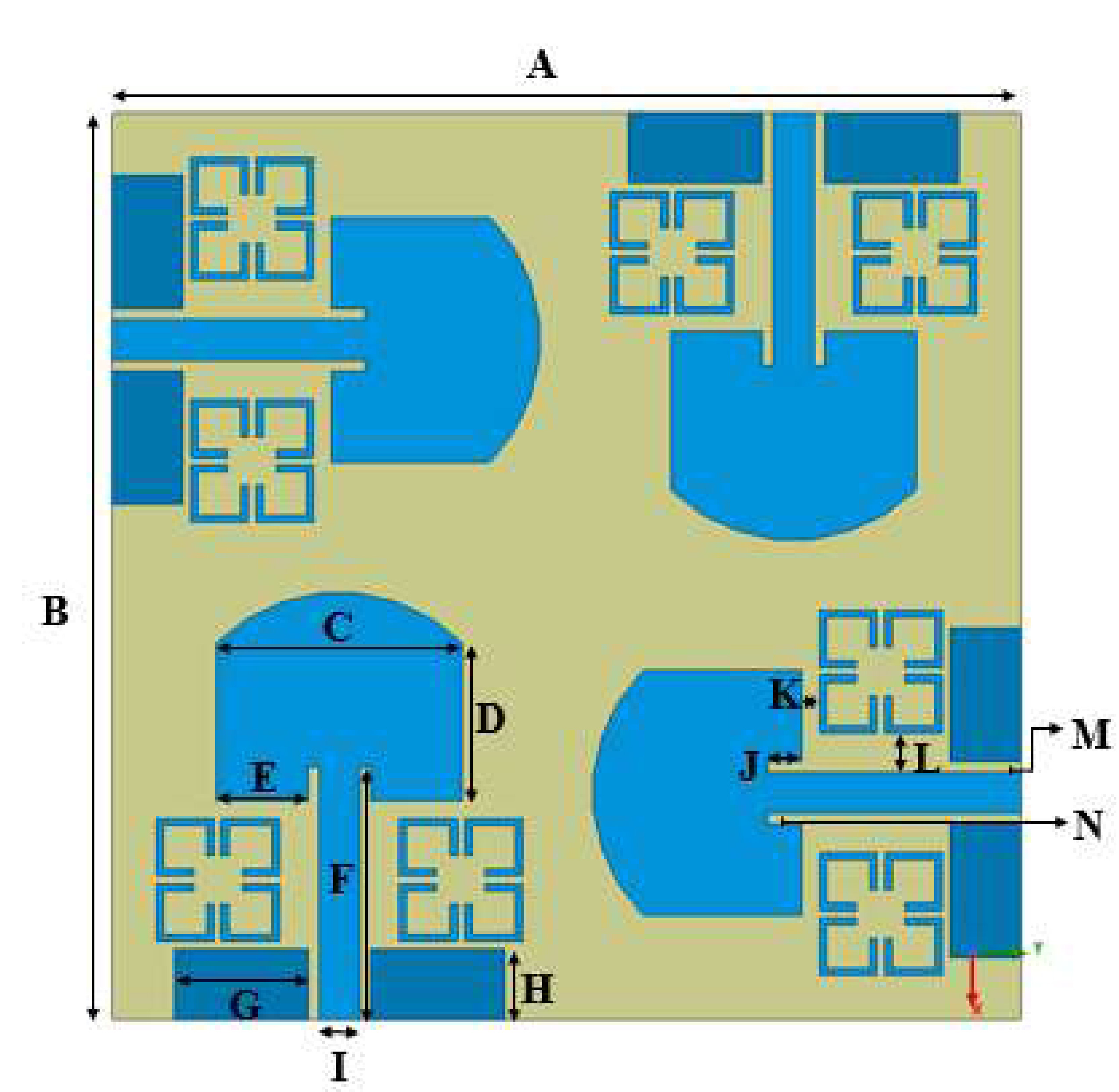

The Substrate Integrated Waveguide (SIW) cavity is one of the cavity-supported slot antennas that use substrate SIW technology and 5G application. The proposed model antenna operates at 26 GHz-46 GHz frequency range. The proposed model resonates at 33.84 GHz and 40.28 GHz frequency range. The use of substrate-integrated waveguide (SIW) cavity offers low cost, easy implementation, high gain, and self-consistent electrical shielding. Existing dipole and monopole antennas have some limitations, such as lack of potential ability, low capability and high mutual coupling. The modified semicircle-shaped rectangular patch is intended on a Rogers RT6002 substrate with the dimension of 26 mm × 26 mm × 0.762 mm and dielectric constant of 2.94. To increase the gain of the antenna, a SIW cavity is placed on top of the patch. A Meta Absorber is added on the left and right sides of the patch to reduce electromagnetic interference, provide excellent absorptivity, and improve antenna performance. A coplanar waveguide (CPW) feed line is added to the bottom of the patch. A coplanar waveguide (CPW) feed line offers high-speed data rates and low latency in a 5G mm wave application. The suggested model obtains enhanced simulated and fabricated performances related to traditional antenna models. The suggested model antenna obtains enhanced simulated and fabricated performance compared to traditional antenna models. The fractional bandwidth of the proposed antenna achieves a fractional bandwidth of 59%.

1. Kulkarni, Jayshri, Arpan Desai, and Chow-Yen Desmond Sim, "Wideband four-port MIMO antenna array with high isolation for future wireless systems," AEU --- International Journal of Electronics and Communications, Vol. 128, 153507, 2021.

2. Khan, Ijaz, Qun Wu, Inam Ullah, Saeed Ur Rahman, Habib Ullah, and Kuang Zhang, "Designed circularly polarized two-port microstrip MIMO antenna for WLAN applications," Applied Sciences, Vol. 12, No. 3, 1068, 2022.

3. Fatah, Sara Yehia Abdel, Ehab K. I. Hamad, Wael Swelam, A. Allam, and Hesham A. Mohamed, "Design of compact 4-port MIMO antenna based on Minkowski fractal shape DGS for 5G applications," Progress In Electromagnetics Research C, Vol. 113, 123-136, 2021.

4. Ibrahim, Ahmed A., Mohamed I. Ahmed, and Mai F. Ahmed, "A systematic investigation of four ports MIMO antenna depending on flexible material for UWB networks," Scientific Reports, Vol. 12, No. 1, 14351, 2022.

5. Mishra, Brijesh, Aditya Kumar Singh, Saiyed Salim Sayeed, and Amrees Pandey, "Inverted L-shaped with rectangular annular ring ground plane 4-port MIMO antenna for satellite and 5G NR applications," Physica Scripta, Vol. 100, No. 2, 025508, 2025.

6. Mistri, Raj Kumar, Santosh Kumar Mahto, Subhajit Paul, Prabina Pattanayak, and Gajendra Kant Mishra, "Compact dual port MIMO antenna for X, Ku, K, Ka, and V band applications," International Journal of Numerical Modelling: Electronic Networks, Devices and Fields, Vol. 38, No. 1, e70018, 2025.

7. Sharma, Suman and Mukesh Kumar, "Design and analysis of a 4-port MIMO microstrip patch antenna for 5G mid band applications," Progress In Electromagnetics Research C, Vol. 129, No. 2022, 231-243, 2023.

8. Desai, Priyadarshini K. and Basavaraj Neelgar, "Design and anlysis of 4-port MIMO antenna for mmWave application," Turkish Journal of Computer and Mathematics Education, Vol. 12, No. 11, 2879-2883, 2021.

9. Khan, Muhammad Abbas, Abdullah G. Al Harbi, Saad Hassan Kiani, Anis Nurashikin Nordin, Mehr E. Munir, Sohail Imran Saeed, Javed Iqbal, Esraa Mousa Ali, Mohammad Alibakhshikenari, and Mariana Dalarsson, "MmWave four-element MIMO antenna for future 5G systems," Applied Sciences, Vol. 12, No. 9, 4280, 2022.

10. Desai, Arpan, Cong Danh Bui, Jay Patel, Trushit Upadhyaya, Gangil Byun, and Truong Khang Nguyen, "Compact wideband four element optically transparent MIMO antenna for mm-wave 5G applications," IEEE Access, Vol. 8, 194206-194217, 2020.

11. Aboualalaa, Mohamed and Islam Mansour, "Dual-band end-fire four-element MIMO antenna array using split-ring structure for mm-Wave 5G applications," IEEE Access, Vol. 11, 57383-57390, 2023.

12. Al Abbas, Emad, Muhammad Ikram, and Amin Abbosh, "Dual functional MIMO antenna system for mm-wave 5G and 2 GHz 4G communications," 2019 IEEE International Symposium on Antennas and Propagation and USNC-URSI Radio Science Meeting, 709-710, Atlanta, GA, USA, 2019.

13. Muttair, Karrar Shakir, A. Z. Ghazi Zahid, Oras A. Al-Ani, Ahmed M. Q. AL-Asadi, and Mahmood F. Mosleh, "A new design of mm-Wave MIMO antenna with high isolation for 5G applications," International Journal of Microwave and Optical Technology, Vol. 16, No. 4, 370-379, 2021.

14. Supreeyatitikul, Nathapat and Phanuphong Boontamchauy, "Wideband 4-port MIMO antenna array for 5G millimeter-wave mobile device terminals," 2020 XXXIIIrd General Assembly and Scientific Symposium of the International Union of Radio Science, 1-3, IEEE, 2020.

15. Ghosh, Sourav, Gaurav Singh Baghel, and M. V. Swati, "Design of a highly-isolated, high-gain, compact 4-port MIMO antenna loaded with CSRR and DGS for millimeter wave 5G communications," AEU --- International Journal of Electronics and Communications, Vol. 169, 154721, 2023.

16. Wong, Kin-Lu, Xian-Qi Ye, and Wei-Yu Li, "Wideband four-port single-patch antenna based on the quasi-TM 1/2,1/2 mode for 5G MIMO access-point application," IEEE Access, Vol. 10, 9232-9240, 2022.

17. Tadesse, A. D., O. P. Acharya, and S. Sahu, "A compact planar four-port MIMO antenna for 28/38 GHz millimeter-wave 5G applications," Advanced Electromagnetics, Vol. 11, No. 3, 16-25, 2022.

18. Tamminaina, Govindarao and Ramesh Manikonda, "Investigation on performance of four port MIMO antenna using electromagnetic band gap for 5G communication," Progress In Electromagnetics Research M, Vol. 119, 51-62, 2023.

19. Cheh Lin, Irene Kong, Mohd Haizal Jamaluddin, and Abinash Gaya, "A triple band substrate integrated waveguide with dielectric resonator antenna for 4G and 5G applications," Micromachines, Vol. 14, No. 7, 1284, 2023.

20. Girjashankar, Pandey Rajat and Trushit Upadhyaya, "Substrate integrated waveguide fed dual band quad-elements rectangular dielectric resonator MIMO antenna for millimeter wave 5G wireless communication systems," AEU --- International Journal of Electronics and Communications, Vol. 137, 153821, 2021.

21. Jha, Kumud Ranjan, Z. A. Pandit Jibran, Chitra Singh, and Satish Kumar Sharma, "4-port MIMO antenna using common radiator on a flexible substrate for sub-1GHz, sub-6GHz 5G NR, and Wi-Fi 6 applications," IEEE Open Journal of Antennas and Propagation, Vol. 2, 689-701, 2021.

22. Shah, Masaud, Hammad M. Cheema, and Qammer H. Abbasi, "Substrate integrated waveguide antenna system for 5G in-band full duplex applications," Electronics, Vol. 10, No. 20, 2456, 2021.

23. Khalid, Mahnoor, Syeda Iffat Naqvi, Niamat Hussain, MuhibUr Rahman, Fawad, Seyed Sajad Mirjavadi, Muhammad Jamil Khan, and Yasar Amin, "4-Port MIMO antenna with defected ground structure for 5G millimeter wave applications," Electronics, Vol. 9, No. 1, 71, 2020.

24. Sharma, Manish, Bhaskara Rao Perli, Lovish Matta, Tathababu Addepalli, Kanhaiya Sharma, and Fadi N. Sibai, "Flexible four-port MIMO antenna for 5G NR-FR2 tri-band mmWave application with SAR analysis," Scientific Reports, Vol. 14, No. 1, 29100, 2024.

25. Rana, Md. Sohel and Md. Mostafizur Rahman Smieee, "Design and analysis of microstrip patch antenna for 5G wireless communication systems," Bulletin of Electrical Engineering and Informatics, Vol. 11, No. 6, 3329-3337, 2022.

26. Haque, Md. Ashraful, Md. Sharif Ahammed, Soeung Socheatra, Redwan A. Ananta, Md. Jamal Hossain Nirob, Narinderjit Singh Sawaran Singh, Noorlindawaty Md. Jizat, Saeed Alsowail, and Samir Salem Al-Bawri, "Machine learning based compact MIMO antenna array for 38 GHz millimeter wave application with robust isolation and high efficiency performance," Results in Engineering, Vol. 25, 104006, 2025.

27. Al-Gburi, A. J. A., Z. Zakaria, I. M. Ibrahim, and E. B. A. Halim, "Microstrip patch antenna arrays design for 5G wireless back haul application at 3.5GHz," Recent Advances in Electrical and Electronic Engineering and Computer Science: Selected ar ticles from ICCEE 2021, Malaysia, 77-88, Springer 2022.

28. Rana, Md. Sohel, Md. Naheen Khurshid, Sanjay Kumar Joy, Md. Soriful Islam Sourav, Md. Jakaria Hassan, and Md. Jubaer Nazmul, "A 3.5 GHz microstrip patch antenna design and analysis for wireless applications," Indonesian Journal of Electrical Engineering and Computer Science (IJEECS), Vol. 32, No. 2, 828-837, 2023.

29. Munir, Mehr E., Moustafa M. Nasralla, and Maged Abdullah Esmail, "Four port tri-circular ring MIMO antenna with wide-band characteristics for future 5G and mmWave applications," Heliyon, Vol. 10, No. 8, e28714 2024.

30. Rahman, Md. Afzalur, Samir Salem Al-Bawri, Wazie M. Abdulkawi, and Mohammad Tariqul Islam, "Miniaturized tri-band integrated microwave and millimeter-wave MIMO antenna loaded with metamaterial for 5G IoT applications," Results in Engineering, Vol. 24, 103130, 2024.
