Abstract

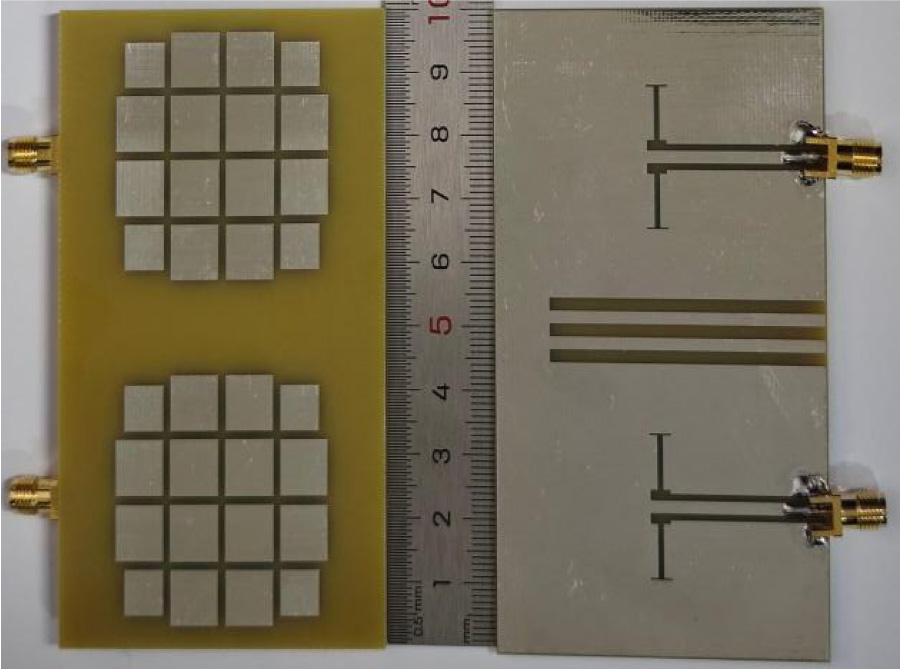

In this paper, a novel single-layer dual-band metasurface MIMO antenna suitable for high-density 5G base stations, satellite terminals and IoT devices is proposed. The antenna utilizes Characteristic Mode Analysis (CMA) to optimize the patch dimensions, achieving independent design for the low and high-frequency bands. It also suppresses surface waves through a ground triple-slot structure. Additionally, the antenna abandons the traditional coplanar waveguide (CPW) and innovatively adopts an H-shaped slot feeding structure. This groundbreaking design successfully eliminates the need for complex matching networks and multi-layer stacking structures. Simulation and measurement results show that the MIMO antenna achieves an isolation below -22 dB and envelope correlation coefficient (ECC) less than 0.0025 in two operating frequency bands (4.13-5.94 GHz with a relative bandwidth of 36%; 7.6-8.4 GHz with a relative bandwidth of 10%), with a peak gain of 10.75 dB. Additionally, the antenna exhibits a diversity gain (DG) greater than 9.9 dB, with aperture efficiencies of 72% (low-frequency) and 36.8% (high-frequency). Compared with existing designs, the MIMO antenna proposed in this paper shows significant improvements in isolation, bandwidth flexibility, and structural simplicity.

1. Jensen, M. A. and J. W. Wallace, "A review of antennas and propagation for MIMO wireless communications," IEEE Transactions on Antennas and Propagation, Vol. 52, No. 11, 2810-2824, 2004. Google Scholar

2. Liu, Shuo, Shi-Shan Qi, Wen Wu, and Da-Gang Fang, "Single-feed dual-band single/dual-beam U-slot antenna for wireless communication application," IEEE Transactions on Antennas and Propagation, Vol. 63, No. 8, 3759-3764, 2015. Google Scholar

3. Soltani, Saber, Parisa Lotfi, and Ross D. Murch, "A dual-band multiport MIMO slot antenna for WLAN applications," IEEE Antennas and Wireless Propagation Letters, Vol. 16, 529-532, 2016. Google Scholar

4. Habashi, Asieh, Javad Nourinia, and Changiz Ghobadi, "Mutual coupling reduction between very closely spaced patch antennas using low-profile folded split-ring resonators (FSRRs)," IEEE Antennas and Wireless Propagation Letters, Vol. 10, 862-865, 2011. Google Scholar

5. Yang, Xu, Ying Liu, Yun-Xue Xu, and Shu-xi Gong, "Isolation enhancement in patch antenna array with fractal UC-EBG structure and cross slot," IEEE Antennas and Wireless Propagation Letters, Vol. 16, 2175-2178, 2017. Google Scholar

6. Hsieh, Chaoping, Tsenchieh Chiu, and Chihhong Lai, "Compact dual-band slot antenna at the corner of the ground plane," IEEE Transactions on Antennas and Propagation, Vol. 57, No. 10, 3423-3426, 2009. Google Scholar

7. Huang, Yongjun, Li Yang, Jian Li, Yao Wang, and Guangjun Wen, "Polarization conversion of metasurface for the application of wide band low-profile circular polarization slot antenna," Applied Physics Letters, Vol. 109, No. 5, 2016. Google Scholar

8. Zheng, Qi, Chenjiang Guo, Jun Ding, and Guy A. E. Vandenbosch, "Dual‐band metasurface‐based CP low‐profile patch antenna with parasitic elements," IET Microwaves, Antennas & Propagation, Vol. 13, No. 13, 2360-2364, 2019. Google Scholar

9. Wang, Xiaofei, Linyan Guo, Wenqiang Zhou, and Qifei Zhang, "A double-layer multimode metasurface antenna using characteristic mode analysis," IEEE Antennas and Wireless Propagation Letters, Vol. 23, No. 10, 3237-3241, 2024. Google Scholar

10. Gao, Jia Fan and Feng Han Lin, "Modeling and analysis of wideband multilayer metasurface antenna array using characteristic-mode analysis," IEEE Transactions on Antennas and Propagation, Vol. 71, No. 3, 2832-2836, 2023. Google Scholar

11. Gao, Xi, Guowei Tian, Zhaoyu Shou, and Simin Li, "A low-profile broadband circularly polarized patch antenna based on characteristic mode analysis," IEEE Antennas and Wireless Propagation Letters, Vol. 20, No. 2, 214-218, 2021. Google Scholar

12. El Yousfi, Ahmed, Abdenasser Lamkaddem, Kerlos Atia Abdalmalak, and Daniel Segovia-Vargas, "A broadband circularly polarized single-layer metasurface antenna using characteristic-mode analysis," IEEE Transactions on Antennas and Propagation, Vol. 71, No. 4, 3114-3122, 2023. Google Scholar

13. Chen, Qiang, Jun Yang, Changhui He, Liang Hong, Di Zhang, Siyu Huang, Fangli Yu, Lu Zhang, Weihua Xiong, and Hou Zhang, "Nonuniform metasurface for wideband circularly polarized antenna using characteristic mode analysis," AEU --- International Journal of Electronics and Communications, Vol. 172, 154978, 2023. Google Scholar

14. Li, Teng and Zhi Ning Chen, "A dual-band metasurface antenna using characteristic mode analysis," IEEE Transactions on Antennas and Propagation, Vol. 66, No. 10, 5620-5624, 2018. Google Scholar

15. Lin, Feng Han and Zhi Ning Chen, "Resonant metasurface antennas with resonant apertures: Characteristic mode analysis and dual-polarized broadband low-profile design," IEEE Transactions on Antennas and Propagation, Vol. 69, No. 6, 3512-3516, 2021. Google Scholar

16. Chen, You-Jhu, Te-Wei Liu, and Wen-Hua Tu, "CPW-fed penta-band slot dipole antenna based on comb-like metal sheets," IEEE Antennas and Wireless Propagation Letters, Vol. 16, 202-205, 2016. Google Scholar

17. Ghosh, Jeet, Debasis Mitra, and Shouvick Das, "Mutual coupling reduction of slot antenna array by controlling surface wave propagation," IEEE Transactions on Antennas and Propagation, Vol. 67, No. 2, 1352-1357, 2019. Google Scholar

18. Garg, Priyanka and Priyanka Jain, "Isolation improvement of MIMO antenna using a novel flower shaped metamaterial absorber at 5.5 GHz WiMAX band," IEEE Transactions on Circuits and Systems II: Express Briefs, Vol. 67, No. 4, 675-679, 2020. Google Scholar

19. Adam, Ismahayati, Mohd Najib Mohd Yasin, Nurulazlina Ramli, Muzammil Jusoh, Hasliza A. Rahim, Tarik Bin Abdul Latef, Tengku Faiz Tengku Mohmed Noor Izam, and Thennarasan Sabapathy, "Mutual coupling reduction of a wideband circularly polarized microstrip MIMO antenna," IEEE Access, Vol. 7, 97838-97845, 2019. Google Scholar

20. Li, Min, Rong Wang, Jamal Muhammad Yasir, and Lijun Jiang, "A miniaturized dual-band dual-polarized band-notched slot antenna array with high isolation for base station applications," IEEE Transactions on Antennas and Propagation, Vol. 68, No. 2, 795-804, 2020. Google Scholar

21. Chen, Shih-Yuan, You-Chieh Chen, and Powen Hsu, "CPW-fed aperture-coupled slot dipole antenna for tri-band operation," IEEE Antennas and Wireless Propagation Letters, Vol. 7, 535-537, 2008. Google Scholar

22. Liu, Wei E. I., Zhi Ning Chen, and Xianming Qing, "Miniature wideband non-uniform metasurface antenna using equivalent circuit model," IEEE Transactions on Antennas and Propagation, Vol. 68, No. 7, 5652-5657, 2020. Google Scholar

23. Ni, Chun, Liang Zhang, and Zhongxiang Zhang, "A low profile broadband circularly polarized metasurface antenna based on tri-modal," IEEE Antennas and Wireless Propagation Letters, Vol. 23, No. 10, 3267-3271, 2024. Google Scholar

24. Lin, Feng Han and Zhi Ning Chen, "Low-profile wideband metasurface antennas using characteristic mode analysis," IEEE Transactions on Antennas and Propagation, Vol. 65, No. 4, 1706-1713, 2017. Google Scholar

25. Zhao, Chen and Chao-Fu Wang, "Characteristic mode design of wide band circularly polarized patch antenna consisting of H-shaped unit cells," IEEE Access, Vol. 6, 25292-25299, 2018. Google Scholar

26. Peng, Hong-Li, Rui Tao, Wen-Yan Yin, and Jun-Fa Mao, "A novel compact dual-band antenna array with high isolations realized using the neutralization technique," IEEE Transactions on Antennas and Propagation, Vol. 61, No. 4, 1956-1962, 2013. Google Scholar

27. Janaswamy, R., "Effect of element mutual coupling on the capacity of fixed length linear arrays," IEEE Antennas and Wireless Propagation Letters, Vol. 1, 157-160, 2002. Google Scholar

28. Wang, Zhonggen, Shunqi Liu, Wenyan Nie, Ming Yang, and Chenlu Li, "Broadband eight-element MIMO antenna with high isolation for 5G smartphone applications," Progress In Electromagnetics Research C, Vol. 152, 209-219, 2025. Google Scholar

29. Saxena, Gaurav, Sanjay Kumar, Sanjay Chintakindi, Abdulsalam Al-Tamim, Mustufa Haider Abidi, Wigdan Aref Mohammed Saif, Sahil Kansal, Rishabh Jain, Sajjan Singh, Anand Kumar Dohare, et al. "Metasurface instrumented high gain and low RCS X-band circularly polarized MIMO antenna for IoT over satellite application," IEEE Transactions on Instrumentation and Measurement, Vol. 72, 1-10, 2023. Google Scholar

30. Zheng, Qi, Judao Wang, Peyman PourMohammadi, and Xiaoyan Pang, "Dual-band metasurface-based closely packed antennas by controlling surface wave propagation," IEEE Antennas and Wireless Propagation Letters, Vol. 23, No. 5, 1633-1637, 2024. Google Scholar

31. Elahi, Manzoor, Slawomir Koziel, and Leifur Leifsson, "A non-PCM-based 2 x 2 MIMO antenna array with low radar cross-section using characteristic mode analysis," IEEE Access, Vol. 13, 34296-34306, 2025. Google Scholar

32. Luo, Shengyuan, Yiming Zhang, Gert Frølund Pedersen, and Shuai Zhang, "Mutual decoupling for massive MIMO antenna arrays by using triple-layer meta-surface," IEEE Open Journal of Antennas and Propagation, Vol. 3, 1079-1089, 2022. Google Scholar

33. Gangwar, Deepak, Ankit Sharma, Binod Kumar Kanaujia, Satya P. Singh, and Aimé Lay-Ekuakille, "Characterization and performance measurement of low RCS wideband circularly polarized MIMO antenna for microwave sensing applications," IEEE Transactions on Instrumentation and Measurement, Vol. 69, No. 6, 3847-3854, 2020. Google Scholar

34. Pandit, Soumen, Akhilesh Mohan, and Priyadip Ray, "Low-RCS low-profile four-element MIMO antenna using polarization conversion metasurface," IEEE Antennas and Wireless Propagation Letters, Vol. 19, No. 12, 2102-2106, 2020. Google Scholar

35. Liu, Feng, Jiayin Guo, Luyu Zhao, Guan-Long Huang, Yingsong Li, and Yingzeng Yin, "Dual-band metasurface-based decoupling method for two closely packed dual-band antennas," IEEE Transactions on Antennas and Propagation, Vol. 68, No. 1, 552-557, 2020. Google Scholar

Dr. Hanbo Feng

Professor Zhonggen Wang

Professor Wenyan Nie

Dr. Ming Yang
