Abstract

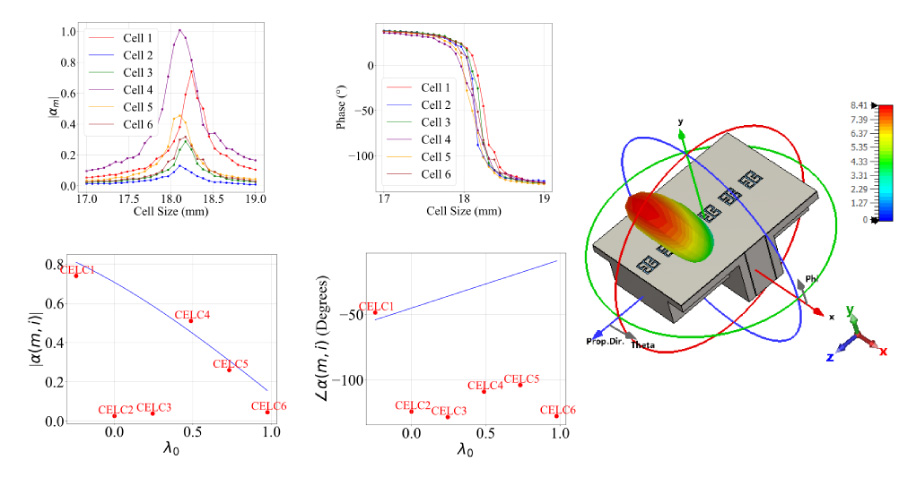

Antennas are one of the most important elements in modern communication systems. Recently, significant progress has been made in developing metasurface antennas as an alternative for beam steering, commonly used in radar and communication applications. Metasurface antennas consist of an array of metamaterial elements, uniformly distributed and with subwavelength dimensions, which can be excited by a progressive wave. This work focuses on the application of the Incremental Difference Method for estimating the magnetic polarizability of metamaterial arrays embedded in a waveguide-fed linear configuration. The method is validated through full-wave simulations and further assessed using a weighting function introduced in prior studies. The design is demonstrated using a WR340 waveguide-based metasurface antenna model.
