Abstract

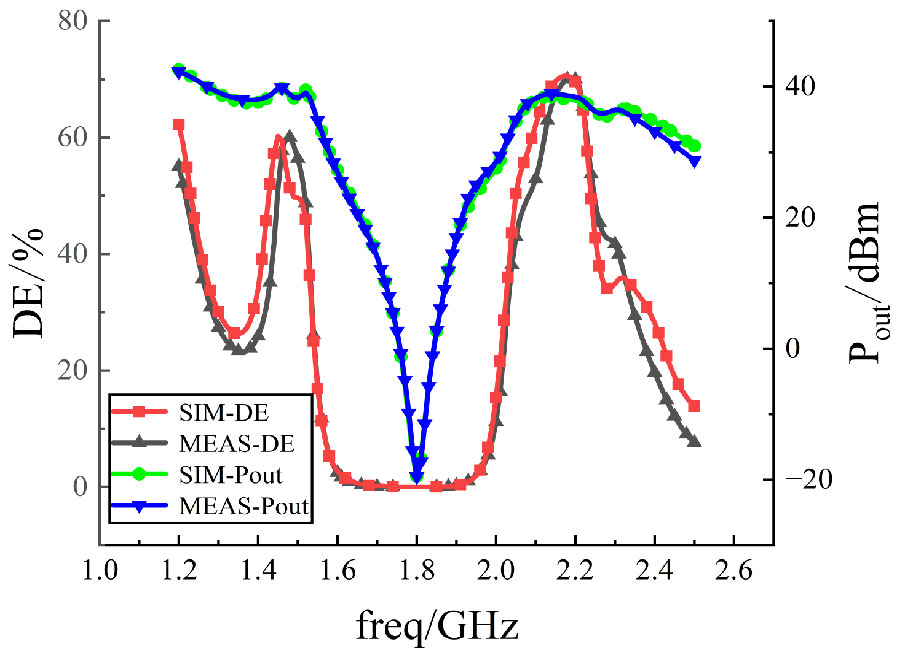

This paper addresses the challenge of inter-band interference suppression in Dual-Band Power Amplifier (DBPA) by proposing a high-isolation dual-band power amplifier design integrated with a Ring-Coupled Bandstop Filter (RCBSF). Through a ring-coupled structure of main transmission lines and coupled branches, combined with the collaborative tuning of λ/4 open stubs and coupling capacitor, the design achieves low-loss transmission in the dual-frequency passbands of 1.5 GHz and 2.1 GHz, forms a suppression band of ≥ 20 dB in the 1.6-2.0 GHz range, and realizes deep suppression of > 40 dB for second/third harmonics. The RCBSF is embedded into the output matching network of the power amplifier to form a dual-band power amplifier. Measured results show that the power-added efficiencies (PAEs) of the amplifier at 1.5 GHz and 2.1 GHz are 58% and 60%, respectively, with output powers of 38 dBm and 37 dBm, and gains of 15 dB and 14 dB, respectively. In non-target frequency bands, the PAE approaches 0%, and a suppression greater than 40 dB is achieved, verifying that the filter's high selectivity and compact layout enhance the performance of the dual-band power amplifier. This design achieves efficient power transmission and strong interference isolation, providing a cost-effective solution for multi-band communication systems.

1. Liu, Wenjin, Hao Wang, and Jingchang Nan, "Design of reconfigurable dual-band radio frequency power amplifier based on PIN switch," Chinese Journal of Radio Science, Vol. 37, No. 1, 168-174, 2022.

2. Nan, Jingchang, Qimeng Wang, Zheng Li, and Junru Pan, "Design of reconfigurable channel-selective power amplifier," Chinese Journal of Radio Science, Vol. 39, No. 3, 561-569, 2024.

3. Maktoomi, Mohammad A., M. Akbarpour, Mohammad S. Hashmi, and Fadhel M. Ghannouchi, "On the dual-frequency impedance/admittance characteristic of multisection commensurate transmission line," IEEE Transactions on Circuits and Systems II: Express Briefs, Vol. 64, No. 6, 665-669, Jun. 2017.

4. Lin, Yo-Shen and Chun-Hao Wei, "A novel miniature dual-band impedance matching network for frequency-dependent complex impedances," IEEE Transactions on Microwave Theory and Techniques, Vol. 68, No. 10, 4314-4326, Oct. 2020.

5. Sridhar, Nagisetty, C. Senthilpari, R. Mardeni, Wong Hin Yong, and T. Nandhakumar, "A low power, highly efficient, linear, enhanced wideband class-J mode power amplifier for 5G applications," Scientific Reports, Vol. 12, No. 1, 8101, 2022.

6. Amin, H. Yadegar, J. Chen, M. Berg, and A. Pärssinen, "Tunable front-end design with a dual-band antenna for small cellular devices," 2019 13th European Conference on Antennas and Propagation (EuCAP), 1-5, Krakow, Poland, 2019.

7. Yazdani, Farzad and Raafat R. Mansour, "Realization of dual-band matching networks using cascaded filters," 2020 50th European Microwave Conference (EuMC), 727-730, Utrecht, Netherlands, 2021.

8. Lee, Jaehun, Ji-Seon Paek, and Songcheol Hong, "Millimeter-wave frequency reconfigurable dual-band CMOS power amplifier for 5G communication radios," IEEE Transactions on Microwave Theory and Techniques, Vol. 70, No. 1, 801-812, Jan. 2022.

9. Liu, Bei, Xing Quan, Chirn Chye Boon, Devrishi Khanna, Pilsoon Choi, and Xiang Yi, "Reconfigurable 2.4-/5-GHz dual-band transmitter front-end supporting 1024-QAM for WLAN 802.11 ax application in 40-nm CMOS," IEEE Transactions on Microwave Theory and Techniques, Vol. 68, No. 9, 4018-4030, Sep. 2020.

10. Wen, H. and W. Feng, "Dual-band high-efficiency power amplifier based on harmonic control network," Modern Applied Physics, Vol. 14, 155-161, 2023.

11. Zhang, Z., Research and design of high-efficiency dual-band power amplifier, Master’s thesis, South China University of Technology, Guangdong, China, 2023.

12. Zhang, Jindong, Cuiping Yu, Hao Li, and Yuanan Liu, "A novel dual-band power amplifier with integrated harmonic control based on dual transmission lines," Microelectronics Journal, Vol. 156, 106552, 2025.

13. Boumalkha, Mohamed, Mohammed Lahsaini, and Moulay El Hassane Archidi, "Design of an efficiency-enhanced filtering power amplifier with a dual-band response and wide stopband," AEU --- International Journal of Electronics and Communications, Vol. 183, 155366, 2024.

14. Wang, Jingsong, Zhijiang Dai, Kang Zhong, Ge Bai, Cheng Bi, Mingyu Li, Weimin Shi, and Jingzhou Pang, "Design of a dual-band doherty power amplifier using single-loop network," IEEE Transactions on Microwave Theory and Techniques, Vol. 72, No. 10, 5818-5829, Oct. 2024.

15. Liu, Wenjin, Haojie Dong, and Jingchang Nan, "Design of class f reconfigurable power amplifiers," Journal of Physics: Conference Series, Vol. 2761, No. 1, 012024, 2024.

16. Xu, Yizhen, Xiao Sun, Xu Zhu, Pei-Ling Chi, and Tao Yang, "A 2-18-GHz frequency-reconfigurable GaN power amplifier with more than 33% average power added efficiency," IEEE Transactions on Microwave Theory and Techniques, Vol. 73, No. 4, 2320-2333, Apr. 2025.

17. Zarghami, Sepehr and Mohsen Hayati, "A new design approach for dual-band power amplifiers based on dual-band HCC and bandpass filter," Scientific Reports, Vol. 14, No. 1, 1323, 2024.

18. Wei, Liu-Yu, Fu-Chang Chen, and Ze-Bin Zhang, "Design of dual-band power amplifier based on microstrip coupled-line bandstop filter," AEU --- International Journal of Electronics and Communications, Vol. 185, 155450, 2024.

19. Zuo, Xiaoying and Lei Qin, "Three-line coupled-line narrowband bandstop filter with wide upper bandpass bandwidth," AEU --- International Journal of Electronics and Communications, Vol. 140, 153936, 2021.

20. Chen, Yifei, Woojin Choi, Jaekyung Shin, Hyeongjin Jeon, Sooncheol Bae, Soohyun Bin, Sunwoo Nam, Young Chan Choi, Hyunuk Kang, Kang-Yoon Lee, Keum Cheol Hwang, and Youngoo Yang, "New compact load network for Doherty power amplifiers based on L-section matching network of the carrier amplifier and post-matching network," IEEE Access, Vol. 11, 66478-66487, 2023.

21. Pozar, David M., Microwave Engineering: Theory and Techniques, 4th Ed., John Wiley & Sons, Hoboken, NJ, USA, 2021.

22. Chen, L.-P., L. Chi, C. Zhang, L.-F. Jiao, and M.-Y. Gui, "Analysis of microstrip line corner discontinuity based on RO4350B," Electronic Quality, Vol. 9, 94-97, Sep. 2023.

23. Liu, Jinting, Chong Liu, Zhuang Shao, and Weimin Shi, "Design of a dual-band power amplifier over an octave bandwidth employing dual-band resonators," International Journal of Numerical Modelling: Electronic Networks, Devices and Fields, Vol. 37, No. 2, e3112, 2024.

24. Yin, Rongji and Wei Wang, "Design of high-efficiency dual band power amplifier based on GaN HEMT," Journal of Physics: Conference Series, Vol. 2592, No. 1, 012049, 2023.

Dr. Jingchang Nan

Dr. Hai Jiang

Dr. Wenjin Liu
