Abstract

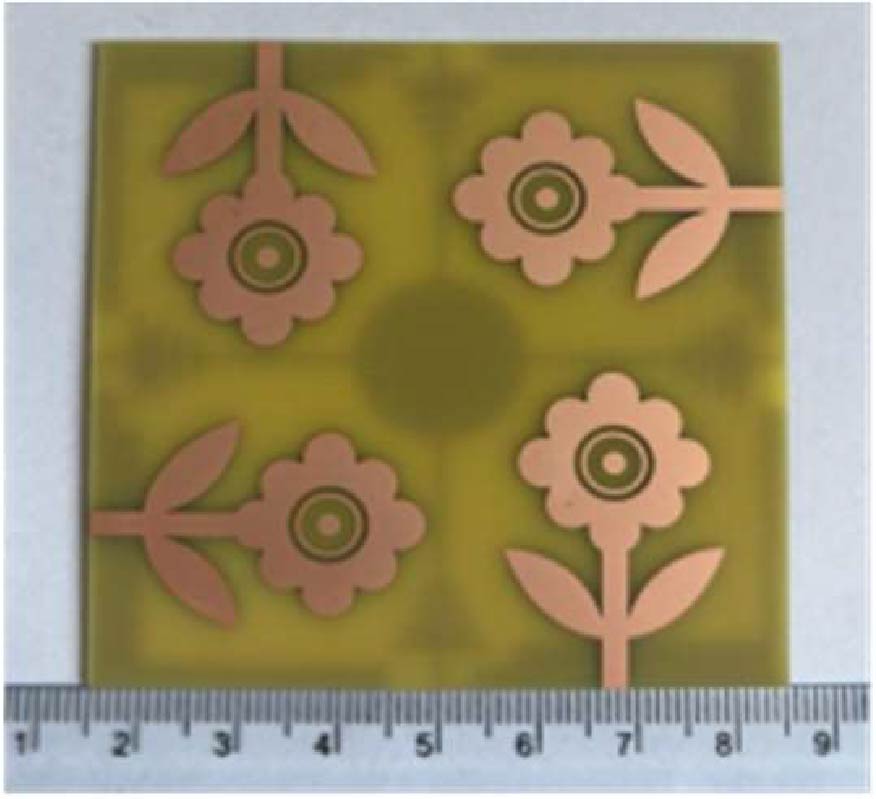

This paper presents a compact four-port ultra-wideband (UWB) multiple-input multiple-output (MIMO) antenna with exceptional isolation characteristics, specifically designed for high-frequency band communications. The antenna features a sunflower-shaped radiating patch and an irregularly stepped rectangular ground structure, which are optimized to achieve broadband impedance matching and low coupling. With dimensions of 1.26λ₀ × 1.26λ₀ × 0.025λ₀, the antenna operates across 5.4-20 GHz, covering C-band (4-8 GHz), X-band (8-12 GHz), and Ku-band (12-18 GHz), while supporting multi-band communication compatibility. Simulation and measurement results show a return loss (|S₁₁|) below -10 dB over the entire frequency range, with a fractional bandwidth of 109.5%. The inter-port isolation (S₁₂) exceeds -20 dB across the band and reaches -30 dB in the high-frequency range (10-20 GHz). The antenna exhibits a radiation efficiency exceeding 80%, a peak gain of 9.3 dBi, an envelope correlation coefficient (ECC) below 0.008, a total active reflection coefficient (TARC) below -30 dB, and a group delay less than 2.3 ns, thereby meeting the stringent requirements for MIMO systems. This design offers a high-performance solution for applications in 5G, satellite, and radar communications, which combines wide bandwidth, high isolation, and low coupling in a compact form factor. The 5.4-20 GHz antenna bandwidth supplements 5G/6G applications which caters to multi-scenarios of Wi-Fi and satellite communications and facilitates signal reception and preprocessing in LEO satellite systems.

1. Yuan, Xiao-Ting, Zhe Chen, Tianqi Gu, and Tao Yuan, "A wideband PIFA-pair-based MIMO antenna for 5G smartphones," IEEE Antennas and Wireless Propagation Letters, Vol. 20, No. 3, 371-375, 2021. Google Scholar

2. Wu, Bian, Xiao-Yuan Sun, Hao-Ran Zu, Hong-Hao Zhang, and Tao Su, "Transparent ultrawideband halved coplanar Vivaldi antenna with metal mesh film," IEEE Antennas and Wireless Propagation Letters, Vol. 21, No. 12, 2532-2536, Dec. 2022. Google Scholar

3. Li, Jian-Feng, Qing-Xin Chu, Zhi-Hui Li, and Xing-Xing Xia, "Compact dual band-notched UWB MIMO antenna with high isolation," IEEE Transactions on Antennas and Propagation, Vol. 61, No. 9, 4759-4766, 2013. Google Scholar

4. Ren, Jian, Wei Hu, Yingzeng Yin, and Rong Fan, "Compact printed MIMO antenna for UWB applications," IEEE Antennas and Wireless Propagation Letters, Vol. 13, 1517-1520, 2014. Google Scholar

5. Gautam, Pankaj Kumar and Dharmendra Kumar Jhariya, "Design of a 4-element UWB-MIMO antenna for X, Ku, and, K band applications," 2024 IEEE Wireless Antenna and Microwave Symposium (WAMS), 1-5, Visakhapatnam, India, 2024.

6. Wong, Kin-Lu, Yu-Hao Hsu, Cheng-Yu Lee, and Wei-Yu Li, "Wideband 4-port patch antenna module based compact 8-port two-module antenna for 6G upper mid-band 8 × 4 device MIMO with enhanced spectral efficiency," IEEE Access, Vol. 12, 88976-88991, 2024. Google Scholar

7. Shabbir, Tayyab, Rashid Saleem, Samir Salem Al-Bawri, Muhammad Farhan Shafique, and Mohammad Tariqul Islam, "Eight-port metamaterial loaded UWB-MIMO antenna system for 3D system-in-package applications," IEEE Access, Vol. 8, 106982-106992, 2020. Google Scholar

8. Nie, Li Ying, Xian Qi Lin, Shang Xiang, Bao Wang, Long Xiao, and Jun Yong Ye, "High-isolation two-port UWB antenna based on shared structure," IEEE Transactions on Antennas and Propagation, Vol. 68, No. 12, 8186-8191, 2020. Google Scholar

9. Jayant, Shailesh and Garima Srivastava, "Close-packed quad-element triple-band-notched UWB MIMO antenna with upgrading capability," IEEE Transactions on Antennas and Propagation, Vol. 71, No. 1, 353-360, 2023. Google Scholar

10. Chen, Jiahao, Mingchuan Wen, Xinyue He, Jingkai Xue, and Xing Chen, "Compact, UWB, dual-polarized antenna based on tightly coupling effect," IEEE Antennas and Wireless Propagation Letters, Vol. 23, No. 10, 3292-3296, 2024. Google Scholar

11. Pathak, Prasad A., Sanjay Laxmikant Nalbalwar, Abhay E. Wagh, and Jaswantsing L. Rajput, "A fractal approach to investigate SAR of HMSA UWB antenna for medical applications," Progress In Electromagnetics Research C, Vol. 154, 67-75, 2025.
doi:10.2528/PIERC25022104 Google Scholar

12. Hasan, Yousif Mohsin, "A compact monopole slotted patch-antenna for UWB applications," Progress In Electromagnetics Research C, Vol. 151, 65-71, 2024. Google Scholar

13. Khedr, Amira A., Basem E. Elnaghi, and Ahmed M. Mohamed, "Design of a compact dual port 2 × 1 ultra-wideband MIMO antenna for radio frequency energy harvesting based on four ``a" shaped slots," Progress In Electromagnetics Research M, Vol. 128, 41-49, 2024.
doi:10.2528/PIERM24051805 Google Scholar

14. Haripriya, Dhuddu, S. Venkatakiran, and A. Gokulachandar, "UWB-MIMO antenna of high isolation two elements with WLAN single band-notched behavior using roger material," Materials Today: Proceedings, Vol. 62, 1717-1721, 2022. Google Scholar

15. Wang, Zhonggen, Guoxiang Song, Wenyan Nie, Ming Yang, Chenlu Li, and Mingqing Wang, "A racket-like UWB MIMO antenna with high isolation," Progress In Electromagnetics Research C, Vol. 144, 159-168, 2024.
doi:10.2528/PIERC24052901 Google Scholar

16. Ren, Wanying, Zhonggen Wang, Ming Yang, Jinzhi Zhou, and Wenyan Nie, "Design of a simple four-port UWB-MIMO antenna based on a fan-shaped isolator," Progress In Electromagnetics Research M, Vol. 126, 117-126, 2024.
doi:10.2528/PIERM24011101 Google Scholar

17. Wu, Biqun and Kwai-Man Luk, "A UWB unidirectional antenna with dual-polarization," IEEE Transactions on Antennas and Propagation, Vol. 59, No. 11, 4033-4040, 2011. Google Scholar

18. Yang, Mengting, Changrong Liu, and Xueguan Liu, "Design of π-shaped decoupling network for dual-polarized Y-probe antenna arrays," IEEE Antennas and Wireless Propagation Letters, Vol. 21, No. 6, 1129-1133, 2022. Google Scholar

19. Wang, Fu-Wei, Ying Liu, Shu-Xi Gong, and Rui-Xiang Liang, "Employing DGS structures in dual-band antennas for MIMO applications with high port isolation," IET International Radar Conference 2013, E0230, Xi'an, China, Apr. 2013.

20. Kumar, Praveen, Sameena Pathan, Shweta Vincent, Om Prakash Kumar, Pradeep Kumar, et al., "A compact quad-port UWB MIMO antenna with improved isolation using a novel mesh-like decoupling structure and unique DGS," IEEE Transactions on Circuits and Systems II: Express Briefs, Vol. 70, No. 3, 949-953, 2023. Google Scholar

21. Fitri, Anisa, Umaisaroh Umaisaroh, and Mudrik Alaydrus, "A novel parasitic EBG structure to enhance mutual coupling for 2.45 GHz MIMO antenna," 2022 International Conference on Radar, Antenna, Microwave, Electronics, and Telecommunications (ICRAMET), 253-257, Bandung, Indonesia, 2022.

22. Sharma, Narinder and Sumeet Singh Bhatia, "Metamaterial inspired fidget spinner-shaped antenna based on parasitic split ring resonator for multi-standard wireless applications," Journal of Electromagnetic Waves and Applications, Vol. 34, No. 10, 1471-1490, 2020. Google Scholar

23. Ghosh, Anindya, Anumoy Ghosh, and Jayendra Kumar, "Circularly polarized wide-band quad-element MIMO antenna with improved axial ratio bandwidth and mutual coupling," IEEE Antennas and Wireless Propagation Letters, Vol. 23, No. 12, 4718-4722, 2024. Google Scholar

24. Lin, Xianjing, Gengtao Huang, and Yao Zhang, "An ultra-wideband MIMO antenna based on dual-mode transmission line feeding for wireless communication," Progress In Electromagnetics Research M, Vol. 122, 73-83, 2023.
doi:10.2528/PIERM23091406 Google Scholar

25. Jhunjhunwala, Vikash Kumar, Pramod Kumar, Arun P. Parameswaran, Pallavi R. Mane, Om Prakash Kumar, Tanweer Ali, Sameena Pathan, Shweta Vincent, and Praveen Kumar, "A four port flexible UWB MIMO antenna with enhanced isolation for wearable applications," Results in Engineering, Vol. 24, 103147, 2024. Google Scholar

26. Yao, Yu, Yu Shao, Jiliang Zhang, and Jie Zhang, "A transparent antenna using metal mesh for UWB MIMO applications," IEEE Transactions on Antennas and Propagation, Vol. 71, No. 5, 3836-3844, 2023. Google Scholar

27. Desai, Arpan, Jayshri Kulkarni, M. M. Kamruzzaman, Štěpán Hubálovský, Heng-Tung Hsu, and Ahmed A. Ibrahim, "Interconnected CPW fed flexible 4-port MIMO antenna for UWB, X, and Ku band applications," IEEE Access, Vol. 10, 57641-57654, 2022. Google Scholar
