Abstract

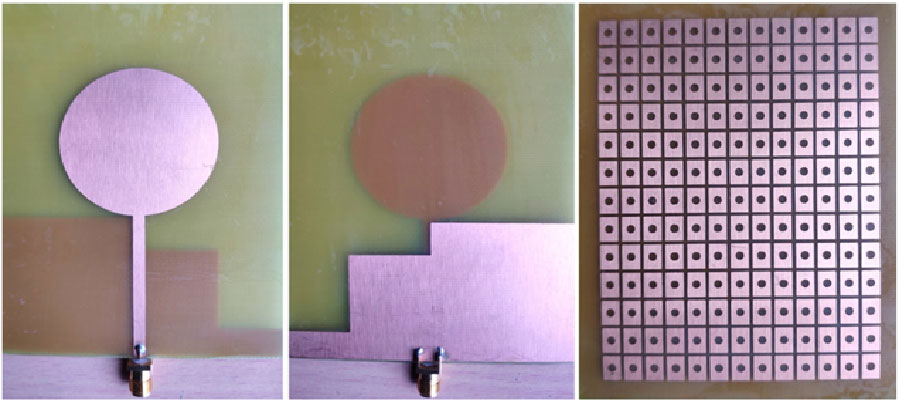

In this investigation, a broad circularly polarized high-gain SADEA-tuned quasi-TM30-mode excited metasurface antenna at sub-6 GHz 5G band is shown. A linearly polarized (LP) monopole antenna in stage-1 with conventional partial ground is proposed. Then, in stage-2, a stair-cased partial ground plane is transformed to witness circular polarization (CP), an expanded part of stage-1. In stage-3 for next-generation wireless applications, the main objective is to improve the CP gain, impedance (10-dB BW), and axial bandwidths (3-dB BW), which will make it a good candidate for RF energy harvesting systems, a potential feature for next-generation wireless application. In this case, the application of a metasurface layer is an important step, significantly optimized by using AI-tuned SADEA method. The SADEA-tuned metasurface layer at 45 mm right above the λ/4 monopole radiator is integrated as a multi-layered structure. Finally, it is fabricated on a low-cost FR-4 substrate with thickness of 1.6 mm and offers a measured 116.3% 10-dB BW, 20.98% 3-dB BW, CP gain peak > 7.5 dBic, and antenna efficiency > 85% in the desired band of operation. With the introduction of SADEA optimization method not only the complexity was reduced while designing the metasurface layer, but simultaneously to the best of author’s knowledge, this is the first time such type of approach is followed towards the design of circularly polarized metasurface antenna for next-generation wireless applications.

1. Alsharif, Mohammed H., Rosdiadee Nordin, Nor Fadzilah Abdullah, and Anabi Hilary Kelechi, "How to make key 5G wireless technologies environmental friendly: A review," Transactions on Emerging Telecommunications Technologies, Vol. 29, No. 1, e3254, 2018.
doi:10.1002/ett.3254 Google Scholar

2. Chen, Zhi Ning, Xianming Qing, Wei Liu, Huiwen Sheng, Teng Li, and Bo Zhang, "Toward metantennas: Metasurface antennas shaping wireless communications," IEEE Communications Magazine, Vol. 62, No. 8, 94-99, 2024.
doi:10.1109/mcom.001.2400047 Google Scholar

3. Javanshir, Amir Mohammad, Tohid Aribi, Tohid Sedghi, and Arash Kalami, "High performance and compact antenna with new scheme for broadband circular polarisation applications," International Journal of Electronics Letters, Vol. 13, No. 1, 35-46, 2025.
doi:10.1080/21681724.2024.2372737 Google Scholar

4. Meher, Priya R. and Sanjeev K. Mishra, "Design and development of mathematical equivalent circuit model of broadband circularly polarized semi-annular ring shaped monopole antenna," Progress In Electromagnetics Research C, Vol. 129, 73-87, 2023.
doi:10.2528/pierc22120909 Google Scholar

5. Elahi, Manzoor, Amir Altaf, Youngoo Yang, Kang-Yoon Lee, and Keum Cheol Hwang, "Circularly polarized dielectric resonator antenna with two annular vias," IEEE Access, Vol. 9, 41123-41128, 2021.
doi:10.1109/access.2021.3064026 Google Scholar

6. Ameen, Mohammad and Raghvendra Chaudhary, "Metamaterial circularly polarized antennas: Integrating an epsilon negative transmission line and single split ring-type resonator," IEEE Antennas and Propagation Magazine, Vol. 63, No. 4, 60-77, 2021.
doi:10.1109/map.2019.2950920 Google Scholar

7. Tran, Huy Hung, Cong Danh Bui, Nghia Nguyen-Trong, and Truong Khang Nguyen, "A wideband non-uniform metasurface-based circularly polarized reconfigurable antenna," IEEE Access, Vol. 9, 42325-42332, 2021.
doi:10.1109/access.2021.3066182 Google Scholar

8. Dong, Jian, Rigeng Wu, Xia Yuan, and Jinjun Mo, "A low-profile broadband circularly polarized metasurface antenna based on characteristic mode analysis," Waves in Random and Complex Media, Vol. 35, No. 2, 2411-2429, 2025.
doi:10.1080/17455030.2022.2044091 Google Scholar

9. Chi, Yuan, "A new wideband CP antenna with a single-layer metasurface," Electromagnetics, Vol. 42, No. 8, 616-623, 2022.
doi:10.1080/02726343.2022.2161708 Google Scholar

10. Chai, Kun, Zhi Li, Yajuan Zhao, Liping Han, Guorui Han, and Yufeng Liu, "A low-profile wideband circularly polarized metasurface antenna based on characteristic mode analysis," International Journal of Microwave and Wireless Technologies, Vol. 16, No. 2, 244-251, 2024.
doi:10.1017/s1759078723000909 Google Scholar

11. Rana, Sourabh and Priyanka Jain, "Utilizing characteristics mode analysis for designing a miniaturised high-gain metasurface antenna with wideband circular polarization and reduced scattering," Journal of Electromagnetic Waves and Applications, Vol. 38, No. 8, 842-859, Apr. 2024.
doi:10.1080/09205071.2024.2340650 Google Scholar

12. Pang, Hui, Jianping Zhao, and Juan Xu, "Miniaturized circularly polarized metasurface antenna based on characteristic mode analysis," Microwave and Optical Technology Letters, Vol. 66, No. 1, e33983, 2024.
doi:10.1002/mop.33983 Google Scholar

13. Liu, Bo, Hadi Aliakbarian, Zhongkun Ma, Guy A. E. Vandenbosch, Georges Gielen, and Peter Excell, "An efficient method for antenna design optimization based on evolutionary computation and machine learning techniques," IEEE Transactions on Antennas and Propagation, Vol. 62, No. 1, 7-18, 2014.
doi:10.1109/tap.2013.2283605 Google Scholar

14. Liu, Bo, Slawomir Koziel, and Nazar Ali, "SADEA-II: A generalized method for efficient global optimization of antenna design," Journal of Computational Design and Engineering, Vol. 4, No. 2, 86-97, 2017.
doi:10.1016/j.jcde.2016.11.002 Google Scholar

15. Liu, Yushi, Bo Liu, Masood Ur-Rehman, Muhammad Ali Imran, Mobayode O. Akinsolu, Peter Excell, and Qiang Hua, "An efficient method for antenna design based on a self-adaptive Bayesian neural network-assisted global optimization technique," IEEE Transactions on Antennas and Propagation, Vol. 70, No. 12, 11375-11388, 2022.
doi:10.1109/tap.2022.3211732 Google Scholar

16. Behera, Bikash, Sanjeev Mishra, Mohammed H. Alsharif, Peerapong Uthansakul, and Monthippa Uthansakul, "A metasurface-inspired printed monopole antenna for 5G and RF energy harvesting application," Engineering Science and Technology, An International Journal, Vol. 51, 101638, 2024.
doi:10.1016/j.jestch.2024.101638 Google Scholar

Dr. Iltapawar Tirupati Laxman

Dr. Harikrishna Paik

Dr. Bikash Ranjan Behera

Professor Mohammed H. Alsharif
