Abstract

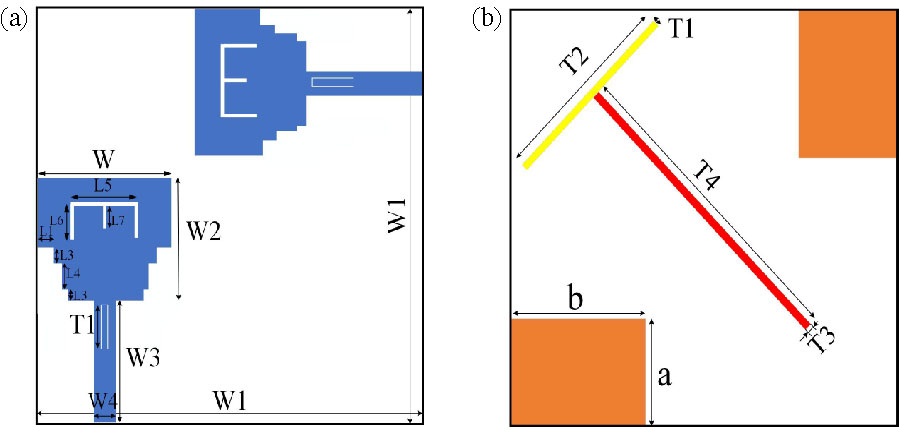

Based on the current trends in wireless communication systems, a novel high-isolation dual-notch ultra-wideband (UWB) multiple-input multiple-output (MIMO) antenna is proposed, measuring 46 mm × 46 mm × 0.8 mm. The antenna is printed on an RO4350 substrate and consists of two identical antennas placed orthogonally. The antenna unit features a third-order stepped rectangular structure and employs microstrip feeding, incorporating inverted U-shaped and M-shaped grooves etched onto the antenna unit to achieve dual-notch functionality, thereby addressing electromagnetic interference issues in wireless local area networks (WLAN) operating at 5.15-5.85 GHz and 7.25-7.75 GHz. To address the issue of mutual coupling in MIMO antennas, this paper presents an innovative decoupling method known as the RMS-ZINC approach. This technique involves excavating a T-shaped groove on the rear of the dielectric substrate, symmetrically aligned with the diagonal, and filling it with a dielectric material primarily composed of zinc. This material substitution effectively manipulates the coupling current paths, achieving a high isolation level of -20 dB. The experimental results show that the operating bandwidth of the antenna ranges from 2.89 to 10.19 GHz, with a peak gain of approximately 5 dB (7.15 dBi) and a maximum radiation efficiency of up to 92%. The measured results are essentially consistent with the simulated ones, indicating the practical application value of the proposed MIMO antenna with notch functionality.

1. Desai, Arpan, Merih Palandoken, Issa Elfergani, Ismail Akdag, Chemseddine Zebiri, Joaquim Bastos, Jonathan Rodriguez, and Raed A. Abd-Alhameed, "Transparent 2-element 5G MIMO antenna for sub-6 GHz applications," Electronics, Vol. 11, No. 2, 251, 2022.
doi:10.3390/electronics11020251 Google Scholar

2. Benghanem, Yahia, Ali Mansoul, and Lila Mouffok, "A compact two-element MIMO antenna with high isolation and dual band-notched characteristics for UWB communication systems," Wireless Personal Communications, Vol. 136, No. 2, 1107-1126, 2024.
doi:10.1007/s11277-024-11319-5 Google Scholar

3. Shekhawat, Sandesh Singh, Deepshikha Lodhi, and Sarthak Singhal, "Dual band notched superwideband MIMO antenna for 5G and 6G applications," AEU --- International Journal of Electronics and Communications, Vol. 184, 155419, Sep. 2024.
doi:10.1016/j.aeue.2024.155419 Google Scholar

4. Nandi, Sourav and Akhilesh Mohan, "A compact dual-band MIMO slot antenna for WLAN applications," IEEE Antennas and Wireless Propagation Letters, Vol. 16, 2457-2460, 2017.
doi:10.1109/lawp.2017.2723927 Google Scholar

5. Tang, Tzu-Chun and Ken-Huang Lin, "An ultrawideband MIMO antenna with dual band-notched function," IEEE Antennas and Wireless Propagation Letters, Vol. 13, 1076-1079, 2014.
doi:10.1109/lawp.2014.2329496 Google Scholar

6. Gollamudi, Naveen Kumar, Y. Venkata Narayana, and A. Mallikharjuna Prasad, "Compact and asymmetric fed modified hexagonal shaped multiple-input multiple-output (MIMO) antenna for 5G sub: 6 GHz (N77/N78 & N79) and WLAN applications," Analog Integrated Circuits and Signal Processing, Vol. 114, No. 1, 103-112, 2023.
doi:10.1007/s10470-022-02124-w Google Scholar

7. Tiwari, Rakesh N., Prabhakar Singh, Shivam Pandey, Ritika Anand, Dinesh Kumar Singh, and Binod Kumar Kanaujia, "Swastika shaped slot embedded two port dual frequency band MIMO antenna for wireless applications," Analog Integrated Circuits and Signal Processing, Vol. 109, No. 1, 103-113, 2021.
doi:10.1007/s10470-021-01923-x Google Scholar

8. Wu, Wenying, Ruixing Zhi, Yingjian Chen, Han Li, Yanhua Tan, and Gui Liu, "A compact multiband MIMO antenna for IEEE 802.11 a/b/g/n applications," Progress In Electromagnetics Research Letters, Vol. 84, 59-65, 2019.
doi:10.2528/pierl19031106 Google Scholar

9. Aboelleil, Heba, Ahmed A. Ibrahim, and Ashraf A. M. Khalaf, "A compact multiple-input multiple-output antenna with high isolation for wireless applications," Analog Integrated Circuits and Signal Processing, Vol. 108, No. 1, 17-24, 2021.
doi:10.1007/s10470-020-01775-x Google Scholar

10. Yang, Yingying, Qingxin Chu, and Chunxu Mao, "Multiband MIMO antenna for GSM, DCS, and LTE indoor applications," IEEE Antennas and Wireless Propagation Letters, Vol. 15, 1573-1576, 2016.
doi:10.1109/lawp.2016.2517188 Google Scholar

11. Gopal, Geetharamani and Aathmanesan Thangakalai, "Cross dipole antenna for 4G and sub-6 GHz 5G base station applications," Applied Computational Electromagnetics Society Journal (ACES), Vol. 35, No. 1, 16-22, 2020. Google Scholar

12. Anitha, R., P. V. Vinesh, K. C. Prakash, P. Mohanan, and K. Vasudevan, "A compact quad element slotted ground wideband antenna for MIMO applications," IEEE Transactions on Antennas and Propagation, Vol. 64, No. 10, 4550-4553, 2016.
doi:10.1109/tap.2016.2593932 Google Scholar

13. Desai, Arpan, Trushit Upadhyaya, Merih Palandoken, and Cem Gocen, "Dual band transparent antenna for wireless MIMO system applications," Microwave and Optical Technology Letters, Vol. 61, No. 7, 1845-1856, 2019.
doi:10.1002/mop.31825 Google Scholar

14. Liu, Peng, Deming Sun, Peng Wang, and Peng Gao, "Design of a dual-band MIMO antenna with high isolation for WLAN applications," Progress In Electromagnetics Research Letters, Vol. 74, 23-30, 2018.
doi:10.2528/pierl18011004 Google Scholar

15. Zhang, Shuai and Gert Frølund Pedersen, "Mutual coupling reduction for UWB MIMO antennas with a wideband neutralization line," IEEE Antennas and Wireless Propagation Letters, Vol. 15, 166-169, 2016.
doi:10.1109/lawp.2015.2435992 Google Scholar

16. Toktas, Abdurrahim and Ali Akdagli, "Compact multiple-input multiple-output antenna with low correlation for ultra-wide-band applications," IET Microwaves, Antennas & Propagation, Vol. 9, No. 8, 822-829, 2015.
doi:10.1049/iet-map.2014.0086 Google Scholar

17. Chouhan, Sanjay, Debendra Kumar Panda, Manish Gupta, and Sarthak Singhal, "Multiport MIMO antennas with mutual coupling reduction techniques for modern wireless transreceive operations: A review," International Journal of RF and Microwave Computer-Aided Engineering, Vol. 28, No. 2, e21189, 2018.
doi:10.1002/mmce.21189 Google Scholar

18. Nadeem, Iram and Dong-You Choi, "Study on mutual coupling reduction technique for MIMO antennas," IEEE Access, Vol. 7, 563-586, 2018.
doi:10.1109/access.2018.2885558 Google Scholar

19. Addepalli, Tathababu and V. R. Anitha, "A very compact and closely spaced circular shaped UWB MIMO antenna with improved isolation," AEU --- International Journal of Electronics and Communications, Vol. 114, 153016, 2020.
doi:10.1016/j.aeue.2019.153016 Google Scholar
