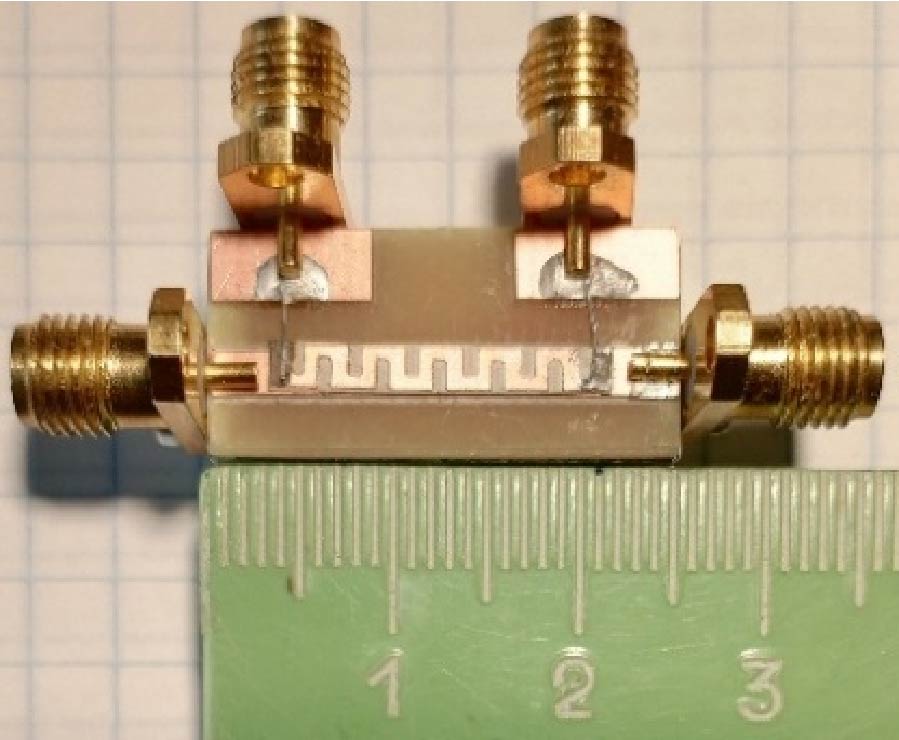

Quadrature 3-dB impedance-transforming transdirectional (TRD) couplers based on double-shielded coupled lines are analyzed and synthesized; design relationships are also presented. To verify proposed concept two couplers implemented with high-permittivity (higher than 10) dielectrics are designed, fabricated, and measured. The first TRD coupler features a suspended ceramic bar, and the second one features a meandering layout of the upper line on a high-permittivity dielectric overlay. Comparison of the proposed solutions with known ones shows that novel coupler designs have advantages in small dimensions and an extended bandwidth of operating frequency (about 1.5-2 times). The simulated results are in good agreement with the measurement data.
