Abstract

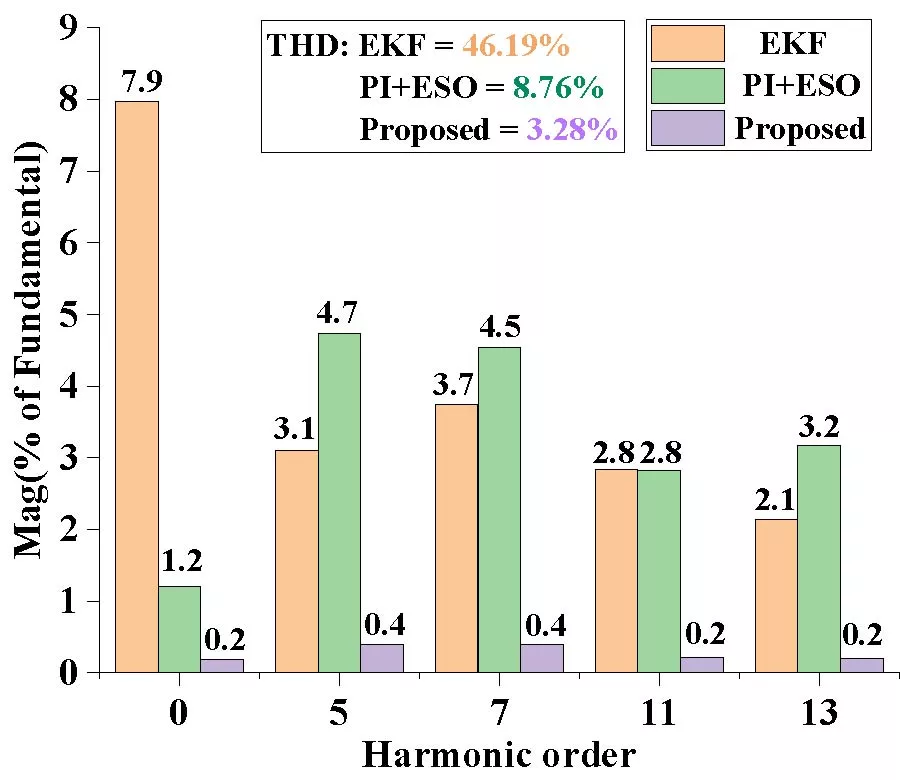

To enhance the stability of the spindle drive system in computer numerical control (CNC) machine tools and ensure machining accuracy by reducing non-ideal torque fluctuations caused by current harmonics during high-precision processes, a multi-factor harmonic current suppression algorithm based on an extended state observer (ESO) is proposed. Firstly, a mathematical model of the permanent magnet synchronous motor (PMSM) is established, and the current measurement offset errors (CMOEs) and their effects on the current waveform are analyzed in depth. Subsequently, the zero-point lag phenomenon of the voltage source inverter (VSI) and its resulting harmonic characteristics are discussed in detail. Furthermore, the compensation principles for CMOE and VSI dead-time nonlinear distortion are elucidated, and a corresponding ESO structure is designed through theoretical derivation. The proposed method constructs a unified perturbation model and designs adaptive ESO to achieve cooperative compensation. A comparative analysis of the control strategy's performance before and after optimization validates the significant effectiveness of the proposed method in harmonic suppression. Experimental results show that the proposed strategy reduces the total harmonic distortion (THD) of the phase current to 3.28%, and key harmonics such as the 5th and 7th are suppressed to much lower levels. Torque ripple and speed fluctuation are significantly reduced, effectively improving the operational stability of the motor. The experimental results indicate that the proposed dual compensation scheme for dead-time and DC offset current can effectively reduce harmonic distortion and significantly enhance the operational performance of the PMSM.

1. Lee, Kwang-Woon and Sang-Il Kim, "Dynamic performance improvement of a current offset error compensator in current vector-controlled SPMSM drives," IEEE Transactions on Industrial Electronics, Vol. 66, No. 9, 6727-6736, 2019.
doi:10.1109/tie.2018.2877162 Google Scholar

2. Bai, Yin, Binxing Li, Qiwei Wang, Dawei Ding, Guoqiang Zhang, Gaolin Wang, and Dianguo Xu, "An adaptive-frequency harmonic suppression strategy based on vector reconstruction for current measurement error of PMSM drives," IEEE Transactions on Power Electronics, Vol. 38, No. 1, 34-40, 2023.
doi:10.1109/tpel.2022.3200708 Google Scholar

3. Song, Pingyue, Tao Wang, Lijian Wu, Hao Li, Xiang Meng, and Cheng Li, "Analysis and compensation of current measurement errors in machine drive systems --- A review," Energies, Vol. 18, No. 6, 1367, 2025.
doi:10.3390/en18061367 Google Scholar

4. Dan, Hanbing, Huaibin Pang, Yonglu Liu, Yao Sun, Mei Su, Marco Rivera, and Patrick Wheeler, "Current measurement errors compensation based on current ripple component decoupling for PMSM drives," IEEE Journal of Emerging and Selected Topics in Power Electronics, Vol. 13, No. 2, 1699-1709, 2025.
doi:10.1109/jestpe.2024.3468388 Google Scholar

5. Hu, Mingjin, Wei Hua, Zheng Wu, Ningyi Dai, Huafeng Xiao, and Wei Wang, "Compensation of current measurement offset error for permanent magnet synchronous machines," IEEE Transactions on Power Electronics, Vol. 35, No. 10, 11119-11128, 2020.
doi:10.1109/tpel.2020.2978230 Google Scholar

6. Zhang, Nianzhong, Qiang Song, Mingsheng Wang, and Wei Zhang, "A dead-time compensation method for motor drive inverters based on nonlinear observer," Computers and Electrical Engineering, Vol. 120, 109668, 2024.
doi:10.1016/j.compeleceng.2024.109668 Google Scholar

7. Mandl, Johannes, Philipp Trampitsch, Philipp Schachinger, Dennis Albert, Reinhard Klambauer, and Alexander Bergmann, "Development of a fiber optic current sensor for low DC measurements in the power grid," IEEE Transactions on Instrumentation and Measurement, Vol. 73, 1-8, 2024.
doi:10.1109/tim.2024.3458044 Google Scholar

8. Zhao, Jiabin, Weicheng Ou, Nian Cai, Zhouyixiao Wu, and Han Wang, "Measurement error analysis and compensation for optical encoders: A review," IEEE Transactions on Instrumentation and Measurement, Vol. 73, 1-30, 2024.
doi:10.1109/tim.2024.3417589 Google Scholar

9. Song, Zhanfeng, Xiaohui Ma, and Yun Yu, "Design of zero-sequence current controller for open-end winding PMSMs considering current measurement errors," IEEE Transactions on Power Electronics, Vol. 35, No. 6, 6127-6139, 2020.
doi:10.1109/tpel.2019.2952402 Google Scholar

10. Jung, H.-S., S.-H. Hwang, J.-M. Kim, C.-U. Kim, and C. Choi, "Diminution of current-measurement error for vector-controlled AC motor drives," IEEE Transactions on Industry Applications, Vol. 42, No. 5, 1249-1256, 2006.
doi:10.1109/tia.2006.880904 Google Scholar

11. Lu, Jiadong, Yihua Hu, Guipeng Chen, Zheng Wang, and Jinglin Liu, "Mutual calibration of multiple current sensors with accuracy uncertainties in IPMSM drives for electric vehicles," IEEE Transactions on Industrial Electronics, Vol. 67, No. 1, 69-79, Jan. 2020.
doi:10.1109/tie.2019.2896320 Google Scholar

12. Kim, Mi-Seong, Da-Hye Park, and Wook-Jin Lee, "Compensation of current measurement errors due to sensor scale error and non-simultaneous sampling error for three-phase inverter applications," Journal of Power Electronics, Vol. 22, No. 1, 31-39, 2022.
doi:10.1007/s43236-021-00333-6 Google Scholar

13. Kim, Myoungho, Seung-Ki Sul, and Junggi Lee, "Compensation of current measurement error for current-controlled PMSM drives," IEEE Transactions on Industry Applications, Vol. 50, No. 5, 3365-3373, 2014.
doi:10.1109/tia.2014.2301873 Google Scholar

14. Zhang, Qiaofen, Haohao Guo, Yancheng Liu, Chen Guo, Fengkui Zhang, Zhenrui Zhang, and Guanhua Li, "A novel error-injected solution for compensation of current measurement errors in PMSM drive," IEEE Transactions on Industrial Electronics, Vol. 70, No. 5, 4608-4619, 2023.
doi:10.1109/tie.2022.3186343 Google Scholar

15. Lee, Sangmin, Heonyoung Kim, and Kibok Lee, "Current measurement offset error compensation in vector-controlled SPMSM drive systems," IEEE Journal of Emerging and Selected Topics in Power Electronics, Vol. 10, No. 2, 2619-2628, 2022.
doi:10.1109/jestpe.2022.3151351 Google Scholar

16. Zhu, Lidong, Ben Xu, and Huangqiu Zhu, "Interior permanent magnet synchronous motor dead-time compensation combined with extended Kalman and neural network bandpass filter," Progress In Electromagnetics Research M, Vol. 98, 193-203, 2020.
doi:10.2528/pierm20100903 Google Scholar

17. Qiu, Tengfei, Xuhui Wen, and Feng Zhao, "Adaptive-linear-neuron-based dead-time effects compensation scheme for PMSM drives," IEEE Transactions on Power Electronics, Vol. 31, No. 3, 2530-2538, Mar. 2016.
doi:10.1109/tpel.2015.2427914 Google Scholar

18. Yan, Qingzeng, Rende Zhao, Xibo Yuan, Wenzhong Ma, and Jinkui He, "A DSOGI-FLL-based dead-time elimination PWM for three-phase power converters," IEEE Transactions on Power Electronics, Vol. 34, No. 3, 2805-2818, 2019.
doi:10.1109/tpel.2018.2839659 Google Scholar

19. Han, K., X. Sun, B. Liu, W. Song, and X. Feng, "Dead-time on-line compensation scheme of SVPWM for permanent magnet synchronous motor drive system with vector control," Proceedings of the CSEE, Vol. 38, No. 2, 620-627, 2018.
doi:10.13334/j.0258-8013.pcsee.162043 Google Scholar

20. Lang, Jiewen, Chengde Tong, Yuhong Zheng, Jingang Bai, and Ping Zheng, "Decoupled dead-time compensation method using revised-resonant control-based disturbance observer in PMSM drives," IEEE Transactions on Power Electronics, Vol. 40, No. 1, 340-350, Jan. 2025.
doi:10.1109/tpel.2024.3458406 Google Scholar

21. Kim, Sam-Young, Wootaik Lee, Min-Sik Rho, and Seung-Yub Park, "Effective dead-time compensation using a simple vectorial disturbance estimator in PMSM drives," IEEE Transactions on Industrial Electronics, Vol. 57, No. 5, 1609-1614, May 2010.
doi:10.1109/tie.2009.2033098 Google Scholar

22. Wu, Zheng, Hengliang Zhang, Kai Liu, Wei Hua, Gan Zhang, Bo Wang, Shichuan Ding, and Jun Hang, "Dead-time compensation based on a modified multiple complex coefficient filter for permanent magnet synchronous machine drives," IEEE Transactions on Power Electronics, Vol. 36, No. 11, 12979-12989, Nov. 2021.
doi:10.1109/tpel.2021.3078167 Google Scholar

23. Yu, Kailiang and Zheng Wang, "An online compensation method of VSI nonlinearity for dual three-phase PMSM drives using current injection," IEEE Transactions on Power Electronics, Vol. 37, No. 4, 3769-3774, Apr. 2022.
doi:10.1109/tpel.2021.3127990 Google Scholar

24. Zuo, Yun, Huimin Wang, Xinglai Ge, Yangjing Liu, Shengdao Zhu, and Christopher H. T. Lee, "A simple current measurement scaling error compensation method for PMSM drives," IEEE Transactions on Power Electronics, Vol. 39, No. 11, 14122-14128, 2024.
doi:10.1109/tpel.2024.3421996 Google Scholar

25. Song, Pingyue, Yuankui Wang, Enlin Ma, Lijian Wu, Tao Wang, and Hao Li, "Current measurement error compensation based on modified multiple complex-coefficient filters in PMSM drives," IEEE Transactions on Power Electronics, Vol. 40, No. 3, 4067-4079, Mar. 2025.
doi:10.1109/tpel.2024.3507110 Google Scholar

26. Yu, Xu, Xuan Wu, Ting Wu, Dan Yang, Zhenghao Lei, and Shoudao Huang, "An FTSMO-based current measurement offset error compensation method in SPMSM drives," IEEE Transactions on Industrial Electronics, Vol. 72, No. 7, 6840-6851, Jul. 2025.
doi:10.1109/tie.2024.3519570 Google Scholar

27. Yang, Jun, Wen-Hua Chen, Shihua Li, Lei Guo, and Yunda Yan, "Disturbance/uncertainty estimation and attenuation techniques in PMSM drives --- A survey," IEEE Transactions on Industrial Electronics, Vol. 64, No. 4, 3273-3285, Apr. 2017.
doi:10.1109/tie.2016.2583412 Google Scholar

28. Guo, Haohao, Tianxiang Xiang, Yancheng Liu, Qiaofen Zhang, Yi Wei, and Fengkui Zhang, "Compensation method for current measurement errors in the synchronous reference frame of a small-sized surface vehicle propulsion motor," Journal of Marine Science and Engineering, Vol. 12, No. 1, 154, 2024.
doi:10.3390/jmse12010154 Google Scholar

29. Zhang, Xuefeng, Qiwei Xu, Yiru Miao, Xuan Wu, Yiming Wang, and Liangwu Yi, "An improved generalized extended state observer for current harmonic compensation in dual three-phase PMSMs," IEEE Transactions on Power Electronics, Vol. 40, No. 5, 7136-7149, May 2025.
doi:10.1109/tpel.2025.3526624 Google Scholar

30. Urasaki, N., T. Senjyu, K. Uezato, and T. Funabashi, "An adaptive dead-time compensation strategy for voltage source inverter fed motor drives," IEEE Transactions on Power Electronics, Vol. 20, No. 5, 1150-1160, 2005.
doi:10.1109/tpel.2005.854046 Google Scholar

Dr. Yang Yu

Mr. Zehua Gong

Dr. Xin Wang
