Abstract

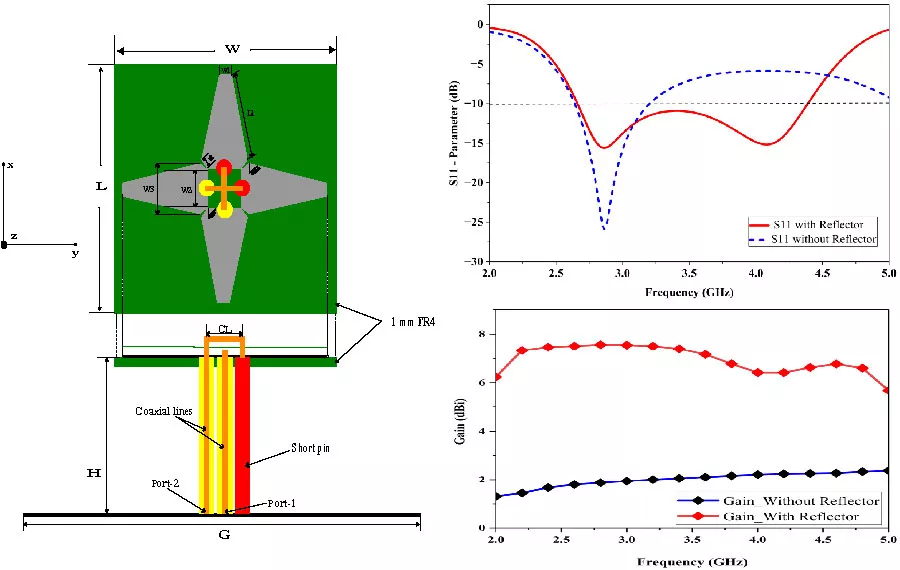

The manuscript presents the design and validation of an inverted bowtie dual-polarized antenna for 5G base station applications. The paper initiates with a comprehensive examination of antenna design, divided into two distinct phases: the evolving stage and the final stage. In the evolving stage, the antenna consists of two pairs of planar inverted bowtie dipoles, which are oriented perpendicularly to one another along their central axes. A balanced feed configuration has been effectively devised to facilitate optimal feeding to the bowtie antennas. The antenna, which is in an evolving stage of development, is engineered to operate at frequencies of 2.8 GHz on port 1 and 3.2 GHz on port 2. It features dual-polarization characteristics. The system ensures an isolation level exceeding 24 dB throughout the entire operational frequency range between the two ports. Additionally, it demonstrates an exceptional radiation efficiency of over 97% at the resonant frequencies. The maximum gain of this evolving stage antenna is 2.3 dBi. A 100 mm × 100 mm square ground plane has been integrated into the suggested antenna design in the final stage of design. Implemented on an FR4 substrate, the suggested antenna has a broad impedance bandwidth appropriate for 5G base-station services. This design has significantly improved gain, isolation, and radiation efficiency, as well as a broad-band resonant frequency range. The antenna proposed in the final stage is designed to operate within a frequency range of 2.66 GHz to 4.4 GHz, demonstrating wide-band characteristics. The design has been meticulously manufactured and calibrated to operate at a central frequency of 3.5 GHz. A -10 dB reflection coefficient with a wide band of 49.5% (which spans from 2.66 GHz to 4.4 GHz) is obtained from the measurements. Antenna-C, the suggested antenna discussed in this article, has a wide bandwidth of 1720 MHz for port 1, which spans the frequency range from 2.66 GHz to 4.4 GHz, and a wide bandwidth of 1710 MHz for port 2, which spans the frequency range from 2.91 GHz to 4.62 GHz. The isolation observed between the two ports has reached a maximum of -39.7 dB. Additionally, this optimization ensures a consistent level above -35 dB is maintained across the entire bandwidth. The results obtained from the proposed antenna, which incorporates a reflector, indicate that cross-polarization remains below -25 dB throughout the operating bandwidth. Furthermore, the front-to-back ratio is found to exceed 22 dB. The antenna design achieves a maximum gain of 7.5 dBi while consistently maintaining a gain greater than 6.3 dBi across the wide frequency range. The antenna dimensions at the lowest functional frequency of 2.66 GHz are 0.372λ₀ × 0.355λ₀, facilitating its extension into an array component.

1. Ta, Son Xuat, Van Cuong Nguyen, Bang-Tam Nguyen-Thi, Thai Bao Hoang, An Ngoc Nguyen, Khac Kiem Nguyen, and Chien Dao-Ngoc, "Wideband dual-circularly polarized antennas using aperture-coupled stacked patches and single-section hybrid coupler," IEEE Access, Vol. 10, 21883-21891, 2022.
doi:10.1109/access.2022.3155120 Google Scholar

2. Wang, Manting and Chi Hou Chan, "A novel differentially-fed dual-polarized shared aperture antenna array," IEEE Transactions on Antennas and Propagation, Vol. 70, No. 12, 12276-12281, 2022.
doi:10.1109/tap.2022.3210273 Google Scholar

3. Tran, Huy Hung, Nghia Nguyen-Trong, Tuan Tu Le, and Hyun Chang Park, "Wideband and multipolarization reconfigurable crossed bowtie dipole antenna," IEEE Transactions on Antennas and Propagation, Vol. 65, No. 12, 6968-6975, 2017.
doi:10.1109/tap.2017.2766439 Google Scholar

4. Darvazehban, Amin, Sasan Ahdi Rezaeieh, and Amin Abbosh, "Wideband beam-switched bow-tie antenna with inductive reflector," IEEE Antennas and Wireless Propagation Letters, Vol. 19, No. 10, 1724-1728, 2020.
doi:10.1109/lawp.2020.3015512 Google Scholar

5. Feng, Botao, Xiaoyuan He, Jui-Ching Cheng, Qingsheng Zeng, and Chow-Yen-Desmond Sim, "A low-profile differentially fed dual-polarized antenna with high gain and isolation for 5G microcell communications," IEEE Transactions on Antennas and Propagation, Vol. 68, No. 1, 90-99, 2020.
doi:10.1109/tap.2019.2935091 Google Scholar

6. Sun, Wei, Shuxuan Liu, Xu Zhu, Xilin Zhang, Pei-Ling Chi, and Tao Yang, "A novel 1.05 GHz to 1.25 GHz filtering antenna feeding network with reconfigurable frequency and polarization," IEEE Transactions on Antennas and Propagation, Vol. 70, No. 1, 156-166, 2022.
doi:10.1109/tap.2021.3109794 Google Scholar

7. Alibakhshikenari, Mohammad, Bal S. Virdee, Chan Hwang See, Pancham Shukla, Sadegh Mansouri Moghaddam, Ashraf Uz Zaman, Samia Shafqaat, Mobayode O. Akinsolu, Bo Liu, Jian Yang, Raed Abd-Alhameed, Francisco Falcone, and Ernesto Limiti, "Dual-polarized highly folded bowtie antenna with slotted self-grounded structure for sub-6 GHz 5G applications," IEEE Transactions on Antennas and Propagation, Vol. 70, No. 4, 3028-3033, 2022.
doi:10.1109/tap.2021.3118784 Google Scholar

8. Nawaz, Haq, Ahmad Umar Niazi, Ahsen Tahir, Noman Ahmad, Usman Masud, Turke Althobaiti, Abdullah Alhumaidi Alotaibi, and Naeem Ramzan, "Co-circularly polarized planar antenna with highly decoupled ports for S-band full duplex applications," IEEE Access, Vol. 10, 16101-16110, 2022.
doi:10.1109/access.2022.3148740 Google Scholar

9. Yang, Guangyao, Shengbo Ye, Yicai Ji, Xiaojuan Zhang, and Guangyou Fang, "Radiation enhancement of an ultrawideband unidirectional folded bowtie antenna for GPR applications," IEEE Access, Vol. 8, 182218-182228, 2020.
doi:10.1109/access.2020.3029050 Google Scholar

10. Chang, Lei, Jian-Qiang Zhang, Ling-Lu Chen, and Bao-Ming Li, "Bandwidth-enhanced cavity-backed magneto-electric dipole antenna," IEEE Access, Vol. 6, 62482-62489, 2018.
doi:10.1109/access.2018.2876760 Google Scholar

11. Tran, Huy Hung, Ikmo Park, and Truong Khang Nguyen, "Circularly polarized bandwidth-enhanced crossed dipole antenna with a simple single parasitic element," IEEE Antennas and Wireless Propagation Letters, Vol. 16, 1776-1779, 2017.
doi:10.1109/lawp.2017.2676165 Google Scholar

12. Xue, Hui, Li Wu, Ze-Long Xiao, and Tai-Yang Hu, "A low-profile broadband circularly polarized patch antenna with wide axial-ratio beamwidth," IEEE Antennas and Wireless Propagation Letters, Vol. 22, No. 9, 2115-2119, 2023.
doi:10.1109/lawp.2023.3277472 Google Scholar

13. Xie, Guo-Jun, Fu-Shun Zhang, Sui-Bin Liu, and Yi Zhao, "A wideband dual-polarized aperture-coupled antenna embedded in a small metal cavity," IEEE Transactions on Antennas and Propagation, Vol. 68, No. 11, 7646-7651, 2020.
doi:10.1109/tap.2020.2996735 Google Scholar

14. Zhang, Qianyun and Yue Gao, "A compact broadband dual-polarized antenna array for base stations," IEEE Antennas and Wireless Propagation Letters, Vol. 17, No. 6, 1073-1076, 2018.
doi:10.1109/lawp.2018.2832293 Google Scholar

15. Li, Yixin, Chow-Yen-Desmond Sim, Yong Luo, and Guangli Yang, "High-isolation 3.5 GHz eight-antenna MIMO array using balanced open-slot antenna element for 5G smartphones," IEEE Transactions on Antennas and Propagation, Vol. 67, No. 6, 3820-3830, 2019.
doi:10.1109/tap.2019.2902751 Google Scholar

16. Liu, Qingchong, Hui Liu, Wang He, and Sailing He, "A low-profile dual-band dual-polarized antenna with an AMC reflector for 5G communications," IEEE Access, Vol. 8, 24072-24080, 2020.
doi:10.1109/access.2020.2970473 Google Scholar

17. Li, Biao, Ying-Zeng Yin, Wei Hu, Yang Ding, and Yang Zhao, "Wideband dual-polarized patch antenna with low cross polarization and high isolation," IEEE Antennas and Wireless Propagation Letters, Vol. 11, 427-430, 2012.
doi:10.1109/lawp.2012.2195149 Google Scholar

18. Cheng, Yang and Yuandan Dong, "Dual-broadband dual-polarized shared-aperture magnetoelectric dipole antenna for 5G applications," IEEE Transactions on Antennas and Propagation, Vol. 69, No. 11, 7918-7923, 2021.
doi:10.1109/tap.2021.3083744 Google Scholar

19. Goel, Tushar and Amalendu Patnaik, "Novel broadband antennas for future mobile communications," IEEE Transactions on Antennas and Propagation, Vol. 66, No. 5, 2299-2308, 2018.
doi:10.1109/tap.2018.2816660 Google Scholar

20. Feng, Guirong, Lei Chen, Xinwei Wang, Xingsi Xue, and Xiaowei Shi, "Broadband circularly polarized crossed bowtie dipole antenna loaded with parasitic elements," IEEE Antennas and Wireless Propagation Letters, Vol. 17, No. 1, 114-117, 2018.
doi:10.1109/lawp.2017.2777442 Google Scholar

21. Kang, Kai, Yan Shi, and Chang-Hong Liang, "Substrate integrated magneto–electric dipole for UWB application," IEEE Antennas and Wireless Propagation Letters, Vol. 16, 948-951, 2017.
doi:10.1109/lawp.2016.2615046 Google Scholar

22. Tran, Huy Hung and Ikmo Park, "Wideband circularly polarized cavity-backed asymmetric crossed bowtie dipole antenna," IEEE Antennas and Wireless Propagation Letters, Vol. 15, 358-361, 2016.
doi:10.1109/lawp.2015.2445939 Google Scholar

23. Zheng, Dongze, Yu Luo, and Qing-Xin Chu, "A miniaturized wideband dual-polarized antenna based on mode-control principle for base-station applications," IEEE Access, Vol. 8, 62218-62227, 2020.
doi:10.1109/access.2020.2984363 Google Scholar

24. Yu, Haijing, Shaojun Fang, Lingling Jiang, and Hongmei Liu, "A full-band digital television transmitting antenna array with dual-layer bowtie dipole unit," IEEE Access, Vol. 8, 102138-102145, 2020.
doi:10.1109/access.2020.2998516 Google Scholar

25. Pan, Leidan, Yongle Wu, Weimin Wang, Yiwen Wei, and Yuhao Yang, "A flexible high-selectivity single-layer coplanar waveguide bandpass filter using interdigital spoof surface plasmon polaritons of bow-tie cells," IEEE Transactions on Plasma Science, Vol. 48, No. 10, 3582-3588, 2020.
doi:10.1109/tps.2020.3023441 Google Scholar

26. Hu, Hsin-Nan, Fei-Peng Lai, and Yen-Sheng Chen, "Dual-band dual-polarized scalable antenna subarray for compact millimeter-wave 5G base stations," IEEE Access, Vol. 8, 129180-129192, 2020.
doi:10.1109/access.2020.3009431 Google Scholar

27. Peng, Wei-Wei, Kai Jie Tang, and Duo-Long Wu, "A broadband dual-polarized magnetoelectric dipole antenna with high isolation," International Journal of Communication Systems, Vol. 38, No. 8, e70097, 2025.
doi:10.1002/dac.70097 Google Scholar

28. Peng, Wei-Wei, Kai Jie Tang, Liang Hua Ye, Jian-Feng Li, and Duo-Long Wu, "Low-profile dual-polarized magnetoelectric dipole antenna with high isolation," IEEE Antennas and Wireless Propagation Letters, Vol. 24, No. 8, 2582-2586, 2025.
doi:10.1109/LAWP.2025.3569322 Google Scholar

29. Lee, Youngju, Seung-Ho Choi, Bum-Hee Lee, Jung-Yub Lee, and Jae Hee Kim, "LCP-based low-cost base station antenna for 3.7 GHz 5G band," Journal of Electromagnetic Engineering and Science, Vol. 24, No. 3, 276-284, 2024.
doi:10.26866/jees.2024.3.r.228 Google Scholar

Mr. Saranya Matta

Dr. Sambhudutta Nanda
