Abstract

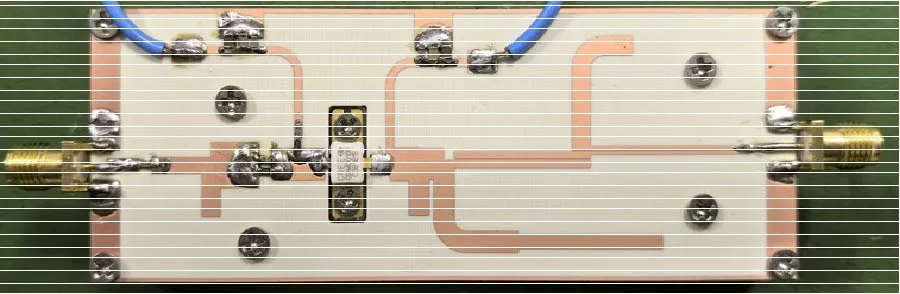

A design approach using a harmonic-tuned network (HTN) and terminated coupled-line structures (TCLSs) for high-efficiency filtering power amplifiers (FPA) is proposed in this paper, effectively addressing the efficiency degradation caused by the integration of filtering structures in conventional FPA designs. The proposed approach enables compact circuitry while providing bandpass filtering characteristics. Bandpass filtering is realized through the cascaded TCLSs, while the incorporation of open-circuit and short-circuit branches introduces additional transmission zeros and poles, significantly improving frequency selectivity. In addition, HTN enables precise control of the harmonic impedance, effectively improving the efficiency of the power amplifier (PA). Based on this approach, an FPA operating in the 2.3-2.6 GHz band is designed and implemented. Experimental results show that the FPA achieves a output power (Pout) of 40.8-41.3 dBm, a drain efficiency (DE) of 67.2-72.2%, a gain of 12.8-13.3 dB, and stopband suppression greater than 39 dB on both sides of the passband. These results verify the effectiveness of the proposed design in enhancing PA efficiency and enabling circuit miniaturization, while also providing a feasible design approach for FPA development.

1. Feng, Ting, Kaixue Ma, Yongqiang Wang, and Jianquan Hu, "Bandpass-filtering power amplifier with compact size and wideband harmonic suppression," IEEE Transactions on Microwave Theory and Techniques, Vol. 70, No. 2, 1254-1268, 2022.
doi:10.1109/tmtt.2021.3124254 Google Scholar

2. Liu, Chang, "Analysis of class-F power amplifiers with a second-harmonic input voltage manipulation," IEEE Transactions on Circuits and Systems II: Express Briefs, Vol. 67, No. 2, 225-229, 2020.
doi:10.1109/tcsii.2019.2912654 Google Scholar

3. Ekhteraei, Milad, Mohsen Hayati, and Farzin Shama, "High-efficiency low voltage inverse class-F power amplifier design based on harmonic control network analysis," IEEE Transactions on Circuits and Systems I: Regular Papers, Vol. 67, No. 3, 806-814, 2020.
doi:10.1109/tcsi.2019.2952932 Google Scholar

4. Nan, Jingchang, Jiadong Yu, and Heyang Sun, "A design approach for high-efficiency hybrid continuous extended inverse class-F broadband power amplifier using band-pass network topology," Progress In Electromagnetics Research M, Vol. 130, 129-137, 2024.
doi:10.2528/pierm24110303 Google Scholar

5. Jian, Yelong, Guohua Liu, Zhiqun Cheng, Zhong Zhao, and Weirong Wang, "Compact broadband high-efficiency power amplifier using terminated coupled line filter matching network," International Journal of RF and Microwave Computer-Aided Engineering, Vol. 31, No. 11, e22815, 2021.
doi:10.1002/mmce.22815 Google Scholar

6. Chen, Kenle, Juseop Lee, William J. Chappell, and Dimitrios Peroulis, "Co-design of highly efficient power amplifier and high-Q output bandpass filter," IEEE Transactions on Microwave Theory and Techniques, Vol. 61, No. 11, 3940-3950, 2013.
doi:10.1109/tmtt.2013.2284485 Google Scholar

7. Gao, Yang, Xiaobang Shang, Lei Li, Cheng Guo, and Yi Wang, "Integrated filter-amplifiers: A comprehensive review," IEEE Microwave Magazine, Vol. 23, No. 6, 57-75, 2022.
doi:10.1109/mmm.2022.3155034 Google Scholar

8. Xu, Jin-Xu, Xiu Yin Zhang, and Xiao-Qu Song, "High-efficiency filter-integrated class-F power amplifier based on dielectric resonator," IEEE Microwave and Wireless Components Letters, Vol. 27, No. 9, 827-829, 2017.
doi:10.1109/lmwc.2017.2734778 Google Scholar

9. Pech, Phanam, Phirun Kim, and Yongchae Jeong, "Microwave amplifier with substrate integrated waveguide bandpass filter matching network," IEEE Microwave and Wireless Components Letters, Vol. 31, No. 4, 401-404, 2021.
doi:10.1109/lmwc.2021.3059859 Google Scholar

10. Gao, Yang, Weiming Ma, Di Lu, Baoqi Zhu, Pengcheng Jia, and Ming Yu, "A coupling matrix synthesized three-dimensional filtering power amplifier," IEEE Transactions on Circuits and Systems I: Regular Papers, Vol. 71, No. 7, 3074-3085, 2024.
doi:10.1109/tcsi.2024.3352603 Google Scholar

11. Boumalkha, Mohamed, Mohammed Lahsaini, Moulay El Hassane Archidi, and Younes Achaoui, "Design of a wideband, highly efficient FPA using an asymmetrical open-circuit coupled-lines-based filtering matching network," AEU --- International Journal of Electronics and Communications, Vol. 178, 155293, 2024.
doi:10.1016/j.aeue.2024.155293 Google Scholar

12. Haider, Muhammad Furqan, Fei You, Weimin Shi, Shakeel Ahmad, and Tian Qi, "Broadband power amplifier using Hairpin bandpass filter matching network," Electronics Letters, Vol. 56, No. 4, 182-184, 2020.
doi:10.1049/el.2019.3047 Google Scholar

13. Boumalkha, Mohamed, Mohammed Lahsaini, Moulay El Hassane Archidi, Mahmoud F. Ghareeb, Ahmed S. I. Amar, Eyad S. Oda, and Sherif F. Nafea, "Design of highly efficient filtering power amplifier with a wideband response for sub-6 GHz 5G applications," Results in Engineering, Vol. 24, 102905, 2024.
doi:10.1016/j.rineng.2024.102905 Google Scholar

14. Wang, Weimin, Hongmin Zhao, Yongle Wu, and Xiaopan Chen, "5G wideband bandpass filtering power amplifiers based on a bandwidth-extended bandpass matching network," China Communications, Vol. 20, No. 11, 56-66, 2023.
doi:10.23919/jcc.ea.2022-0349.202302 Google Scholar

15. Pan, Leidan, Yongle Wu, Weimin Wang, Shaobo Li, Anna Piacibello, and Vittorio Camarchia, "A broadband tunable high-selectivity bandpass filter and filtering power amplifier with continuous tunability and high stopband suppression level," Microelectronics Journal, Vol. 166, 106911, 2025.
doi:10.1016/j.mejo.2025.106911 Google Scholar

16. Su, Zhilin, Cuiping Yu, Bihua Tang, and Yuanan Liu, "Bandpass filtering power amplifier with extended band and high efficiency," IEEE Microwave and Wireless Components Letters, Vol. 30, No. 2, 181-184, 2020.
doi:10.1109/lmwc.2020.2966067 Google Scholar

17. Zhuang, Zheng, Yongle Wu, Mengdan Kong, and Weimin Wang, "High-selectivity single-ended/balanced DC-block filtering impedance transformer and its application on power amplifier," IEEE Transactions on Circuits and Systems I: Regular Papers, Vol. 67, No. 12, 4360-4369, 2020.
doi:10.1109/tcsi.2020.3015883 Google Scholar

18. Qi, Xiaobo and Fei Xiao, "Filtering power amplifier with up to 4th harmonic suppression," IEEE Access, Vol. 8, 29021-29026, 2020.
doi:10.1109/access.2020.2972739 Google Scholar

19. Jian, Yelong, Guohua Liu, and Zhiqun Cheng, "Design of a broadband bandpass filtering power amplifier for 5G communication," Microwave and Optical Technology Letters, Vol. 64, No. 9, 1593-1599, 2022.
doi:10.1002/mop.33334 Google Scholar

20. Li, Yuan Chun, Run-Ze Zhan, and Quan Xue, "Highly efficient filtering power amplifier using impedance area-based optimization," IEEE Transactions on Circuits and Systems I: Regular Papers, Vol. 70, No. 2, 556-565, 2023.
doi:10.1109/tcsi.2022.3217798 Google Scholar

21. Li, Shaobo, Yongle Wu, Yuhao Yang, Xiaopan Chen, Weimin Wang, and Zhuoyin Chen, "Bandpass filtering power amplifier with wide stopband and high out-of-band rejection," IEEE Transactions on Circuits and Systems II: Express Briefs, Vol. 70, No. 3, 969-973, 2023.
doi:10.1109/tcsii.2022.3220619 Google Scholar

22. Liu, Guohua, Jianyuan Yu, and Yijun Lin, "Wideband filtering power amplifier based on terminated coupled line structure," International Journal of Microwave and Wireless Technologies, Vol. 16, No. 3, 418-423, 2024.
doi:10.1017/s1759078724000059 Google Scholar

23. Wang, Kun, Zhiqun Cheng, Minshi Jia, Zheming Zhu, Baoquan Zhong, Zhenghao Yang, and Bingxin Li, "Design of a series of inverse continuous modes power amplifier based on bandpass filter," International Journal of Circuit Theory and Applications, Vol. 53, No. 7, 3949-3955, 2025.
doi:10.1002/cta.4330 Google Scholar

24. Zhong, Baoquan, Zhiqun Cheng, Minshi Jia, Bingxin Li, Kun Wang, Zhenghao Yang, and Zheming Zhu, "Design of bandpass filtering power amplifier based on coupled microstrip line structure," IEICE Transactions on Electronics, Vol. E108-C, No. 5, 237-244, 2025.
doi:10.1587/transele.2024ecp5043 Google Scholar
