Abstract

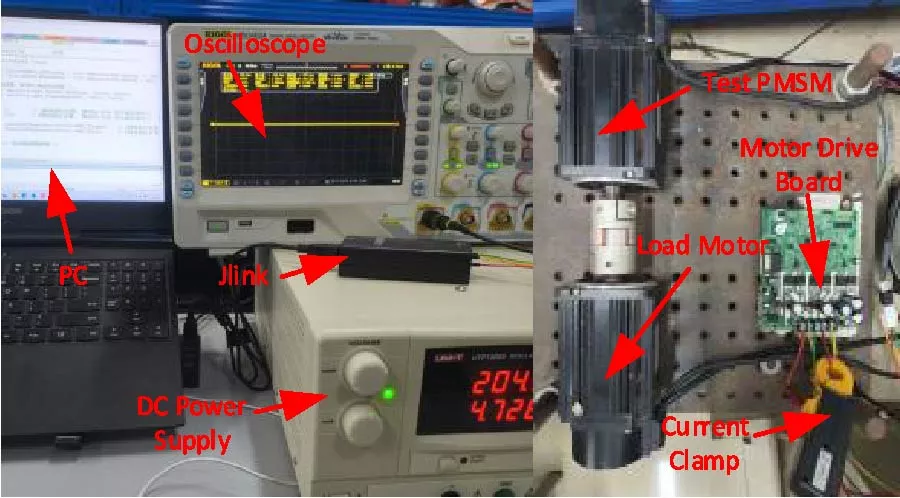

Flux observers have been extensively employed in the sensorless control of permanent magnet synchronous motors (PMSMs). Traditional flux observers are susceptible to DC offset and high-order harmonics during flux estimation. To address this issue, this paper proposes an improved third-order generalized integrator (TOGIFO-X), which combines a third-order generalized integrator with a low-pass filter. First, the relationship between the flux observation error and rotor position error is established. Then, through rigorous mathematical derivation and Bode-plot analysis, the proposed TOGIFO-X was compared with three conventional flux observers, demonstrating its capability to effectively eliminate both the DC component and high-order harmonic components in the estimated rotor flux without introducing any adverse effects on the amplitude or phase of the fundamental wave. Finally, the effectiveness of the improved third-order generalized integrator is verified via simulations and a 0.75  kW surface-mounted PMSM (SPMSM) experimental platform. The experimental results indicate that TOGIFO-X significantly enhances the reduction in flux estimation error and the elimination of DC bias, thereby contributing to improved position estimation accuracy and advances in sensorless control technology.

1. Chen, Shuo, Wen Ding, Ruiming Hu, Xiang Wu, and Shuai Shi, "Sensorless control of PMSM drives using reduced order quasi resonant-based ESO and Newton-Raphson method-based PLL," IEEE Transactions on Power Electronics, Vol. 38, No. 1, 229-244, 2023.
doi:10.1109/tpel.2022.3199773 Google Scholar

2. Wang, Gaolin, Maria Valla, and Jorge Solsona, "Position sensorless permanent magnet synchronous machine drives --- A review," IEEE Transactions on Industrial Electronics, Vol. 67, No. 7, 5830-5842, 2020.
doi:10.1109/tie.2019.2955409 Google Scholar

3. Jiang, Yajie, Wei Xu, Chaoxu Mu, Jianguo Zhu, and Renjun Dian, "An improved third-order generalized integral flux observer for sensorless drive of PMSMs," IEEE Transactions on Industrial Electronics, Vol. 66, No. 12, 9149-9160, 2019.
doi:10.1109/tie.2018.2889627 Google Scholar

4. Anayi, Fatih J. and Mazen M. A. Al Ibraheemi, "Estimation of rotor position for permanent magnet synchronous motor at standstill using sensorless voltage control scheme," IEEE/ASME Transactions on Mechatronics, Vol. 25, No. 3, 1612-1621, 2020.
doi:10.1109/tmech.2020.2981193 Google Scholar

5. Zhou, Minghao, Siwei Cheng, Yong Feng, Wei Xu, Likun Wang, and William Cai, "Full-order terminal sliding-mode-based sensorless control of induction motor with gain adaptation," IEEE Journal of Emerging and Selected Topics in Power Electronics, Vol. 10, No. 2, 1978-1991, 2022.
doi:10.1109/jestpe.2021.3081863 Google Scholar

6. Xu, Bo, Lei Zhang, and Wei Ji, "Improved non-singular fast terminal sliding mode control with disturbance observer for PMSM drives," IEEE Transactions on Transportation Electrification, Vol. 7, No. 4, 2753-2762, 2021.
doi:10.1109/tte.2021.3083925 Google Scholar

7. Dhaouadi, R., N. Mohan, and L. Norum, "Design and implementation of an extended Kalman filter for the state estimation of a permanent magnet synchronous motor," IEEE Transactions on Power Electronics, Vol. 6, No. 3, 491-497, 1991.
doi:10.1109/63.85891 Google Scholar

8. Zhu, Guchuan, A. Kaddouri, L. A. Dessaint, and O. Akhrif, "A nonlinear state observer for the sensorless control of a permanent-magnet AC machine," IEEE Transactions on Industrial Electronics, Vol. 48, No. 6, 1098-1108, 2001.
doi:10.1109/41.969388 Google Scholar

9. Rahman, M. F., Md. E. Haque, Lixin Tang, and Limin Zhong, "Problems associated with the direct torque control of an interior permanent-magnet synchronous motor drive and their remedies," IEEE Transactions on Industrial Electronics, Vol. 51, No. 4, 799-809, 2004.
doi:10.1109/tie.2004.831728 Google Scholar

10. Wu, Chao, Xiangdong Sun, and Jianyuan Wang, "A rotor flux observer of permanent magnet synchronous motors with adaptive flux compensation," IEEE Transactions on Energy Conversion, Vol. 34, No. 4, 2106-2117, 2019.
doi:10.1109/tec.2019.2932787 Google Scholar

11. Feng, Guodong, Chunyan Lai, Kaushik Mukherjee, and Narayan C. Kar, "Online PMSM magnet flux-linkage estimation for rotor magnet condition monitoring using measured speed harmonics," IEEE Transactions on Industry Applications, Vol. 53, No. 3, 2786-2794, 2017.
doi:10.1109/tia.2017.2664724 Google Scholar

12. Jiang, Yajie, Wei Xu, and Chaoxu Mu, "Improved SOIFO-based rotor flux observer for PMSM sensorless control," IECON 2017 --- 43rd Annual Conference of the IEEE Industrial Electronics Society, 8219-8224, Beijing, China, 2017.
doi:10.1109/IECON.2017.8217442

13. Zhao, Rende, Zhen Xin, Poh Chiang Loh, and Frede Blaabjerg, "A novel flux estimator based on multiple second-order generalized integrators and frequency-locked loop for induction motor drives," IEEE Transactions on Power Electronics, Vol. 32, No. 8, 6286-6296, 2017.
doi:10.1109/tpel.2016.2620428 Google Scholar

14. Jiang, Yajie, Wei Xu, Chaoxu Mu, Jianguo Zhu, and Renjun Dian, "An improved third-order generalized integral flux observer for sensorless drive of PMSMs," IEEE Transactions on Industrial Electronics, Vol. 66, No. 12, 9149-9160, 2019.
doi:10.1109/tie.2018.2889627 Google Scholar

15. Xu, Wei, Yajie Jiang, Chaoxu Mu, and Frede Blaabjerg, "Improved nonlinear flux observer-based second-order SOIFO for PMSM sensorless control," IEEE Transactions on Power Electronics, Vol. 34, No. 1, 565-579, 2019.
doi:10.1109/tpel.2018.2822769 Google Scholar

16. Zhang, Yanping, Zhonggang Yin, Fengtao Gao, and Jing Liu, "Research on anti-DC bias and high-order harmonics of a fifth-order flux observer for IPMSM sensorless drive," IEEE Transactions on Industrial Electronics, Vol. 69, No. 4, 3393-3406, 2022.
doi:10.1109/tie.2021.3076725 Google Scholar
