Abstract

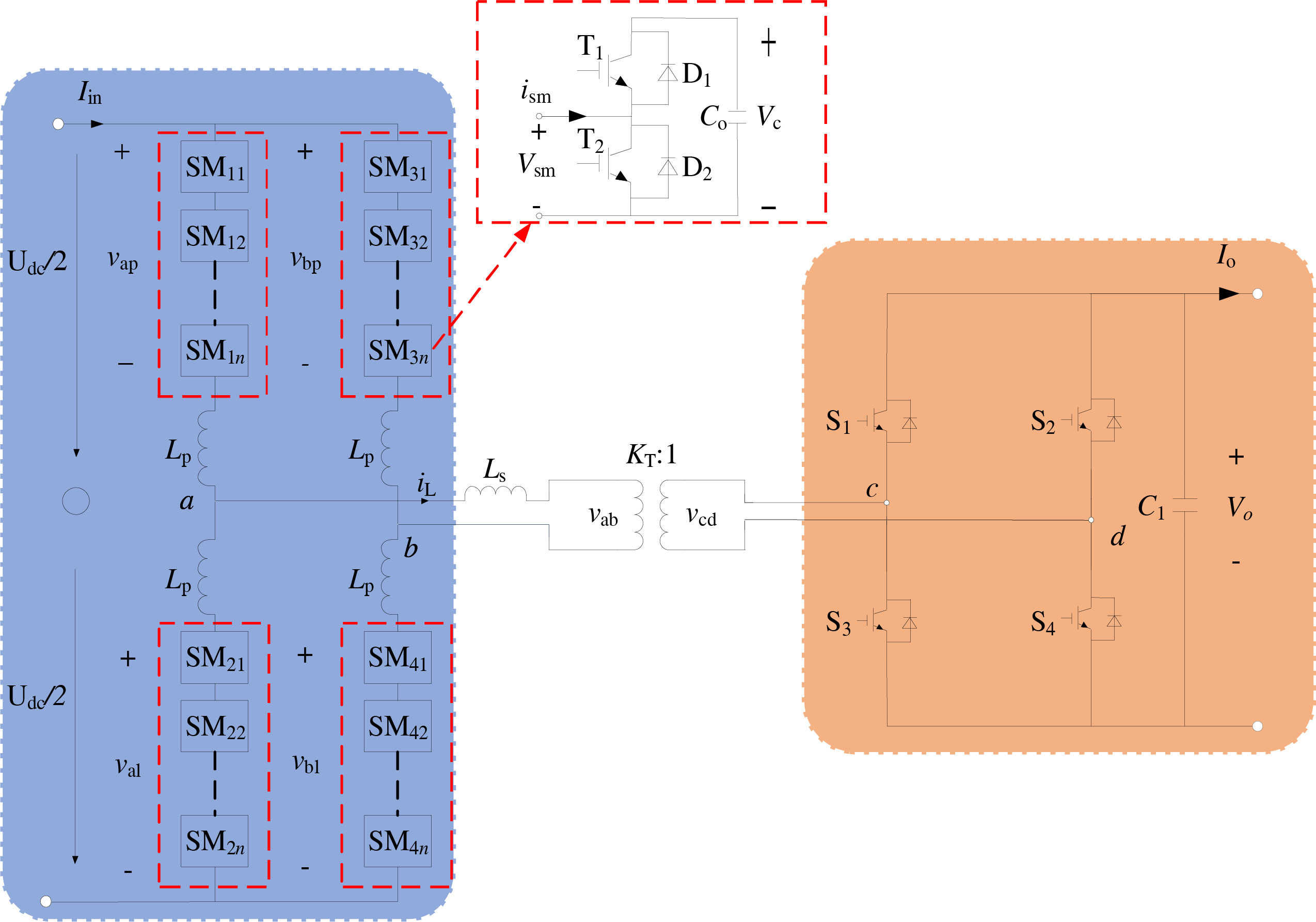

Current stress has a significant impact on the operation of power electronic devices, and the reduction of current stress can improve the safety and reliability of the system. First, this paper proposes a novel asymmetric duty cycle modulation strategy for the primary side of a modular multilevel type (MMC) dual active bridge converter (DAB) to increase the control freedom of the primary side. Secondly, a novel optimization strategy based on a long-short-term memory network (LSTM) classification is proposed in this paper to optimize the current stress. The output power of the system is classified by LSTM，and minimum current stresses at different powers are optimized by a novel meta-heuristic iterative optimization based on generalized quadratic interpolation (GQI). Finally, the feasibility of the scheme is verified by hardware-in-the-loop experiments.

1. Yun, Jonghun and Shenghui Cui, "Enhanced active thermal balancing strategy for three-phase dual-active bridge converter suppressing transformer flux saturation," IEEE Transactions on Power Electronics, Vol. 40, No. 4, 5014-5024, 2025.

2. Nitheesh, R., N. Lakshminarasamma, and B. Arun Karuppaswamy, "Unison duty-phase peak current control for pole point inductor-based dual active bridge converter with zero DC bias current," IEEE Access, Vol. 13, 40899-40922, 2025.

3. Upputuri, Rajendra Prasad and Bidyadhar Subudhi, "A two-stage bidirectional DC-DC converter with a wide output voltage range for dc fast charging stations in E-mobility applications," IEEE Journal of Emerging and Selected Topics in Power Electronics, Vol. 13, No. 1, 294-303, Feb. 2025.

4. Ren, Shaoning, Niancong Song, Jiaxiang Song, and Naizhe Diao, "A phase-shifted full-bridge DC-DC converter with dual clamping circuits to eliminate voltage oscillation for electric vehicles charger," IEEE Transactions on Transportation Electrification, Vol. 11, No. 1, 3000-3014, Feb. 2025.

5. Li, Liting, Mei Su, Guo Xu, Li Jiang, and Yonglu Liu, "A soft-switched semi dual active half bridge converter with voltage match trapezoidal modulation control," IEEE Transactions on Circuits and Systems II: Express Briefs, Vol. 72, No. 1, 303-307, 2025.

6. Sha, Jin, Jinsong Shen, Han Wang, Gaofeng Qiu, and Yuebing Sun, "Hybrid modulation-based discrete extended phase-shift control for dual active bridge DC-DC converter," IEEE Transactions on Industrial Electronics, Vol. 71, No. 12, 15633-15642, Dec. 2024.

7. Goudarzitaemeh, Sajjad and Majid Pahlevani, "Extended phase shift control of a novel bidirectional DC–DC converter with direct power transfer," IEEE Journal of Emerging and Selected Topics in Power Electronics, Vol. 12, No. 5, 4521-4537, Oct. 2024.

8. Liu, Bochen, Pooya Davari, and Frede Blaabjerg, "An optimized hybrid modulation scheme for reducing conduction losses in dual active bridge converters," IEEE Journal of Emerging and Selected Topics in Power Electronics, Vol. 9, No. 1, 921-936, 2021.

9. Yan, Yipeng, Quanming Luo, Ting Luo, Jia Li, Jianglin Xiong, and Hang Xiao, "Current stress optimized strategy for the dual active bridge converter with triple-phase-shift and variable DC-link voltage control," IEEE Transactions on Power Electronics, Vol. 40, No. 6, 8344-8355, Jun. 2025.

10. Yang, Ping, Mixin Wang, Shusong Liu, Sijie Li, Xi Chen, and Yusheng Peng, "Unilateral asymmetric triple phase shift modulation strategy for DAB converter compromising RMS current and soft-switching range," IEEE Transactions on Circuits and Systems II: Express Briefs, Vol. 71, No. 6, 3216-3220, Jun. 2024.

11. Pang, Jupeng, Kui Wang, Mingzhe Wu, Wei Zhou, Zedong Zheng, and Yongdong Li, "Modulation and soft-switching optimization control of multilevel dual active bridge DC-DC converters," IEEE Transactions on Power Electronics, Vol. 40, No. 1, 1936-1951, 2025.

12. Song, Chaochao, Ning Wang, Ariya Sangwongwanich, Yongheng Yang, and Frede Blaabjerg, "Evaluation of capacitor voltage balancing control strategies for multilevel DAB converters," IEEE Transactions on Power Electronics, Vol. 39, No. 12, 15548-15564, Dec. 2024.

13. Ning, Guangfu, Ben Dai, Mei Su, Liangcai Shu, and Wenjing Xiong, "Interleaved buck-integrated modular multilevel DC transformer with wide voltage range for DC distribution grids," IEEE Transactions on Power Electronics, Vol. 39, No. 10, 12213-12223, Oct. 2024.

14. Jin, Haozhe, Xin Li, Wu Chen, Bangbang He, Siyi Luo, and Yueyin Wang, "Modeling and current feedforward control of series-arm modular multilevel DC/DC converter with quasi-square-wave modulation," IEEE Transactions on Power Electronics, Vol. 40, No. 5, 6933-6950, May 2025.

15. Chaurasiya, Saran and Bhim Singh, "A load adaptive hybrid DPS control for DAB to secure minimum current stress and full ZVS operation over wide load and voltage conversion ratio," IEEE Transactions on Industry Applications, Vol. 59, No. 2, 1901-1911, 2023.

16. Li, Zhixiang, Yunqing Pei, Jiahao Liu, Laili Wang, and Zesong Leng, "Design and optimization of the MMC-based power electronic transformer considering ripple power transfer," IEEE Transactions on Power Electronics, Vol. 40, No. 4, 5352-5370, Apr. 2025.

17. Yang, Ping, Mixin Wang, Ling Liu, Shusong Liu, Xi Chen, Yusheng Peng, and Jianping Xu, "Optimal dual-side asymmetric modulation strategy for dual active bridge converter to improve efficiency over a wide voltage range," IEEE Journal of Emerging and Selected Topics in Power Electronics, Vol. 12, No. 2, 1596-1607, Apr. 2024.

18. Wang, Yi, Yinxiao Zhu, and Huiqing Wen, "PSO-based current stress optimization for three-level dual active bridge DC-DC converters," 2020 Chinese Automation Congress (CAC), 4283-4287, Shanghai, China, 2020.

19. Chaurasiya, Saran and Bhim Singh, "A bidirectional fast EV charger for wide voltage range using three-level DAB based on current and voltage stress optimization," IEEE Transactions on Transportation Electrification, Vol. 9, No. 1, 1330-1340, 2023.

20. Song, Chaochao, Ariya Sangwongwanich, Yongheng Yang, Yiwei Pan, and Frede Blaabjerg, "Analysis and optimal modulation for 2/3-level DAB converters to minimize current stress with five-level control," IEEE Transactions on Power Electronics, Vol. 38, No. 4, 4596-4612, 2023.

21. Zhou, Shanglian, Igor Lashkov, Hao Xu, Guohui Zhang, and Yin Yang, "Optimized long short-term memory network for LiDAR-based vehicle trajectory prediction through bayesian optimization," IEEE Transactions on Intelligent Transportation Systems, Vol. 26, No. 3, 2988-3003, Mar. 2025.

22. Borah, Jintu, Mohd. Shahrul Mohd. Nadzir, Mylene G. Cayetano, Hemant Ghayvat, Shubhankar Majumdar, and Gautam Srivastava, "Timezone-aware auto-regressive long short-term memory model for multipollutant prediction," IEEE Transactions on Systems, Man, and Cybernetics: Systems, Vol. 55, No. 1, 344-352, Jan. 2025.

23. Emu, Mahzabeen, Taufiq Rahman, Salimur Choudhury, and Kai Salomaa, "Quantum long short-term memory-assisted optimization for efficient vehicle platooning in connected and autonomous systems," IEEE Open Journal of the Computer Society, Vol. 6, 119-128, 2024.

24. Li, Wenbin, Changwei Lin, Seyedmehdi Hosseininasab, Lennart Bauer, and Stefan Pischinger, "Lithium-ion battery SOH estimation based on a long short-term memory model using short history data," IEEE Transactions on Power Electronics, Vol. 40, No. 5, 7370-7384, May 2025.

25. Zewail, Mohammed S. M., Mohamed R. Elkadeem, Mohamed M. M. Salama, Diaa-Eldin A. Mansour, and Mohamed M. F. Darwish, "Quadratic interpolation optimization for planning of renewable energy-based DG units in power system networks," 2024 25th International Middle East Power System Conference (MEPCON), 1-6, 2024.

26. Zhao, Weiguo, Liying Wang, Zhenxing Zhang, Seyedali Mirjalili, Nima Khodadadi, and Qiang Ge, "Quadratic Interpolation Optimization (QIO): A new optimization algorithm based on generalized quadratic interpolation and its applications to real-world engineering problems," Computer Methods in Applied Mechanics and Engineering, Vol. 417, 116446, 2023.

27. Ekinci, Serdar, Davut Izci, Veysel Gider, Laith Abualigah, Mohit Bajaj, and Ievgen Zaitsev, "Efficient control strategy for electric furnace temperature regulation using quadratic interpolation optimization," Scientific Reports, Vol. 15, No. 1, 154, 2025.

28. Sun, Yongjun, Tong Yang, and Zujun Liu, "A whale optimization algorithm based on quadratic interpolation for high-dimensional global optimization problems," Applied Soft Computing, Vol. 85, 105744, 2019.

29. Su, Yang and Yu Mao Wu, "A fast iterative physical optics method with quadratic amplitude and phase integral terms," IEEE Journal on Multiscale and Multiphysics Computational Techniques, Vol. 9, 92-103, 2024.

30. Zhu, Linwei, Xiaoqi Cheng, Xiaosong Li, Haishu Tan, and Hujun Chen, "Research on calibration method for line-structured light sensor based on spatial quadratic surface fitting," Measurement Science and Technology, Vol. 36, No. 1, 015039, 2024.

31. Li, Yuan and Gregory J. Kish, "The modular multilevel DC converter with inherent minimization of arm current stresses," IEEE Transactions on Power Electronics, Vol. 35, No. 12, 12787-12800, Dec. 2020.

32. Ansari, Mohd Shadab, Anshuman Shukla, and Himanshu J. Bahirat, "A novel hybrid multilevel DC-DC converter employing trapezoidal modulation," IEEE Transactions on Power Electronics, Vol. 38, No. 10, 12679-12691, Oct. 2023.

33. Jin, Haozhe, Wu Chen, and Yueyin Wang, "A series-arm modular multilevel DC/DC converter with variable duty cycle quasi-square-wave modulation for ZVS operation," IEEE Transactions on Power Electronics, Vol. 39, No. 10, 12185-12199, Oct. 2024.

34. Lin, Fanfan, Xin Zhang, Xinze Li, Changjiang Sun, Gabriel Zsurzsan, Wenjian Cai, and Chang Wang, "Ai-based design with data trimming for hybrid phase shift modulation for minimum-current-stress dual active bridge converter," IEEE Journal of Emerging and Selected Topics in Power Electronics, Vol. 12, No. 2, 2268-2280, Apr. 2024.

35. Wang, Ning, Yanbo Wang, Weihao Hu, Jianjun Chen, Zhuoqiang Li, and Zhe Chen, "A PSO-ANN-aided DC-bias current suppression strategy for three-phase DAB converter with variable duty cycles," IEEE Transactions on Industrial Electronics, Vol. 72, No. 2, 1586-1596, Feb. 2025.

Dr. Dazhuan Yu

Dr. Xin Chow

Dr. Zefeng Lin

Mr. Xiaobing Niu
