Abstract

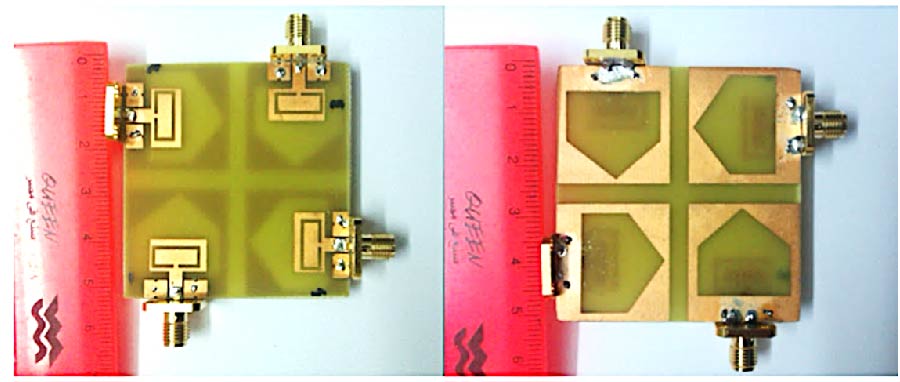

This study introduces a compact four-port UWB MIMO antenna featuring dual-band rejection capabilities aimed at suppressing interference from coexisting wireless services, specifically WiMAX at 3.5 GHz and WLAN at 5.5 GHz. The antenna employs an inverted C-slot etched into the radiator to achieve the WiMAX notch, while EBG structures are integrated to enable suppression of the WLAN band at 5.5 GHz. Fabricated on a low-cost FR4 substrate with dimensions 52 × 52 × 1.5 mm³ (ε_r = 4.5), the proposed design achieves high port isolation exceeding 15 dB across the 3.1-10.6 GHz UWB range. Simulated results show an operational bandwidth from 3 to 11 GHz, extending beyond 12 GHz in measurements, without the need for additional filters or decoupling structures. The antenna exhibits quasi-omnidirectional radiation patterns with a peak gain of 7.2 dBi and significant gain suppression at the notch frequencies (-1.5 dBi at 3.5 GHz and -1.2 dBi at 5.5 GHz). It maintains a VSWR below 2 across the UWB and achieves radiation efficiency above 90% outside the notched bands. The envelope correlation coefficient remains below 0.005, enabling a high diversity gain approaching 10 dB. The EBG structures effectively reduce mutual coupling, allowing a compact element spacing of just 2 mm (approximately λ/12.5 at 12 GHz). Both simulation and measurement results validate the proposed design's suitability for mitigating co-channel interference in UWB-MIMO applications, including satellite communications in the S/C/X bands and high-speed wireless systems.

1. Ibrahim, Ahmed A. and Mohamed Fathy Abo Sree, "UWB MIMO antenna with 4-element, compact size, high isolation and single band rejection for high-speed wireless networks," Wireless Networks, Vol. 28, No. 7, 3143-3155, 2022.
doi:10.1007/s11276-022-03019-4 Google Scholar

2. Al-Gburi, A., Zahriladha Zakaria, Merih Palandoken, Imran Mohd Ibrahim, A. Althuwayb, Sarosh Ahmad, and Samir Salem Al-Bawri, "Super compact UWB monopole antenna for small IoT devices," Comput. Mater. Contin., Vol. 73, No. 3, 2785-2799, 2022. Google Scholar

3. Kumar, Praveen, Tanweer Ali, Sameena Pathan, Krishnamurthy Nayak, Taimoor Khan, Ahmed A. Kishk, et al., "A quad port dual band notch UWB MIMO antenna using hybrid decoupling structure," Results in Engineering, Vol. 23, 102551, 2024.
doi:10.1016/j.rineng.2024.102551 Google Scholar

4. Saritha, Vanka, V. N. Koteswara Rao Devana, M. Bhagya Lakshmi, Md. Ahsan Halimi, G. Devi, Nageswara Rao Lavuri, and Ahmed J. A. Al-Gburi, "Low-profile four-port MIMO antenna realizing penta-band notches for UWB systems," Optik, Vol. 336, 172454, 2025.
doi:10.1016/j.ijleo.2025.172454 Google Scholar

5. Kumar, Ashish, Gurmeet Singh, Muhannad K. Abdulhameed, Sarah R. Hashim, and Ahmed J. A. Al-Gburi, "Development of fractal 5G MIMO antenna for sub 6 GHz wireless automotive applications," Progress In Electromagnetics Research M, Vol. 130, 121-128, 2024.
doi:10.2528/pierm24102403 Google Scholar

6. Thakur, Ekta, Naveen Jaglan, Anupma Gupta, and Ahmed Jamal Abdullah Al-Gburi, "Multi-band notched circular polarized MIMO antenna for ultra-wideband applications," Progress In Electromagnetics Research M, Vol. 125, 87-95, 2024.
doi:10.2528/pierm24012804 Google Scholar

7. Kumar, Praveen, Ajit K. Singh, Ranjeet Kumar, Rashmi Sinha, Santosh K. Mahto, Arvind Choubey, and Ahmed Jamal Abdullah Al-Gburi, "High isolated defected ground structure based elliptical shape dual element MIMO antenna for S-band applications," Progress In Electromagnetics Research C, Vol. 143, 67-74, 2024.
doi:10.2528/pierc24031304 Google Scholar

8. Sharma, Manish, Vigneswaran Dhasarathan, Shobhit K. Patel, and Truong Khang Nguyen, "An ultra-compact four-port 4 × 4 superwideband MIMO antenna including mitigation of dual notched bands characteristics designed for wireless network applications," AEU --- International Journal of Electronics and Communications, Vol. 123, 153332, 2020. Google Scholar

9. Mohanty, A. K., S. Mishra, and M. Panigrahi, "Four-port triple band notched UWB-MIMO antenna for 5G and IoT applications," Wireless Personal Communications, Vol. 123, No. 1, 107-122, 2022. Google Scholar

10. Kareem, Q. H. and M. J. Farhan, "Compact quad-port UWB-MIMO antenna with single band-notch using octagonal design," Wireless Personal Communications, Vol. 123, No. 2, 1419-1436, 2022. Google Scholar

11. Jhunjhunwala, Vikash Kumar, Pramod Kumar, Arun P. Parameswaran, Pallavi R. Mane, Om Prakash Kumar, Tanweer Ali, Sameena Pathan, Shweta Vincent, and Praveen Kumar, "A four port flexible UWB MIMO antenna with enhanced isolation for wearable applications," Results in Engineering, Vol. 24, 103147, 2024.
doi:10.1016/j.rineng.2024.103147 Google Scholar

12. Mohamed, Hesham A. and Mohamed Aboualalaa, "A low profile super UWB-MIMO antenna with D-shaped for satellite communications, 5G and beyond applications," Scientific Reports, Vol. 15, No. 1, 15660, 2025. Google Scholar

13. Irshad Khan, Muhammad, Muhammad Irfan Khattak, Saeed Ur Rahman, Abdul Baseer Qazi, Ahmad Abdeltawab Telba, and Abdelrazik Sebak, "Design and investigation of modern UWB-MIMO antenna with optimized isolation," Micromachines, Vol. 11, No. 4, 432, 2020.
doi:10.3390/mi11040432 Google Scholar

14. Dkiouak, Aziz, Mohssine El Ouahabi, Saad Chakkor, Mostafa Baghouri, Alia Zakriti, and Youssef Lagmich, "High performance UWB MIMO antenna by using neutralization line technique," Progress In Electromagnetics Research C, Vol. 131, 185-195, 2023.
doi:10.2528/pierc23011104 Google Scholar

15. Govindan, Thennarasi, Sandeep Kumar Palaniswamy, Malathi Kanagasabai, Sachin Kumar, Thipparaju Rama Rao, and Mohammed Gulam Nabi Alsath, "Conformal quad-port UWB MIMO antenna for body-worn applications," International Journal of Antennas and Propagation, Vol. 2021, No. 1, 9409785, 2021.
doi:10.1155/2021/9409785 Google Scholar

16. Rahim, Sajjad, Abubaker Ahmed Elobied, Wei Huang, and Xue-Xia Yang, "Super-UWB MIMO antenna with dual band-notched and high gain," Radio Science, Vol. 57, No. 11, 1-9, 2022. Google Scholar

17. Abbas, Anees, Niamat Hussain, Md Abu Sufian, Wahaj Abbas Awan, Jinkyu Jung, Sang Min Lee, and Nam Kim, "Highly selective multiple-notched UWB-MIMO antenna with low correlation using an innovative parasitic decoupling structure," Engineering Science and Technology, An International Journal, Vol. 43, 101440, 2023.
doi:10.1016/j.jestch.2023.101440 Google Scholar

18. Tighilt, Yamina, Chahrazed Bensid, Djamel Sayad, Samira Mekki, Rami Zegadi, Mohamed Lamine Bouknia, Issa Elfergani, Pankaj Singh, Jonathan Rodriguez, and Chemseddine Zebiri, "Low-profile UWB-MIMO antenna system with enhanced isolation using parasitic elements and metamaterial integration," Electronics, Vol. 12, No. 23, 4852, 2023.
doi:10.3390/electronics12234852 Google Scholar

19. Al Gburi, Ahmed Jamal Abdullah, "5G MIMO antenna: Compact design at 28/38 GHz with metamaterial and SAR analysis for mobile phones," Przegląd Elektrotechniczny, Vol. 100, No. 4, 171-174, 2024. Google Scholar

20. Wang, Minghuan, Jingchang Nan, and Jing Liu, "High-isolation UWB MIMO antenna with multiple X-shaped stubs loaded between ground planes," International Journal of Antennas and Propagation, Vol. 2021, No. 1, 1155471, 2021.
doi:10.1155/2021/1155471 Google Scholar

21. Ibrahim, Ahmed A., Mohamed I. Ahmed, and Mai F. Ahmed, "A systematic investigation of four ports MIMO antenna depending on flexible material for UWB networks," Scientific Reports, Vol. 12, No. 1, 14351, 2022.
doi:10.1038/s41598-022-18551-8 Google Scholar

22. Khan, Muhammad S., Syed A. Naqvi, Adnan Iftikhar, Sajid M. Asif, Adnan Fida, and Raed M. Shubair, "A WLAN band-notched compact four element UWB MIMO antenna," International Journal of RF and Microwave Computer-Aided Engineering, Vol. 30, No. 9, e22282, 2020.
doi:10.1002/mmce.22282 Google Scholar

23. Pannu, Preeti and Devendra Kumar Sharma, "A low-profile quad-port UWB MIMO antenna using defected ground structure with dual notch-band behavior," International Journal of RF and Microwave Computer-Aided Engineering, Vol. 30, No. 9, e22288, 2020. Google Scholar

24. Wu, Aiting, Mingyang Zhao, Pengquan Zhang, and Zhonghai Zhang, "A compact four-port MIMO antenna for UWB applications," Sensors, Vol. 22, No. 15, 5788, 2022.
doi:10.3390/s22155788 Google Scholar

25. Salehi, Mahdi and Homayoon Oraizi, "Wideband high gain metasurface-based 4T4R MIMO antenna with highly isolated ports for sub-6 GHz 5G applications," Scientific Reports, Vol. 14, No. 1, 14448, 2024. Google Scholar

26. Kumari, Tejaswita, Anupama Senapati, and Abu Nasar Ghazali, "A UWB-specific metasurface-inspired MIMO antenna with enhanced isolation and gain," Proceedings of the 1st International Conference on Cognitive & Cloud Computing (IC3Com 2024), 30-36, Jaipur, India, 2024.
doi:10.5220/0013266200004646

27. Sharma, Ashutosh, Sanjeev Sharma, Vikas Sharma, Girish Wadhwa, and Rajeev Kumar, "A compact ultra-wideband millimeter-wave four-port multiple-input multiple-output antenna for 5G internet of things applications," Sensors, Vol. 24, No. 22, 7153, 2024.
doi:10.3390/s24227153 Google Scholar

Dr. Maher M. El Tayeb

Dr. Deena Abd El Hamid Salem

Dr. Ali Raafat Mahmoud

Dr. Imran Mohd Ibrahim

Professor Ahmed Jamal Abdullah Al-Gburi

Dr. Mohamed Hassan M. Mahmoud
