Abstract

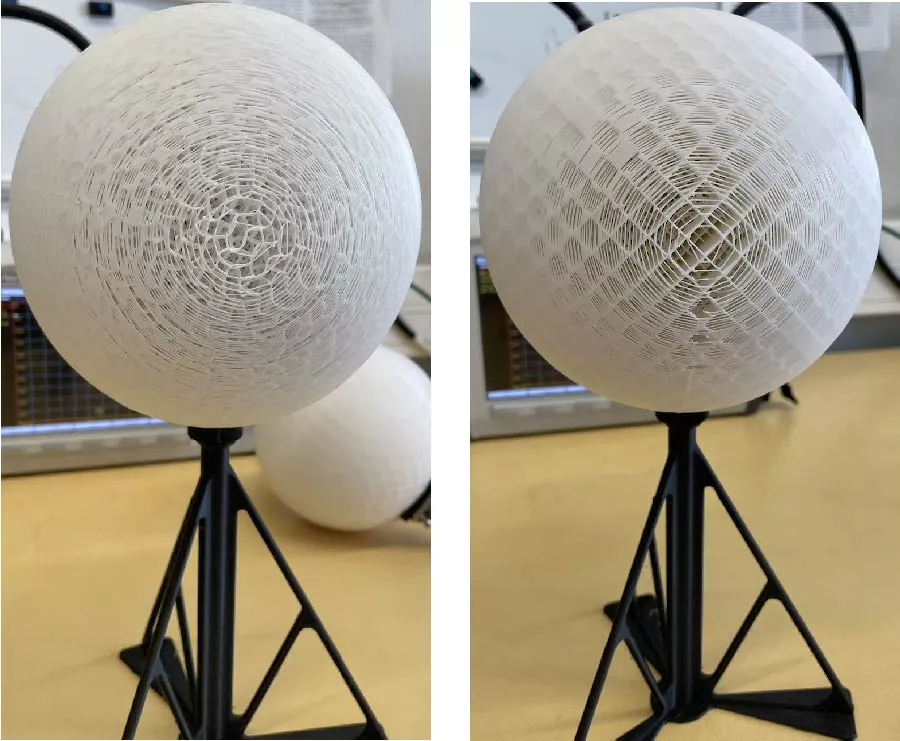

We present the design, fabrication, and experimental characterization of two 150 mm Luneburg lenses for X-band (10 GHz), produced by FFF using standard PLA. The printed PLA permittivity was measured with a 7 mm coaxial cell and EpsiMu, yielding ε_{r, PLA} ≈ 2.5 at 100% infill; a volume-weighted mixing model with perimeter correction was used to set discrete radial infill fractions. Two infill patterns (grid and gyroid) were tested, and waveguide mounts were integrated for reproducible alignment. Insertion-loss tests give 1.5 dB (grid) and 1.1 dB (gyroid) at 10 GHz. Far-field measurements (R = 1.5 m) and Friis-based estimates yield peak gains of 20.5 dBi (grid) and 19.4 dBi (gyroid) (simulation: 20.8 dBi); the waveguide reference gain is 4.9 dBi. Near-field tests at R = 0.15 m show an on-axis S₂₁ improvement of +2.33 dB, which corresponds to a low apparent near-field aperture efficiency (1.8-2.3%) while far-field efficiencies inferred from the measured gains are substantially higher (35-45%). These results confirm that discrete infill grading in low-cost FFF-printed PLA can realize effective Luneburg lenses at X-band, with quantifiable trade-offs among insertion loss, infill geometry, and realized aperture efficiency.

1. Munina, Irina, Igor Grigoriev, Garret O’donnell, and Daniel Trimble, "A review of 3D printed gradient refractive index lens antennas," IEEE Access, Vol. 11, 8790-8809, 2023.
doi:10.1109/access.2023.3239782 Google Scholar

2. Grigoriev, I., I. Munina, and D. Zelenchuk, "3D printed Ku band cylindrical Luneburg lens," Journal of Physics: Conference Series, Vol. 2015, No. 1, 012095, 2021.
doi:10.1088/1742-6596/2015/1/012095

3. Zhang, Shiyu, Ravi Kumar Arya, Shaileshchandra Pandey, Yiannis Vardaxoglou, Will Whittow, and Raj Mittra, "3D‐printed planar graded index lenses," IET Microwaves, Antennas & Propagation, Vol. 10, No. 13, 1411-1419, Oct. 2016.
doi:10.1049/iet-map.2016.0013 Google Scholar

4. Pourahmadazar, Javad, Bal S. Virdee, and Tayeb A. Denidni, "Advancing into millimeter wavelengths for IoT: Multibeam modified planar Luneburg lens antenna with porous plastic material," Electronics, Vol. 13, No. 9, 1605, Apr. 2024.
doi:10.3390/electronics13091605 Google Scholar

5. Baker-Jarvis, J. R., M. D. Janezic, J. H. Grosvenor, Jr., and R. G. Geyer, "Transmission/refection and short-circuit line methods for measuring permittivity and permeability," NIST Technical Note 1355 (TN 1355), National Institute of Standards and Technology (NIST), Boulder, CO, USA, May 1992.

6. Baker-Jarvis, J. R., M. D. Janezic, J. H. Grosvenor, Jr., and R. G. Geyer, Transmission/Refection and Short-Circuit Line Methods for Measuring Permittivity and Permeability, NIST Technical Note 1355 (TN 1355), National Institute of Standards and Technology (NIST), Boulder, CO, USA, May 1992.

7. Colella, Riccardo, Francesco Paolo Chietera, and Luca Catarinucci, "Analysis of FDM and DLP 3D-printing technologies to prototype electromagnetic devices for RFID applications," Sensors, Vol. 21, No. 3, 897, Jan. 2021.
doi:10.3390/s21030897 Google Scholar

8. Hu, Hanxiong, Swapnil Sinha, Nicholas Meisel, and Sven G. Bilén, "Permittivity of 3D-printed nylon substrates with different infill patterns and densities for design of microwave components," Designs, Vol. 4, No. 3, 39, Sep. 2020.
doi:10.3390/designs4030039 Google Scholar

9. Maharjan, Gopal K., Sohaib Z. Khan, Syed H. Riza, and S. H. Masood, "Compressive behaviour of 3D printed polymeric gyroid cellular lattice structure," IOP Conference Series: Materials Science and Engineering, Vol. 455, 012047, Telangana, India, Jul. 13-14, 2018.
doi:10.1088/1757-899X/455/1/012047

10. Guessasma, Sofiane and Sofiane Belhabib, "Infill strategy in 3D printed PLA carbon composites: Effect on tensile performance," Polymers, Vol. 14, No. 19, 4221, Oct. 2022.
doi:10.3390/polym14194221 Google Scholar

11. Sabouroux, Pierre and Doudou Ba, "Epsimu, a tool for dielectric properties measurement of porous media: Application in wet granular materials characterization," Progress In Electromagnetics Research B, Vol. 29, 191-207, 2011.
doi:10.2528/pierb10112209 Google Scholar

12. Scotti, Chloe, Stefan Enoch, Max Groisil, and Nicolas Mallejac, "Characterization of inhomogeneous FDM manufactured materials: Comparison of free-space and mixing laws," Progress In Electromagnetics Research M, Vol. 134, 59-67, 2025.
doi:10.2528/PIERM25031904 Google Scholar

13. Poyanco, Jose-Manuel, Francisco Pizarro, and Eva Rajo-Iglesias, "3D-printing for transformation optics in electromagnetic high-frequency lens applications," Materials, Vol. 13, No. 12, 2700, Jun. 2020.
doi:10.3390/ma13122700 Google Scholar

14. Kadhum, A. H., Salah Al-Zubaidi, and Salah S. Abdulkareem, "Effect of the infill patterns on the mechanical and surface characteristics of 3D printing of PLA, PLA+ and PETG materials," Chemengineering, Vol. 7, No. 3, 46, May 2023.
doi:10.3390/chemengineering7030046 Google Scholar

15. Goulas, Athanasios, Shiyu Zhang, Jack R. McGhee, Darren A. Cadman, Will G. Whittow, John C. Vardaxoglou Yiannis, and Daniel S. Engstrøm, "Fused filament fabrication of functionally graded polymer composites with variable relative permittivity for microwave devices," Materials & Design, Vol. 193, 108871, Aug. 2020.
doi:10.1016/j.matdes.2020.108871 Google Scholar

16. Dahri, M. Hashim, M. Haizal Jamaluddin, Fauziahanim C. Seman, M. Inam Abbasi, N. Fazreen Sallehuddin, Adel Y. I. Ashyap, and M. Ramlee Kamarudin, "Aspects of efficiency enhancement in reflectarrays with analytical investigation and accurate measurement," Electronics, Vol. 9, No. 11, 1887, Nov. 2020.
doi:10.3390/electronics9111887 Google Scholar
